Archive 2022AstrHori 24mm and 40mm pancake for Leica M



Desmolicious
Offline
Details
p.2 #1AstrHori 24mm and 40mm pancake for Leica M
Which frame lines do these two lenses pull up on your Leica?
Aug 17, 2022 at 04:16 PM
leonasj
Offline
[X]
Details
p.2 #2AstrHori 24mm and 40mm pancake for Leica M
ftllens wrote:
well ill test it and see if it affects coverage on movement and if it helps suppress


why you bought rockstar 40/5.6 lens if have gf45?
Aug 18, 2022 at 05:02 AM
ftllens
Offline
Details
p.2 #3AstrHori 24mm and 40mm pancake for Leica M
The 24 pulled up the 50mm cause it was there was no LD, 40 pulls up 35/135

maybe i just keep both gf45 and astr, both are diff form factors
Aug 18, 2022 at 05:06 AM
Desmolicious
Offline
Details
p.2 #4AstrHori 24mm and 40mm pancake for Leica M
ftllens wrote:
The 24 pulled up the 50mm cause it was there was no LD, 40 pulls up 35/135

maybe i just keep both gf45 and astr, both are diff form factors


Ooof. I'd expect the 24 to pull up the 28. I mean, the closest set.
Most 40mm lenses - actually all of them apart from this one - pull up the 50 set.
I prefer the 50 set, as I frame for 50 and assume it will give me some more. Some people like the 35 set w a 40mm lens, but from my tests on a digital M, it is narrower than that.
Aug 18, 2022 at 05:55 PM
ftllens
Offline
Details
p.2 #5AstrHori 24mm and 40mm pancake for Leica M
I think it's closer to the 50 too. I think for careful RF 50 would make more sense so you have headroom like you said.

I don't even use the framelines, I use the pre-imagiparallax for framing and just my left eye for the RF focus, speaking of which is there a way to turn framelines off without disassembly? lol
Aug 18, 2022 at 06:08 PM
rscheffler
Online
Details
p.2 #6AstrHori 24mm and 40mm pancake for Leica M
ftllens wrote:
I think it's closer to the 50 too. I think for careful RF 50 would make more sense so you have headroom like you said.

I don't even use the framelines, I use the pre-imagiparallax for framing and just my left eye for the RF focus, speaking of which is there a way to turn framelines off without disassembly? lol


Err, I have not come across any way to disable frame lines. In my camera (M240), I can only change between white and red. There is no off since it would defeat the expected purpose of an M series OVF.

ftllens wrote:
The 24 pulled up the 50mm cause it was there was no LD, 40 pulls up 35/135

Desmolicious wrote:
Ooof. I'd expect the 24 to pull up the 28. I mean, the closest set.


24mm: just use the full area of the OVF and ignore the frame lines? Since 50/75 is pulled up, that leaves the whole outer area free of frame line clutter.
Aug 18, 2022 at 06:59 PM
ftllens
Offline
Details
p.2 #7AstrHori 24mm and 40mm pancake for Leica M
Maybe my 24 was defective lol, if someone wants to confirm it and the focusing drift thing as well
Aug 18, 2022 at 07:06 PM
ftllens
Offline
Details
p.2 #8AstrHori 24mm and 40mm pancake for Leica M
Okay solution for (most) side flare control was 46 to 37 step down ring (i used sensei pro, cheap from bhp) then a 37mm tapered hood

this is like under $5 with edu lol, also sold on amazon
https://www.bhphotovideo.com/c/product/1068038-REG/sensei_sdrpa_4637_pro_46_37mm_aluminum_step_down.html

then this guy from fotasy
https://www.amazon.com/dp/B0057LV2ZY?psc=1&ref=ppx_yo2ov_dt_b_product_details

will test on gfx to see if it affects coverage tmrrw
Aug 21, 2022 at 10:47 AM
rscheffler
Online
Details
p.2 #9AstrHori 24mm and 40mm pancake for Leica M
Front diameter of that hood looks larger than 37mm, so wondering if just a straight 46mm tube/hood wouldn't do the same? Most such hoods I've found usually step up to the next largest filter size at the front, so in this case 49mm. To keep it at 46mm you'd probably do a 46-43 step down, then get a 43mm straight hood with a 46mm front diameter.

In any case, it's good news that the hood helps with side lighting induced flare.

I'm curious, since the 40mm has mini-MF coverage, is there any wide open vignetting falloff on 24x36mm? Looks minimal on the GFX.

Edited on Aug 21, 2022 at 03:24 PM · View previous versions
Aug 21, 2022 at 03:16 PM
ftllens
Offline
Details
p.2 #10AstrHori 24mm and 40mm pancake for Leica M
I didn't see any vignetting on full frame and didn't notice much vignette on gfx wo.

I'm only testing 46 to 37 because i got the step down thinking that would be enough to block the flare, so i think the straight hood would work well.

on the bright side you can use cheap 37mm filters lol

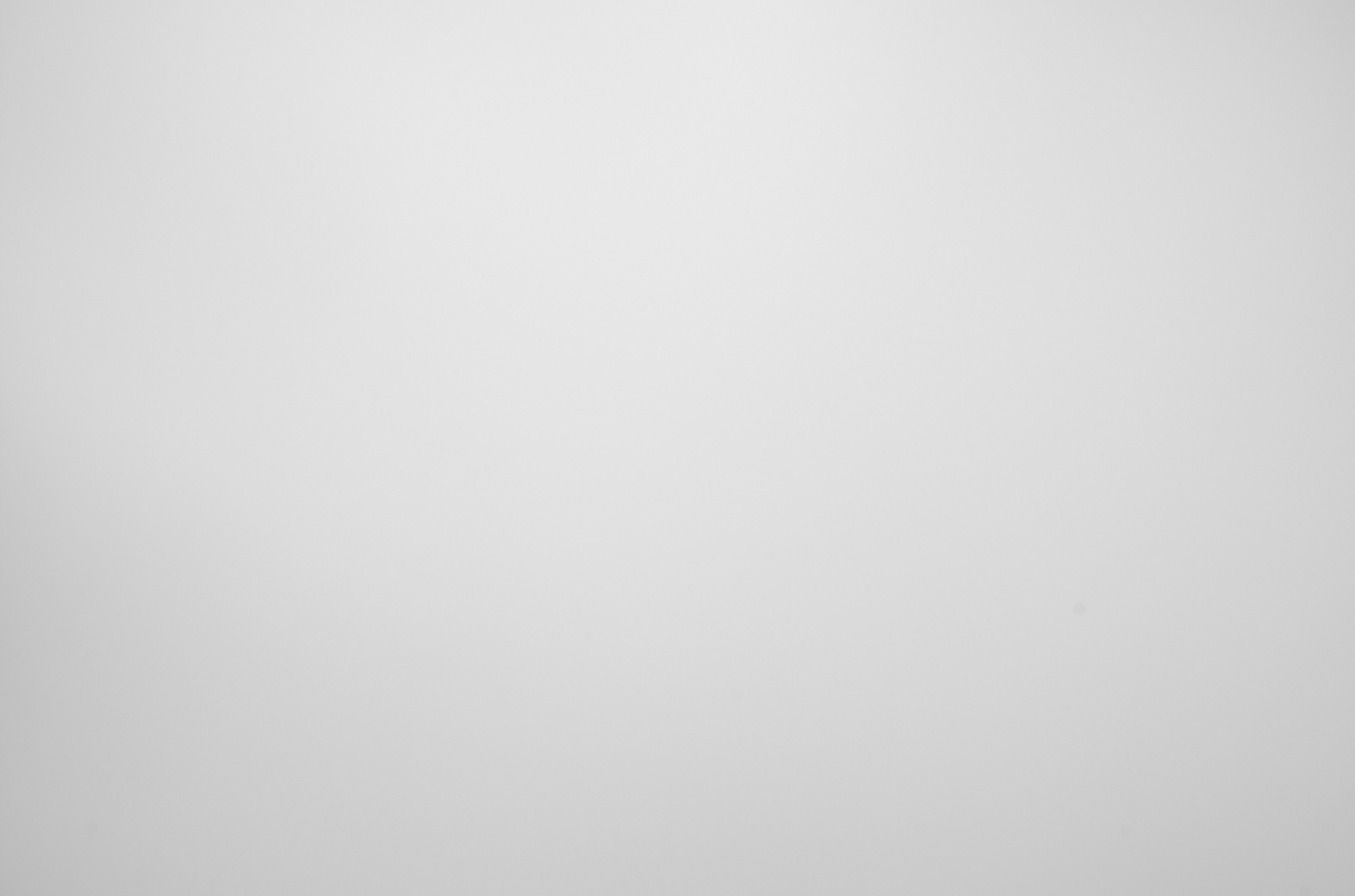

attached is 5.6 facing umbrella with white diffuser, its not perfectly even but you can see no significant falloff (on m10 m)

i think the dog shot was mfd 5.6











Edited on Aug 21, 2022 at 03:36 PM · View previous versions
Aug 21, 2022 at 03:24 PM
rscheffler
Online
Details
p.2 #11AstrHori 24mm and 40mm pancake for Leica M
I agree they could have made the 40mm smaller in diameter, but perhaps they went with 46mm since it's the most common Leica filter size and most M users will have filters in that size. But they could have gone to 39mm, which is also a standard Leica filter size.
Aug 21, 2022 at 03:25 PM
ftllens
Offline
Details
p.2 #12AstrHori 24mm and 40mm pancake for Leica M
this lens is definitely a winner, some people not like the fast focus ring, but it's perfect for me on the m, cause it flashes the RF square back into view quickly regardless of previous position. it has the monochrome aesthetic as well without the price tag lol

if they refined the design a little, it would sell like hotcakes

if i get in the mood ill buy the 24 6.3 again, but i just ordered the cv 21 1.4 again so wont be for a while i think
Aug 21, 2022 at 03:38 PM
leonasj
Offline
[X]
Details
p.2 #13AstrHori 24mm and 40mm pancake for Leica M
for what to buy astrhori 40/5.6 lens? for lightnest or compact? i have gf50 and at f5.6 it is have autofocus,same contrast or maybe better ,same sharpness or maybe better,and only 130gr more weight.
Aug 22, 2022 at 01:29 AM
leonasj
Offline
[X]
Details
p.2 #14AstrHori 24mm and 40mm pancake for Leica M
astrhori made for gfx mount 75mm f4 lens
Aug 22, 2022 at 07:14 AM
ftllens
Offline
Details
p.2 #15AstrHori 24mm and 40mm pancake for Leica M
it's dual-purpose for me since I use both Leica RF and GFX. i would use GF50 on GFX but it's nice having a tiny MF backup (and it's more fun)

the 40mm is also 40mm vs 50mm, only 200-250 usd brand new, and much smaller than the gf50 as well.
Aug 22, 2022 at 08:37 AM
leonasj
Offline
[X]
Details
p.2 #16AstrHori 24mm and 40mm pancake for Leica M
ftllens wrote:
it's dual-purpose for me since I use both Leica RF and GFX. i would use GF50 on GFX but it's nice having a tiny MF backup (and it's more fun)

the 40mm is also 40mm vs 50mm, only 200-250 usd brand new, and much smaller than the gf50 as well.


what is leica RF?
Aug 22, 2022 at 12:01 PM
ftllens
Offline
Details
p.2 #17AstrHori 24mm and 40mm pancake for Leica M
rangefinder on the m lol
Aug 22, 2022 at 12:03 PM
ftllens
Offline
Details
p.2 #18AstrHori 24mm and 40mm pancake for Leica M
alright so it does help quite a bit, but for max angle protection, just get a longer tube hood lol. this tapered hood with no vents looks good on the m10m and works for me ergos wise so ill be keeping this setup. haven't checked for coverage on gfx yet with this
Aug 22, 2022 at 08:58 PM
ftllens
Offline
Details
p.2 #19AstrHori 24mm and 40mm pancake for Leica M
I ended up returning my original copy of the 40, but shortly after ballooned with regret after comparing it to the GF50mm lol

I have sold both the GF 45 and 50 because I don't need the weather sealing/AF/speed.

Just re-ordered the 40mm from here:
https://www.aliexpress.com/item/3256803649384865.html?spm=a2g0o.order_list.0.0.21ef1802NLgwkZ

Use Promo Code: SUUS12 ($12 off)

Total shipped to California including tax was only $170!

Will update when I get it like a month later lol, curious to see if there is copy variance in optics and build quality (helicoids and RF calibration). But I actually expect it to be fairly good.

I can use this 40 on my three systems (Leica M, GFX, and DJI), so this time I will be keeping it if the copy is good.
Sep 05, 2022 at 01:21 PM
leonasj
Offline
[X]
Details
p.2 #20AstrHori 24mm and 40mm pancake for Leica M
ftllens wrote:
yeah, the sun shifting affects stuff more than anything lol


hello, tis astrohir is same rebult with gf mount? https://www.aliexpress.com/item/1005006244964802.html
Nov 23, 2023 at 10:33 AM
