Voigtlander 75mm f/1.9 Ultron Review



rscheffler
Offline
• • • • • •
Upload & Sell: Off
p.13 #1 · p.13 #1 · Voigtlander 75mm f/1.9 Ultron Review


Fred Miranda wrote:
I recently got the Voigtlander 75mm f/1.8 Heliar Classic lens. I've always liked how this lens renders, and I'm going to compare it to the CV 75mm f/1.9 Ultron lens.


Looking forward to the comparison. I had the Heliar about 10 years ago and thought it had very pleasing rendering at nearer distances, like for portraits. But I didn't feel the same at farther distances. IIRC, it's also a fairly large and heavy lens compared to the new 75/1.9.



Sep 08, 2023 at 10:52 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #2 · p.13 #2 · Voigtlander 75mm f/1.9 Ultron Review


If someone has both the Voigtlander 75/1.9 Ultron and the MS Optics 73/1.5 lenses, they can create a strong macro lens combination. The Ultron can be connected directly to the Sonnetar without the need for an adapter. It doesn't have to be specifically the Ultron; any lens with a 49mm thread will work.

Photos by @yukosteel:












Sep 08, 2023 at 11:46 AM
highdesertmesa
Offline
• • • •
Upload & Sell: On
p.13 #3 · p.13 #3 · Voigtlander 75mm f/1.9 Ultron Review


3-row 25 image pano with the 75 1.9 on the M11






M11 + CV 75 1.9 @ f/4




Sep 16, 2023 at 11:35 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #4 · p.13 #4 · Voigtlander 75mm f/1.9 Ultron Review


Yukosteel and I are thinking about swapping the finishes on our camera lenses. I'm going for the multi-coated shiny black paint on mine, and he's opting for the single-coated matte finish on his. I willl post more details and possibly a new article on this topic in the near future!


Sep 25, 2023 at 12:12 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #5 · p.13 #5 · Voigtlander 75mm f/1.9 Ultron Review


Update: It did work, but not completely. We couldn't switch out all the parts, but my MC version will have a glossy black paint appearance on most of the barrel. It's definitely a unique piece.
Yuri got the SC version with flat paint.












Oct 27, 2023 at 12:11 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #6 · p.13 #6 · Voigtlander 75mm f/1.9 Ultron Review


rscheffler wrote:
Looking forward to the comparison. I had the Heliar about 10 years ago and thought it had very pleasing rendering at nearer distances, like for portraits. But I didn't feel the same at farther distances. IIRC, it's also a fairly large and heavy lens compared to the new 75/1.9.


I forgot to do this test. I will compare the CV 75/1.9 to the 75/1.8 Heliar as soon as the rain stops here.



Feb 06, 2024 at 12:37 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #7 · p.13 #7 · Voigtlander 75mm f/1.9 Ultron Review



Back to Quick Links

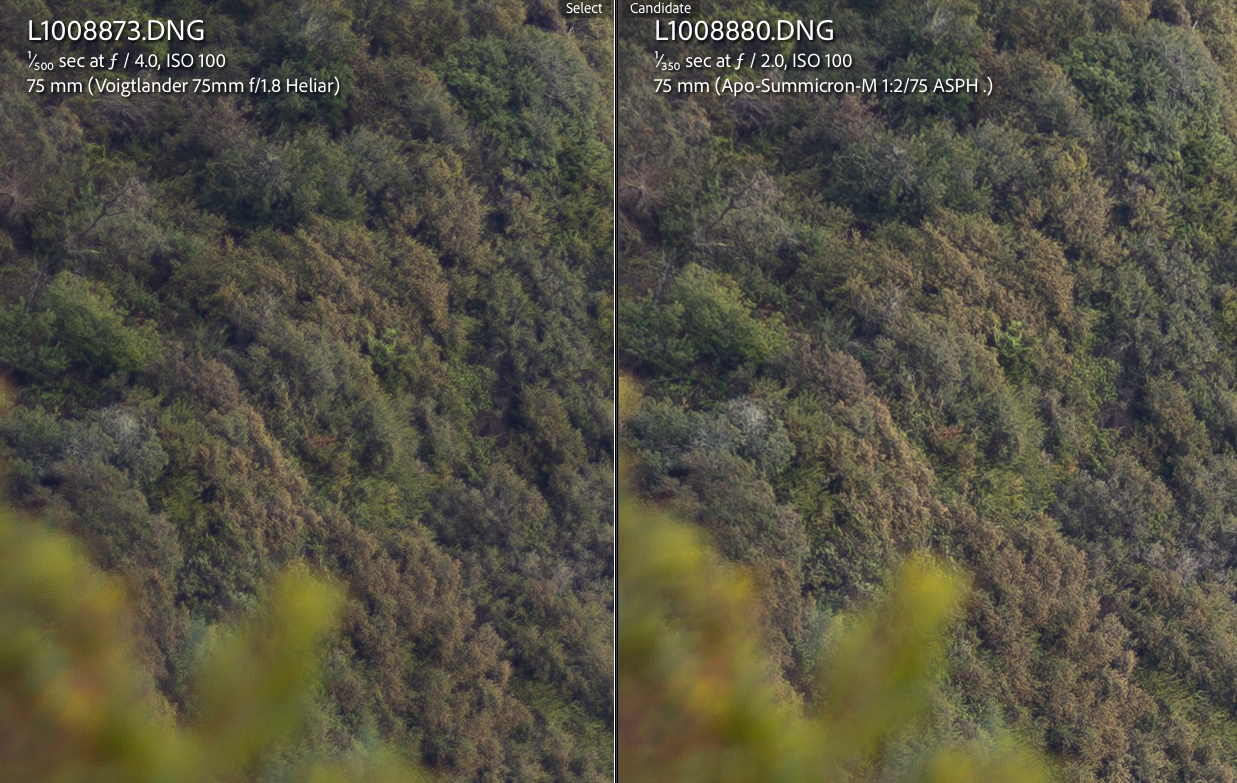

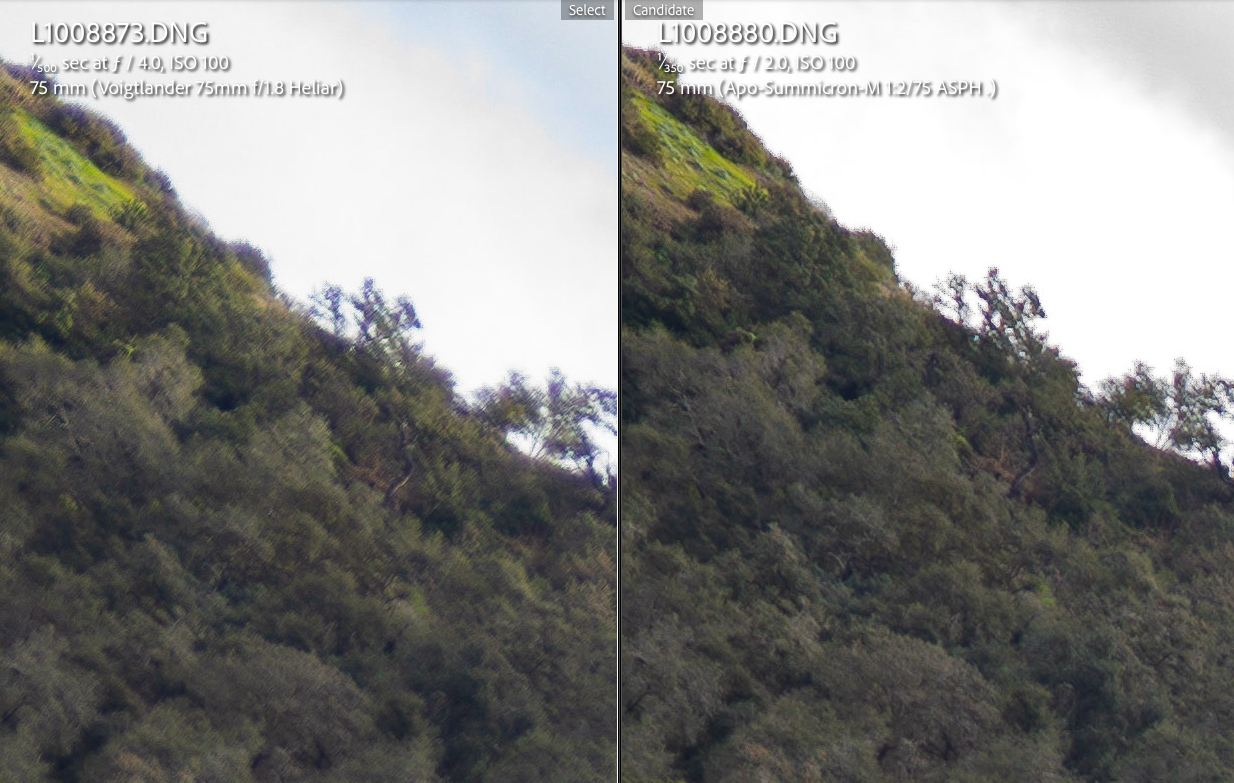

Performance at Infinity: Voigtlander 75mm f/1.9 Ultron vs Voigtlander 75mm f/1.8 Heliar









The Voigtlander 75mm f/1.9 lens outperforms the 75/1.8 Heliar in several aspects. It shows slightly greater resolution and contrast at the center, especially until about f/2.8, where the Heliar begins to catch up. In the mid-zone, the 75/1.9 Ultron isn't exceptional wide open but still surpasses the Heliar. In the corners, the 75/1.9 Ultron initially has a significant advantage from the widest aperture, however the Heliar's performance improves and gets closer to the Ultron from f/5.6 onwards. Both great lenses for landscapes stopped down.

Here is the full image thumbnail showing the area demonstrated at 1:1 magnification.








  1. Distance: Infinity
  2. Camera: Leica M10-R
  3. Focus: Center - Best of three @ 12.4x magnification
  4. WB: Daylight
  5. Lens centered using my decentering test. The Voigtlander 75mm f/1.9 Ultron is perfectly centered.
  6. Software: Lightroom with my default landscape sharpening. All other settings set to default
PS: Distortion is not corrected. All in-camera corrections turned 'off'.

___________


Center resolution
Voigtlander 75mm f/1.9 Ultron vs Voigtlander 75mm f/1.8 Heliar

NOTE: I have coded my CV 75mm f/1.9 Ultron to Leica 75mm f/2 APO





Center: Both lenses wide open (Ultron at f/1.9 and Heliar at f/1.8)







Center at f/2







Center at f/2.8







Center at f/4







Center at f/5.6







Center at f/8




Feb 06, 2024 at 06:20 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #8 · p.13 #8 · Voigtlander 75mm f/1.9 Ultron Review

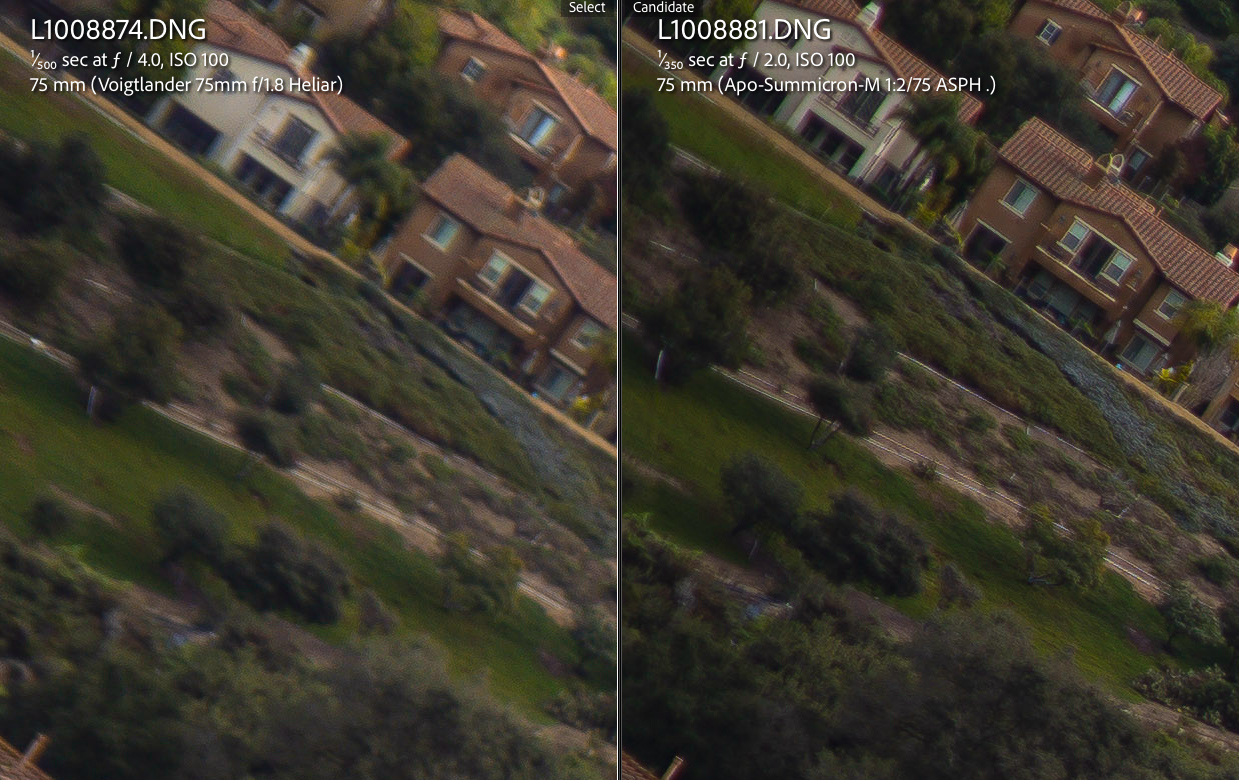

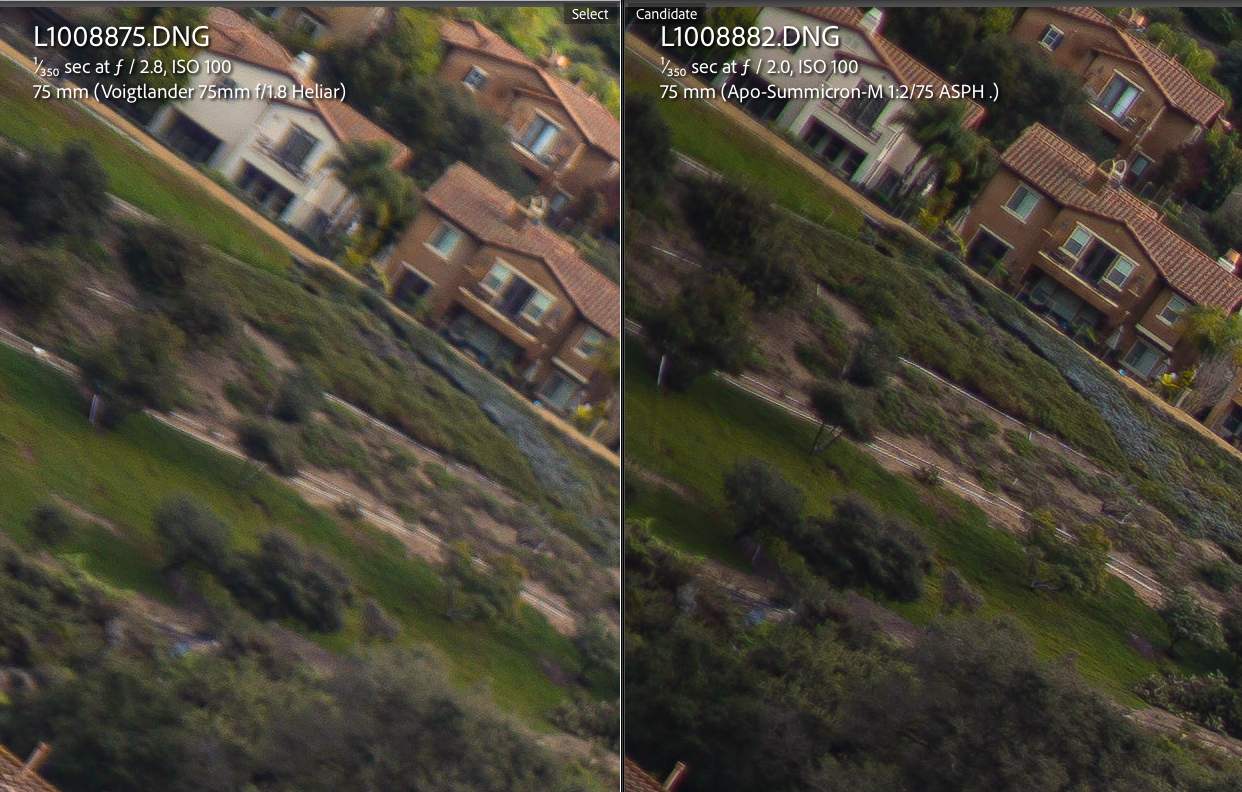

Mid-field resolution
Voigtlander 75mm f/1.9 Ultron vs Voigtlander 75mm f/1.8 Heliar

NOTE: I have coded my CV 75mm f/1.9 Ultron to Leica 75mm f/2 APO





Mid-field: Both lenses wide open (Ultron at f/1.9 and Heliar at f/1.8)







Mid-Field at f/2







Mid-Field at f/2.8







Mid-Field at f/4







Mid-Field at f/5.6







Mid-Field at f/8




Feb 06, 2024 at 06:22 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #9 · p.13 #9 · Voigtlander 75mm f/1.9 Ultron Review

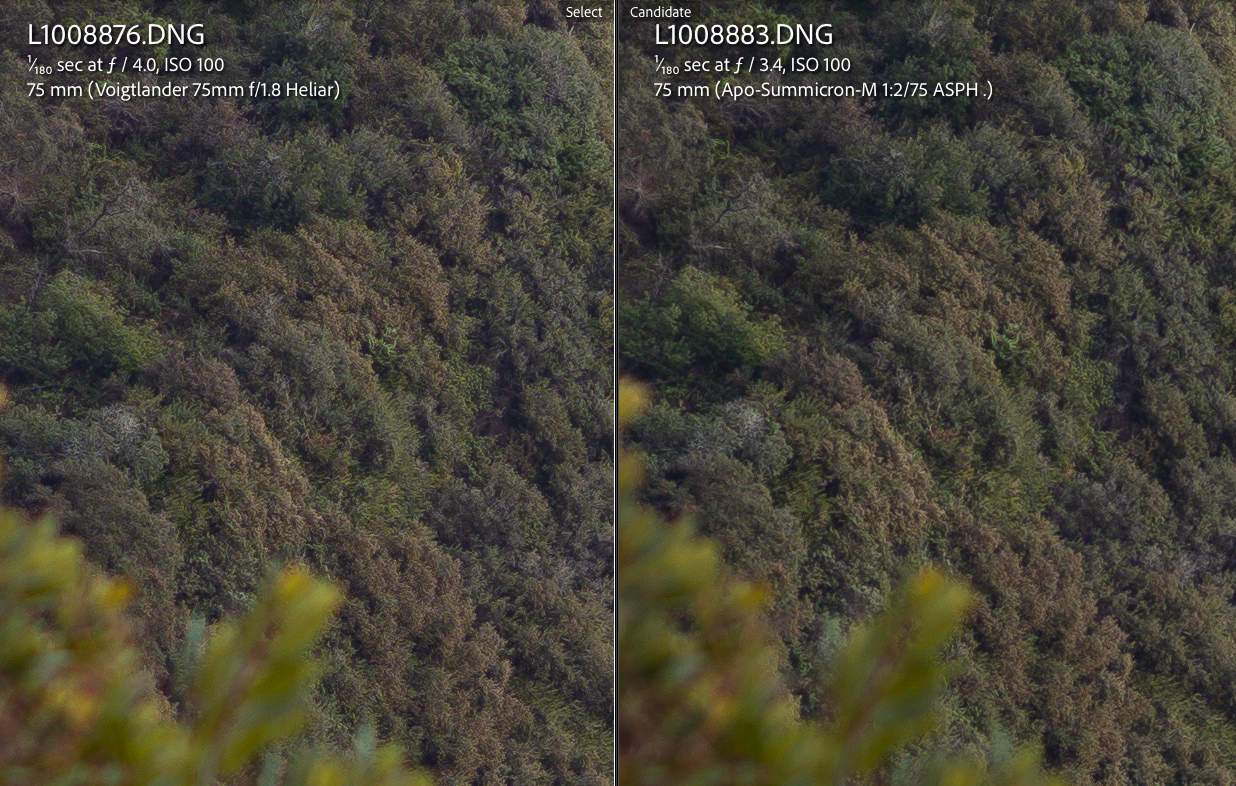

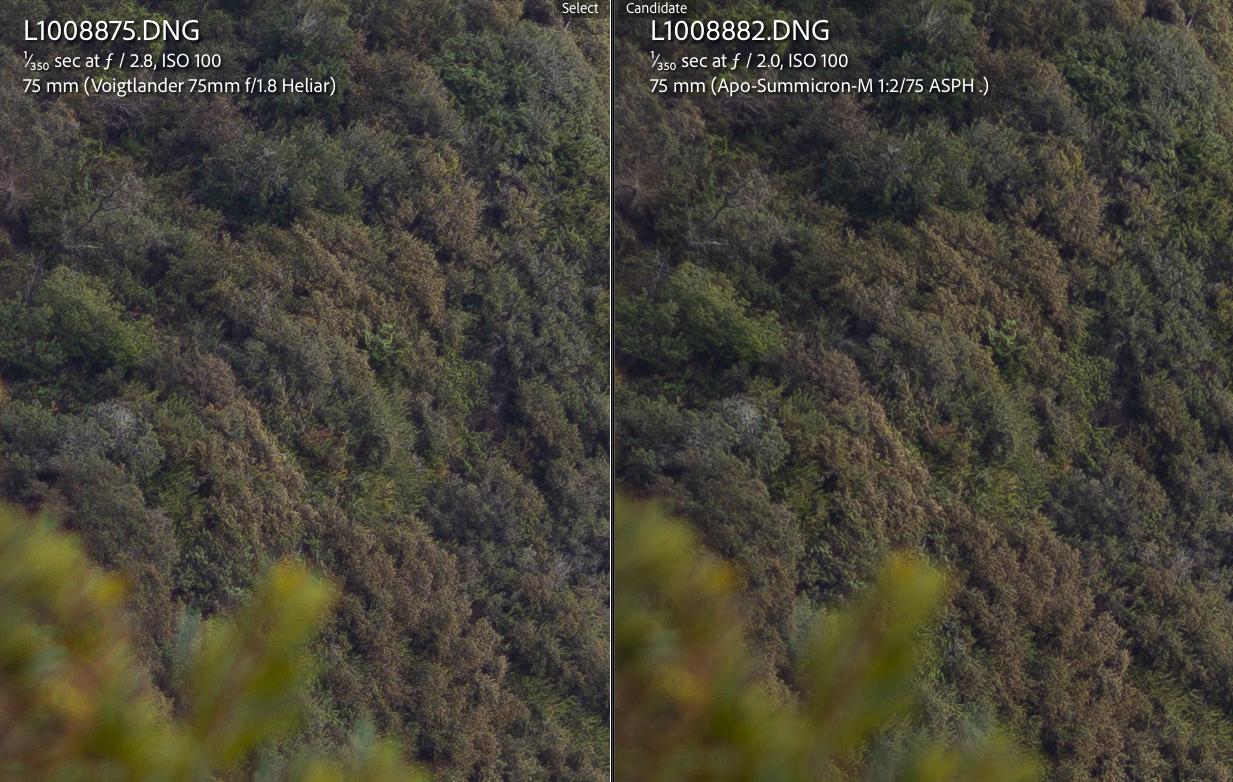

Extreme corner resolution
Voigtlander 75mm f/1.9 Ultron vs Voigtlander 75mm f/1.8 Heliar

NOTE: I have coded my CV 75mm f/1.9 Ultron to Leica 75mm f/2 APO

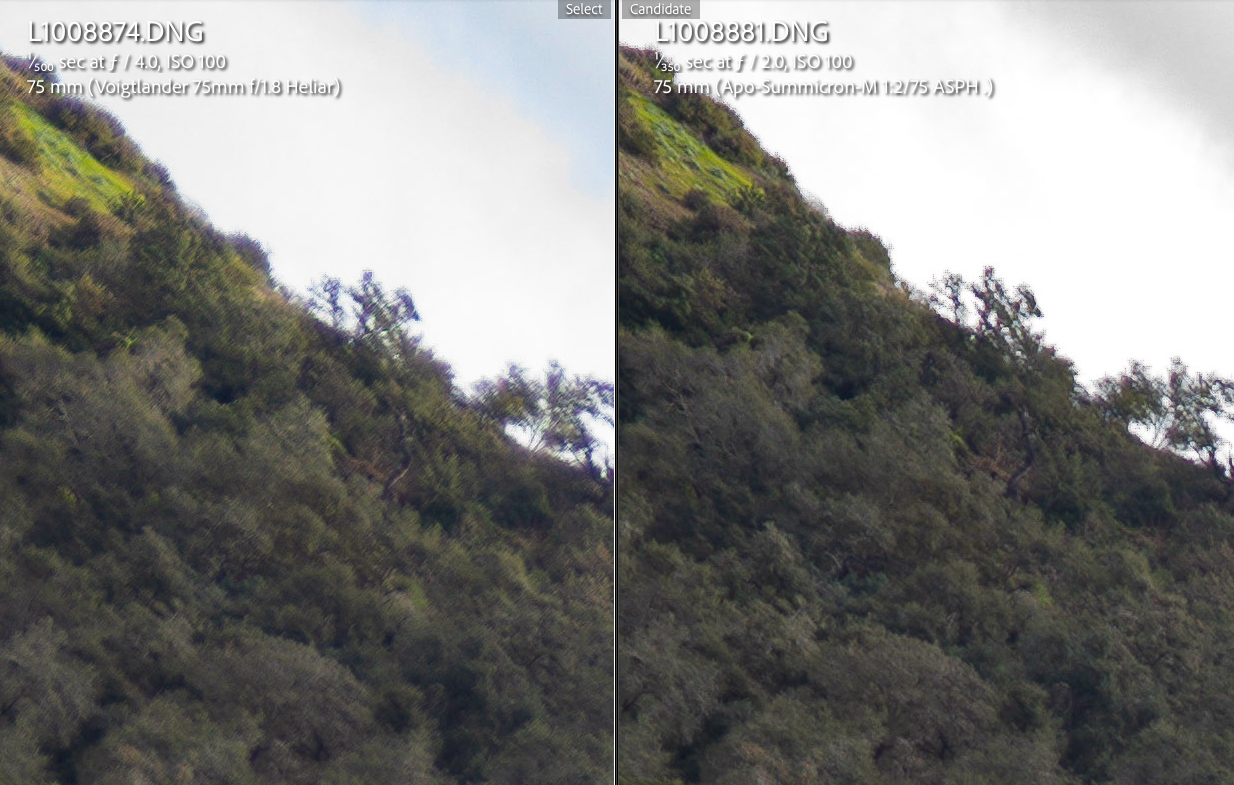

Extreme Corner: Both lenses wide open (Ultron at f/1.9 and Heliar at f/1.8)

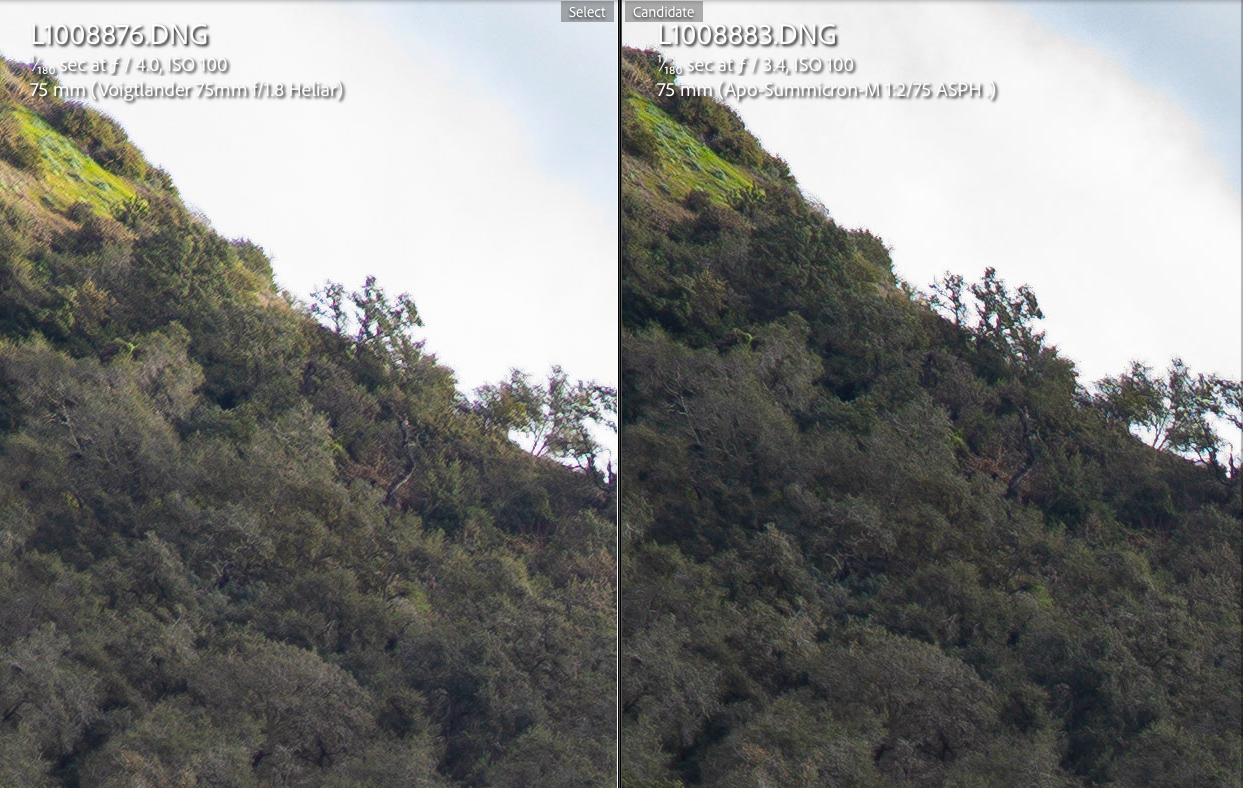

Extreme Corner at f/2







Extreme Corner at f/2.8







Extreme Corner at f/4







Extreme Corner at f/5.6

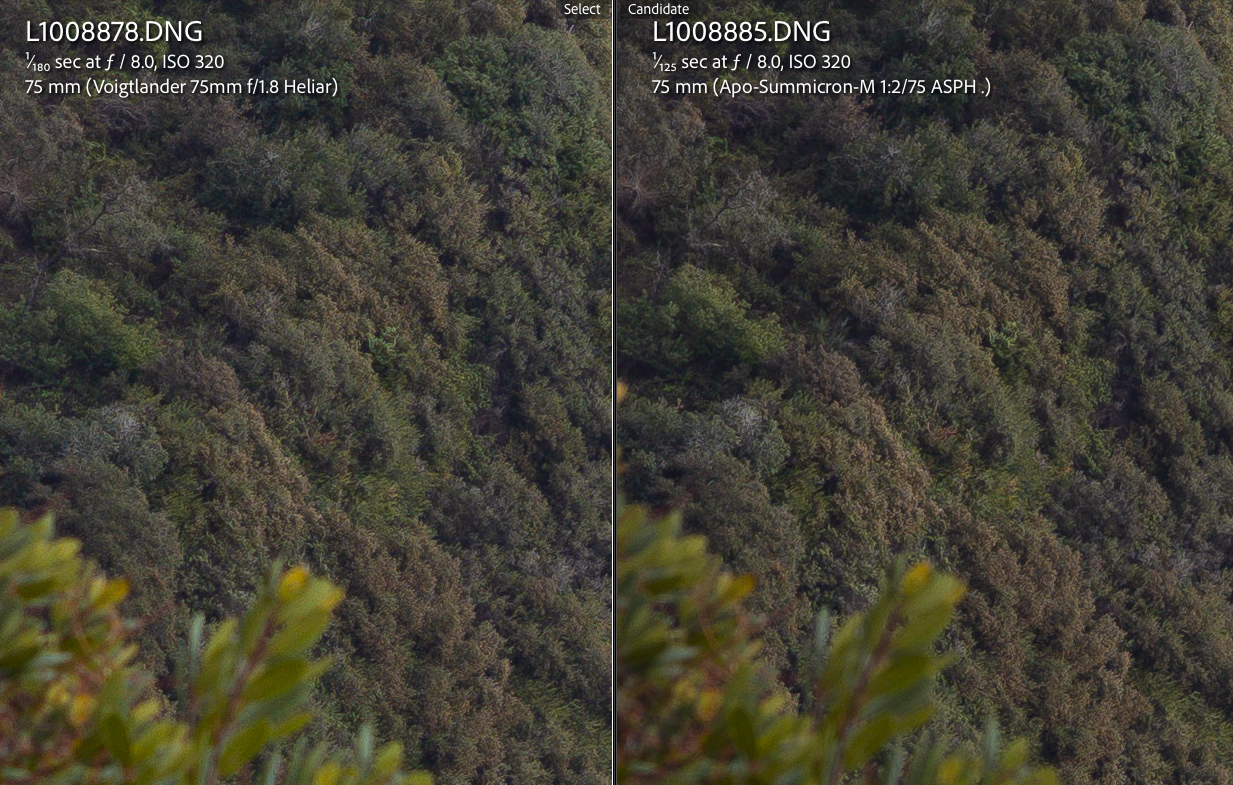

Extreme Corner at f/8




Feb 06, 2024 at 06:23 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #10 · p.13 #10 · Voigtlander 75mm f/1.9 Ultron Review



Back to Quick Links

Rendering compared to Voigtlander 75mm f/1.8 Heliar Classic










As the name suggests, the Voigtlander 75mm f/1.8 Heliar Classic lens offers a more 'classic' look, with slightly more distinct outlining and structure in the background blur, which suits my personal taste. It also has slightly less vignetting, resulting in reduced swirling. When focusing on subjects between 1 to 3 meters, both the Voigtlander 75mm f/1.9 Ultron and the 75mm f/1.8 Heliar produce similar resolution and contrast, and their color aberration control is also similar.

So, even though the 75mm f/1.8 Heliar is no longer being made, there are still used copies available for those who prefer its rendering over the newer 75/1.9 Ultron's smoother appearance. The Heliar is about 100 grams heavier and longer in size compared to the Ultron. Its minimum focusing distance is also limited to 0.9m. They have different distortion characteristics, with the Heliar showing noticeable pincushion distortion, while the other lens exhibits a slight barrel distortion.

When it comes to the feel and appearance, I prefer the classic barrel design of the 75/1.8 Heliar and its looser, more tactile aperture control.

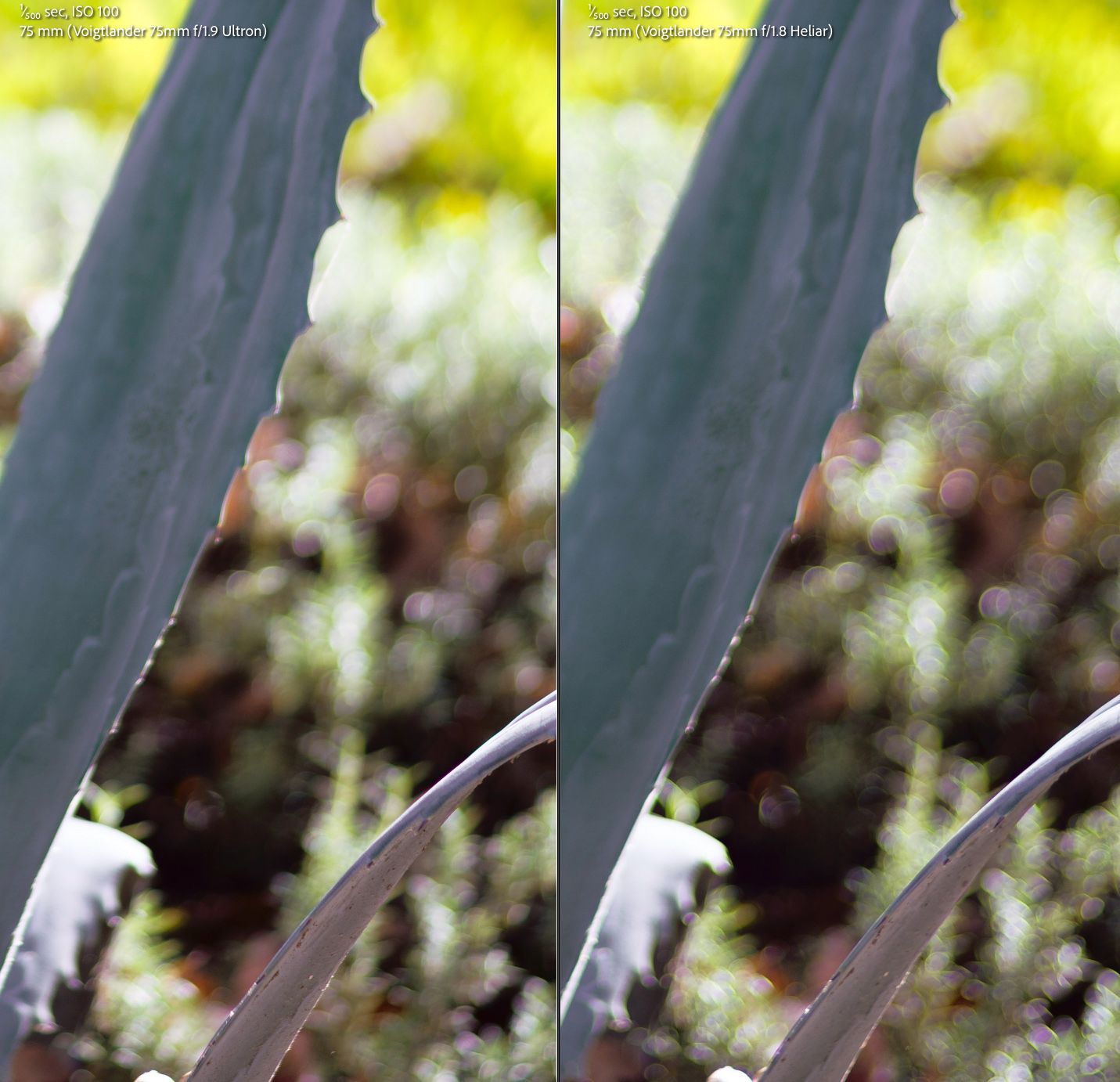

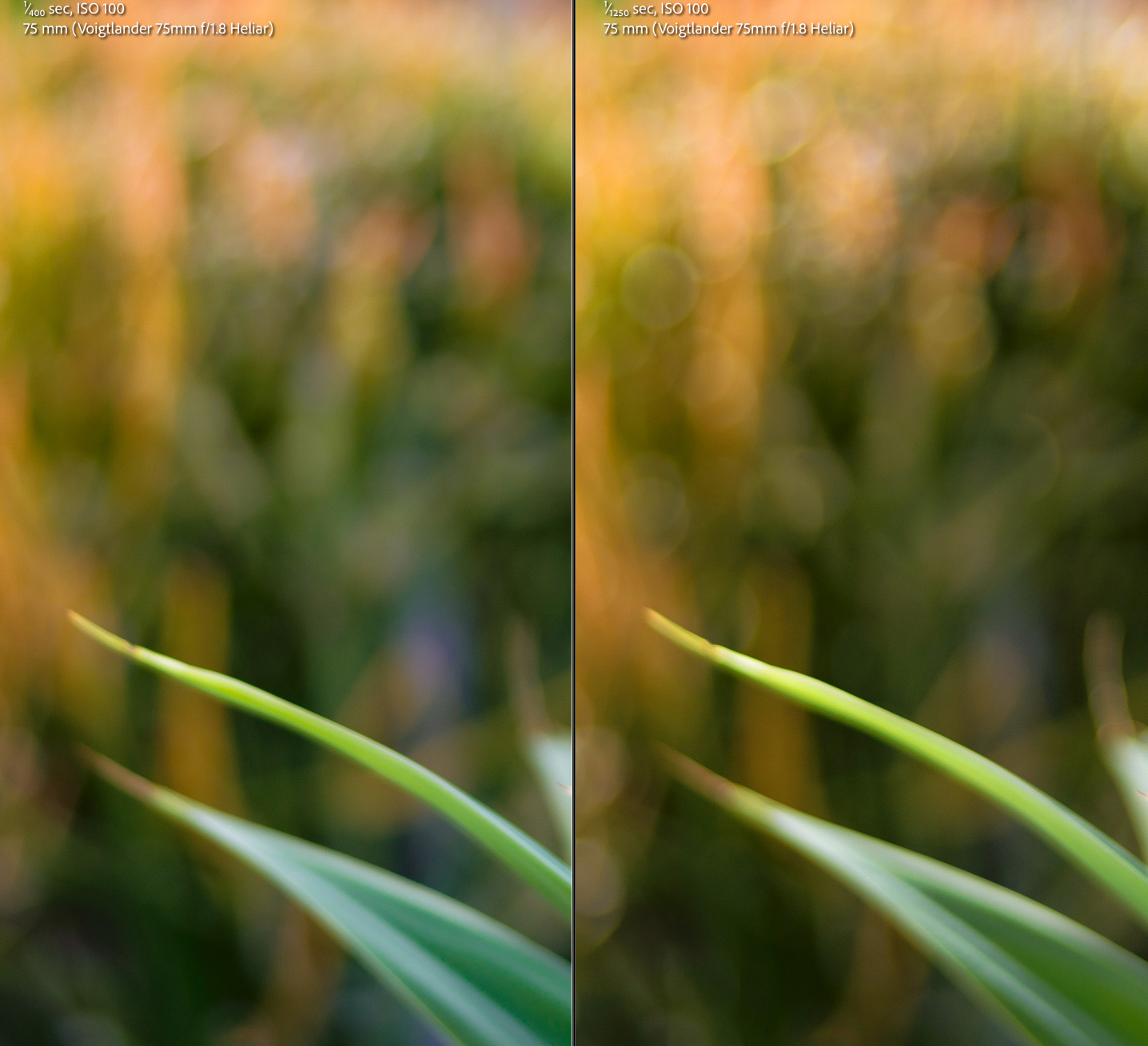

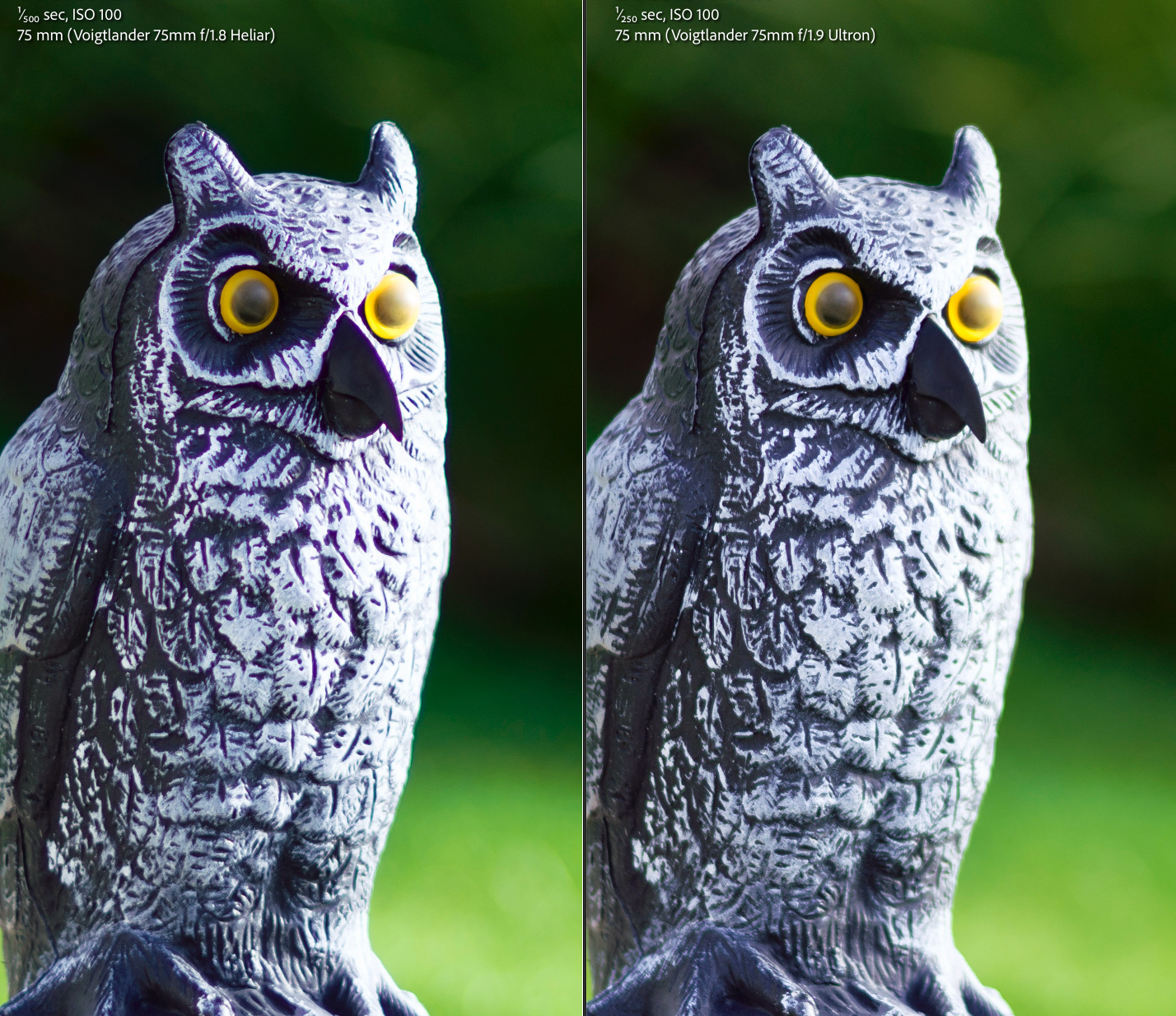

Sample 1: At 1m
Verify the lens name when comparing cropped images.

The Heliar Classic lens offers a more 'classic' rendering, with slightly more outlining and structure in the background out of focus area.




Voigtlander 75mm f/1.8 Heliar (TOP) | Voigtlander 75mm f/1.9 Ultron (BOTTOM)



















Feb 06, 2024 at 11:36 PM



Search in Used Dept.

Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #11 · p.13 #11 · Voigtlander 75mm f/1.9 Ultron Review

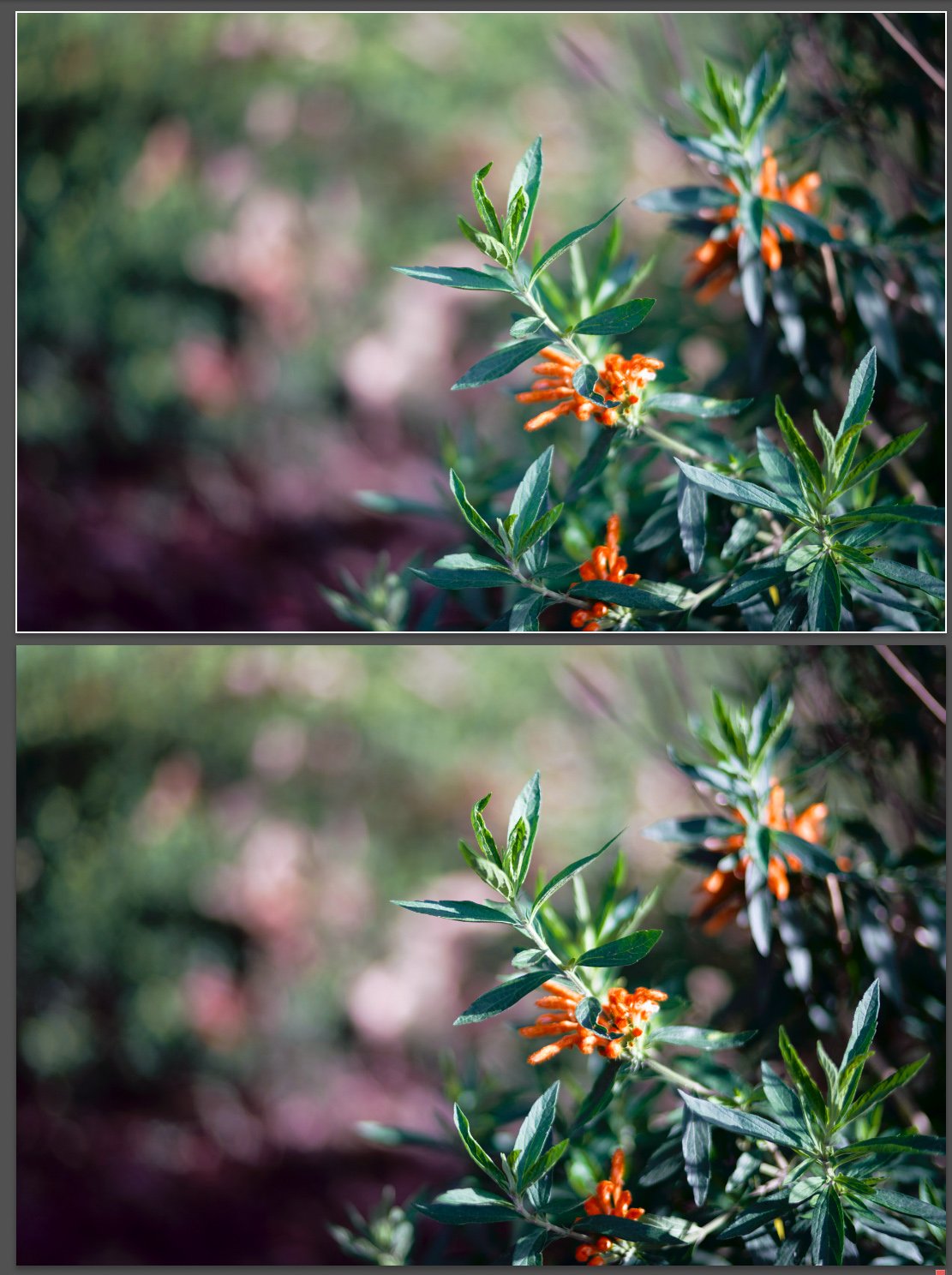

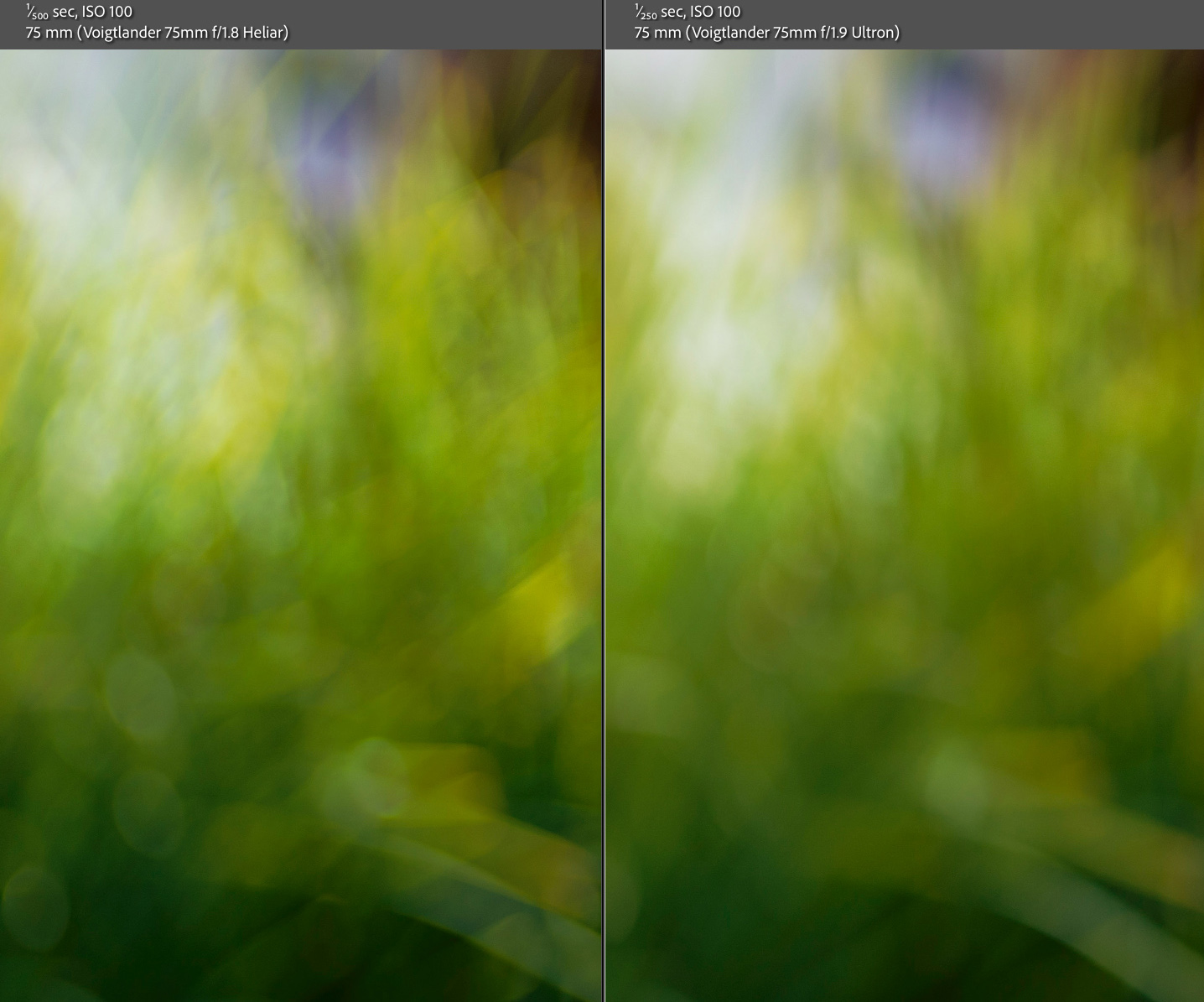

Sample 2: At 2m
Verify the lens name when comparing cropped images.




Voigtlander 75mm f/1.8 Heliar (TOP) | Voigtlander 75mm f/1.9 Ultron (BOTTOM)














Feb 08, 2024 at 04:05 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #12 · p.13 #12 · Voigtlander 75mm f/1.9 Ultron Review

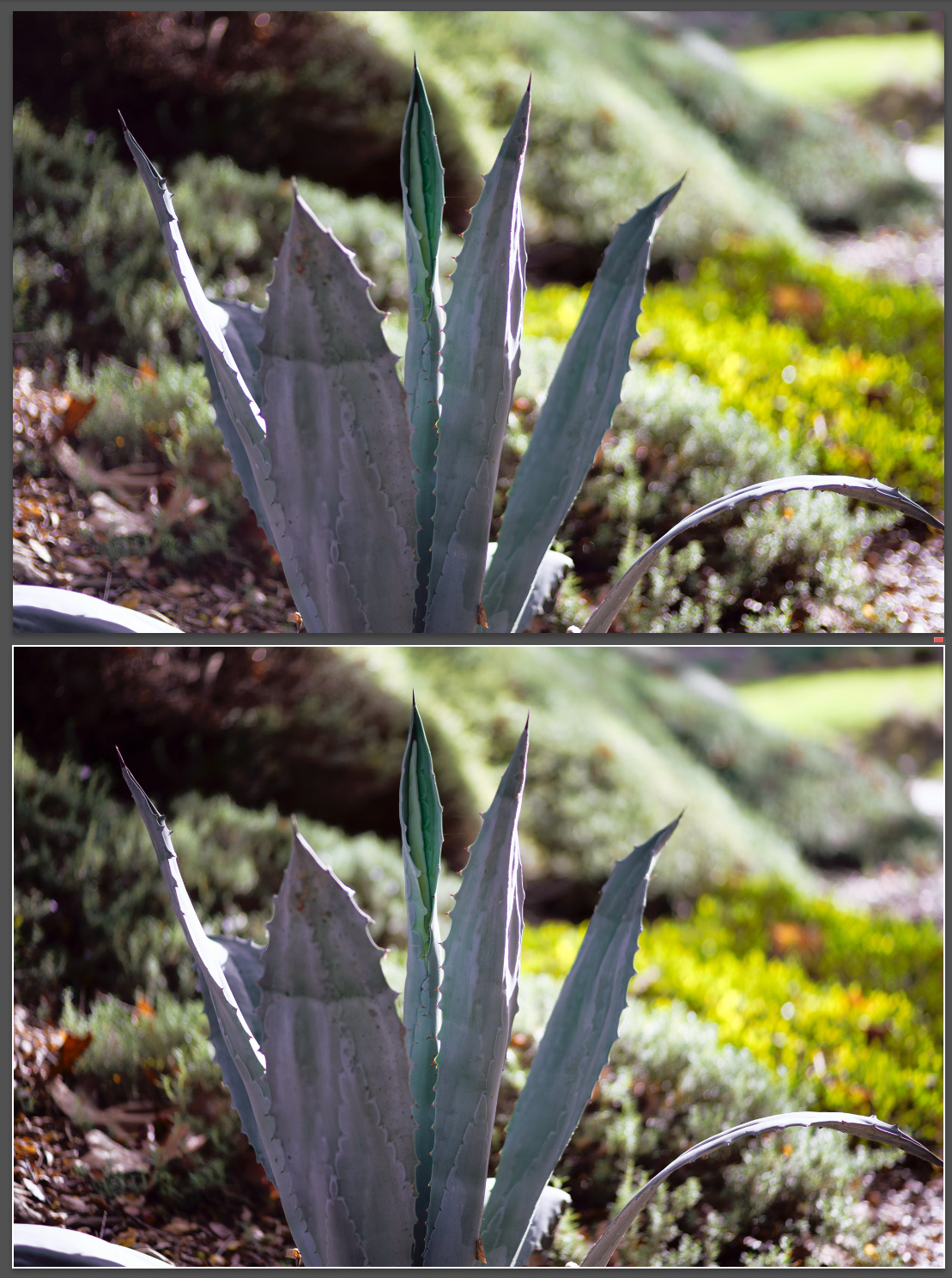

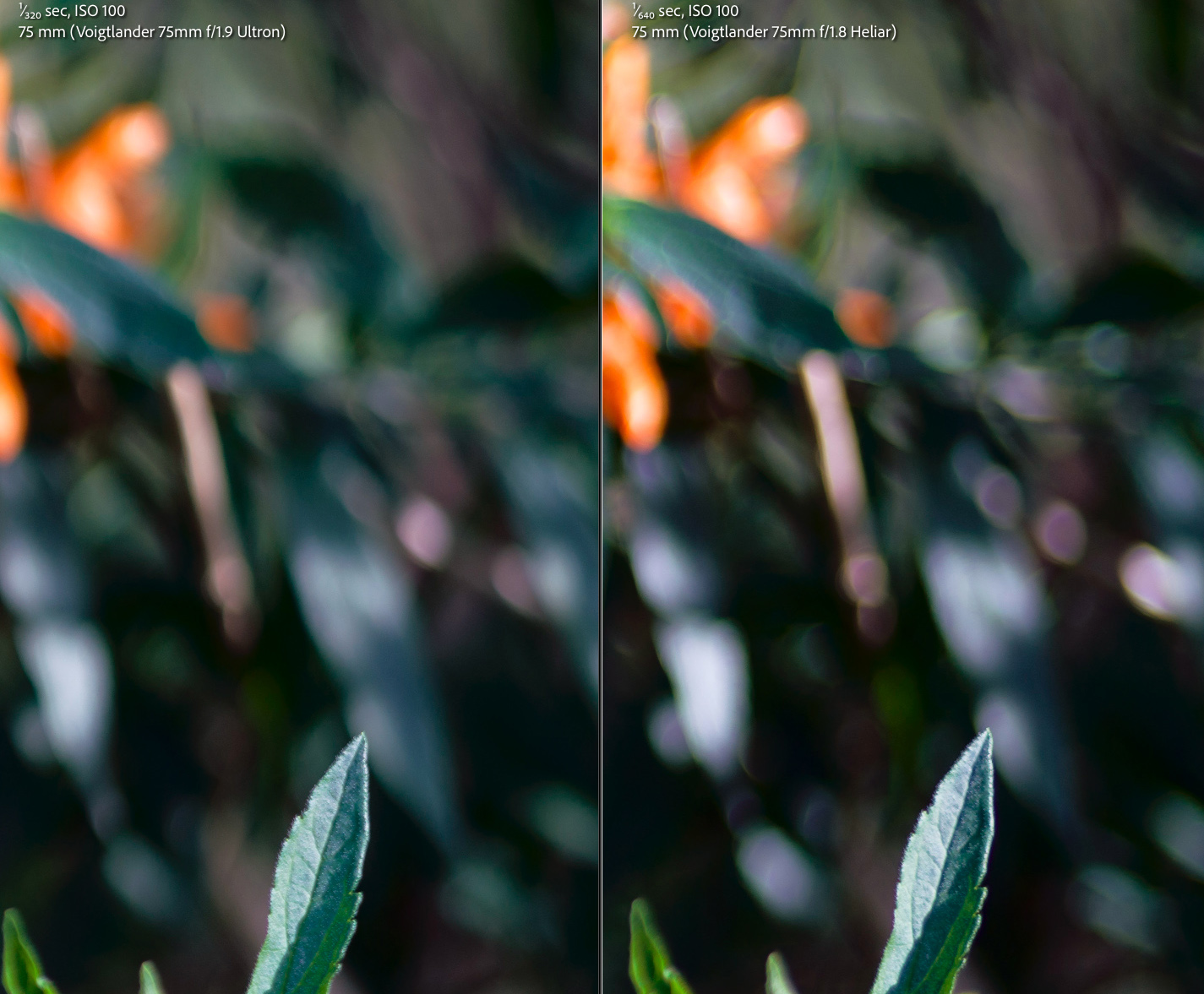

Sample 3: At 2m
Verify the lens name when comparing cropped images.




Voigtlander 75mm f/1.9 Ultron (TOP) | Voigtlander 75mm f/1.8 Heliar (BOTTOM)



















Feb 08, 2024 at 04:06 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #13 · p.13 #13 · Voigtlander 75mm f/1.9 Ultron Review


Sample 4: At 3m
Verify the lens name when comparing cropped images.

















Feb 08, 2024 at 04:08 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #14 · p.13 #14 · Voigtlander 75mm f/1.9 Ultron Review

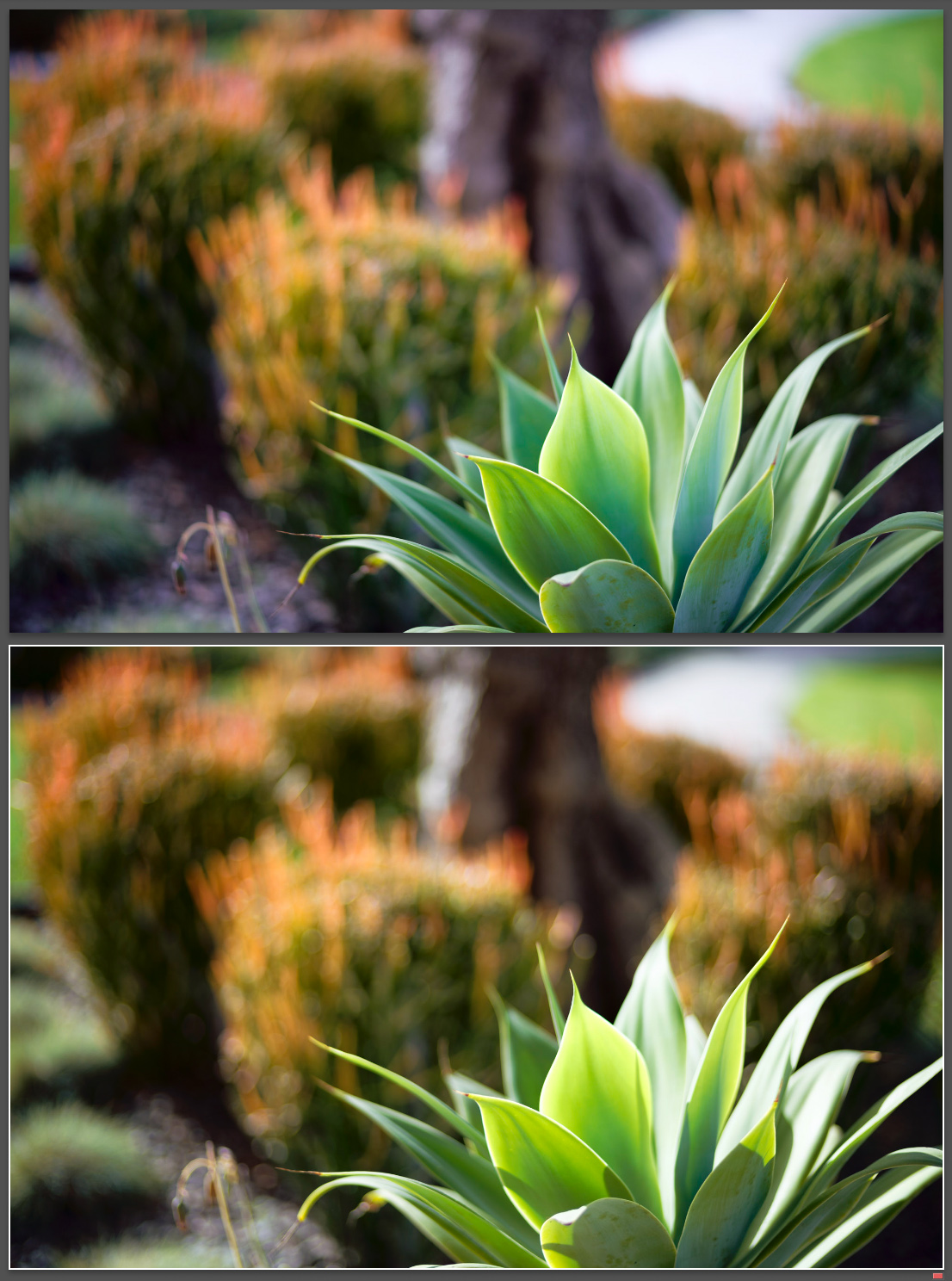

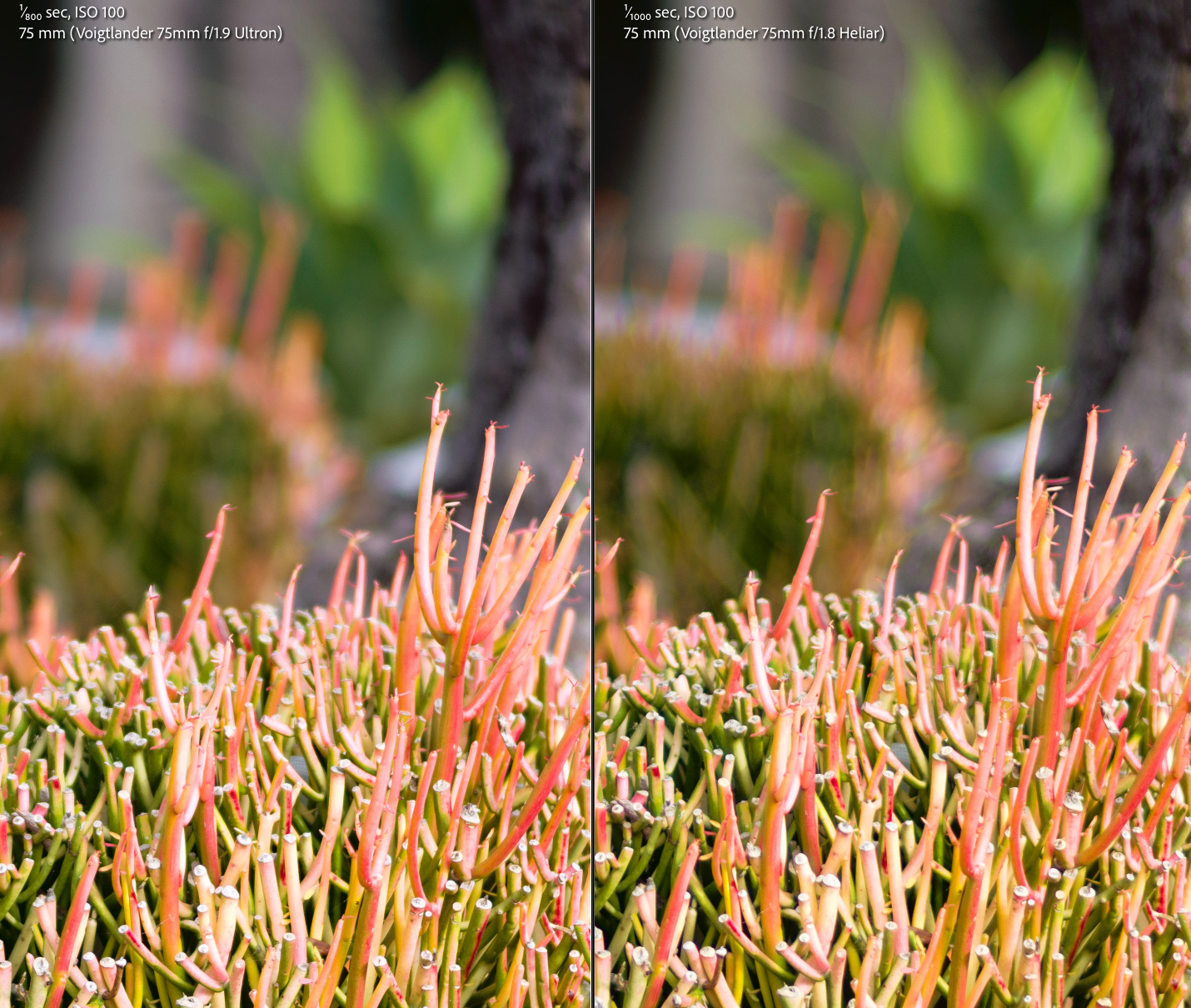

Sample 5: At 2m
Verify the lens name when comparing cropped images.




Voigtlander 75mm f/1.9 Ultron (TOP) | Voigtlander 75mm f/1.8 Heliar (BOTTOM)














Feb 08, 2024 at 04:12 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #15 · p.13 #15 · Voigtlander 75mm f/1.9 Ultron Review

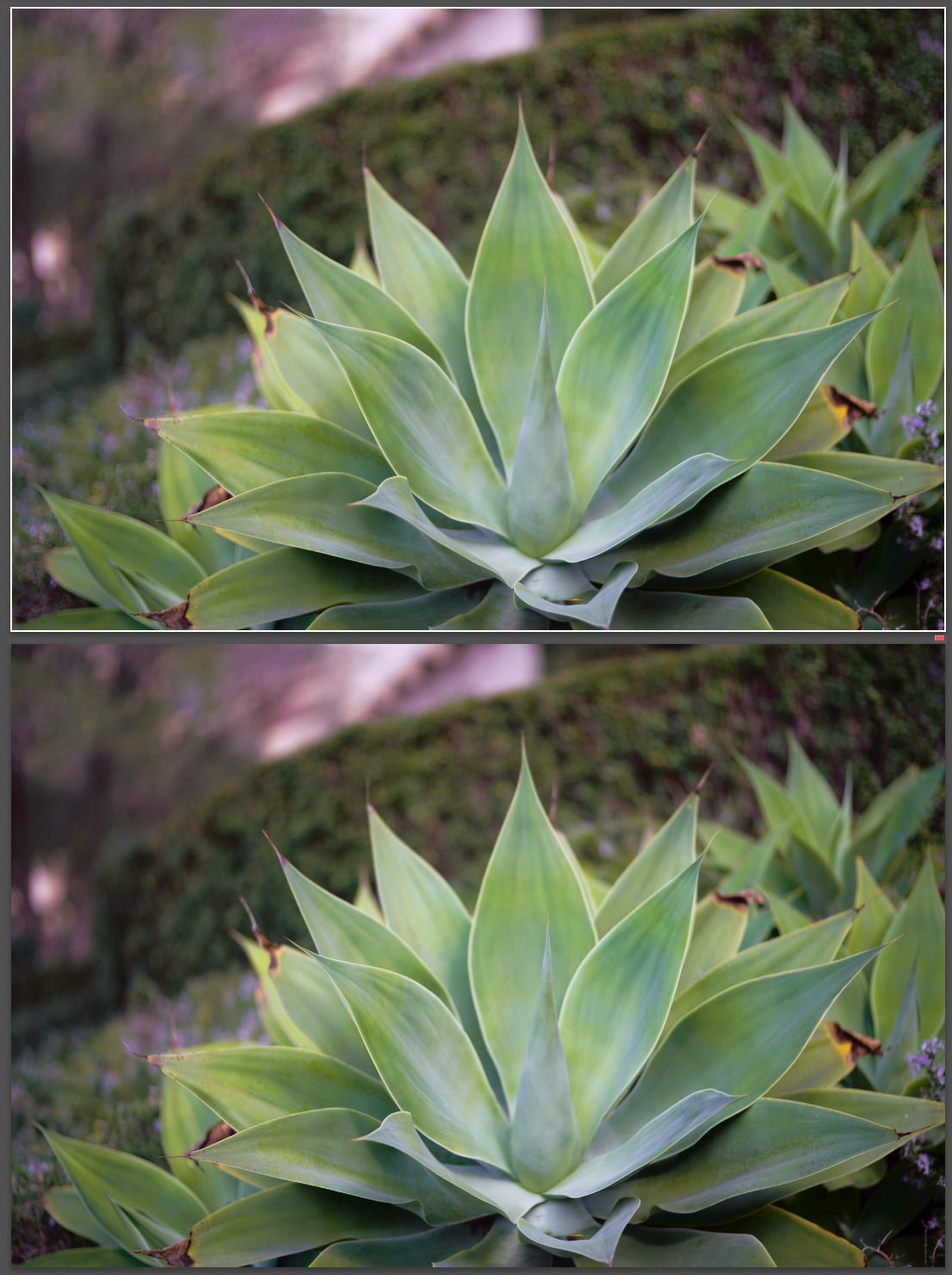

Sample 6: At 2m
Verify the lens name when comparing cropped images.




Voigtlander 75mm f/1.8 Heliar (TOP) | Voigtlander 75mm f/1.9 Ultron (BOTTOM



















Feb 08, 2024 at 04:15 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #16 · p.13 #16 · Voigtlander 75mm f/1.9 Ultron Review

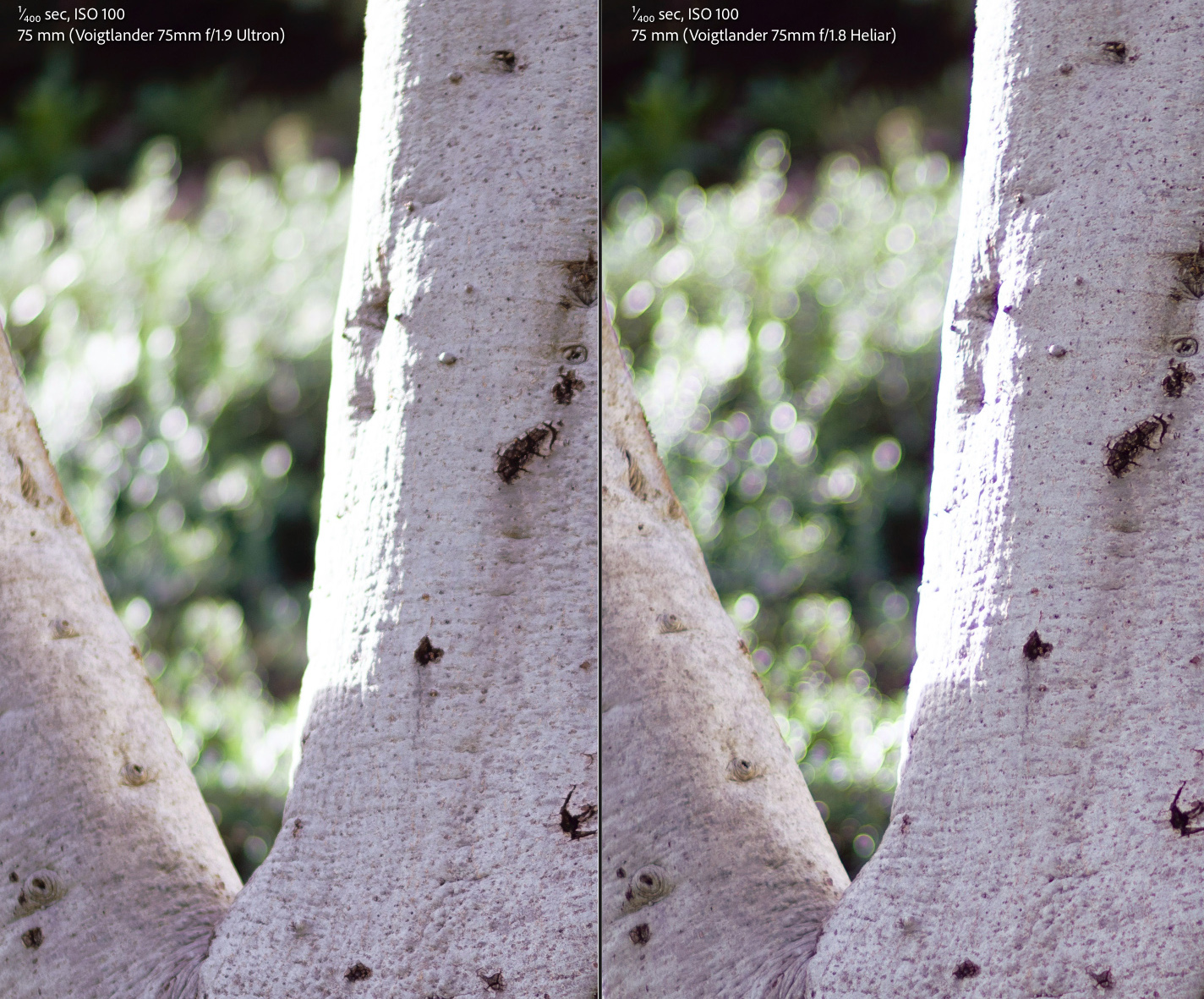

Sample 7: At 1m
Verify the lens name when comparing cropped images.




Voigtlander 75mm f/1.9 Ultron (TOP) | Voigtlander 75mm f/1.8 Heliar (BOTTOM)














Feb 08, 2024 at 04:16 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #17 · p.13 #17 · Voigtlander 75mm f/1.9 Ultron Review


Sample 8: At 3m
Verify the lens name when comparing cropped images.






















Feb 08, 2024 at 04:17 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #18 · p.13 #18 · Voigtlander 75mm f/1.9 Ultron Review


Sample 9: At 1.5m
Verify the lens name when comparing cropped images.




Voigtlander 75mm f/1.9 Ultron (TOP) | Voigtlander 75mm f/1.8 Heliar (BOTTOM)














Feb 08, 2024 at 04:18 PM
philip_pj
Online
• • • • •
Upload & Sell: On
p.13 #19 · p.13 #19 · Voigtlander 75mm f/1.9 Ultron Review


Pretty similar design in the 75/1.9 to the 75/1.5 that many enjoy, especially in the APD glass. Similar 'modern Voigtlander' direction in terms of 'smooth and rich' bokeh, with (my favourite) good retention of colour strength and colour separation inside that bokeh.

Many lenses treat bokeh as the 'rest of the image not in focus' and leave it as a toned down background, often it is detractive rather than additive to the image. They do this (I imagine) to give more emphasis to the main subject, but some viewers want to see more, to complement the subject. There is no intrinsic reason to not spread the goodness across the image. Good to see them catering to different preferences here.



Feb 08, 2024 at 05:40 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.13 #20 · p.13 #20 · Voigtlander 75mm f/1.9 Ultron Review


philip_pj wrote:
Pretty similar design in the 75/1.9 to the 75/1.5 that many enjoy, especially in the APD glass. Similar 'modern Voigtlander' direction in terms of 'smooth and rich' bokeh, with (my favourite) good retention of colour strength and colour separation inside that bokeh.

Many lenses treat bokeh as the 'rest of the image not in focus' and leave it as a toned down background, often it is detractive rather than additive to the image. They do this (I imagine) to give more emphasis to the main subject, but some viewers want to see more, to complement the subject. There is no
...Show more

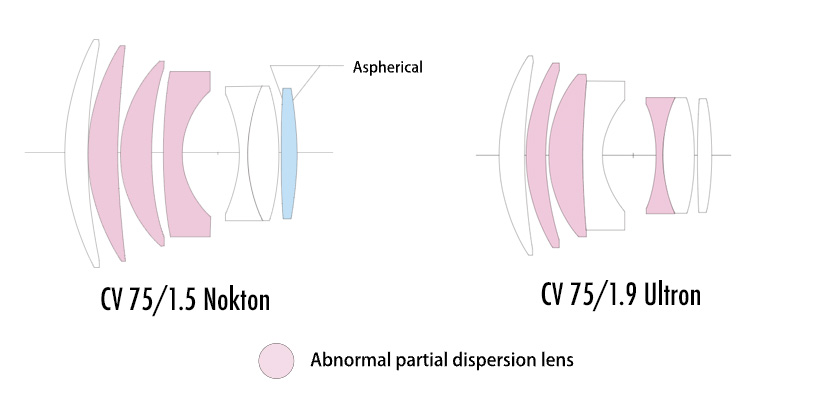

Absolutely, Philip. The optical designs of both lenses are very similar. I believe that the 75/1.9 lens shares a lot of the same characteristics in its rendering as the 75/1.5 lens when used at similar apertures. For those who want a bit more spice in the background blur, there is always the 75/1.8 Heliar Classic, MS Optics 73mm/1.5 Sonnetar, and the Leica 75/1.4 Lux.







Feb 09, 2024 at 12:06 AM
