Archive 2016Techart PRO LM-EA7 FAQ



bvphotos
Offline
Details
p.10 #1Techart PRO LM-EA7 FAQ
I bought an FD to M adapter from rainbow imaging. However, it doesn't fit the TAP. Anybody have luck with another cheap adapter. I have only 1 FD lens, so not too keen on buying an expensive adapter.
Nov 10, 2016 at 09:15 PM
rji2goleez
Offline
Details
p.10 #2Techart PRO LM-EA7 FAQ
bvphotos wrote:
I bought an FD to M adapter from rainbow imaging. However, it doesn't fit the TAP. Anybody have luck with another cheap adapter. I have only 1 FD lens, so not too keen on buying an expensive adapter.


The only one reportedly working with TAP is from Leicaist on ebay (~$40). They supply to Techart who sells them for quite a bit more. I'm waiting on mine which should hopefully be here within the next week.
Nov 10, 2016 at 09:45 PM
JimBuchanan
Offline
Details
p.10 #3Techart PRO LM-EA7 FAQ
rji2goleez wrote:
navmannz wrote
rji2goleez wrote
JimBuchanan wroteThank you, for the 2 responses.

From what I'm hearing, I may or may not be able to rely on the TAP to always go to its F36 infinity Park setting and go to the exact same spot every time. This would be desirable if I wanted to use the TAP as a dumb Leica M to Sony E adapter, and use a manual lens in manual focus mode and have a good hard stop infinity. The manual lens would be custom infinity adjusted to the TAP F36 infinity Park position (BTW).

I'm also concerned about the battery drain issue. . .

Any further comments on this would be welcomed, before I start this $400 experiment!
The default parking spot for TAP is for infinity focus. I have not had any issues with this when using a lens that is properly calibrated to hard stop infinity. I use the AF/MF toggle on the A7r2 to go from AF to MF. When I switch to MF, the TAP properly goes to it's infinity (normal) position. All my hard stop infinity lenses, like the Zeiss 35/1.4 M are properly focused at hard stop infinity when this happens and I've duplicated this many times. I've even test this by manually adjusting the lens but I find that hard stop infinity focus is preserved quite nicely and consistently.
That's an interesting comparison with the same lens as mine, Bob, and very different outcomes - looks like there must be some adapter to adapter variability in the 'inifinity' length. I've a replacement adapter coming to replace the one on which the front plate screws fell out, so I'll be interested to see what it does.
It will be interesting to see what you get. I get this result whether using an M-mount or other lens adapted to TAP IF hard stop infinity is there in the first place.


This is good info. Thanks. I'm slowly moving forward with this project.

BTW, my interest is in the normal range only. I've done several Contax G 45 conversions to Sony E mount and one Nikkor-S Millennium to Sony E mount. I have a new Nikkor-S Millennium and am working on a Leica M mount solution that could be used with a conventional Sony E adapter or the TAP adapter.


Nov 10, 2016 at 09:46 PM
genji
Offline
Details
p.10 #4Techart PRO LM-EA7 FAQ
JimBuchanan wrote:
This is good info. Thanks. I'm slowly moving forward with this project.

BTW, my interest is in the normal range only. I've done several Contax G 45 conversions to Sony E mount and one Nikkor-S Millennium to Sony E mount. I have a new Nikkor-S Millennium and am working on a Leica M mount solution that could be used with a conventional Sony E adapter or the TAP adapter.


A completely different design I know but the Nikkor H.C. 50/2 in LTM mount is one of my favorite lenses with the TAP.
Nov 10, 2016 at 11:04 PM
Slalom
Offline
Details
p.10 #5Techart PRO LM-EA7 FAQ
Slalom wrote:
LTM/L39/M39x1 Adaptor tested.

Just tested a 50-75mm focal length version with a f1.8 50mm Canon Ltm.

The only issue is the lens aligns a little to the left but that seems to be the threads out of alignment and no way to fix. The LM bit centres nicely with a click, then the ltm bit goes past top centre 10-15 degrees. my Nex LTM adapter centres this lens on the A7II.

http://www.ebay.co.uk/itm/291860054531 "M39-L(M) (50-75)"

So as infinity is the only TAP focus position mandated you only have the slight offset for the aperture ring.

I think the above Over centre behaviour is Leica like:
https://www.fredmiranda.com/forum/topic/1457566

As that
...Show more →

I acquired a leica leitz Adapter and it behaved just like the Ebay one above so the Ebay one works

So Genji Can you add it to the supported adapters Please, Rod
Nov 12, 2016 at 05:21 PM
genji
Offline
Details
p.10 #6Techart PRO LM-EA7 FAQ
Slalom wrote:
Slalom wroteLTM/L39/M39x1 Adaptor tested.

Just tested a 50-75mm focal length version with a f1.8 50mm Canon Ltm.

The only issue is the lens aligns a little to the left but that seems to be the threads out of alignment and no way to fix. The LM bit centres nicely with a click, then the ltm bit goes past top centre 10-15 degrees. my Nex LTM adapter centres this lens on the A7II.

http://www.ebay.co.uk/itm/291860054531 "M39-L(M) (50-75)"

So as infinity is the only TAP focus position mandated you only have the slight offset for the aperture ring.

I think the above Over centre behaviour is Leica like:
https://www.fredmiranda.com/forum/topic/1457566

As that explains the various options and discoveries.
I acquired a leica leitz Adapter and it behaved just like the Ebay one above so the Ebay one works

So Genji Can you add it to the supported adapters Please, Rod


Rod, mounting Leica M lenses on the TAP isn't an issue since the TAP has a native Leica M bayonet. So, given that a Leica LTM -> M adapter simply converts a Leica Thread/Screw/L39/M39 mount into a Leica M mount, I would suggest that there is no good reason to add LTM -> M adapters to the compatible adapter list in the FAQ. The purpose of that list is to indicate which adapters for lenses with a longer flange focal distance (than the Leica M FFD) have been found to work with the TAP.
Nov 13, 2016 at 03:18 AM
navmannz
Offline
Details
p.10 #7Techart PRO LM-EA7 FAQ
navmannz wrote:
navmannz wroteI was using my TAP during a four-day hiking trip near Melbourne, when it started to malfunction - one of the screws holding the front cover plate had come out, allowing the cover to flex forward from the main body of the TAP. Holding it in by hand restored its functionality, but then the other screw came out and the whole cover detached, exposing the internals .

Fortunately I had a Metabones VM-E adapter with me as a backup, so I taped the cover back on the TAP and sealed it in a plastic bag. Has anyone else had this happen? Looks like it will need a trip back to China, which is a great pity, as it had been working beautifully...

John
A follow up - yesterday I contacted support@TechArtPro, outlining what had happened, and in contrast to other stories about their slow response, I had a reply within four hours, advising me of a return address and promising a replacement - impressed!

John


My replacement adapter arrived today - NZPost were very slow getting the old one to Hong Kong, but Techart PRO were prompt with turnaround, and it was here just four days after the old one arrived there - I'm impressed with their service - John
Nov 15, 2016 at 01:13 AM
genji
Offline
Details
p.10 #8Techart PRO LM-EA7 FAQ
navmannz wrote:
navmannz wroteA follow up - yesterday I contacted support@TechArtPro, outlining what had happened, and in contrast to other stories about their slow response, I had a reply within four hours, advising me of a return address and promising a replacement - impressed!

John
My replacement adapter arrived today - NZPost were very slow getting the old one to Hong Kong, but Techart PRO were prompt with turnaround, and it was here just four days after the old one arrived there - I'm impressed with their service - John


Great to hear about their almost immediate response to your support request and then the rapid turnaround in supplying a replacement. Out of interest, did you have to pay for shipping in both directions?
Nov 15, 2016 at 05:24 AM
dgurtch
Offline
Details
p.10 #9Techart PRO LM-EA7 FAQ
I just ordered a Techart Pro, and Fotodiox adapters:C/Y->M, Leica R->M, M42->M, and NikonF->M from B&H. Should arrive tomorrow. I also plan on ordering a Minolta MD->M adapter, as I have several nice Minolta lenses. The compatibility list of adapters was VERY helpful; THANK YOU!
Has anyone found an Exakta adapter that works? I found a Kipon Exakta to Leica M adapter at Adorama for about $78, but I have no way of knowing if it will work. I know Techart sells one for about $100 (OUCH!).
Thanks all
Dave in NJ
Nov 15, 2016 at 02:52 PM
navmannz
Offline
Details
p.10 #10Techart PRO LM-EA7 FAQ
genji wrote:
navmannz wrote
navmannz wroteA follow up - yesterday I contacted support@TechArtPro, outlining what had happened, and in contrast to other stories about their slow response, I had a reply within four hours, advising me of a return address and promising a replacement - impressed!

John
My replacement adapter arrived today - NZPost were very slow getting the old one to Hong Kong, but Techart PRO were prompt with turnaround, and it was here just four days after the old one arrived there - I'm impressed with their service - John
Great to hear about their almost immediate response to your support request and then the rapid turnaround in supplying a replacement. Out of interest, did you have to pay for shipping in both directions?


I just paid for shipping to return it to Hong Kong. The unexpected bonus for me is that this one isn't showing any evidence of battery leakage. My first didn't either to start with, and only started leaking after I did an inadvertent reinstall of v. 4 of the firmware - very odd!
Nov 15, 2016 at 08:10 PM
genji
Offline
Details
p.10 #11Techart PRO LM-EA7 FAQ
I found myself with two Leicaist FD->M adapters. Since I only need one, I'll ship the other to an FM member who is willing to pay for the postage from Australia. Details are on the Buy-Sell board.

[Updated] That didn't take long. Someone has expressed interest already.
Nov 16, 2016 at 12:32 AM
DavidBM
Offline
Details
p.10 #12Techart PRO LM-EA7 FAQ
genji wrote:
I found myself with two Leicaist FD->M adapters. Since I only need one, I'll ship the other to an FM member who is willing to pay for the postage from Australia. Details are on the Buy-Sell board.

[Updated] That didn't take long. Someone has expressed interest already.


Really good of you Jonathon. Kind of thing that makes this the best online photo community.
Nov 16, 2016 at 04:16 AM
nehemiahphoto
Offline
Details
p.10 #13Techart PRO LM-EA7 FAQ
If shooting an 85mm, do we have to pre-focus? at 50mm it seems not, but at what FL do we start to worry about helping the adapter out with focusing?
Nov 16, 2016 at 02:17 PM
genji
Offline
Details
p.10 #14Techart PRO LM-EA7 FAQ
nehemiahphoto wrote:
If shooting an 85mm, do we have to pre-focus? at 50mm it seems not, but at what FL do we start to worry about helping the adapter out with focusing?


I mostly shoot close subjects and find myself frequently pre-focusing with an 85mm. I imagine that primarily landscape shooters would rarely have to pre-focus but other TAP+85mm users might disagree.

[Updated] I was wrong. Even with the lens set at infinity, AF works down to about two meters. (See my later post.)

Edited on Nov 16, 2016 at 03:12 PM · View previous versions
Nov 16, 2016 at 02:23 PM
nehemiahphoto
Offline
Details
p.10 #15Techart PRO LM-EA7 FAQ
genji wrote:
nehemiahphoto wroteIf shooting an 85mm, do we have to pre-focus? at 50mm it seems not, but at what FL do we start to worry about helping the adapter out with focusing?
I mostly shoot close subjects and find myself frequently pre-focusing with an 85mm. I imagine that primarily landscape shooters would rarely have to pre-focus but other TAP+85mm users might disagree.

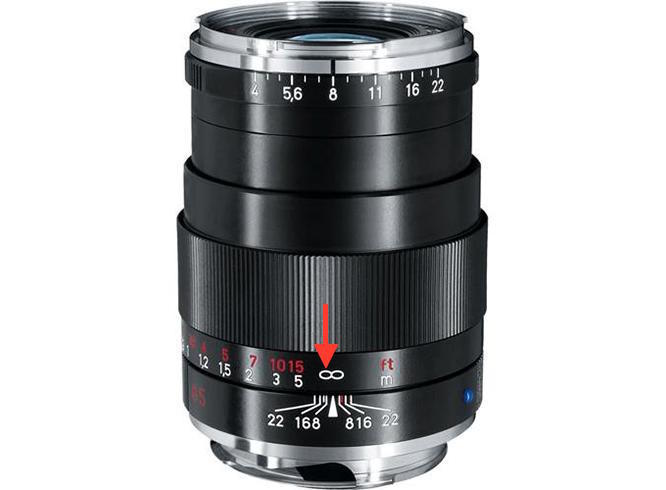

Thanks Genji! Maybe to help me understand, on an 85mm, if the focusing ring is left at infinity, do we get AF from MFD to 30 feet, or 20 feet to infinity or?
Nov 16, 2016 at 02:34 PM
genji
Offline
Details
p.10 #16Techart PRO LM-EA7 FAQ
nehemiahphoto wrote:
genji wrote
nehemiahphoto wroteIf shooting an 85mm, do we have to pre-focus? at 50mm it seems not, but at what FL do we start to worry about helping the adapter out with focusing?
I mostly shoot close subjects and find myself frequently pre-focusing with an 85mm. I imagine that primarily landscape shooters would rarely have to pre-focus but other TAP+85mm users might disagree.
Thanks Genji! Maybe to help me understand, on an 85mm, if the focusing ring is left at infinity, do we get AF from MFD to 30 feet, or 20 feet to infinity or?


Wow, colour me surprised. With the focusing ring at infinity, I got AF from infinity down to 2.04 meters (6.7 feet) -- checked with a laser measurement device. This was with a Tele-Tessar 85/4 ZM on an A7R2, indoors and outdoors.
Nov 16, 2016 at 03:10 PM
nehemiahphoto
Offline
Details
p.10 #17Techart PRO LM-EA7 FAQ
genji wrote:
nehemiahphoto wrote
genji wrote
nehemiahphoto wroteIf shooting an 85mm, do we have to pre-focus? at 50mm it seems not, but at what FL do we start to worry about helping the adapter out with focusing?
I mostly shoot close subjects and find myself frequently pre-focusing with an 85mm. I imagine that primarily landscape shooters would rarely have to pre-focus but other TAP+85mm users might disagree.
Thanks Genji! Maybe to help me understand, on an 85mm, if the focusing ring is left at infinity, do we get AF from MFD to 30 feet, or 20 feet to infinity or?
Wow, colour me surprised. With the focusing ring at infinity, I got AF from infinity down to 2.04 meters (6.7 feet) -- checked with a laser measurement device. This was with a Tele-Tessar 85/4 ZM on an A7R2, indoors and outdoors.


Nice!!! Can I get you to do one one more test? What is the maximum coverage we can get if we prioritize mfd? I.e. Can we get mfd to 50 feet without prefocusing? Or MFD to near infinite?
Nov 16, 2016 at 04:04 PM
genji
Offline
Details
p.10 #18Techart PRO LM-EA7 FAQ
nehemiahphoto wrote:
Nice!!! Can I get you to do one one more test? What is the maximum coverage we can get if we prioritize mfd? I.e. Can we get mfd to 50 feet without prefocusing? Or MFD to near infinite?


Nope. With the focusing ring set at the MFD of 0.9m (2.95ft) the AF range extends from 0.78m (2.62ft) to 1.02m (3.35ft).

And with the focusing ring set at 1.5m (5ft) the AF range extends from 1.05m (3.44ft) to 1.75m (5.74ft).
Nov 17, 2016 at 03:56 AM
nehemiahphoto
Offline
Details
p.10 #19Techart PRO LM-EA7 FAQ
genji wrote:
nehemiahphoto wroteNice!!! Can I get you to do one one more test? What is the maximum coverage we can get if we prioritize mfd? I.e. Can we get mfd to 50 feet without prefocusing? Or MFD to near infinite?
Nope. With the focusing ring set at the MFD of 0.9m (2.95ft) the AF range extends from 0.78m (2.62ft) to 1.02m (3.35ft).

And with the focusing ring set at 1.5m (5ft) the AF range extends from 1.05m (3.44ft) to 1.75m (5.74ft).


That's too bad--I was hoping for a little better in this regard. Thanks for checking.
Nov 17, 2016 at 09:24 AM
genji
Offline
Details
p.10 #20Techart PRO LM-EA7 FAQ
nehemiahphoto wrote:
That's too bad--I was hoping for a little better in this regard. Thanks for checking.


I can't help thinking that this depends upon the lens design but the furthest I could move the focus point away from infinity and still have the TAP find focus on a very distant subject is shown by the red arrow in the picture below. Now I'm curious about how other 85mm lenses might behave, particularly the Sonnar C/Y 85/2.8. I have that lens as well as Zuiko OM and Minolta MD 85/2 so as soon as I can find the time I'll try with those lenses.




Nov 17, 2016 at 05:47 PM
