Voigtlander 90mm f/2.8 APO-Skopar Review



zugzwang2
Offline
Details
p.3 #1Voigtlander 90mm f/2.8 APO-Skopar Review
philip_pj wrote:
I want Loxia 85mm results in a 350-375g package, like the other APO Lanthars.


Dec 23, 2021 at 12:00 AM
Oldwino
Online
Details
p.3 #2Voigtlander 90mm f/2.8 APO-Skopar Review
Any plans to test out the Nikon mount version as well?
Dec 23, 2021 at 09:46 AM
jhinkey
Offline
Details
p.3 #3Voigtlander 90mm f/2.8 APO-Skopar Review
I just did my own comparison of:
85/4 ZM
90/3.5 CV
90/2.8 Sigma
85/2.4 Lox

on my A7RIII.

And I have to say that these are all great lenses and as far as sharpness goes it's really splitting hairs at 42MP.
I had planned on getting the 90/2.8 APO CV, but I really don't want to go back to non-CPU lenses (like my 85/4ZM or 90/3.5 CV) and the optical performance doesn't appear to be superior to any of the above based on initial results from folks here on FM.

As such, of the four lenses above, the 90/2.8 is slightly the weakest of them sharpness-wise (only off-center wide open), though not by that much. I will be selling the 85/4ZM and 90/3.5 CV APO because they will not get used that much anymore now that I have the Sigma and the Lox (both recent purchases).

We really have some great options now at the 85/90mm focal length.

- J
Dec 23, 2021 at 12:03 PM
rscheffler
Offline
Details
p.3 #4Voigtlander 90mm f/2.8 APO-Skopar Review
Edax wrote:
For 6-bit coding there are two obvious choices:

Elmarit-M 90mm/f2.8 or

Tele Elmarit-M 90/f2.8 ver. II

Anyone with an opinion on which one to use?



Maybe start here in the previous VM90 thread.
Dec 23, 2021 at 10:17 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.3 #5Voigtlander 90mm f/2.8 APO-Skopar Review
Infinity Performance compared to Sigma 90mm f/2.8 DG DN

Two completely different lenses sharing the same focal length and maximum aperture. One manual focus, designed for the M-mount and other equipped with fast AF for the E-mount.

They are both compact and light lenses with great build but the Voigtlander has a wider field of view at infinity distance.

Just like the Voigtlander copy in hands, the Sigma 90/2.8 at hands is perfectly centered and sharp at any distance, which makes me confident this is a fair comparison.

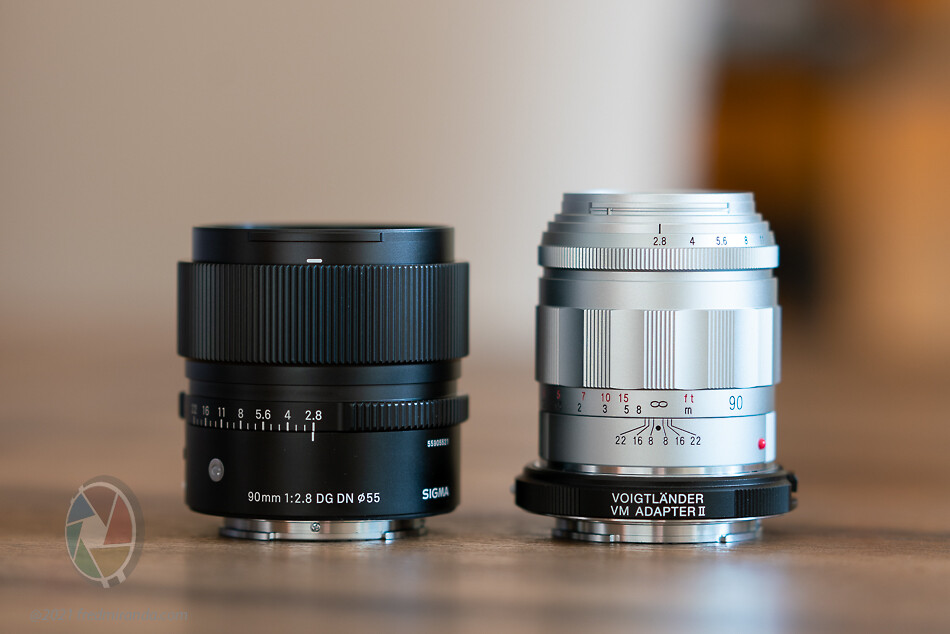

Here are how they compare in size:









--------------

Here is the full image thumbnail showing the area demonstrated at 1:1 magnification.








  1. Distance: Infinity
  2. Camera: Sony A7R IIIA
  3. Focus: Center - Best of three
  4. WB: Daylight
  5. Lens centered using my decentering test
  6. Software: Lightroom with my default landscape sharpening. All other settings set to default
PS: Vignetting and distortion were NOT corrected. All in-camera corrections turned 'off'.

___________



At 90mm
CENTER resolution/contrast comparison between Voigtlander 90mm f/2.8 APO-Skopar and Sigma 90mm f/2.8 DG DN

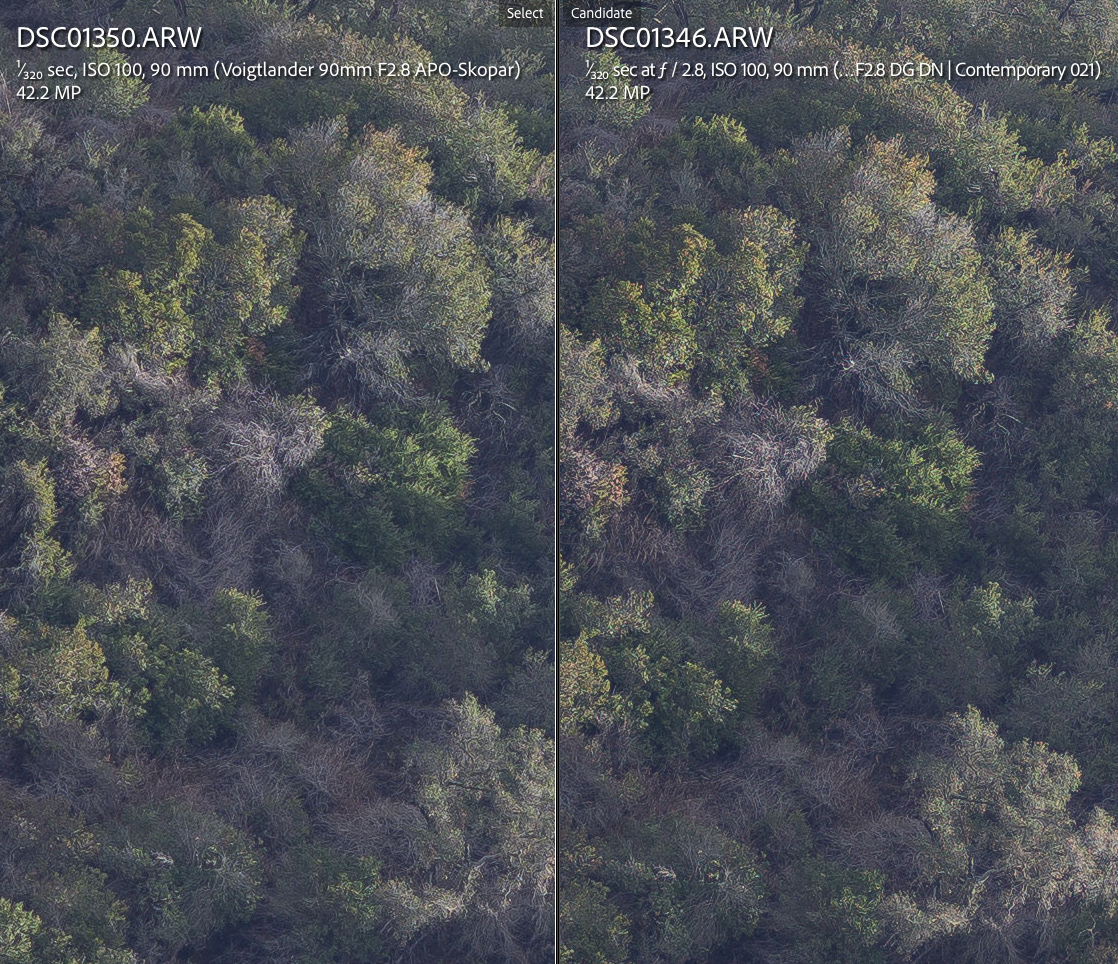

Center at f/2.8: Both lenses are similar wide open at center but I give a small edge to the Sigma

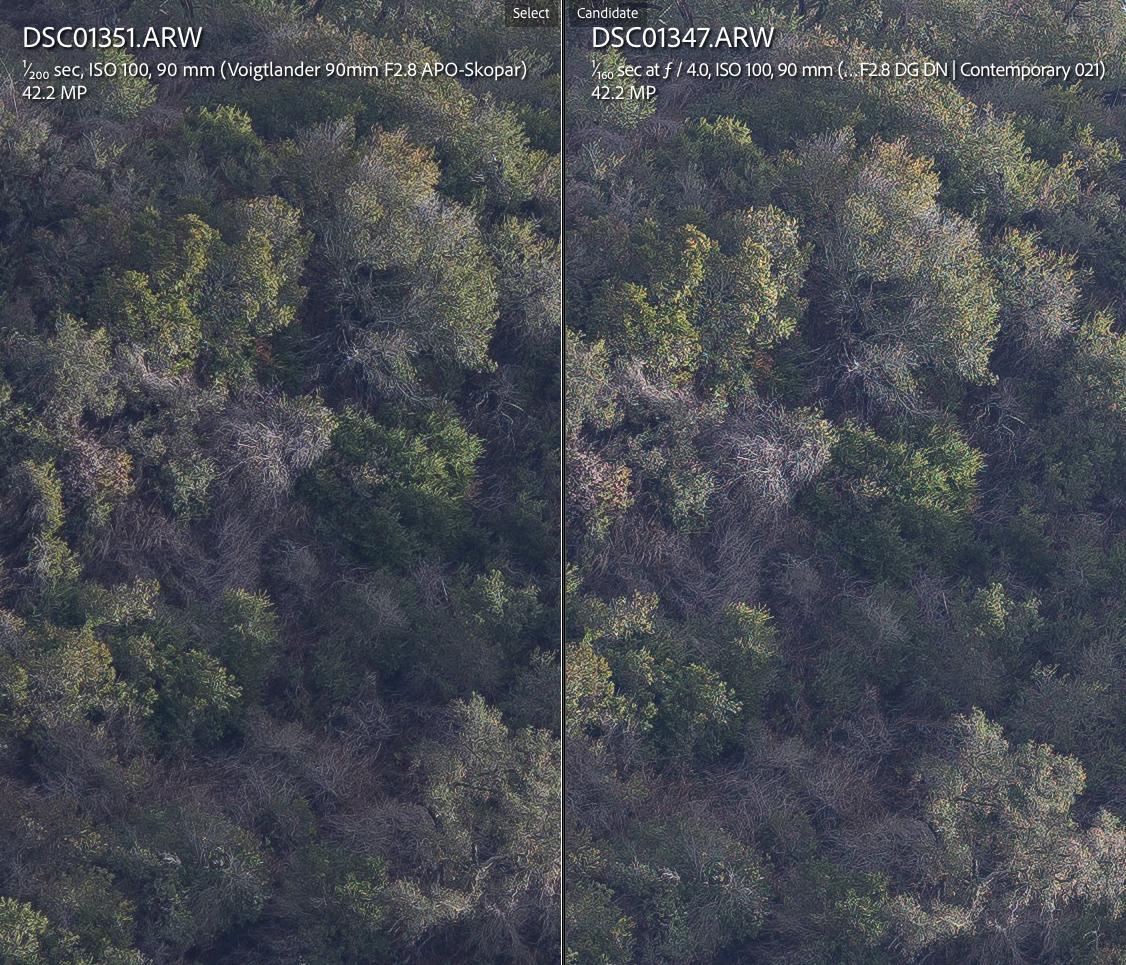

Center at f/4: The Sigma gets even stronger at f/4

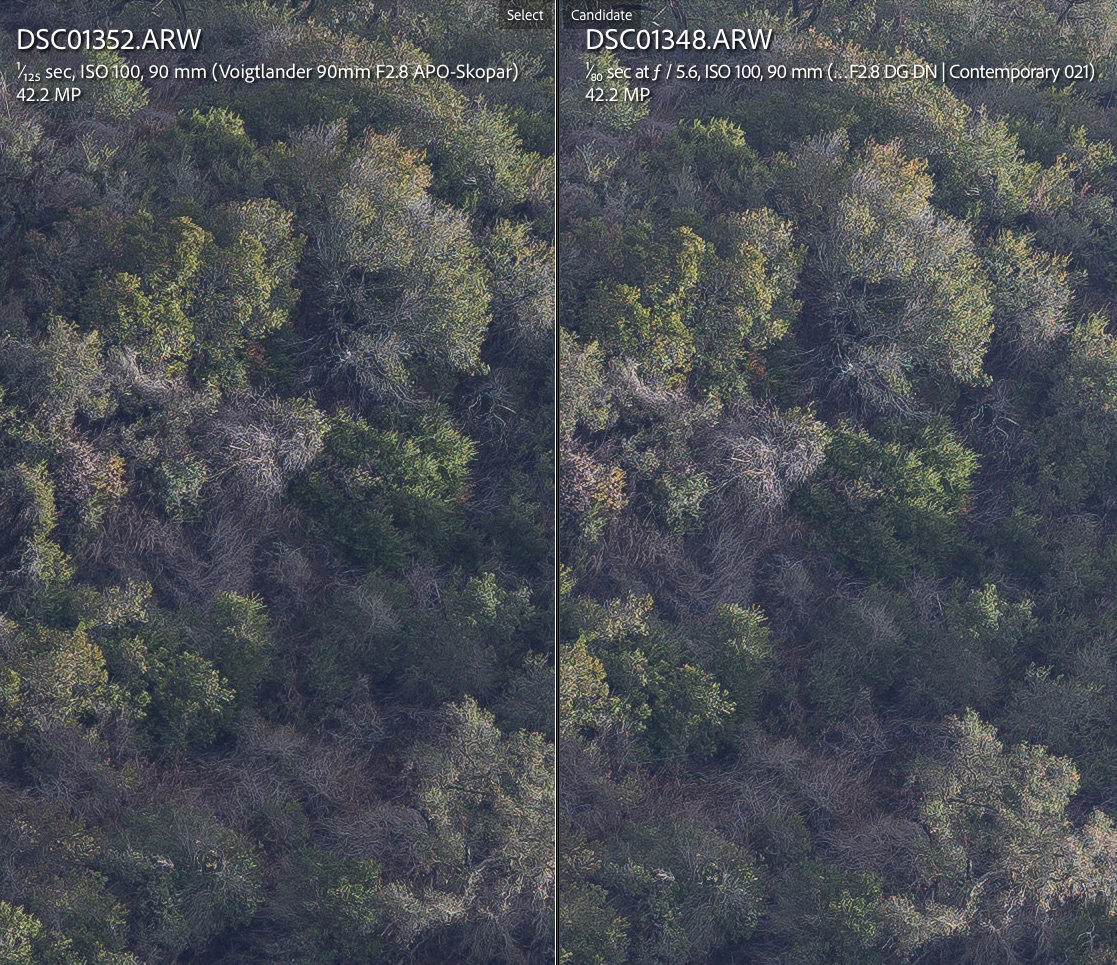

Center at f/5.6: The Voigtlander improves greatly and they are now similar again

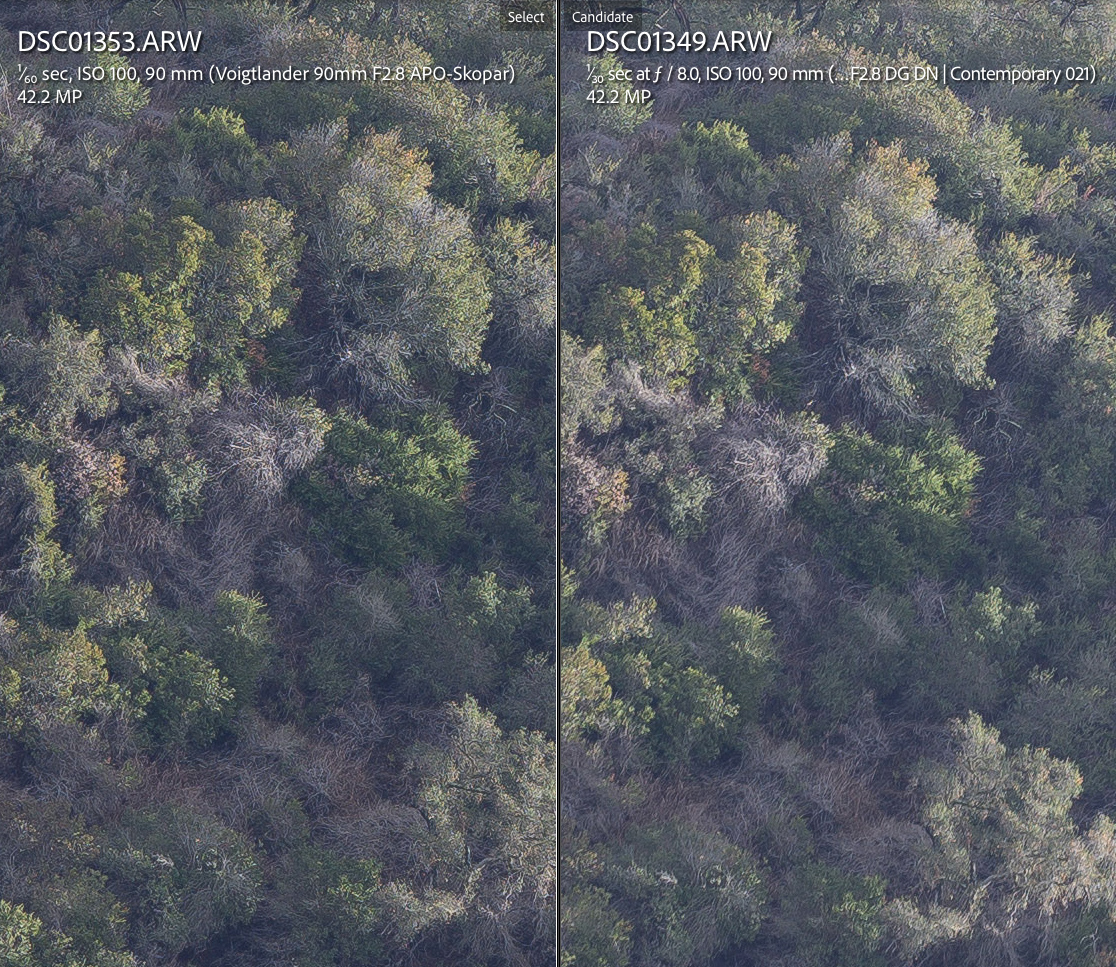

Center at f/8: Both diffract a bit but still great performance for both lenses.

Dec 24, 2021 at 03:48 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.3 #6Voigtlander 90mm f/2.8 APO-Skopar Review
At 90mm
MID-FIELD resolution/contrast comparison between Voigtlander 90mm f/2.8 APO-Skopar and Sigma 90mm f/2.8 DG DN

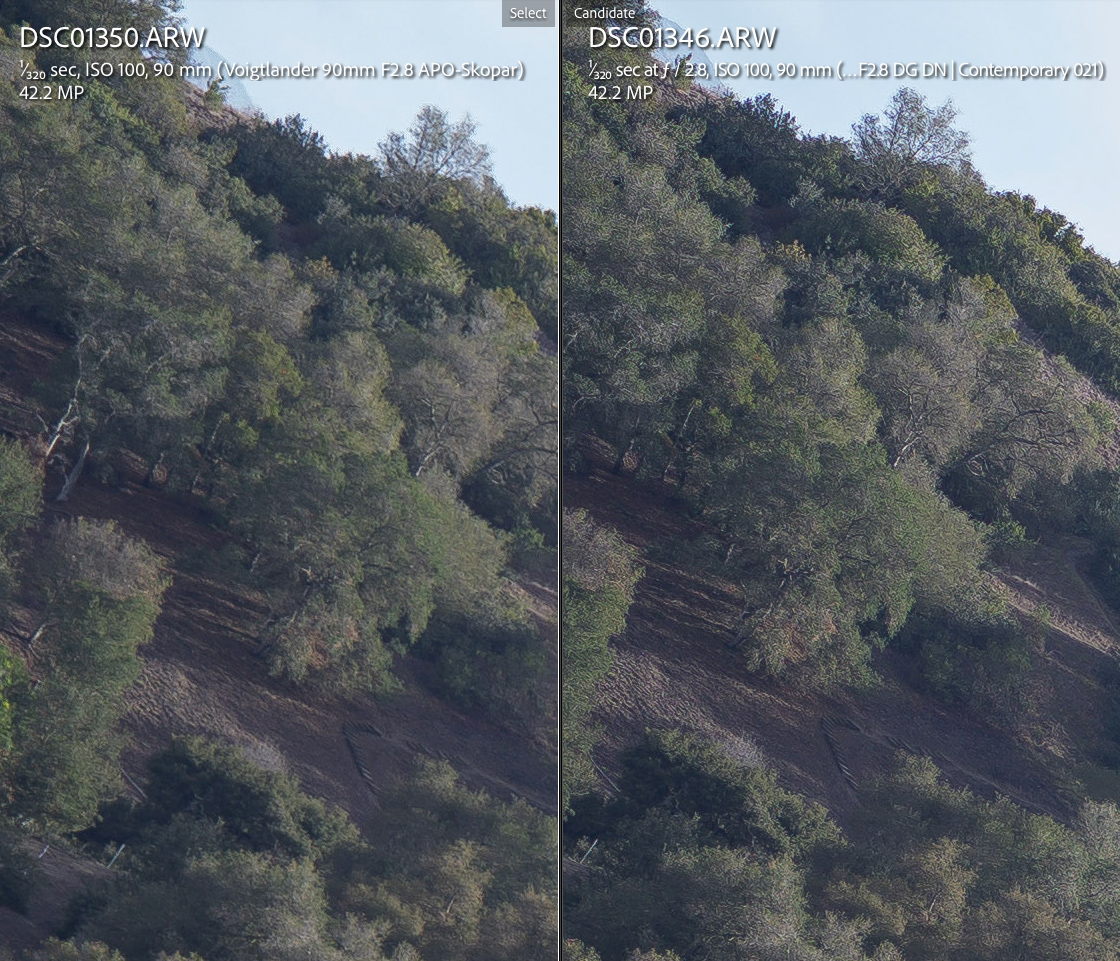

Mid-field at f/2.8: Similarly to the comparison to the Leica 90/2 APO, the Voigtlander is weaker at mid-field compared to the Sigma

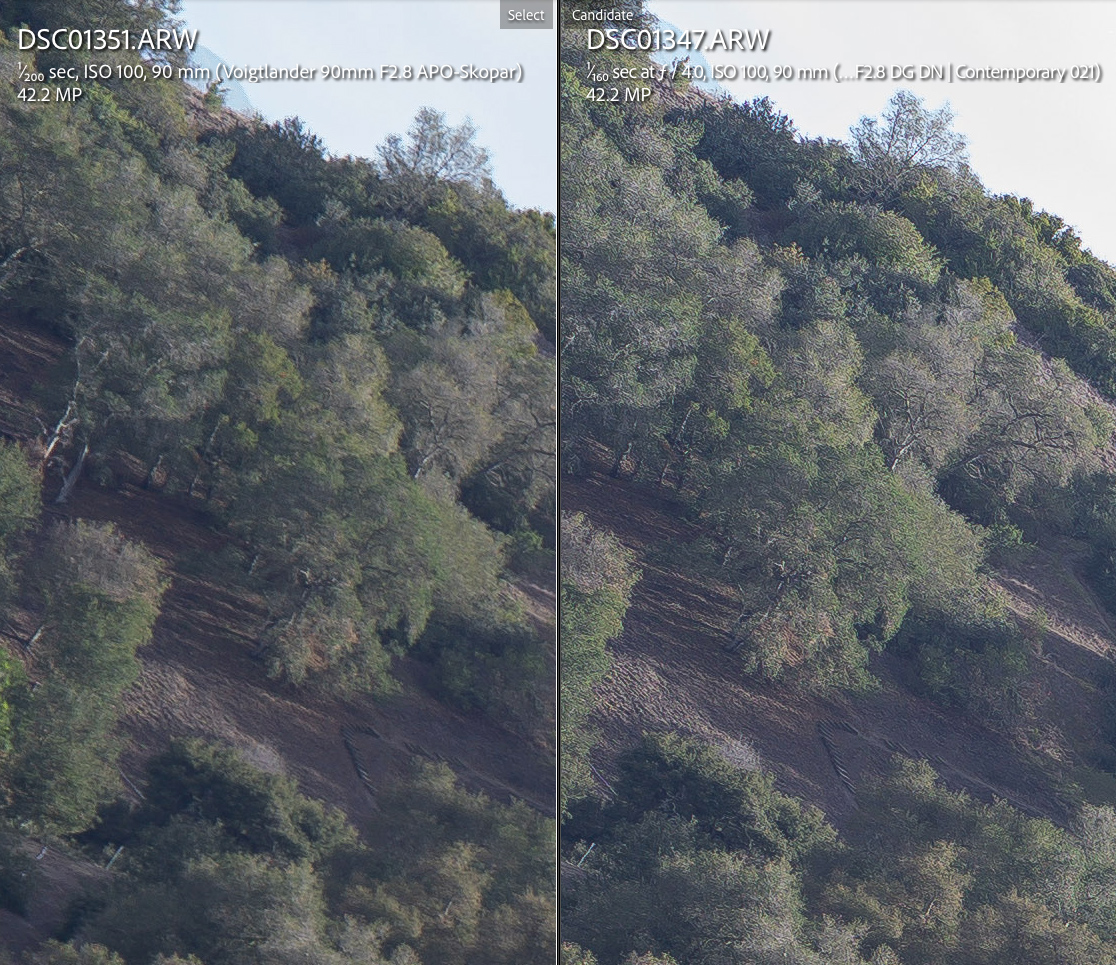

Mid-field at f/4: The Sigma improves further and the Voigtlander not so much. The difference in resolution is even larger now

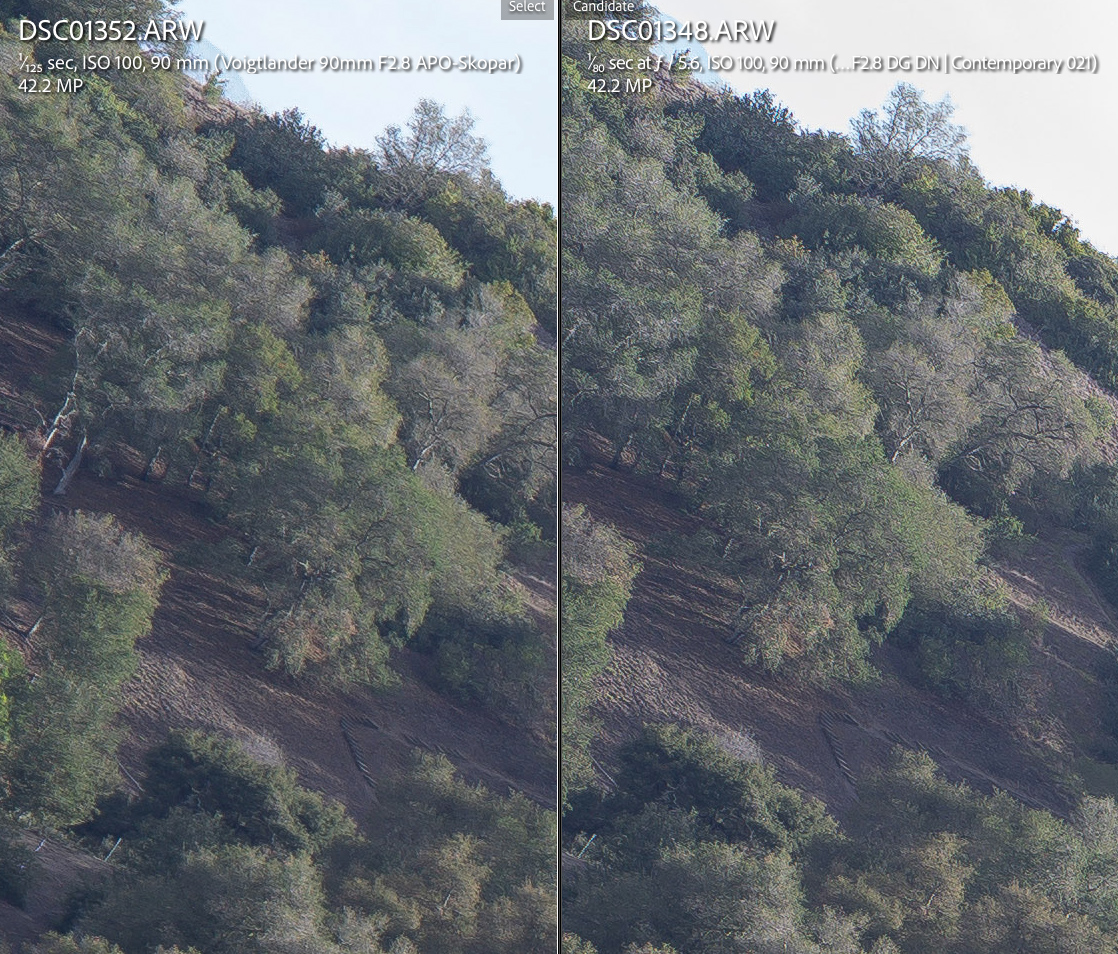

Mid-field at f/5.6: The Voigtlander improves greatly and it's almost as good as the Sigma







Mid-field at f/8: Both offer similar performance stopped down to f/8

Dec 24, 2021 at 03:48 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.3 #7Voigtlander 90mm f/2.8 APO-Skopar Review
At 90mm
EXTREME CORNER resolution/contrast comparison between Voigtlander 90mm f/2.8 APO-Skopar and Sigma 90mm f/2.8 DG DN

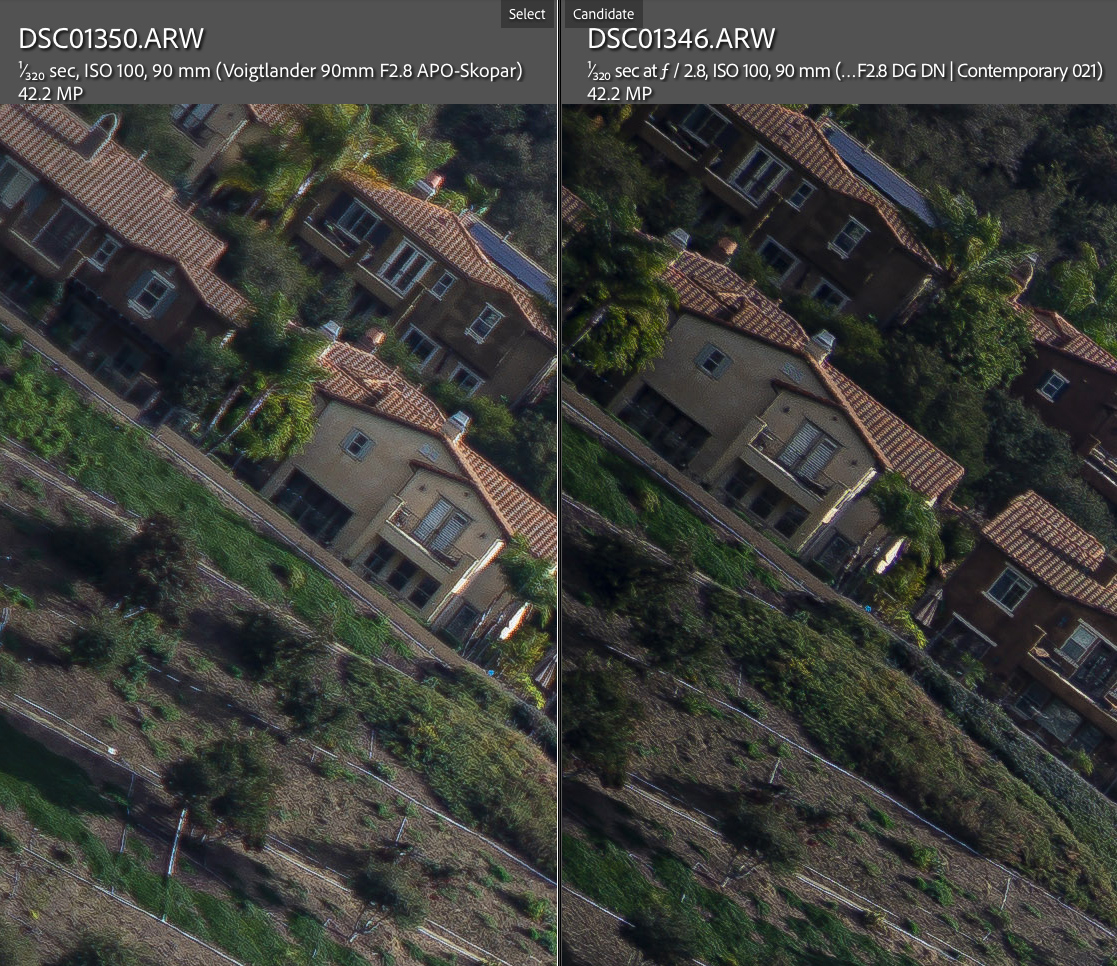

Extreme Corner at f/2.8: The Sigma is stronger wide open at the extreme corners. It has even higher vignetting though. Also notice the difference in field of view. The Voigtlander is noticeably wider

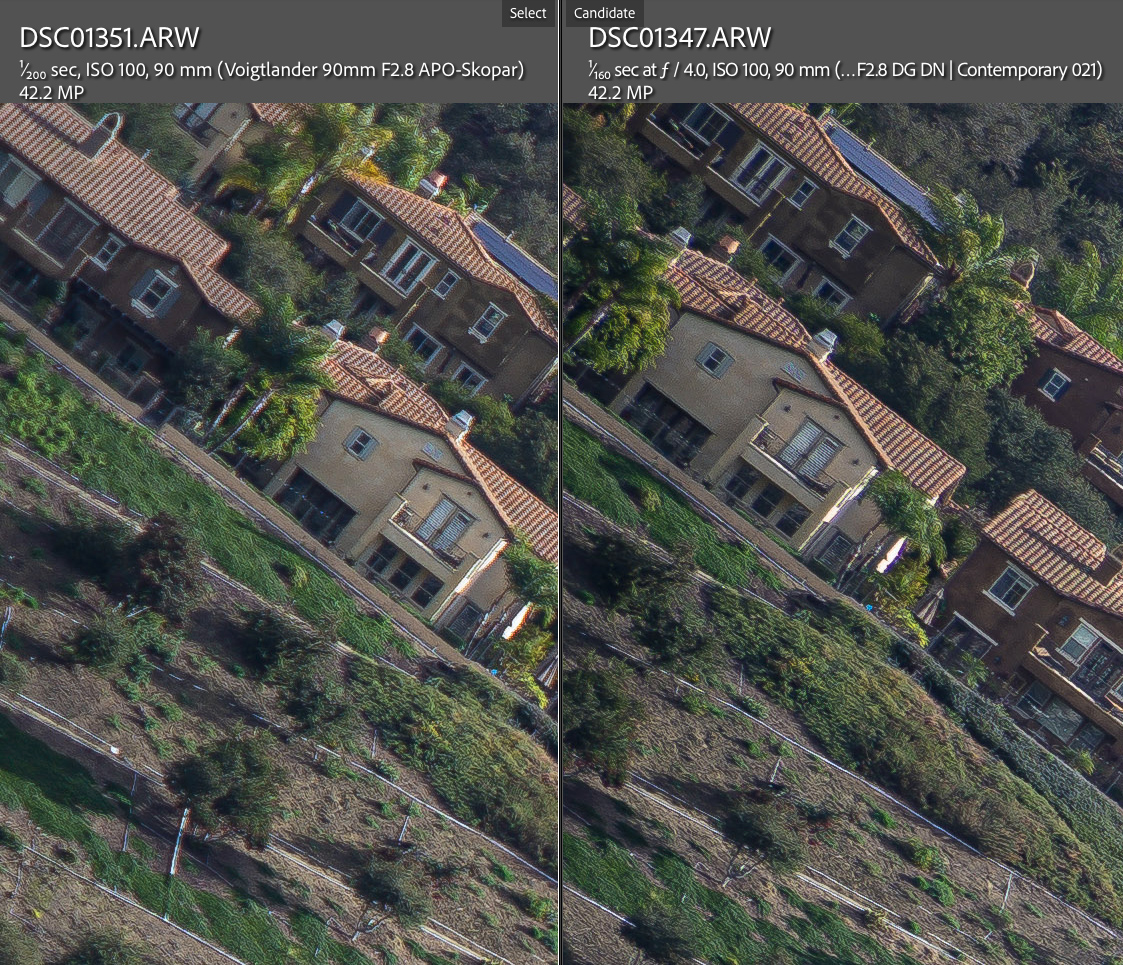

Extreme Corner at f/4: Both lenses improve slightly. The Sigma is still ahead capturing higher frequency detail. Perhaps optimal aperture for both lenses

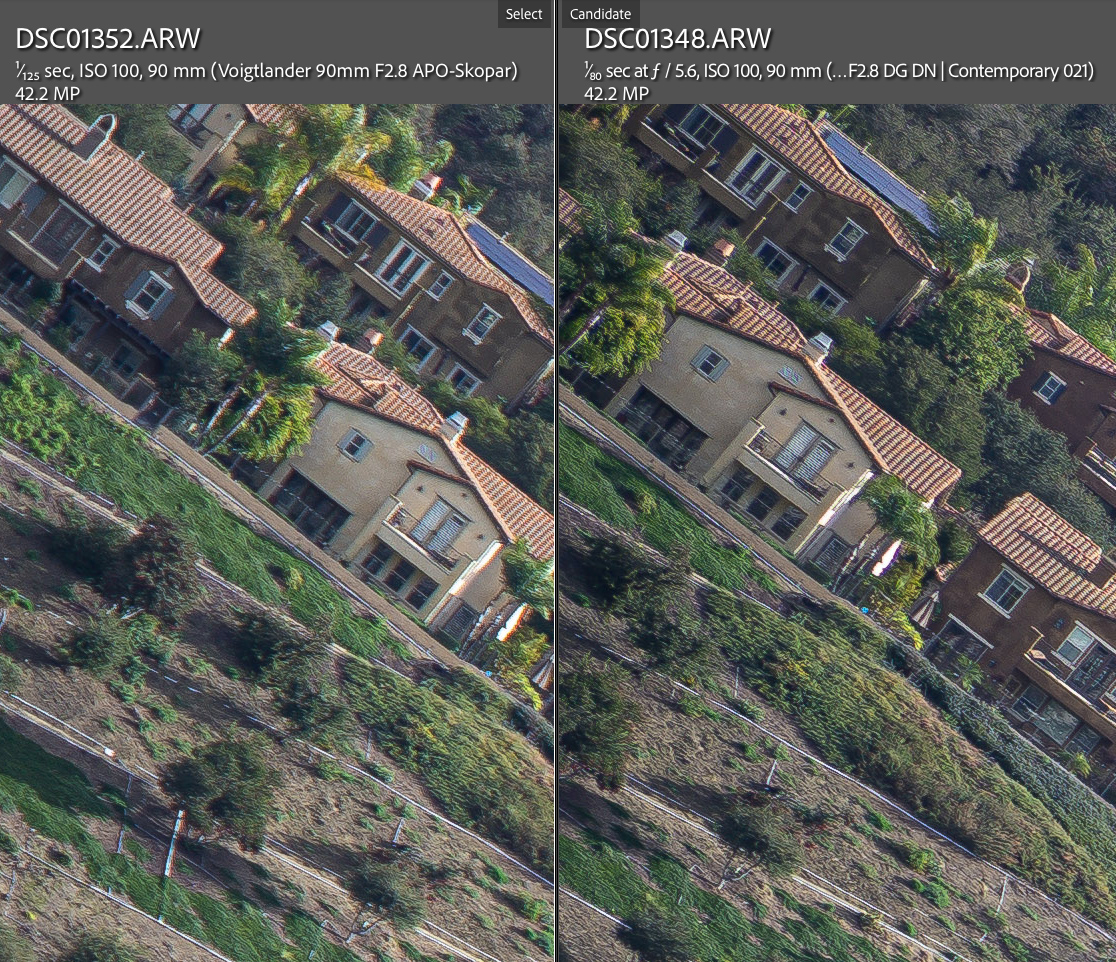

Extreme Corner at f/5.6: Not much changes

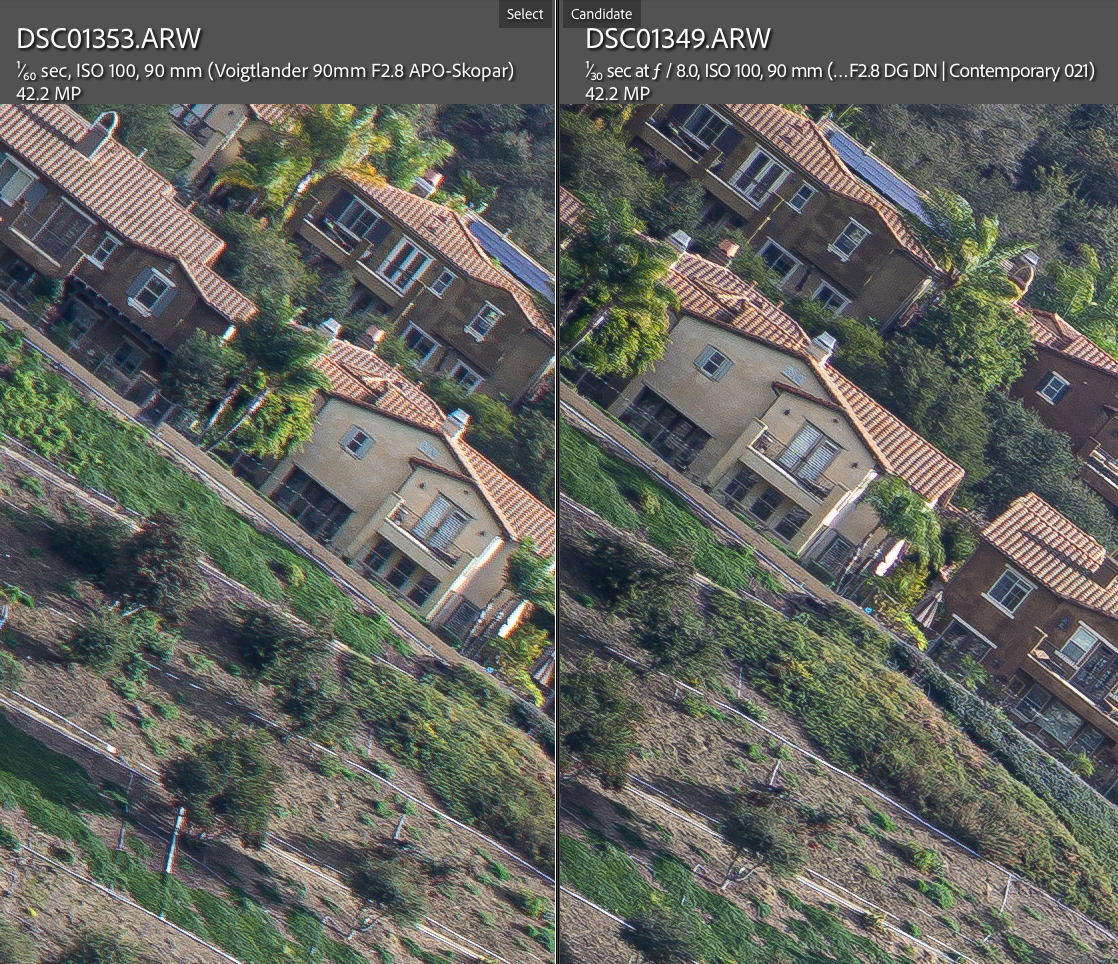

Extreme Corner at f/8: Signs of diffraction

Dec 24, 2021 at 03:48 PM
tsdevine
Offline
Details
p.3 #8Voigtlander 90mm f/2.8 APO-Skopar Review

I'm more of a landscape shooter, but that Sigma is compelling if you can live with the distortion.
Dec 24, 2021 at 07:55 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.3 #9Voigtlander 90mm f/2.8 APO-Skopar Review
tsdevine wrote:
I'm more of a landscape shooter, but that Sigma is compelling if you can live with the distortion.


Distortion is a plus for the Voigtlander 90/2.8 and a negative for the Sigma for sure.

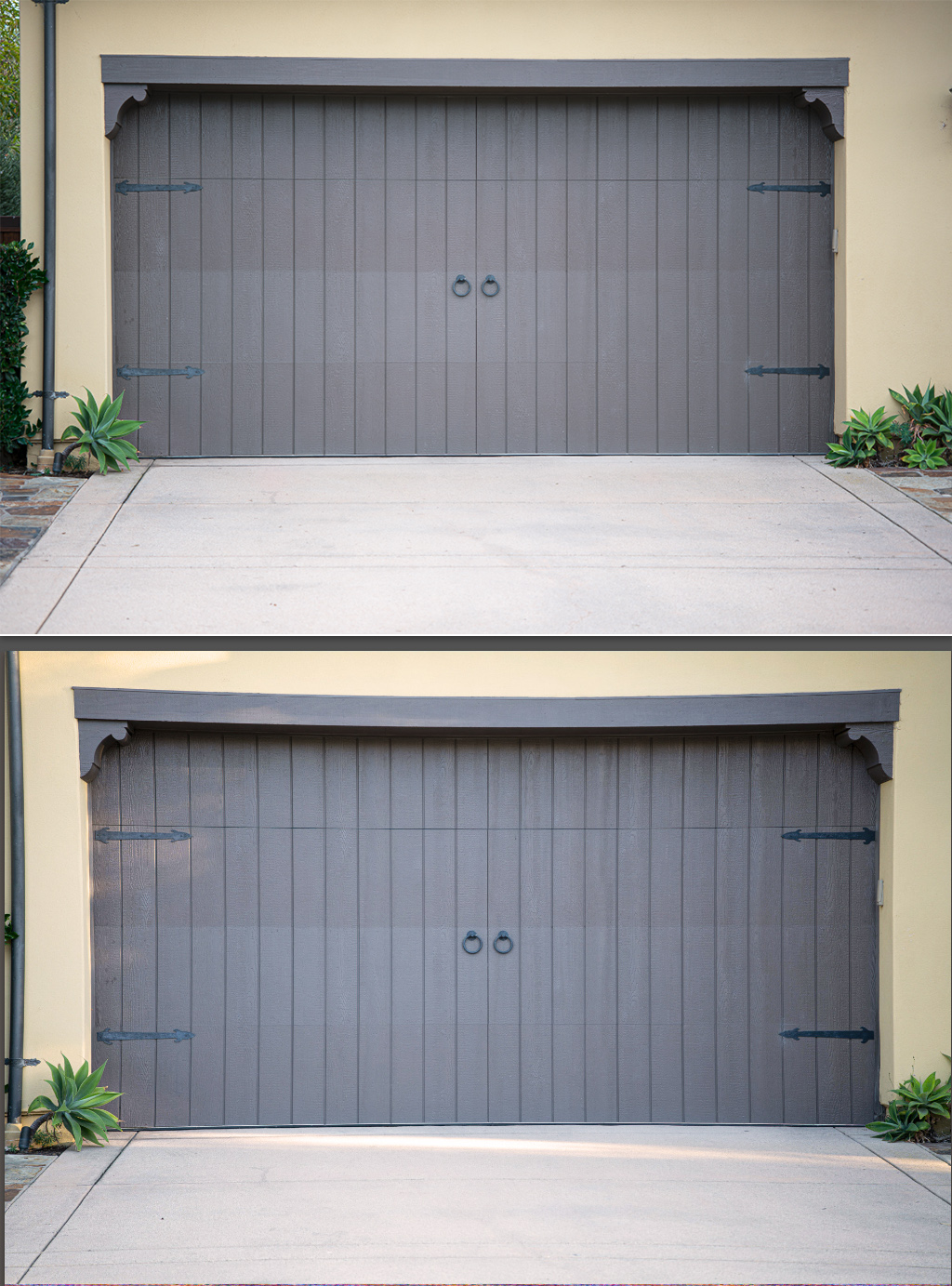

Here is how their pincushion distortion compare:

TOP: Voigtlander 90mm f/2.8 | BOTTOM: Sigma 90mm f/2.8




TOP: Voigtlander 90mm f/2.8 | BOTTOM: Sigma 90mm f/2.8

Dec 24, 2021 at 08:49 PM
tsdevine
Offline
Details
p.3 #10Voigtlander 90mm f/2.8 APO-Skopar Review

Fred, it would be interesting to show that set again, after the Sigma is corrected for distortion....
Dec 24, 2021 at 08:53 PM



Search in Used Dept.

Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.3 #11Voigtlander 90mm f/2.8 APO-Skopar Review
tsdevine wrote:
Fred, it would be interesting to show that set again, after the Sigma is corrected for distortion....


Honestly, I can't tell much difference at 100% magnificaiton.

Here is a comparison at f/4 showing center, mid-field and extreme corners.

Corrected (using the Lightroom profile) versus Uncorrected:

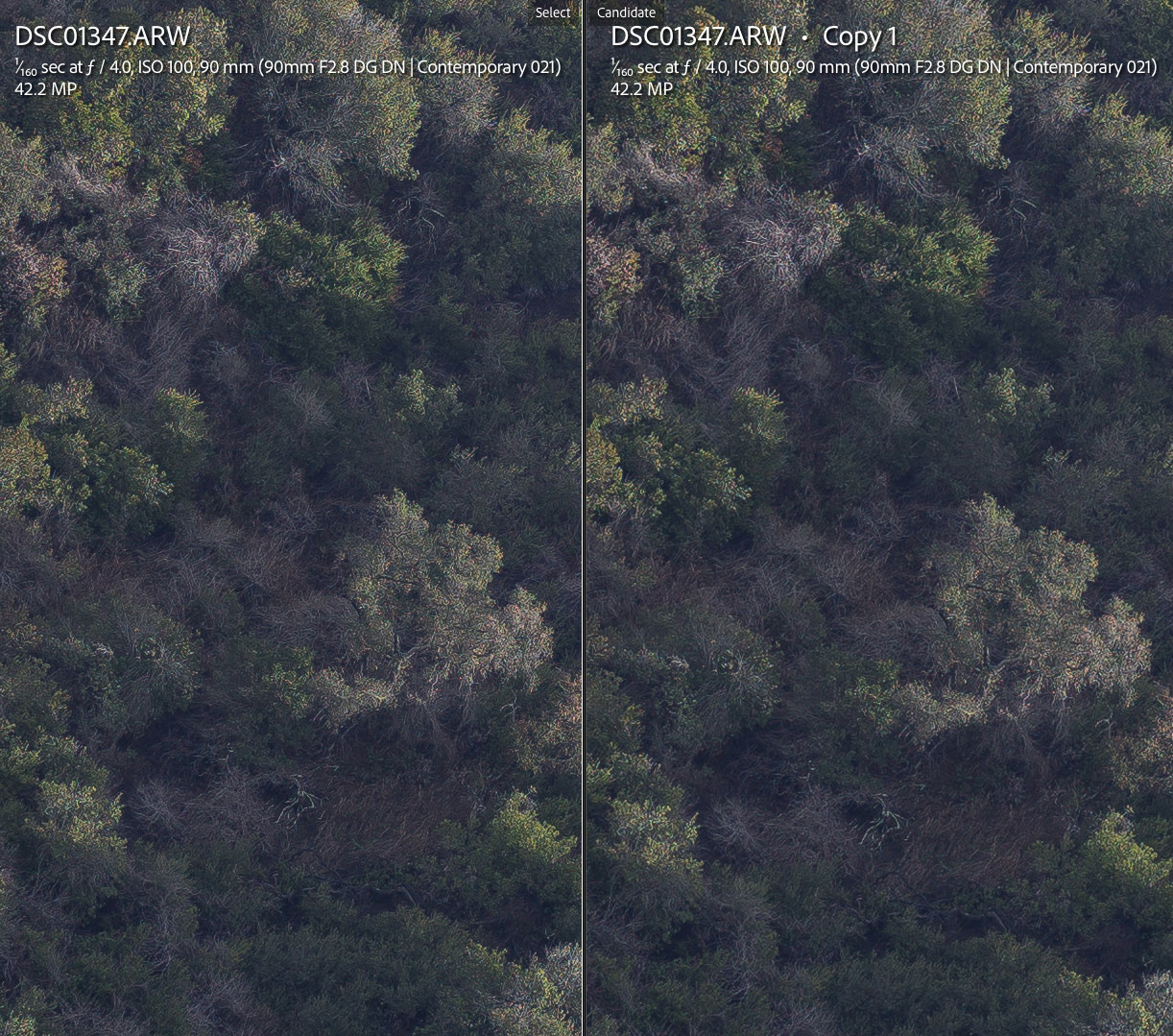

Center: LEFT (Corrected for Distortion) | RIGHT (Uncorrected)

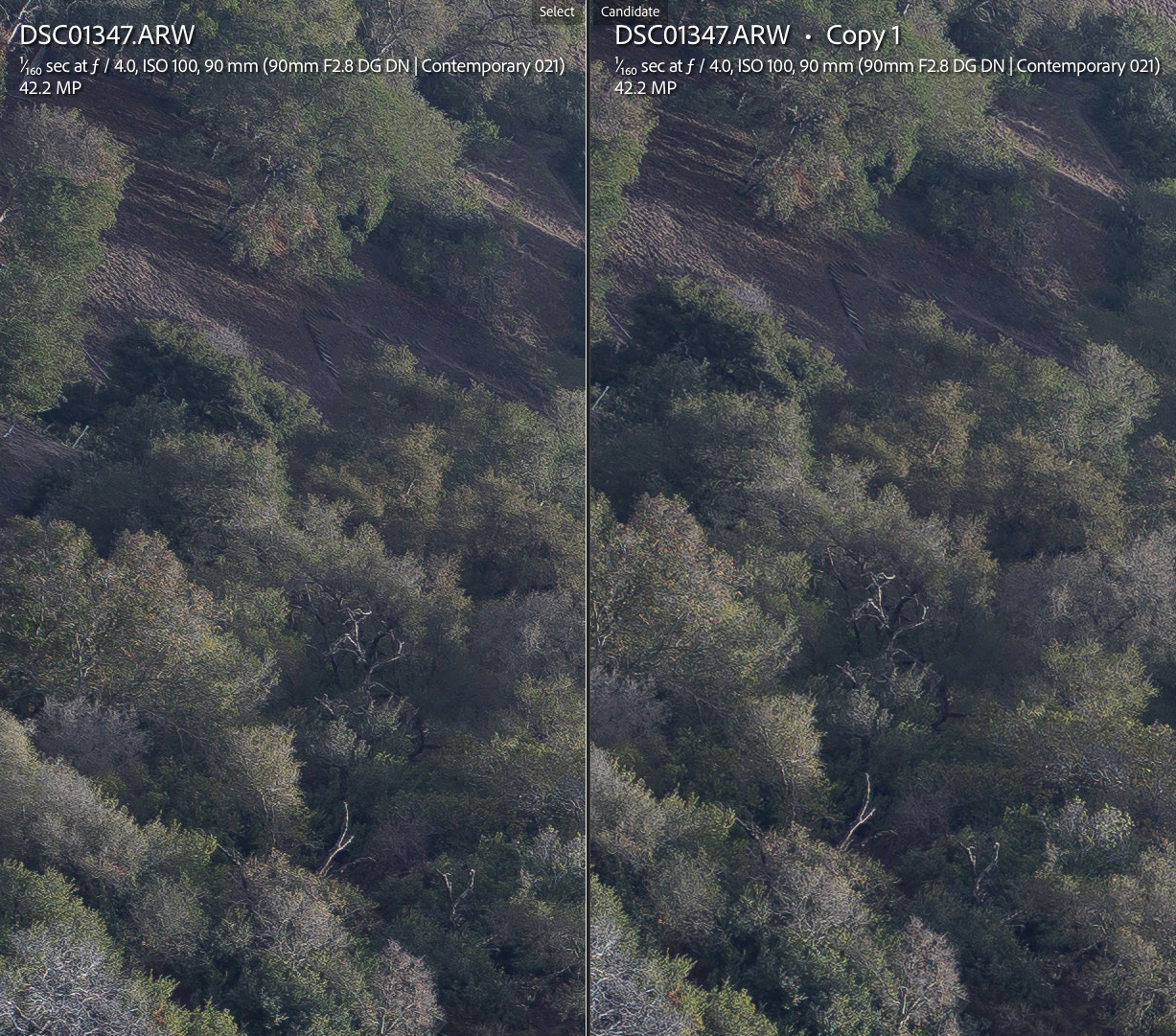

Mid-field: LEFT (Corrected for Distortion) | RIGHT (Uncorrected)

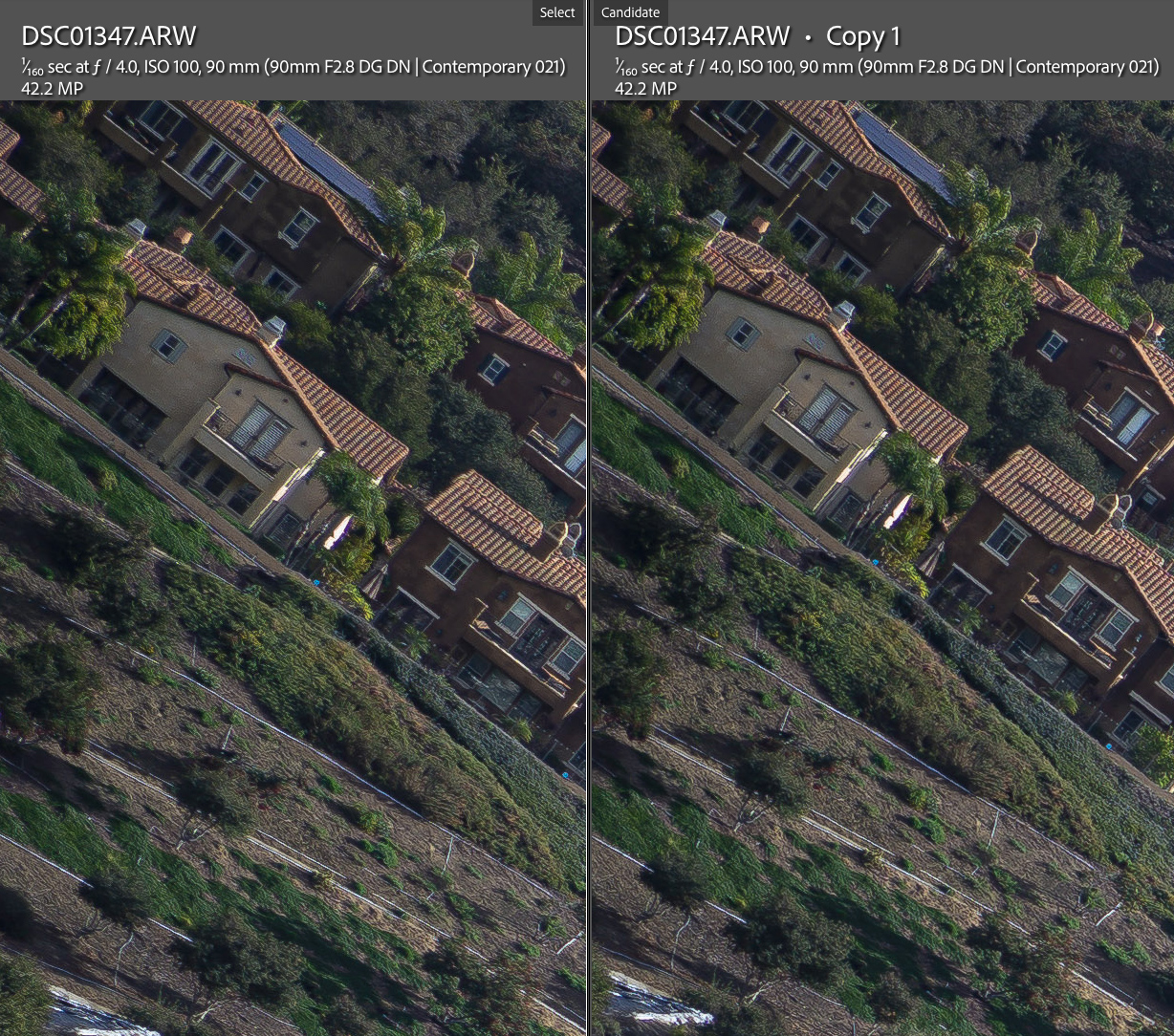

Center area: LEFT (Corrected for Distortion) | RIGHT (Uncorrected)

Dec 24, 2021 at 09:03 PM
Petegh
Offline
Details
p.3 #12Voigtlander 90mm f/2.8 APO-Skopar Review
I doubt you'd be able to pick a difference in a blind test with the center, but the midframe and corner show exactly the sort of microcontrast loss you'd expect with significant distortion correction; and in the case of the corner, there is some loss of resolution visible as well.

Relatively coarse/ low frequency structures look similar, but its the fine fractal nature of the vegetation that takes a hit - as well, there's a sort of haze over the image that degrades the impression of 3D, so more of an issue for landscape photography.

Overall, the Sigma does well though, and I'd probably chose it over the new Cosina for landscape. Begs the question: what was Cosina up to here? It should of been relatively easy to produce a razor sharp lens across the frame: the fact that its not, well, that must be on purpose, and provide some, as yet, undiscovered quality in the rendering.

Edited on Dec 26, 2021 at 04:36 AM · View previous versions
Dec 25, 2021 at 02:51 AM
Steve Spencer
Offline
Details
p.3 #13Voigtlander 90mm f/2.8 APO-Skopar Review
Petegh wrote:
I doubt you'd be able to pick a difference in a blind test with the center, but the midframe and corner show exactly the sort of microcontrast loss you'd expect with significant distortion correction; and in the case of the corner, there is some loss of resolution visible as well.

Relatively coarse/ low frequency structures look similar, but its the fine fractal nature of the vegetation that takes a hit - as well, there's a sort of haze over the image that degrades the impression of 3D, so more of an issue for landscape photography.

Overall, the Sigma does well though, and
...Show more →

I think for rangefinder shooting, which this lens was designed for, one of the big things this lens provides is a small size--small enough that it doesn't block the 90mm frame lines at all. It also is a great general purpose lens. A jack of all trades but master of none and that too is a great design goal for a rangefinder lens. I plan to pick it up and I think it will be great for my M10 travel kit.
Dec 25, 2021 at 07:50 AM
naturephoto1
Offline
Details
p.3 #14Voigtlander 90mm f/2.8 APO-Skopar Review
Steve Spencer wrote:
Petegh wroteI doubt you'd be able to pick a difference in a blind test with the center, but the midframe and corner show exactly the sort of microcontrast loss you'd expect with significant distortion correction; and in the case of the corner, there is some loss of resolution visible as well.

Relatively coarse/ low frequency structures look similar, but its the fine fractal nature of the vegetation that takes a hit - as well, there's a sort of haze over the image that degrades the impression of 3D, so more of an issue for landscape photography.

Overall, the Sigma does well though, and I'd probably chose it over the new Cosina for landscape. Begs the question: what was Cosina up to here? It should of been relatively easy to produce a razor sharp lens acros the frame: the fact that its not, well, that must be on purpose, and provide some, as yet, undiscovered quality in the rendering.
I think for rangefinder shooting, which this lens was designed for, one of the big things this lens provides is a small size--small enough that it doesn't block the 90mm frame lines at all. It also is a great general purpose lens. A jack of all trades but master of none and that too is a great design goal for a rangefinder lens. I plan to pick it up and I think it will be great for my M10 travel kit.


Hi Steve,

As it turns out, I did not make it out to use the lens Thursday or Friday and today Christmas Day it is raining. Tomorrow, Sunday is supposed to be sunny with a high of 48 degrees F. So, I will plan for tomorrow.

Rich

Dec 25, 2021 at 08:10 AM
j4nu
Offline
Details
p.3 #15Voigtlander 90mm f/2.8 APO-Skopar Review
Fred Miranda wrote:
tsdevine wroteFred, it would be interesting to show that set again, after the Sigma is corrected for distortion....
Honestly, I can't tell much difference at 100% magnificaiton.

Here is a comparison at f/4 showing center, mid-field and extreme corners.

Corrected (using the Lightroom profile) versus Uncorrected:


That's a great comparison! ... and it matches my impression when I played around with 85DN distortion correction, that it's indistinguishable to my eye. I think this is good news as the distortion on both 90i and 85DN is pretty massive .
Dec 25, 2021 at 08:10 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.3 #16Voigtlander 90mm f/2.8 APO-Skopar Review
j4nu wrote:
Fred Miranda wrote
tsdevine wroteFred, it would be interesting to show that set again, after the Sigma is corrected for distortion....
Honestly, I can't tell much difference at 100% magnificaiton.

Here is a comparison at f/4 showing center, mid-field and extreme corners.

Corrected (using the Lightroom profile) versus Uncorrected:
That's a great comparison! ... and it matches my impression when I played around with 85DN distortion correction, that it's indistinguishable to my eye. I think this is good news as the distortion on both 90i and 85DN is pretty massive .


Yes, it will be a case of emperor's new clothes.
Some photographers will see a difference and others won't. To my eyes, any difference is negligible, especially considering we are analyzing this at pixel level. (100% mag.)
Dec 25, 2021 at 12:42 PM
derKoekje
Offline
Details
p.3 #17Voigtlander 90mm f/2.8 APO-Skopar Review
I'm curious about this lens as I need a decent portrait performer on my M9. CA control is quite important on that sensor especially around highlights so I'm curious as to how this performs. The Voigtlander 75mm F1.5 already doesn't seem like a bad performer here though. It'll probably come down to these two performers.
Dec 25, 2021 at 02:17 PM
philip_pj
Offline
Details
p.3 #18Voigtlander 90mm f/2.8 APO-Skopar Review
You might enjoy Matt's video as much as I did - YT title:

Latest APO Lens | Voigtlander 90mm f2.8 APO-Skopar Review

and web page: https://mrleica.com/tag/voigtlander-90mm-f2-8-apo-skopar-sample-photos/



Edited on Dec 25, 2021 at 03:05 PM · View previous versions
Dec 25, 2021 at 03:02 PM
zhangyue
Offline
Details
p.3 #19Voigtlander 90mm f/2.8 APO-Skopar Review
Thank you so much for the comparison, Fred. I have the sigma and feel it is quite exceptional for the size. it does have the corner bokeh issue (strong cat eye etc..) but I think the total package overtake its flaw to me. I am sure I will take it with me on trip.

This doesn't change the value of this Voigtlander. If you prefer manual lens, better build small glass with good color correction, this is the one. My need at this focal is AF so Sigma take the lead. (to match my 24/45 f2.8 set) For M, I seldom put longer than 50mm on it, and then I also have VC75 which I like a lot. It is not much bigger, but much faster and I think at least as sharp as this 90mm.

Dec 25, 2021 at 03:03 PM
nehemiahphoto
Online
Details
p.3 #20Voigtlander 90mm f/2.8 APO-Skopar Review
Nice comp Fred. Very helpful. Happy Holidays everyone!
Dec 25, 2021 at 03:04 PM
