p.144 #1Voigtlander 40mm f/1.2 Nokton Review
Was able to get out and shoot some snaps tonight though I got home and realize I have taken all Jpegs which is strange because I am sure i had changed it to Raw&Jpeg... Anyway huge learning curve but i'm happy with the initial results. I have not tested this lens for corner softness or decentered focus and likely won't unless something really jumps out at me. So far i'm loving the feeling this lens provides and manual focus with the A7iii is amazing. Some color and curve adjustments in LR.











Aug 17, 2018 at 12:47 AM
sebbe
Offline
Details
p.144 #2Voigtlander 40mm f/1.2 Nokton Review
DannyBurkPhoto wrote:
Curious question for those who like auto magnify: are you doing (central) focus and recompose? I don't (mainly due to field curvature issues), and my point of focus is often somewhere far to one side.


As I'm still on the older bodies (a7RII) I pre-position the magnifier window with "focus setting" and the wheel. Recomposing is only used with AF-C (with a lock-mode) and back button focus.

Edited on Aug 17, 2018 at 02:55 AM · View previous versions
Aug 17, 2018 at 12:49 AM
sebbe
Offline
Details
p.144 #3Voigtlander 40mm f/1.2 Nokton Review
KarmaKramer wrote:
The shadows lack contrast....? What?

pdmphoto wroteMy first impression of the optical properties are meh. The central sharpness is excellent (at moderate distance), but the edges and corners are lacking. The shadows seem to lack contrast. A nice boutique lens for a special look, but I can't see it being a good landscape lens. Probably not general purpose enough for me.

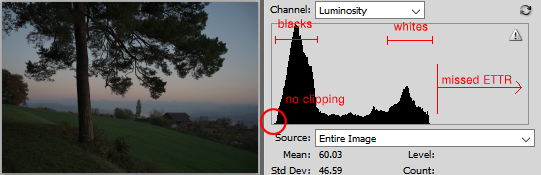

I think he is pointing that the darkest point is hardly pitch black (see below "no clipping"). Even if the shot is very underexposed (see "missed ETTR"). But this lens shows a lot of details in the shadows too (see "blacks"). The same is with the very whites (see "whites"). It's one of the things I really like about this lens. Especially for foliage/skies in landscapes.





RAW without any processing






final picture



Edited on Aug 17, 2018 at 02:25 AM · View previous versions
Aug 17, 2018 at 02:08 AM
sebbe
Offline
Details
p.144 #4Voigtlander 40mm f/1.2 Nokton Review
Haha, it's nice to see how much love this lens has. This thread generates about one page within two days (over ten months now). Only the "Sony FE images thread" has a slightly higher cadence.
Aug 17, 2018 at 02:23 AM
pdmphoto
Offline
Details
p.144 #5Voigtlander 40mm f/1.2 Nokton Review
KarmaKramer wrote:
The shadows lack contrast....? What?

pdmphoto wroteMy first impression of the optical properties are meh. The central sharpness is excellent (at moderate distance), but the edges and corners are lacking. The shadows seem to lack contrast. A nice boutique lens for a special look, but I can't see it being a good landscape lens. Probably not general purpose enough for me.


When comparing the IQ to the Samyang 35/1.4 (my copy has excellent sharpness across the frame, as well as excellent contrast, from wide open), the shadow areas look muddy. Not terribly so, but not to the high standards of some other fine lenses I have. My Loxia 21 (and my old Loxia 35/2) comes to mind as having very good shadow area contrast, although most others are better than what I have seen with the CV40. My test scene was an outdoor scene with trees in muted sunlight at F8.The areas under the shade of the trees look muddy, apparently from lack of contrast. Conversely, the contrast in the lighter areas is excellent It seems to be part of what gives the lens its special look.
Aug 17, 2018 at 03:55 AM
Luvwine
Offline
Details
p.144 #6Voigtlander 40mm f/1.2 Nokton Review
I like the lens for landscape personally. Stopped down it is also at infinity focus at the hard stop which makes it really convenient.

From this morning:

Aug 17, 2018 at 05:50 AM
Gunzorro
Offline
Details
p.144 #7Voigtlander 40mm f/1.2 Nokton Review
DannyBurkPhoto wrote:
Curious question for those who like auto magnify: are you doing (central) focus and recompose? I don't (mainly due to field curvature issues), and my point of focus is often somewhere far to one side.


Sometimes I focus and recompose, being careful to not stray too far within the intended scene, and always looking for contrasty areas on the same focal plane/distance.

Most commonly, I roughly frame the scene through observation, then look through the viewfinder (sometimes slightly OOF to get the graphic elements) with my focus target in the center, then simply focus on that point with adequate DOF to cover the other areas, near to far.

Shooting from tripod, I joystick around to check focus. I never use touch screens, and find them particularly annoying for hand held work, being set off by contact with chest and clothing.

Later, I'll do straightening and final crop in LR. But normally, I'm simply fixing perspective and "taking a little off the sides" for a more 3x4 or 5x7 format. (I would really like to have a larger MP sensor in 44x33.)
Aug 17, 2018 at 06:34 AM
scottsoapbox
Offline
Details
p.144 #8Voigtlander 40mm f/1.2 Nokton Review
Fred Miranda wrote:
scottsoapbox wroteAnd the rest of the fence comparison.
That's great and induced field curvature is even noticeable at these resized images.
Can you post a 1:1 crop showing the extreme edges comparing the E vs M mounts wide open?
These results could of course change depending on distance.

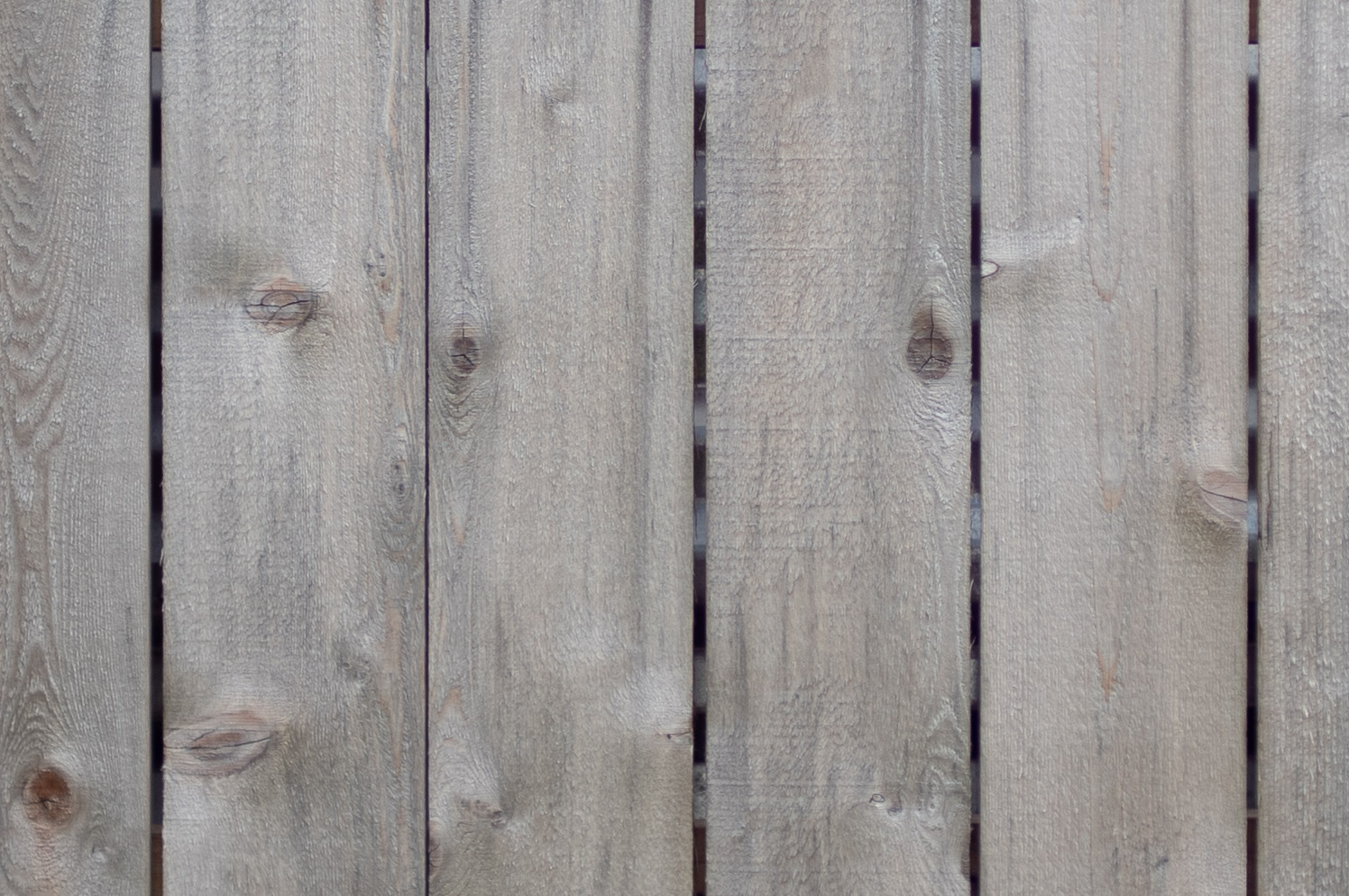

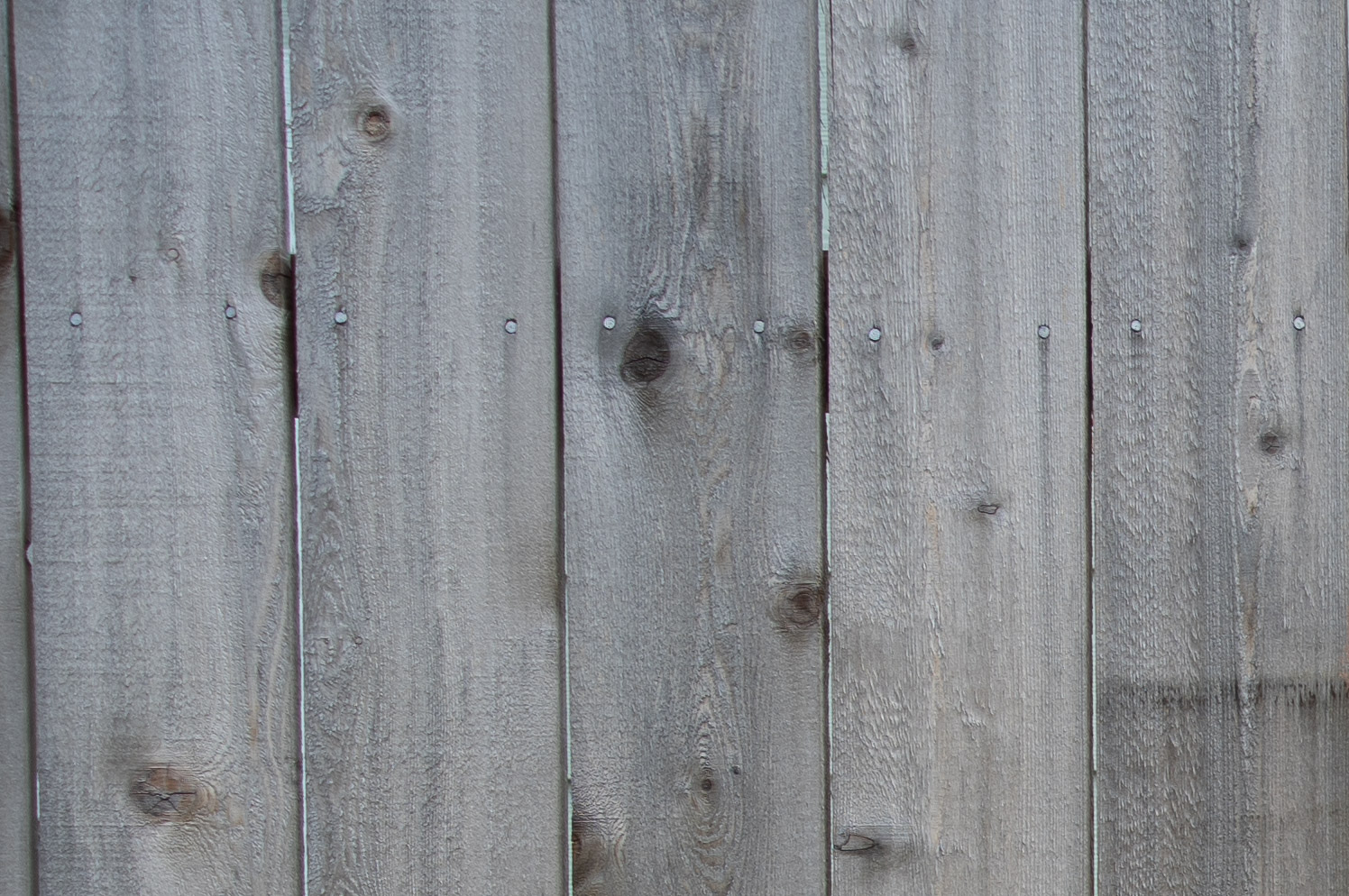

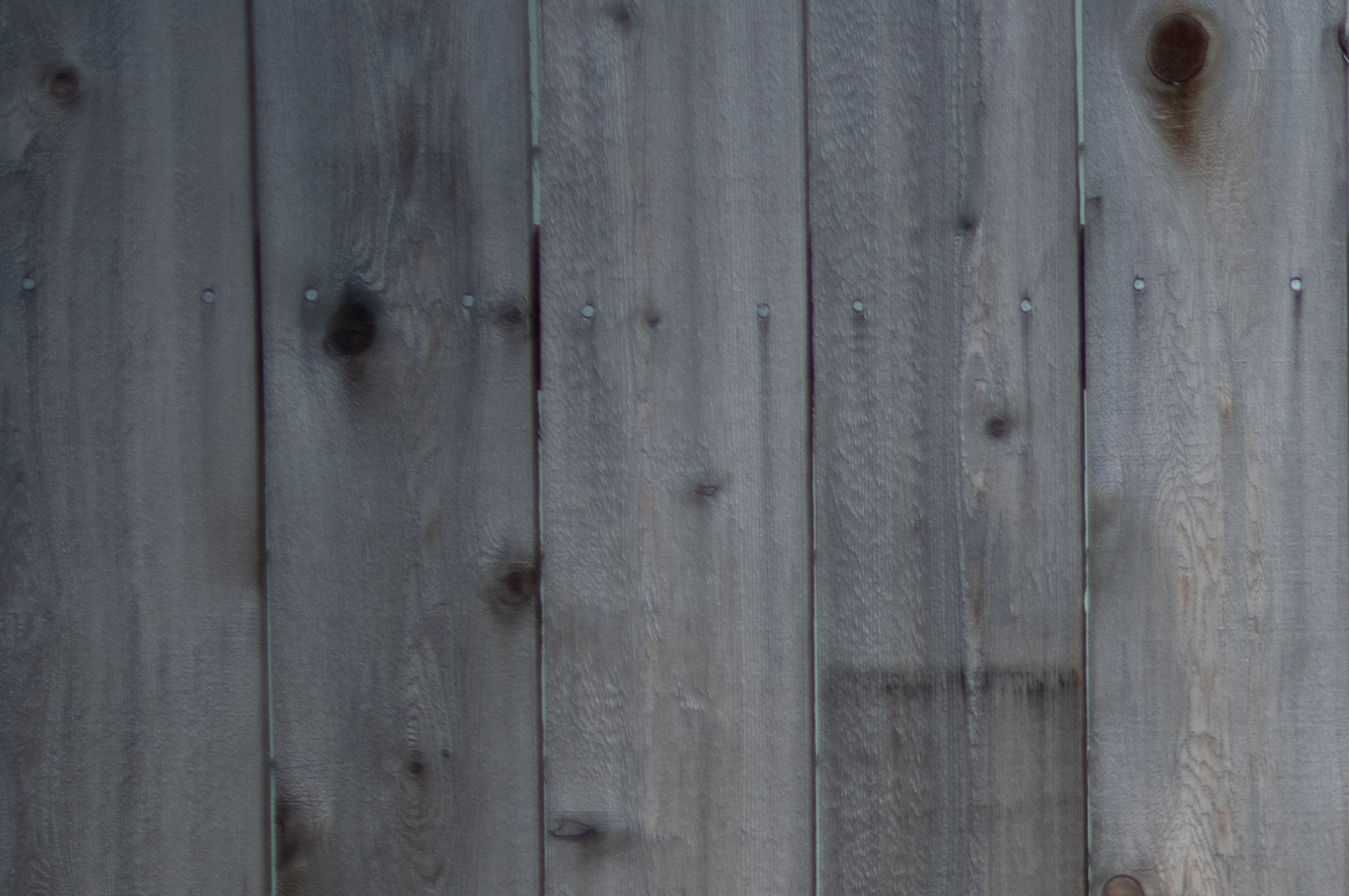

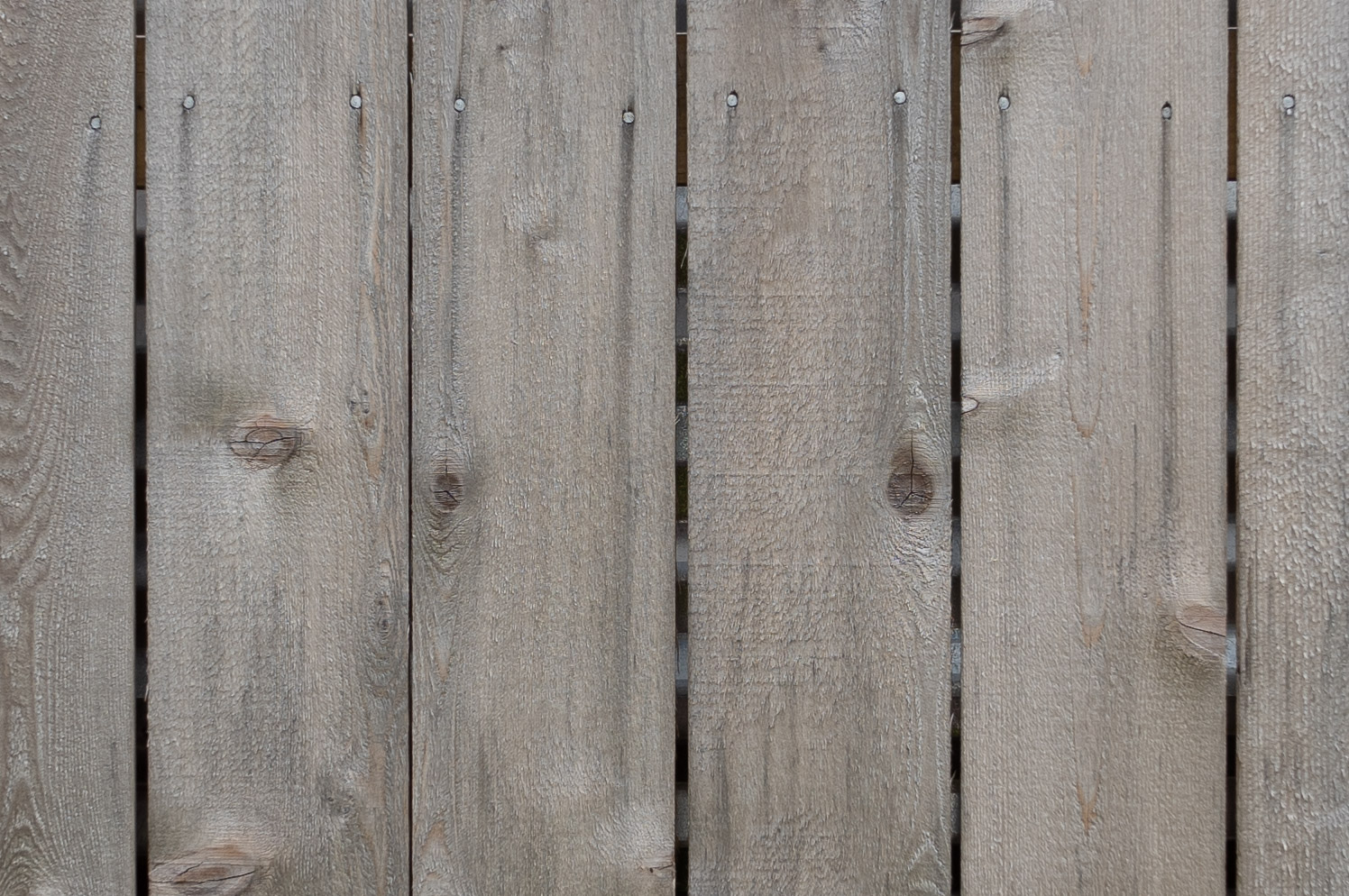

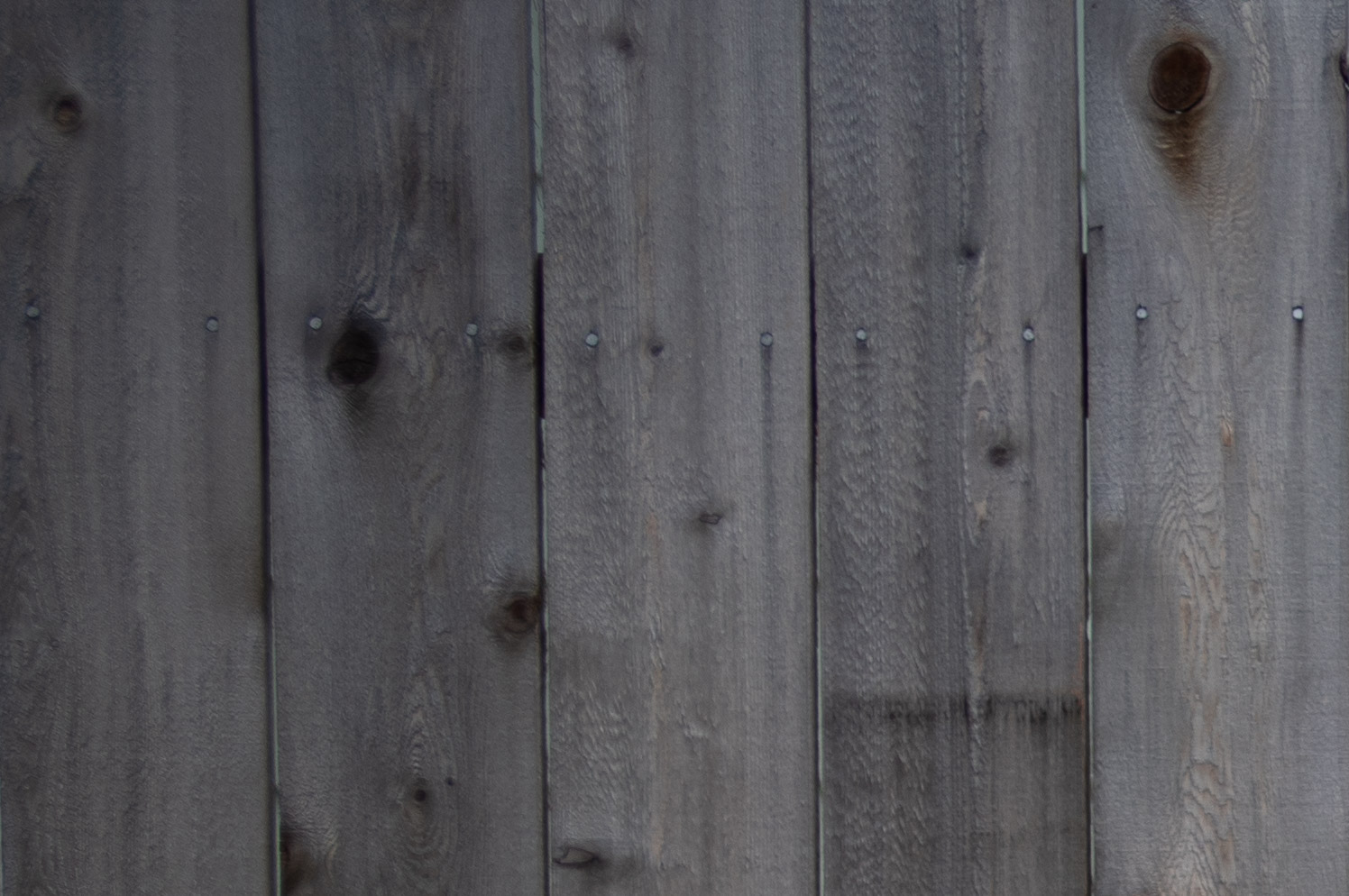

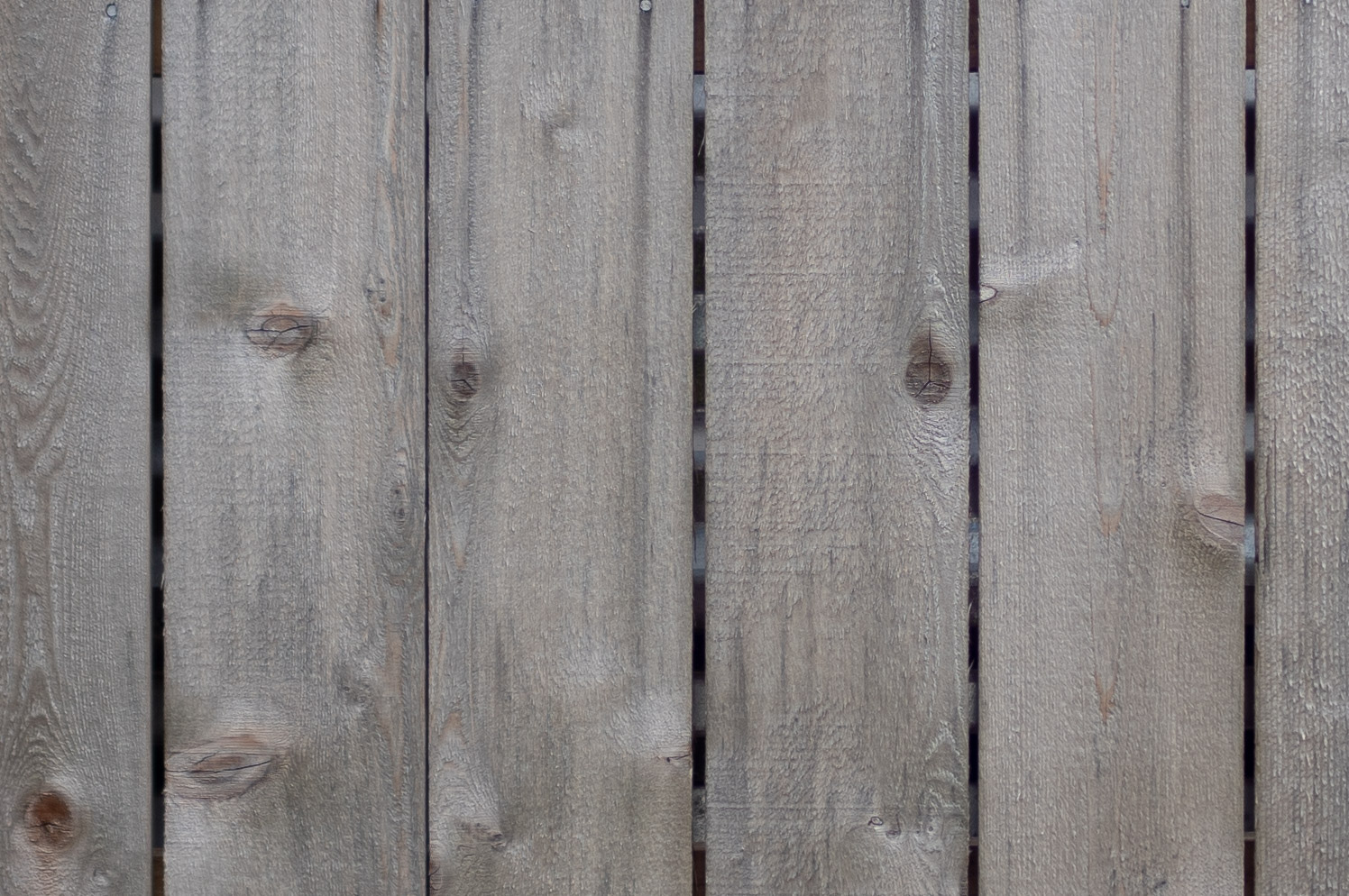

Sure. Here are the center, upper left corner, and upper right corner 1:1 crops of the FE and VM at f1.2. Fence is 13 feet from camera.

Do you think the VM is decentered enough to swap out? (I've been fairly lucky with prior lenses)





Center












Upper Left Corner












Upper Right Corner






Aug 17, 2018 at 07:56 AM
scottsoapbox
Offline
Details
p.144 #9Voigtlander 40mm f/1.2 Nokton Review

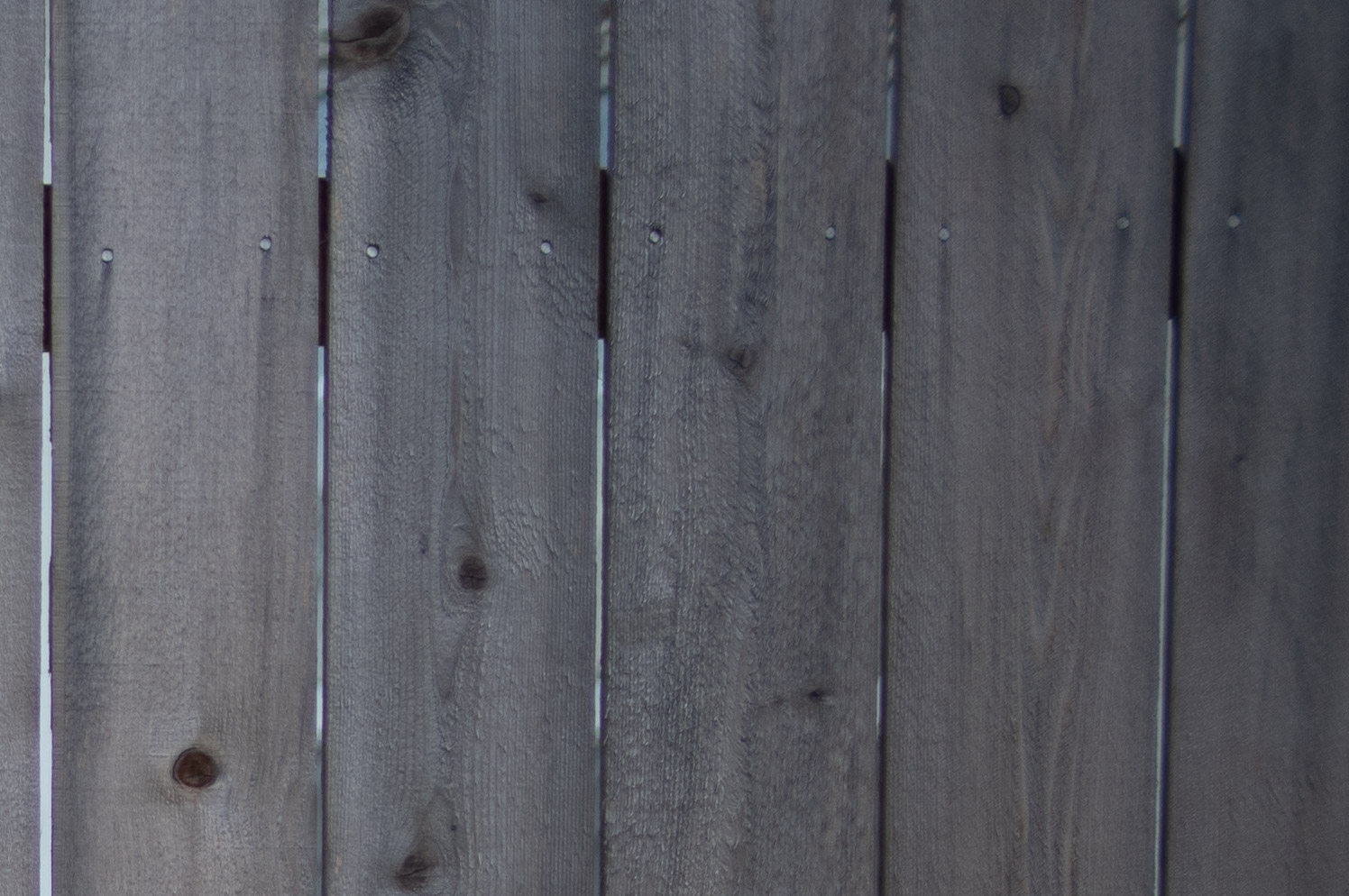

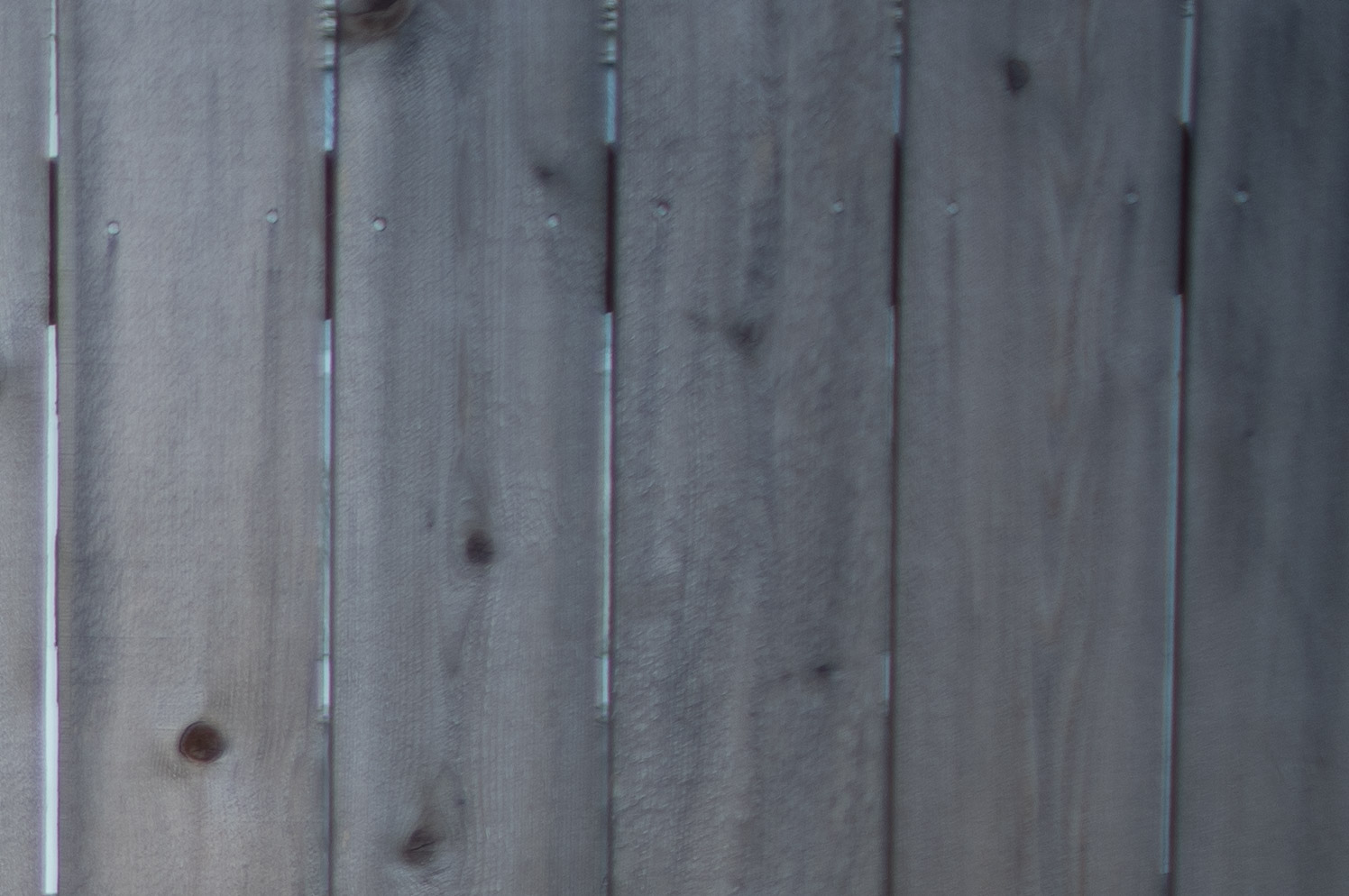

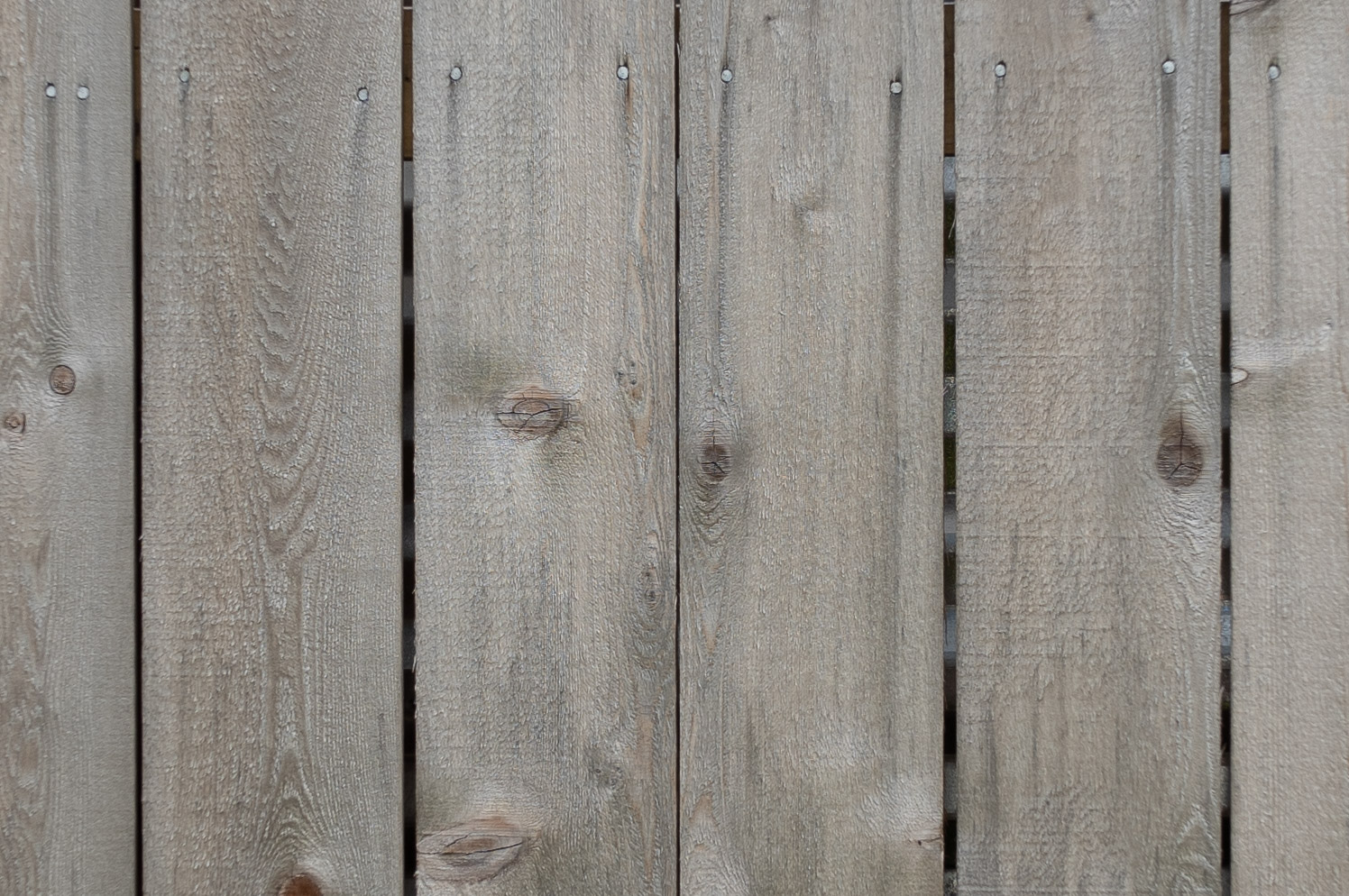

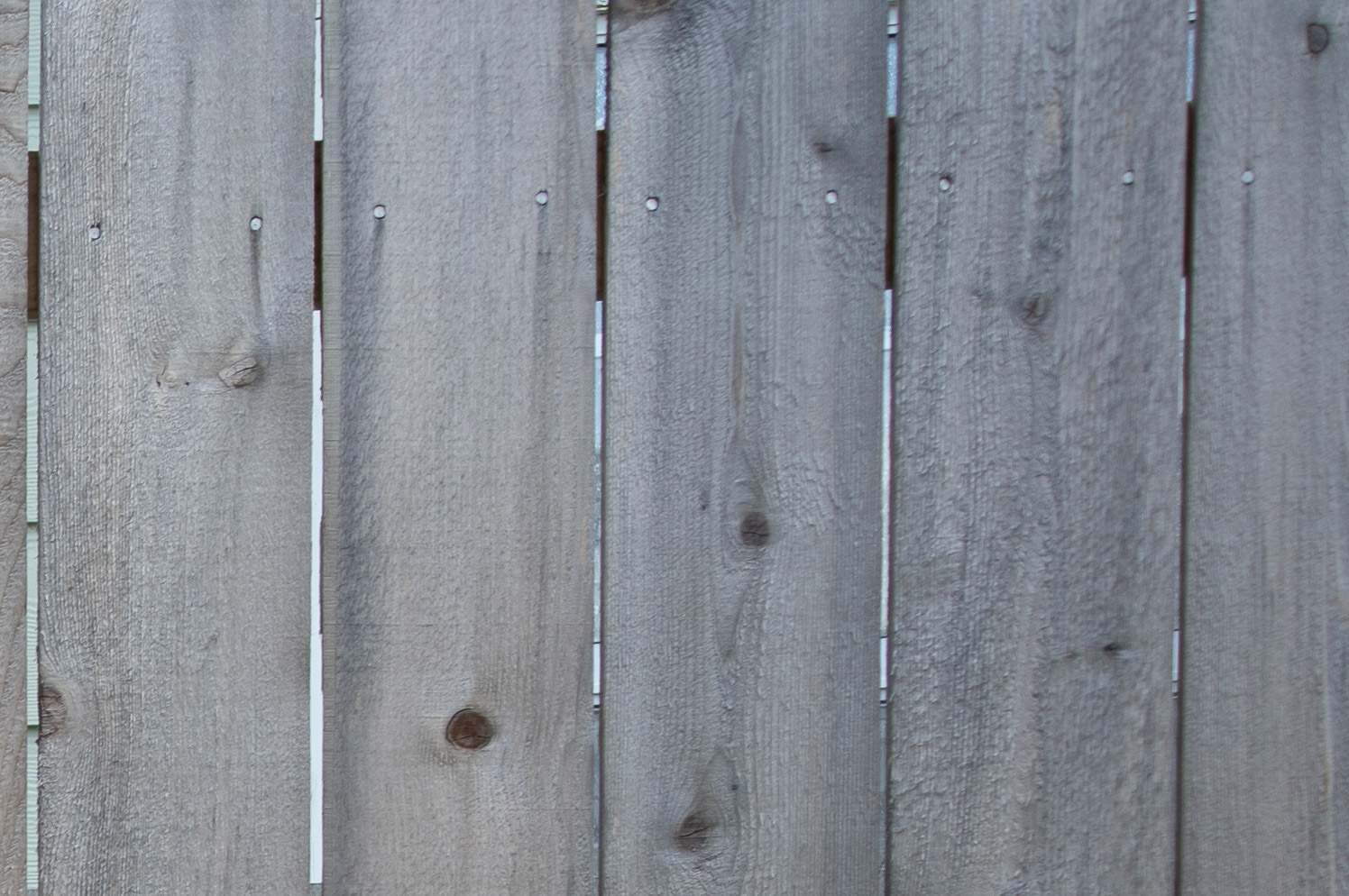

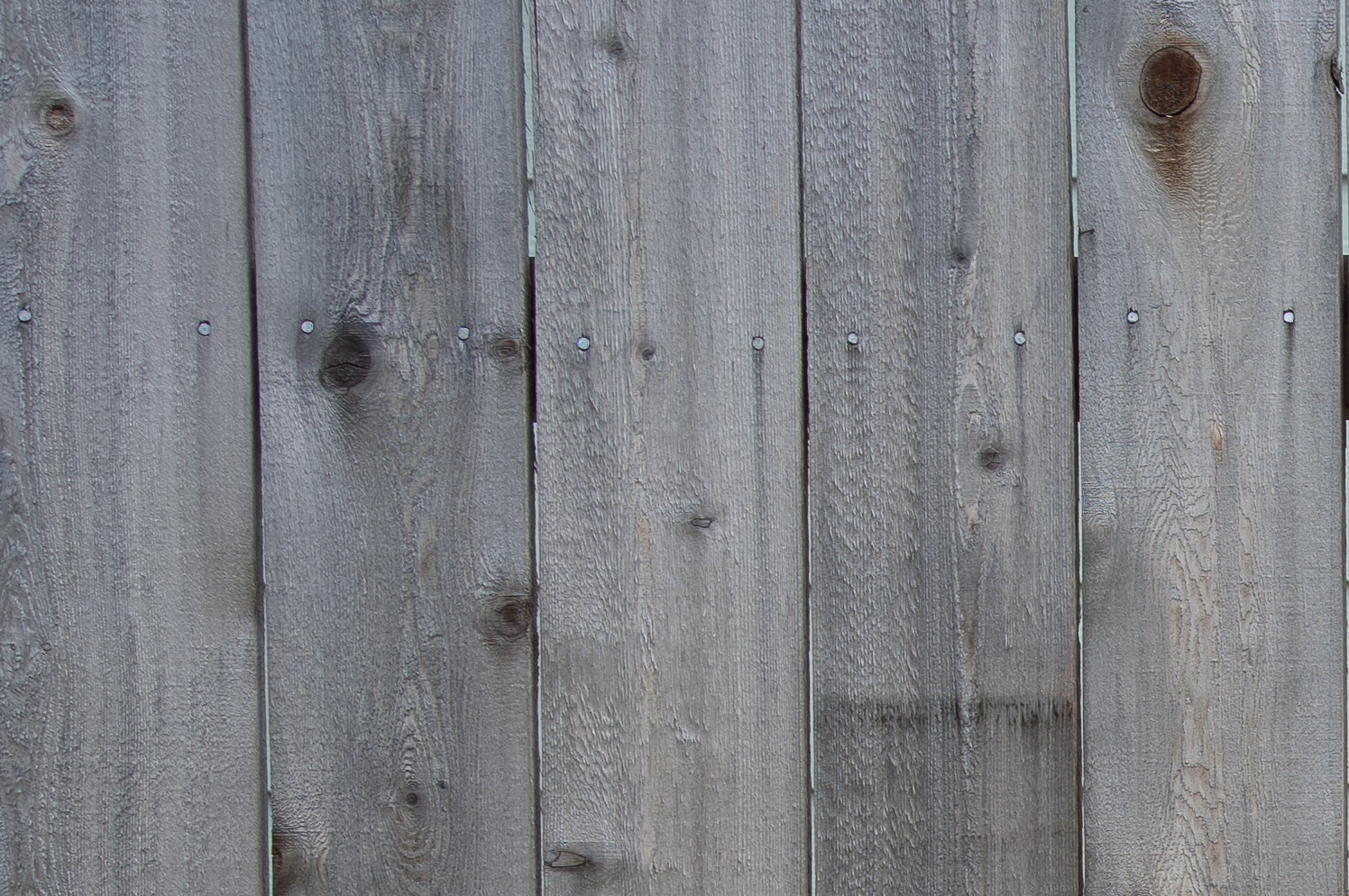

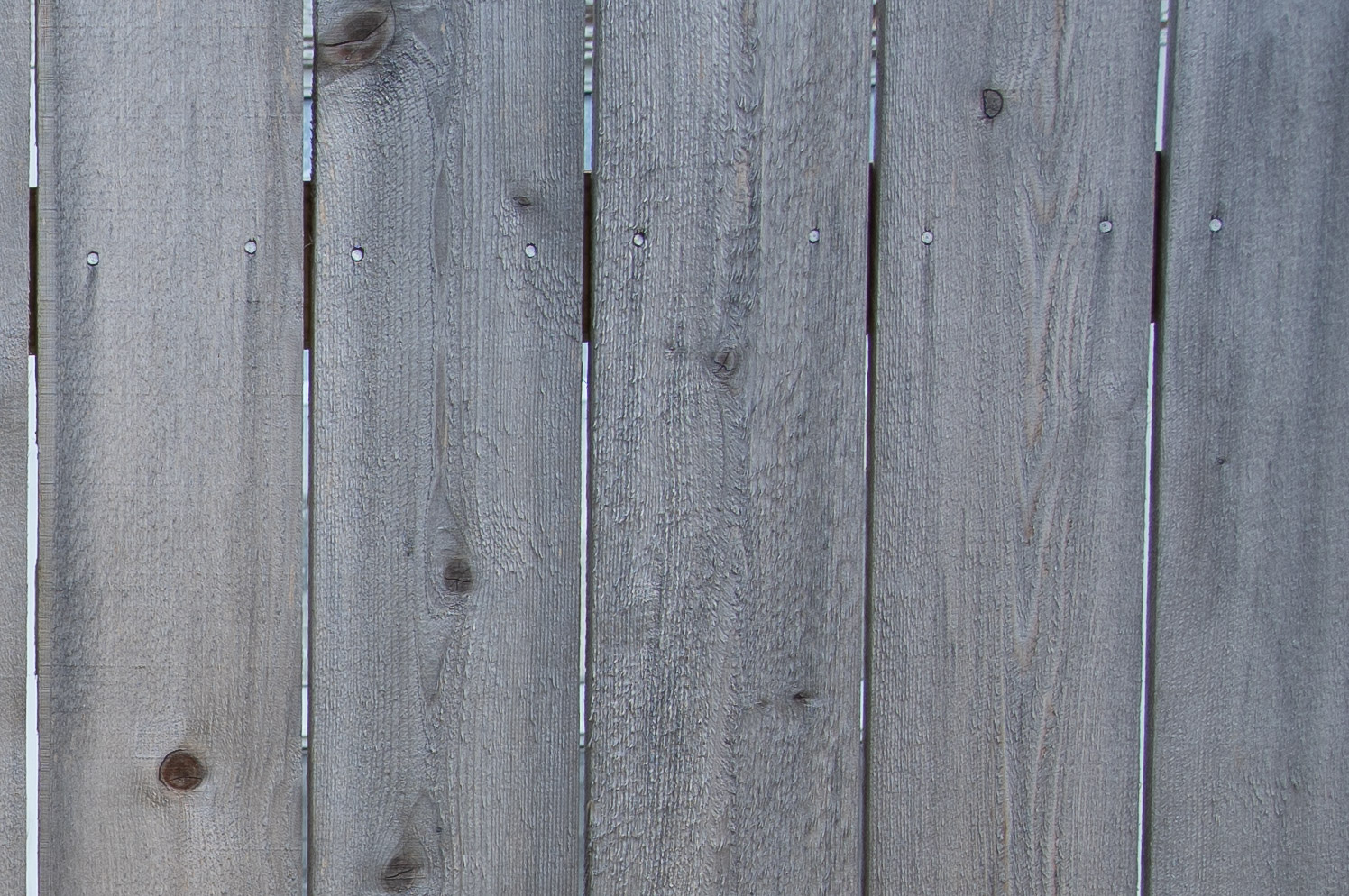

Here are the center, upper left corner, and upper right corner 1:1 crops of the FE and VM at f5.6 (which I believe is what Fred found as the optimum for FE). Fence is 13 feet from camera.





Center












Upper Left Corner












Upper Right Corner






Aug 17, 2018 at 08:03 AM
GMPhotography
Offline
Details
p.144 #10Voigtlander 40mm f/1.2 Nokton Review
Looking on my iPhone which not the best viewing but the FE looks better overall but the VM is what I would expect in the corners as it has more FC. So it looks normal to me. I have the FE myself
Aug 17, 2018 at 08:06 AM



Search in Used Dept.

Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.144 #11Voigtlander 40mm f/1.2 Nokton Review
scottsoapbox wrote:
Here are the center, upper left corner, and upper right corner 1:1 crops of the FE and VM at f5.6 (which I believe is what Fred found as the optimum for FE). Fence is 13 feet from camera.


Thanks for posting the crops!
These results are expected and I think both lenses are performing as they should.
They are optimum at f/5.6 but off-axis, the E-mount will perform better on the Sony body showing less field curvature. As you can see, the VM version is still very usable but perhaps not the best choice for applications where sharpness across the field is required.
Aug 17, 2018 at 09:46 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.144 #12Voigtlander 40mm f/1.2 Nokton Review
Luvwine wrote:
I like the lens for landscape personally. Stopped down it is also at infinity focus at the hard stop which makes it really convenient.

From this morning:

http://a4.pbase.com/o10/91/505291/1/167982783.QH4dIuem._DSC5043HDR2.jpg


Yes, I love stopping it down to f/5.6 or smaller and the convenience of focusing at the hard stop. So, for landscapes, it's basically a point and shoot...per se.
Aug 17, 2018 at 09:50 AM
saxguy
Offline
Details
p.144 #13Voigtlander 40mm f/1.2 Nokton Review
Fred Miranda wrote:
Luvwine wroteI like the lens for landscape personally. Stopped down it is also at infinity focus at the hard stop which makes it really convenient.

From this morning:

http://a4.pbase.com/o10/91/505291/1/167982783.QH4dIuem._DSC5043HDR2.jpg
Yes, I love stopping it down to f/5.6 or smaller and the convenience of focusing at the hard stop. So, for landscapes, it's basically a point and shoot...per se.


I have to back mine off from the hard stop. Can it be adjusted?

Aug 17, 2018 at 09:52 AM
GMPhotography
Offline
Details
p.144 #14Voigtlander 40mm f/1.2 Nokton Review
I’m at the beginning of the infinity symbol. Most of my MF lenses are
Aug 17, 2018 at 09:54 AM
col4bin
Offline
Details
p.144 #15Voigtlander 40mm f/1.2 Nokton Review
This lens does well with nightscapes too




Aug 17, 2018 at 09:56 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.144 #16Voigtlander 40mm f/1.2 Nokton Review
Here is one from Myrtle beach, SC:




Aug 17, 2018 at 10:09 AM
sebbe
Offline
Details
p.144 #17Voigtlander 40mm f/1.2 Nokton Review
Fred Miranda wrote:
Here is one from Myrtle beach, SC:


Just perfect! Very cool processing. I'm quite sure all the girls want to be her friend now. Just to get such wonderful pictures.




with an adapted Marumi+3 achromat



Edited on Aug 17, 2018 at 12:10 PM · View previous versions
Aug 17, 2018 at 11:29 AM
imagesfromobjects
Offline
Details
p.144 #18Voigtlander 40mm f/1.2 Nokton Review
Splash park shenanigans.

_DSC5431-LG by optic.nervous, on Flickr

_DSC5428-LG by optic.nervous, on Flickr

_DSC5438-LG-2 by optic.nervous, on Flickr
Aug 17, 2018 at 11:52 AM
GMPhotography
Offline
Details
p.144 #19Voigtlander 40mm f/1.2 Nokton Review
Fred Miranda wrote:
Here is one from Myrtle beach, SC:


Why this lens is so special. Nice shot bud
Aug 17, 2018 at 11:53 AM
bluloo
Offline
Details
p.144 #20Voigtlander 40mm f/1.2 Nokton Review
Nice examples everyone
Aug 17, 2018 at 12:00 PM
