p.1 #1 · How to replace an LCD screen on a 1D series

I asked around here if ti could be done, and it has been done before so I ordered the parts (AU$45)

I had some things to shoot for a few weeks so I left it until I could dedicate a few hours to it without interruptions and if I totally stuffed it up I could either send it to Canon or order some more parts for it.

I am not very good with this image upload thing so please bare with me and I will give as good a description as I can. I have the flu at the moment and as fellow men will know, when you get man flu it is a life and death type thing!

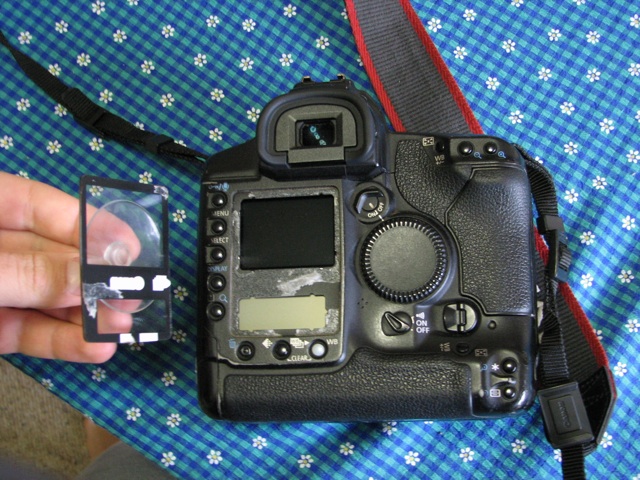

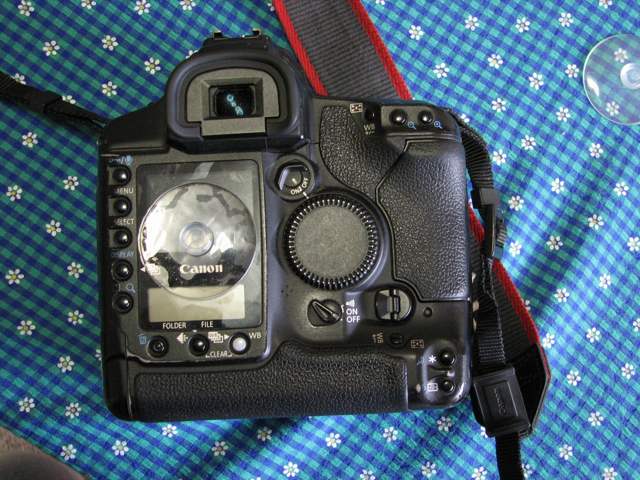

So first of all I got a little suction cup thingie I had in my draw. I really didnt think it would lift it up... but sure enough it did! If you dont have one you could lift it up at the edges with a small knife.

replacing the screen pdf
Edited by andrew81 on Apr 16, 2008 at 04:10 AM GMT

Edited by andrew81 on Apr 16, 2008 at 04:53 AM GMT

Edited on Apr 16, 2008 at 04:53 AM

Apr 14, 2008 at 11:30 PM

andrew81
Offline
Upload & Sell: Off

p.1 #2 · How to replace an LCD screen on a 1D series

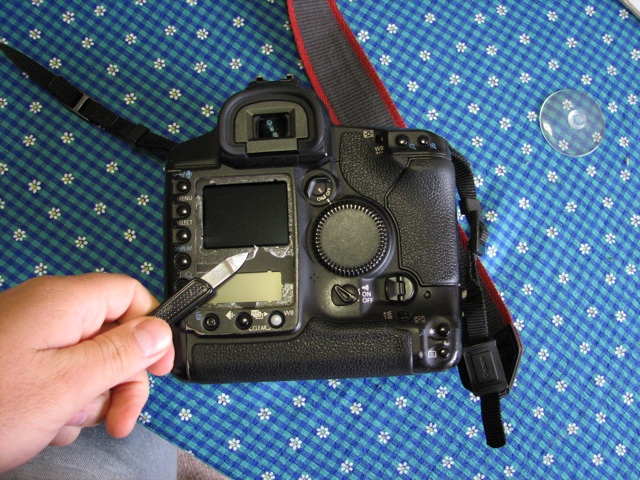

Up it comes, really didnt need to provide that much force.

Apr 14, 2008 at 11:33 PM

andrew81
Offline
Upload & Sell: Off

p.1 #3 · How to replace an LCD screen on a 1D series

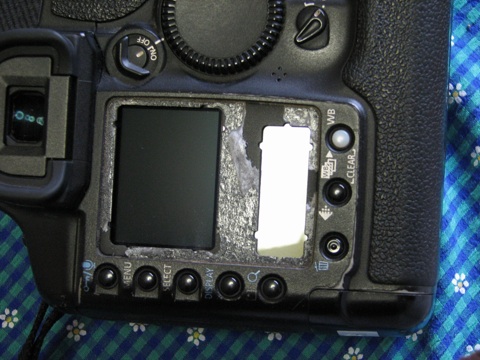

Unless you get really lucky you will be left with some sticky stuff left on the camera. I thought I might get some acetone type liquid and get it off but if you drip some of it onto the actual LCD you will have all sorts of problems getting it off

Apr 14, 2008 at 11:35 PM

andrew81
Offline
Upload & Sell: Off

p.1 #4 · How to replace an LCD screen on a 1D series

Enter the nail care kit my wife bought for me a while back. My comment at the time of "oh, cool, this will come in handy" came true as I havent used it foe anything else!

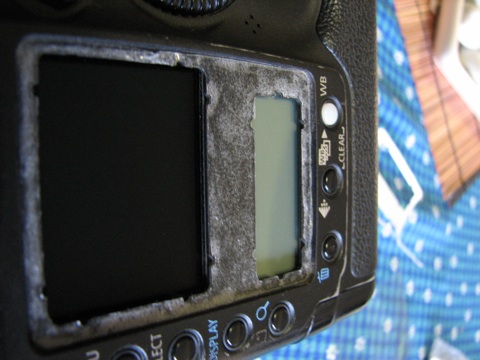

I slowly and carefully lifted, scraped and rolled the fibereous sticky material. This was the most time consuming part. Do it carefully and be aware of where you are resting you hand and again DO IT SLOWLY. One slip and its into the LCD!

Apr 14, 2008 at 11:38 PM

Canon 10D
Offline
Dedicated FM
Upload & Sell: Off

p.1 #5 · How to replace an LCD screen on a 1D series

I guess you got unlucky huh

Edited on Apr 14, 2008 at 11:41 PM

Apr 14, 2008 at 11:39 PM

akierum
Offline
Upload & Sell: Off

p.1 #6 · How to replace an LCD screen on a 1D series

andrew81 wrote:
Unless you get really lucky you will be left with some sticky stuff left on the camera. I thought I might get some acetone type liquid and get it off but if you drip some of it onto the actual LCD you will have all sorts of problems getting it off

Don't be stupid acetone will melt the camera plastic. Use hairdryer and the glue will peel off very easy. Othervise use eraser to remove the glue.

Where did you order new screen? How much does it cost?
How much for 40D screen?

Apr 14, 2008 at 11:41 PM

andrew81
Offline
Upload & Sell: Off

p.1 #7 · How to replace an LCD screen on a 1D series

Once it is all off, and you wont get 100% of it off and it doesnt matter if there are tiny little bits left. If there is dirt (as it was in my case) in the little ridge on the outside of the screen. That is the gap between the screen and the case. clear that out with the nail thingie with the camera turned upside down

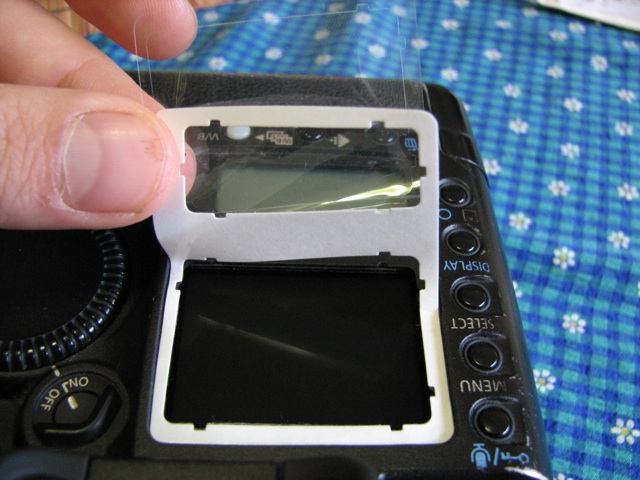

Have a practice run with your sticker/gasket with the films on. The clear film comes off first. bit fiddly to get off and be careful not to touch it with with your hands as it will stick and it is pretty small so buggering the whole thing up because you got your fat fingers stuck to the gasket is easy to do!

Note: there is a certain way the gasket fits. Make sure you do a practice run with both films on the gasket first. even if you think you are a tech god, do it!!!

Then lay it down bit by bit. I didnt peel the whole lot off at one time as it gives you something to hold onto. Again, go slow. Make sure everything lines up as it should.

Edited on Apr 14, 2008 at 11:48 PM

Apr 14, 2008 at 11:42 PM

andrew81
Offline
Upload & Sell: Off

p.1 #8 · How to replace an LCD screen on a 1D series

There it is in place

oh yeah forgot to mention.... clean your LCD before you stick the gasket down. I dont have a blower or a brush but used a static free cloth.

Apr 14, 2008 at 11:50 PM

Canon 10D
Offline
Dedicated FM
Upload & Sell: Off

p.1 #9 · How to replace an LCD screen on a 1D series

My assistant accidentally spilled a drop of nail polish onto her 1D Mark II, and it made a dent into the LCD screen

She used her fingers and rubbed/rolled the gooey stuff you shown in pic into a furball. The gooey stuff comes off easily if you gently rub it with your finger. Try to avoid using sharp object if you can

Apr 14, 2008 at 11:51 PM

andrew81
Offline
Upload & Sell: Off

p.1 #10 · How to replace an LCD screen on a 1D series

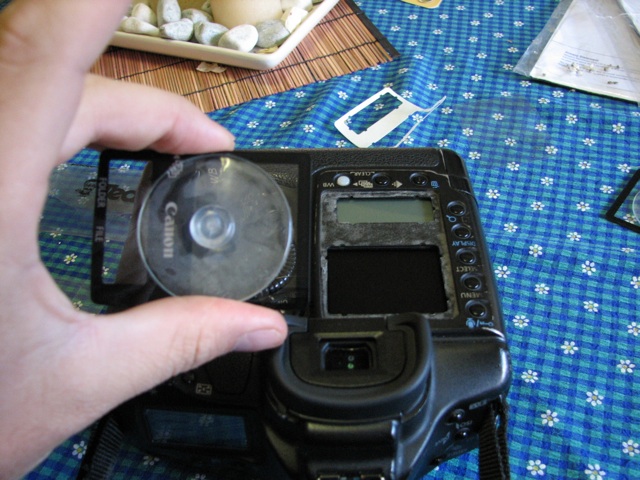

grab the suction cup again, fix it to the outside of the screen and place it in. This is the easiest part. Grab a cloth and push around everywhere the gasket was firmly to make a good seal.

Apr 14, 2008 at 11:51 PM

andrew81
Offline
Upload & Sell: Off

p.1 #11 · How to replace an LCD screen on a 1D series

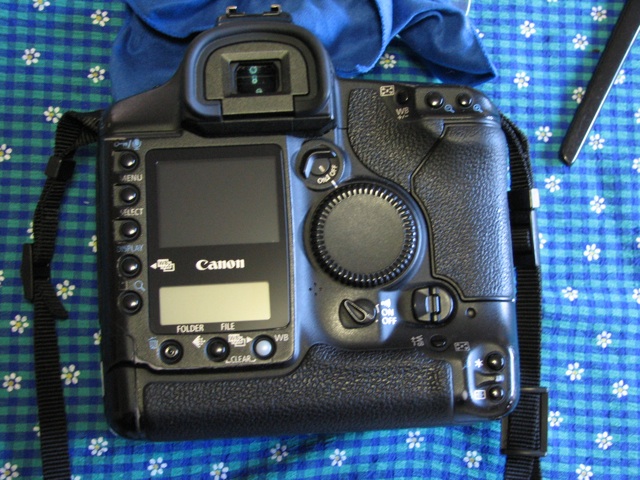

All done! Id give it a 9.9 out of 10. I can see a tiny bit of the gasket through the screen but compared to what it was like before I am very very happy!

Apr 14, 2008 at 11:53 PM

andrew81
Offline
Upload & Sell: Off

p.1 #12 · How to replace an LCD screen on a 1D series

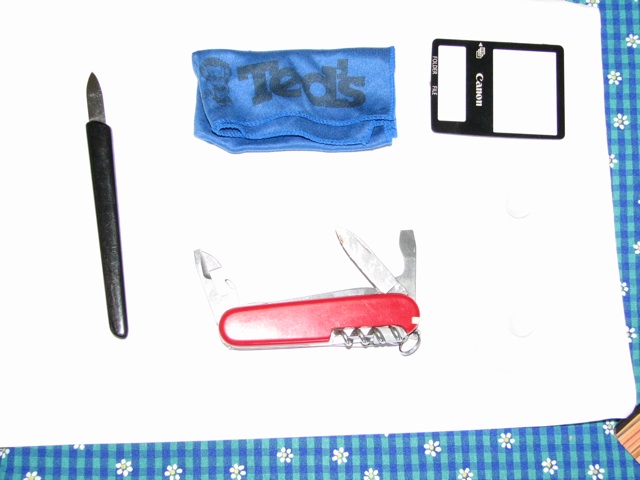

The tools I used

Apr 14, 2008 at 11:53 PM

andrew81
Offline
Upload & Sell: Off

p.1 #13 · How to replace an LCD screen on a 1D series

akierum wrote:
andrew81 wrote:
Unless you get really lucky you will be left with some sticky stuff left on the camera. I thought I might get some acetone type liquid and get it off but if you drip some of it onto the actual LCD you will have all sorts of problems getting it off

Don't be stupid acetone will melt the camera plastic. Use hairdryer and the glue will peel off very easy. Othervise use eraser to remove the glue.

Where did you order new screen? How much does it cost?
How much for 40D screen?
Thanks for posting right in the middle of my how to do! Real smart!!

Dont do either of those things. Heat there wont do the LCD any favours not to mention the air from the hair dryer blowing all the glue bits into the insides of the camera. Dont use an eraser either, the bits of rubber will end up inside the camera.
Best to do it the way I described.

Apr 14, 2008 at 11:55 PM

andrew81
Offline
Upload & Sell: Off

p.1 #14 · How to replace an LCD screen on a 1D series

GRRR why post something right in the middle of what I am trying to do
friggen wait 10 mins
Hopefully this can help someone else do it and having some stupid posts in the middle of it all wrecks it.
Mods please delete them for me

Apr 14, 2008 at 11:58 PM

andrew81
Offline
Upload & Sell: Off

p.1 #15 · How to replace an LCD screen on a 1D series

Parts are from Canon, much cheaper in the US

took me about 15 mins.

any questions please feel free to ask!

Apr 15, 2008 at 12:01 AM
