Archive 2008 · Whats your macro lighting setup?

Dalantech
Offline
Image Upload: Off

p.2 #1 · Whats your macro lighting setup?

Looking good Preston

Mar 06, 2008 at 07:57 PM

Preston
Offline
Image Upload: On

p.2 #2 · Whats your macro lighting setup?

Thanks John. Mucking about with equipment and stuff is lots of fun.

Mar 07, 2008 at 04:19 AM

hydrotoast
Offline
Image Upload: On

p.2 #3 · Whats your macro lighting setup?

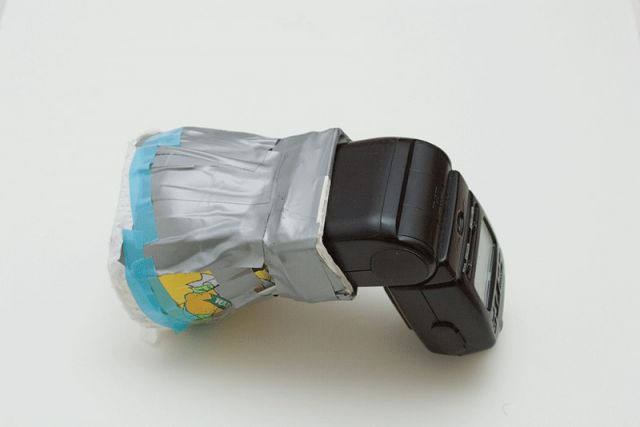

I also have a Brian/LordV diffuser but had trouble forming the connection to the flash. To resolve this I made a sleeve from foam board to wrap around the flash head and then taped the can formation to the foam board. Makes it real easy to get on /off the flash also made the formation of the diffuser a bit easier as you have a firm pre-shaped surface to tape it too

Mar 07, 2008 at 08:59 AM

LordV
Offline
Image Upload: Off

p.2 #4 · Whats your macro lighting setup?

hydrotoast wrote:
I also have a Brian/LordV diffuser but had trouble forming the connection to the flash. To resolve this I made a sleeve from foam board to wrap around the flash head and then taped the can formation to the foam board. Makes it real easy to get on /off the flash also made the formation of the diffuser a bit easier as you have a firm pre-shaped surface to tape it too
Excellent mod

Brian V

Mar 07, 2008 at 09:52 AM

TEASER
Offline
Image Upload: Off

p.2 #5 · Whats your macro lighting setup?

Im trying to figure out the best Flash bracket for me. Im exreamly handy and will be able to adapt my idea's to a bracket of choice.

What I dont get is after I attach the flash bracket how will I be able to put a shoe on for my tripod?

Mar 17, 2008 at 07:36 PM

LordV
Offline
Image Upload: Off

p.2 #6 · Whats your macro lighting setup?

TEASER wrote:
What I dont get is after I attach the flash bracket how will I be able to put a shoe on for my tripod?

Not sure if it's the best way of doing it but you can get the male 1/4" camera attachment bolt things with a female thread on the back of them so you can attach via another male 1/4" (presumably the shoe has this).
Brian V.

Mar 17, 2008 at 10:02 PM

chrisa62401
Offline
Image Upload: Off

p.2 #7 · Whats your macro lighting setup?

Still under construction, made from parts I found at work. Brian, how did you make the diffuser on yours?

Mar 18, 2008 at 06:04 PM

LordV
Offline
Image Upload: Off

p.2 #8 · Whats your macro lighting setup?

chrisa62401 wrote:
Brian, how did you make the diffuser on yours?
http://www.flickr.com/groups/macroviewers/discuss/72157594312315664/

Brian V.

Mar 18, 2008 at 06:29 PM

Adam Svoboda
Offline
Image Upload: Off

p.2 #9 · Whats your macro lighting setup?

I also use the 580EX II, and a 360watt 3-bulb cool-light.
Light = http://www.natcam.biz/products.html#DHE:Specsheet:Id:254246:Section:Specs

sorry for the bad pic, was taken with my ooooold 2.0mp kodak point and shoot.

This image is copyrighted by the owner

This image is copyrighted by the owner

12/20/36 tubes, not 12/20/30

Wow, I'm full of typos today.

Edited by Adam Svoboda on Mar 20, 2008 at 08:12 PM GMT

Edited by Adam Svoboda on Mar 20, 2008 at 08:13 PM GMT

Edited on Mar 20, 2008 at 08:13 PM

Mar 20, 2008 at 07:37 PM

LordV
Offline
Image Upload: Off

p.2 #10 · Whats your macro lighting setup?

Adam Svoboda wrote:
I also use the 580EX II, and a 360watt 2-bulb cool-light.

sorry for the bad pic, was taken with my ooooold 2.0mb kodak point and shoot.

Like it- bet the bugs put their hands in the air when they see that pointed at them

- what mag ? - I reckon that lot does just over 10:1

Brian V.

Mar 20, 2008 at 07:45 PM

Rebel Guy
Offline
Buy and Sell: On

p.2 #11 · Whats your macro lighting setup?

OMG, you people have some insane rigs here for Macro shooting. I had no idea of such setups. Awesome job to all.

-Frank

Mar 20, 2008 at 07:47 PM

Adam Svoboda
Offline
Image Upload: Off

p.2 #12 · Whats your macro lighting setup?

Brian, I figured 12:1 or so..

first I made a typo on the extension tubes, it should be 12/20/36

so theres 68mm, add that to the 100mm macro, you got 168mm, and ~1.68:1
(I'm told that every 1mm you add in bellows/extensions it adds .01 magnification)

times that by 2 (for the 2x extender) you get 336mm divide that by 28mm and you get 12 even. All I know is grains of salt are pretty big. I just got these extension tubes today, so I haven't shot anything really.

I'm not sure what formula to follow

(Main Lens + Extensions) x (extension power) / rev. lens

Edited on Mar 20, 2008 at 08:08 PM

Mar 20, 2008 at 08:07 PM

LordV
Offline
Image Upload: Off

p.2 #13 · Whats your macro lighting setup?

Adam I'd just photograph the mm scale of a ruler then mag = sensor width/mm across pic. The calculations have some flaws in them esp where extension tubes are concerned. Somewhere between 10 and 12:1 anyway

Brian V.

Edited on Mar 20, 2008 at 09:32 PM

Mar 20, 2008 at 09:29 PM

Adam Svoboda
Offline
Image Upload: Off

p.2 #14 · Whats your macro lighting setup?

Heres with the full setup, only thing I did was Re-size, no sharpening :]

I'll get around to photographing a ruler one of these days, I'll post it here

Shots @ F/16

This image is copyrighted by the owner

This image is copyrighted by the owner

Edited by Adam Svoboda on Mar 20, 2008 at 11:30 PM GMT

Edited on Mar 20, 2008 at 11:30 PM

Mar 20, 2008 at 11:12 PM

Tom Harpstead
Offline
Image Upload: Off

p.2 #15 · Whats your macro lighting setup?

Adam,

Wow! great job.

Thomas

Mar 20, 2008 at 11:29 PM

Adam Svoboda
Offline
Image Upload: Off

p.2 #16 · Whats your macro lighting setup?

Heres the MM on a ruler.
shot with 20D
No adjustments, only resize.

This image is copyrighted by the owner

This image is copyrighted by the owner

Edited on Mar 22, 2008 at 09:03 PM

Mar 22, 2008 at 09:03 PM

LordV
Offline
Image Upload: Off

p.2 #17 · Whats your macro lighting setup?

Reckon that is only just over 7:1 ? -- 22.5/3.2

Brian V.

Mar 23, 2008 at 08:07 AM

BostjanS
Offline
Image Upload: Off

p.2 #18 · Whats your macro lighting setup?

I only haw my dads old yashice external flash. Can anyone please suggest what can I use to defuse light?

This image is copyrighted by the owner

This image is copyrighted by the owner

Thanks.

Mar 24, 2008 at 02:54 PM

R.H. Johnson
Offline
Image Upload: On

p.2 #19 · Whats your macro lighting setup?

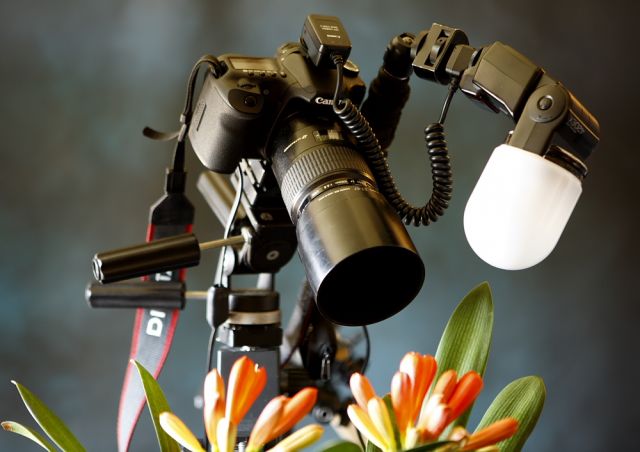

from the bench..............

Edited on Mar 25, 2008 at 05:17 AM

Mar 25, 2008 at 05:13 AM

Jim Barnaby
Offline
Image Upload: Off

p.2 #20 · Whats your macro lighting setup?

WOW
And I thought my rigs looked crazy.

My main set up is a ringflash but I also use a FL 50 and a softbox2 on a boom as well as a smaller flash on a cord.

Ringflash on my 330 along with the my helper. (very cheap, worked for crickets)

JimB

Mar 26, 2008 at 03:19 AM

steeeven
Offline
Image Upload: Off

p.2 #21 · Whats your macro lighting setup?

I use a flashlight and cheap close-up lenses...sometimes the on-camera flash dialed way down

seems to work for me

This image is copyrighted by the owner

This image is copyrighted by the owner

Mar 26, 2008 at 06:57 PM

lextalionis
Offline
Image Upload: Off

p.2 #22 · Whats your macro lighting setup?

Here's my redneck dual Bud Light beer can snoot setup (original single snoot design by LordV and he gave me permission to publish this):

This image is copyrighted by the owner

This image is copyrighted by the owner

This image is copyrighted by the owner

This image is copyrighted by the owner

No Flash, P-Mode:
This image is copyrighted by the owner

This image is copyrighted by the owner

With dual macro flash snoots:
This image is copyrighted by the owner

This image is copyrighted by the owner

No Flash, P-Mode:
This image is copyrighted by the owner

This image is copyrighted by the owner

With dual macro flash snoots:
This image is copyrighted by the owner

This image is copyrighted by the owner

With dual macro flash snoots:
This image is copyrighted by the owner

This image is copyrighted by the owner

I plan to make a more robust paper towel diffuser on the main snoot this weekend.

Here's a link to more images and my youtube build video.

-Roy

Mar 28, 2008 at 01:54 PM

R.H. Johnson
Offline
Image Upload: On

p.2 #23 · Whats your macro lighting setup?

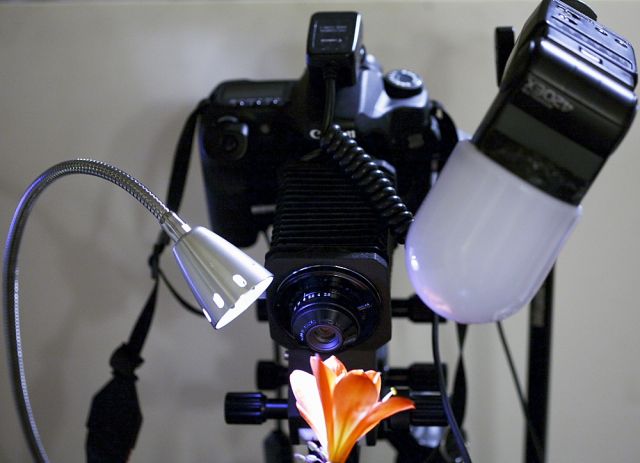

2X - 6X setup with focusing light & flash diffuser.............

Edited on Mar 29, 2008 at 05:44 AM

Mar 29, 2008 at 05:21 AM

lextalionis
Offline
Image Upload: Off

p.2 #24 · Whats your macro lighting setup?

Well, I came across this link in the Lighting forum: DIY Ring Flash So I decided to make my own. I didn't follow his instructions to the "T" but the result is just about the same. Diagram and BOM here: Parts List

Sorry about the volume of images, but it should help explain the "cause and effect".

-Roy

Jun 26, 2008 at 04:49 PM

Jim Barnaby
Offline
Image Upload: Off

p.2 #25 · Whats your macro lighting setup?

I'm going to add my Foam ring flash while this is up.

I don't have pics of my boom set up for the fl 50 and soft box II

Jun 27, 2008 at 01:50 AM
