Archive 2014 · 14mm vs 16mm FOV comparison?



Simon Photo
Offline
• • •
Upload & Sell: Off
p.1 #1 · 14mm vs 16mm FOV comparison?


Hey all, I have a 16-35 F2.8 that I really like, but am curious just how much wider the 14 F2.8 is. The only comparison I can find is at The Digital Picture, and that comparison is useless since an APS-H sensor was used. Does anyone own a 16-35 variant as well as the 14 F2.8, who could post a comparison pair of photos of the same scene? I'd like to know just how much wider 14mm looks. Thanks!


Jul 09, 2014 at 08:46 PM
JohnBrose
Offline
• • • •
Upload & Sell: Off
p.1 #2 · 14mm vs 16mm FOV comparison?


I have both so could shoot something for you, pm me with your email and I can maybe get something to you tomorrow. It is significantly wider, but 90% or more of the time 16mm is wide enough for me. I usually shoot my 14 when I want the quality a bit better because I have the rokinon and it's much better than my 16-35mk2. I thought Canon had a comparison between the focal lengths, but don't know where you would find it, I think it was in their lens book that we used to get back when CPS actually gave out some freebies.


Jul 09, 2014 at 08:53 PM
kodakeos
Offline
• • •
Upload & Sell: Off
p.1 #3 · 14mm vs 16mm FOV comparison?


14 is a lot wider than the 16, at least my 14mm Rokinon vs my 16-35. Surprising how much a 15% difference in FOV makes at the wide end.


Jul 09, 2014 at 09:07 PM
Simon Photo
Offline
• • •
Upload & Sell: Off
p.1 #4 · 14mm vs 16mm FOV comparison?


JohnBrose wrote:
I have both so could shoot something for you, pm me with your email and I can maybe get something to you tomorrow. It is significantly wider, but 90% or more of the time 16mm is wide enough for me. I usually shoot my 14 when I want the quality a bit better because I have the rokinon and it's much better than my 16-35mk2. I thought Canon had a comparison between the focal lengths, but don't know where you would find it, I think it was in their lens book that we used to get back when CPS actually
...Show more

Hey thanks John! I really appreciate that. I am PMing you now. Hopefully the Rokinon is not a bit different FOV than the Canon 14 variant.



Jul 09, 2014 at 11:31 PM
killersnowman
Offline
• • • •
Upload & Sell: Off
p.1 #5 · 14mm vs 16mm FOV comparison?


Do you mind posting the images here so everyone can see them. I am interested in the comparison as well


Jul 09, 2014 at 11:42 PM
Gunzorro
Offline
• • • • • •
Upload & Sell: On
p.1 #6 · 14mm vs 16mm FOV comparison?


I did a comparison of the 16-35L II, 14 Samyang and 17 TSE showing the same building scenes with all lenses, flaring (ghosts), and corrected perspective (PP vs. shift). The upshot is that 16mm is noticeably wider than 17mm, and 14mm is significantly wider than 16mm. For that reason I've kept all three of these, along with the Canon 15 FE, as my UWA set.

https://www.fredmiranda.com/forum/topic/1208037/0



Jul 10, 2014 at 12:14 AM
skibum5
Offline
• • • • • •
Upload & Sell: Off
p.1 #7 · 14mm vs 16mm FOV comparison?


Loren E wrote:
Hey all, I have a 16-35 F2.8 that I really like, but am curious just how much wider the 14 F2.8 is. The only comparison I can find is at The Digital Picture, and that comparison is useless since an APS-H sensor was used. Does anyone own a 16-35 variant as well as the 14 F2.8, who could post a comparison pair of photos of the same scene? I'd like to know just how much wider 14mm looks. Thanks!


I have the Bower 14mm and the 16-35. At least at indoor distances the Bower 14mm is considerably wider. Wide enough that I'm sad to say it's really a wholly different lens and 16mm doesn't replace it. I will test it outdoors, but I expect the results will be similar.



Jul 10, 2014 at 12:27 AM
skibum5
Offline
• • • • • •
Upload & Sell: Off
p.1 #8 · 14mm vs 16mm FOV comparison?


Gunzorro wrote:
I did a comparison of the 16-35L II, 14 Samyang and 17 TSE showing the same building scenes with all lenses, flaring (ghosts), and corrected perspective (PP vs. shift). The upshot is that 16mm is noticeably wider than 17mm, and 14mm is significantly wider than 16mm. For that reason I've kept all three of these, along with the Canon 15 FE, as my UWA set.

https://www.fredmiranda.com/forum/topic/1208037/0


yeah I was hoping to dump my Bower 14mm, but wow it is sooo much wider, it seems that might not be a wise move



Jul 10, 2014 at 12:28 AM
Gunzorro
Offline
• • • • • •
Upload & Sell: On
p.1 #9 · 14mm vs 16mm FOV comparison?


skibum5 wrote:
yeah I was hoping to dump my Bower 14mm, but wow it is sooo much wider, it seems that might not be a wise move


No, not for the price!



Jul 10, 2014 at 12:29 AM
Pixel Perfect
Offline
• • • • • • •
Upload & Sell: Off
p.1 #10 · 14mm vs 16mm FOV comparison?


To tide you over the FOV of 14mm is 114 deg, the FOV of 16mm is 108 deg

Say you photograph a brick wall 100m away, then each lens will cover

x1 = 2*100*tan(114/2) = 306m
x2 = 2*100*tan(108/2) = 275m

so the 14mm lens will show 31m more of the brick wall. Scale that up to a landscape with mountains say 50km away and you will see 500*31 = 15.5km more scenery. So that 6 deg difference in FoV sure adds up for typical landscape shots



Jul 10, 2014 at 12:39 AM
jcolwell
Offline
• • • • • • •
Upload & Sell: On
p.1 #11 · 14mm vs 16mm FOV comparison?


Here's a comparison of a Tokina AT-X Pro 17/3.5 (top) and Samyang 14/2.8 (bottom), on 1DsIII. That's the closest example I have on hand.

I own the Samyang and 16-35/28L II. I might have a chance to compare them directly, but not for at least a few hours.







Jul 10, 2014 at 06:38 AM
jcolwell
Offline
• • • • • • •
Upload & Sell: On
p.1 #12 · 14mm vs 16mm FOV comparison?

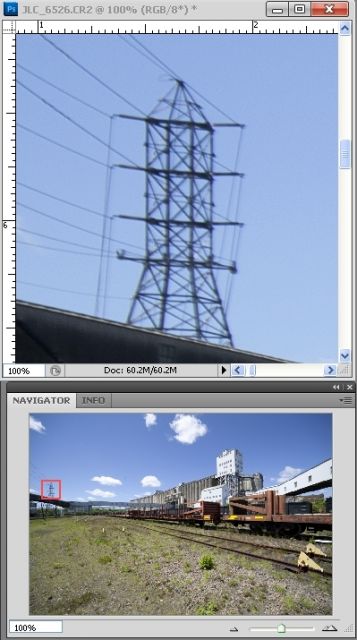

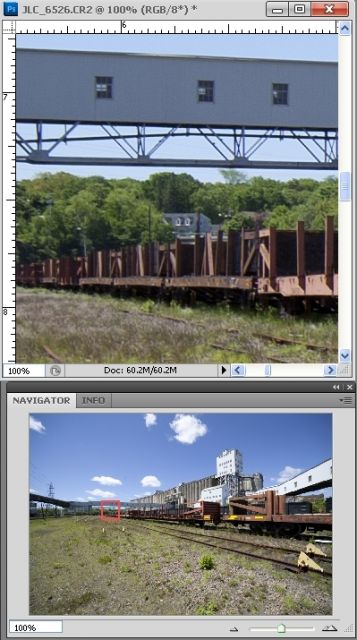

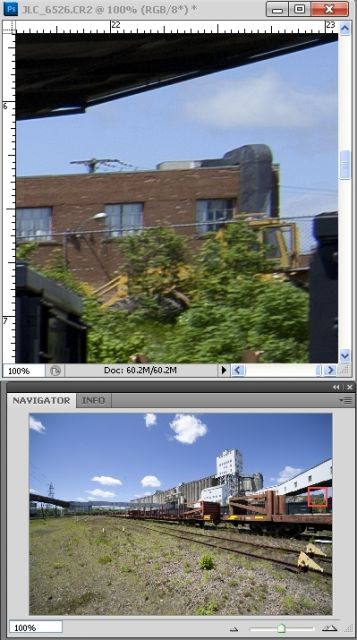

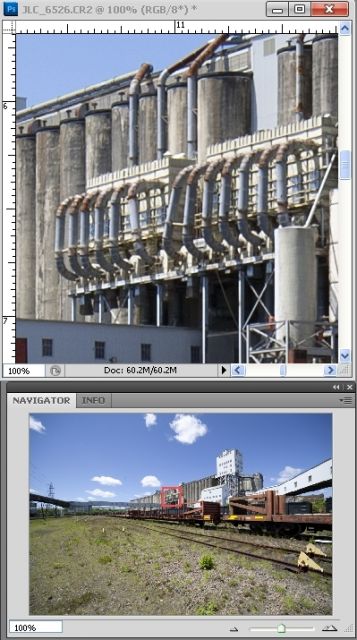

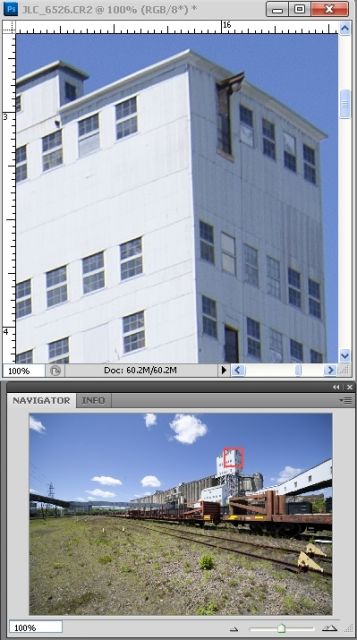

The Samyang 14/2.8 UMC is an incredible bargain. Here's some sample 100% crops from a test I did a few years ago (1DsIII, f/8). The red square in each bottom panel shows the location of the 100% crop in the top panel.



























Jul 10, 2014 at 06:45 AM
Sneakyracer
Offline
• • • •
Upload & Sell: Off
p.1 #13 · 14mm vs 16mm FOV comparison?


Loren E wrote:
Hey all, I have a 16-35 F2.8 that I really like, but am curious just how much wider the 14 F2.8 is. The only comparison I can find is at The Digital Picture, and that comparison is useless since an APS-H sensor was used. Does anyone own a 16-35 variant as well as the 14 F2.8, who could post a comparison pair of photos of the same scene? I'd like to know just how much wider 14mm looks. Thanks!


Check this out:

http://www.digitaltransitions.com/page/tech-camera-visualizers

scroll down to the Focal Length Visualizer v3, works great



Jul 11, 2014 at 02:49 PM
TeamSpeed
Offline
• • • • •
Upload & Sell: Off
p.1 #14 · 14mm vs 16mm FOV comparison?


Here you go, my Tokina 11-16 on my 5D3, 14mm vs 16mm, ignore the vignetting, I can use this at 16mm on the 5D3, or I usually put a 1.4x on it, giving me a 15-22 f4 lens.

14mm with a 16mm crop box, vs the 16mm shot...












Jul 11, 2014 at 05:08 PM
Simon Photo
Offline
• • •
Upload & Sell: Off
p.1 #15 · 14mm vs 16mm FOV comparison?


TeamSpeed wrote:
Here you go, my Tokina 11-16 on my 5D3, 14mm vs 16mm, ignore the vignetting, I can use this at 16mm on the 5D3, or I usually put a 1.4x on it, giving me a 15-22 f4 lens.

14mm with a 16mm crop box, vs the 16mm shot...


Very helpful! Thanks for posting this!



Jul 12, 2014 at 06:31 PM
Mike Sowsun
Offline
• •
Upload & Sell: Off
p.1 #16 · 14mm vs 16mm FOV comparison?


This may not be exactly what you are looking for but it is an example of 14mm FF vs 10mm Crop. (16mm)






Jul 12, 2014 at 10:44 PM
