Voigtlander 21mm f/1.4 Nokton Review



Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #1 · p.7 #1 · Voigtlander 21mm f/1.4 Nokton Review


Rendering comparison with FE 24/1.4 GM and Loxia 21/2.8 Distagon

Out of the camera. Only sharpening setting for both lenses. (identical exposure and histogram level)
The FE 24/1.4 GM is smoother but the plane of focus is not as contrasty as the Voigtlander (micro-contrast).
Different color rendering as well.

At close distance, which rendering do you prefer?

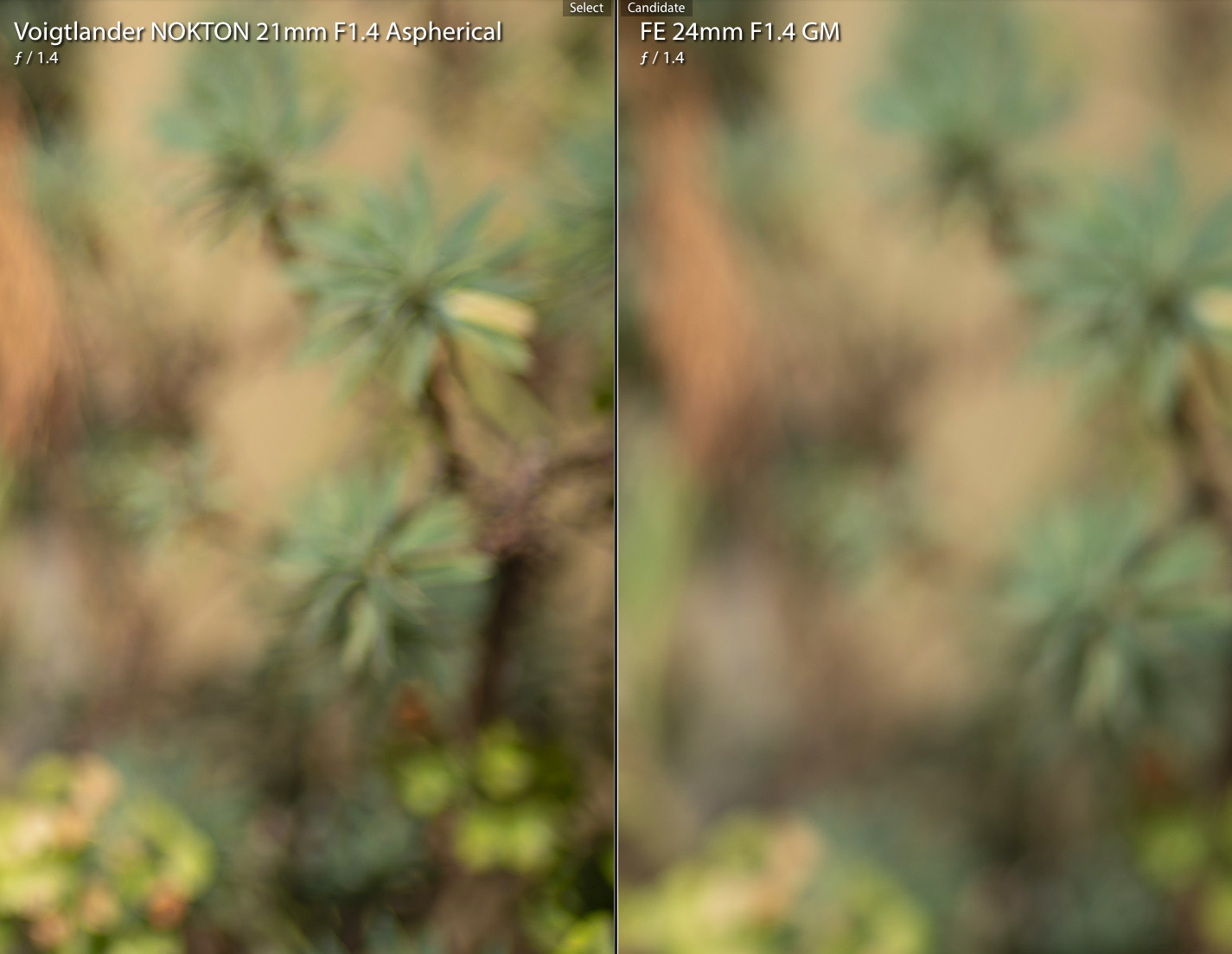

Voigt 21/1.4 (top), 24/1.4 GM (bottom)







Area of focus for image above. (notice the transition zone)







The CV 21/1.4's rendering is more structured




Jul 10, 2019 at 06:27 PM
bjornthun
Offline
• • • •
Upload & Sell: Off
p.7 #2 · p.7 #2 · Voigtlander 21mm f/1.4 Nokton Review


I prefer the GM rendering.

Did you set wb manually?



Jul 10, 2019 at 06:31 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #3 · p.7 #3 · Voigtlander 21mm f/1.4 Nokton Review

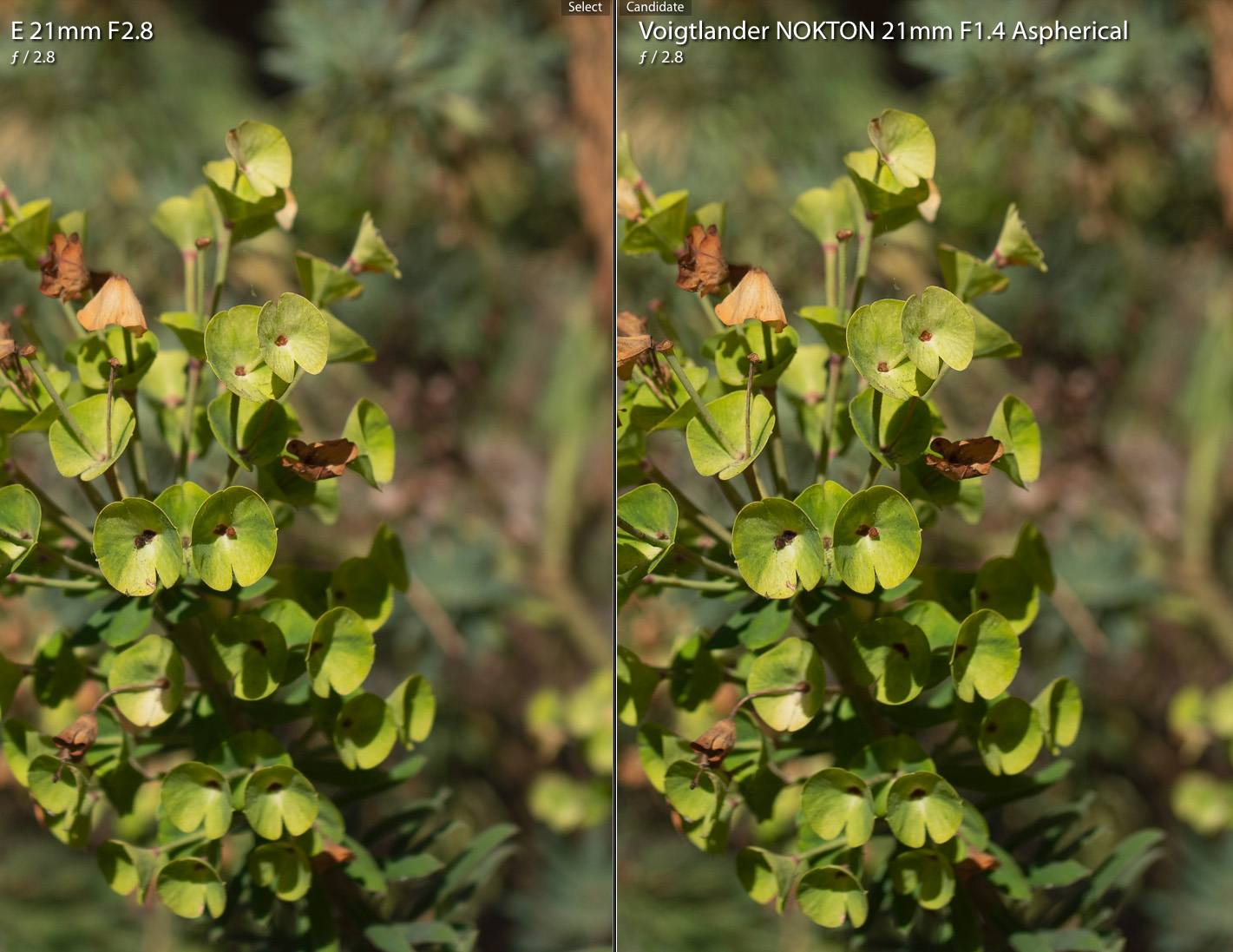

Same close-up scene above at f/2.8 compared to Loxia 21/2.8.





Out of Focus Rendering: Area of focus: Voigtlander 21/1.4 compared to Loxia 21/2.8 (both at f/2.8)







Area of focus: Voigtlander 21/1.4 compared to Loxia 21/2.8 (both at f/2.8). To my eye, the Voigtlander is sharper and more contrasty at close distance. (Yes, I focused the Loxia right. :))




Jul 10, 2019 at 06:34 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #4 · p.7 #4 · Voigtlander 21mm f/1.4 Nokton Review


bjornthun wrote:
I prefer the GM rendering.


Me too but I also like the Voigtlander contrast and color rendering.
Keep in mind that the Voigtlander imagers will have less blur since it's a wider FL and they were shot at same distance. (~0.4m)

Did you set wb manually?

Yes, in-camera Daylight.



Jul 10, 2019 at 06:40 PM
naturephoto1
Offline
• • • • • •
Upload & Sell: Off
p.7 #5 · p.7 #5 · Voigtlander 21mm f/1.4 Nokton Review


The Sony 24mm GM lens has a much smoother transition than the CV 21mm f1.4

Rich



Jul 10, 2019 at 06:47 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #6 · p.7 #6 · Voigtlander 21mm f/1.4 Nokton Review

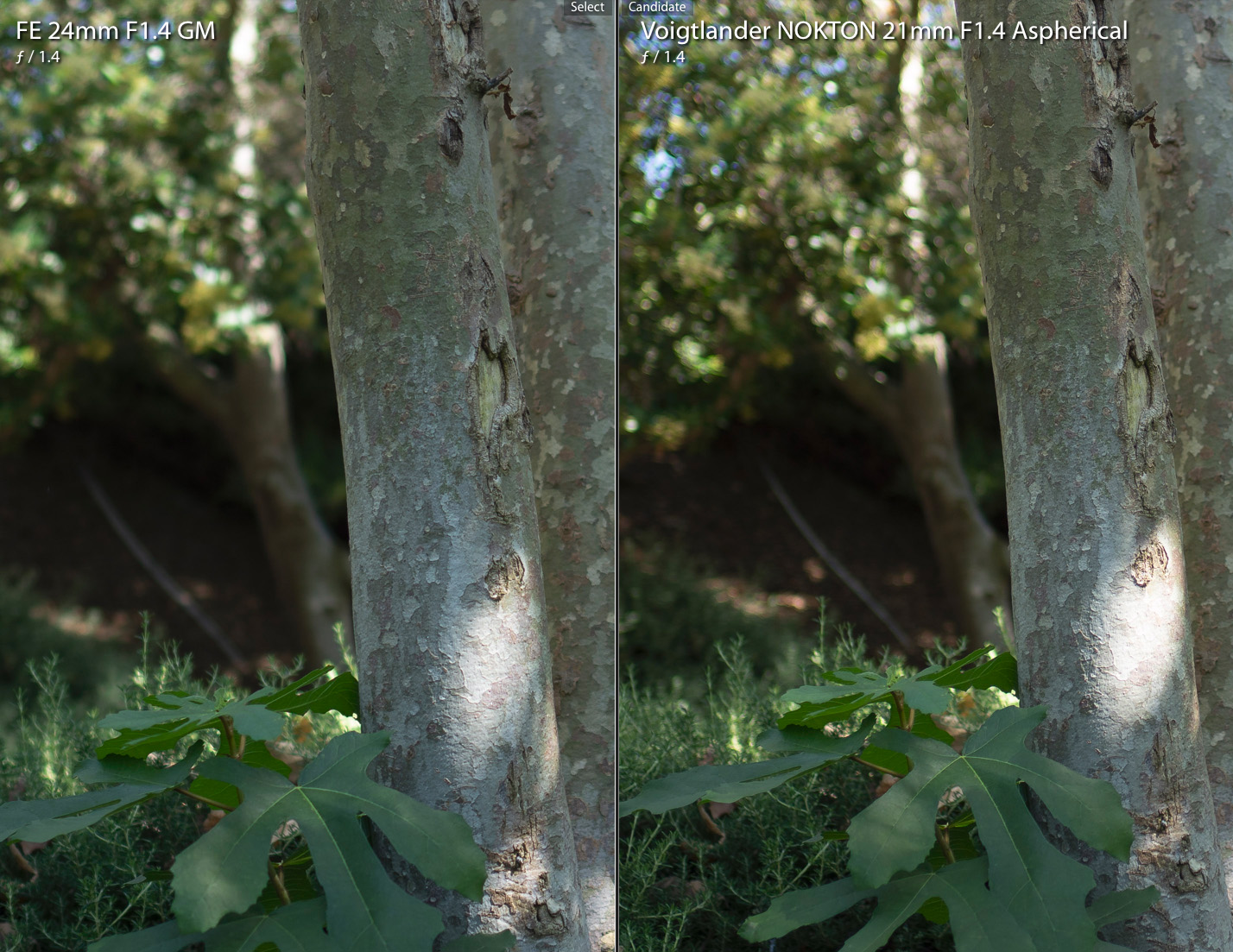

Here is a sample at about 1m.

It's a great way to see the FL difference between these lenses. Everything is the same (WB), exposure and sharpening.
There is a distinctive difference in rendering. The Voigtlander has higher contrast and bolder colors. The GM is flatter in comparison but has smoother rendering...




Sony 24/1.4 GM (top) | Voigt 21/1.4 (bottom)







Transition zone from image above (1:1)







Area of focus and background near the subject







Edge from image above (1:1)




Jul 10, 2019 at 06:47 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #7 · p.7 #7 · Voigtlander 21mm f/1.4 Nokton Review

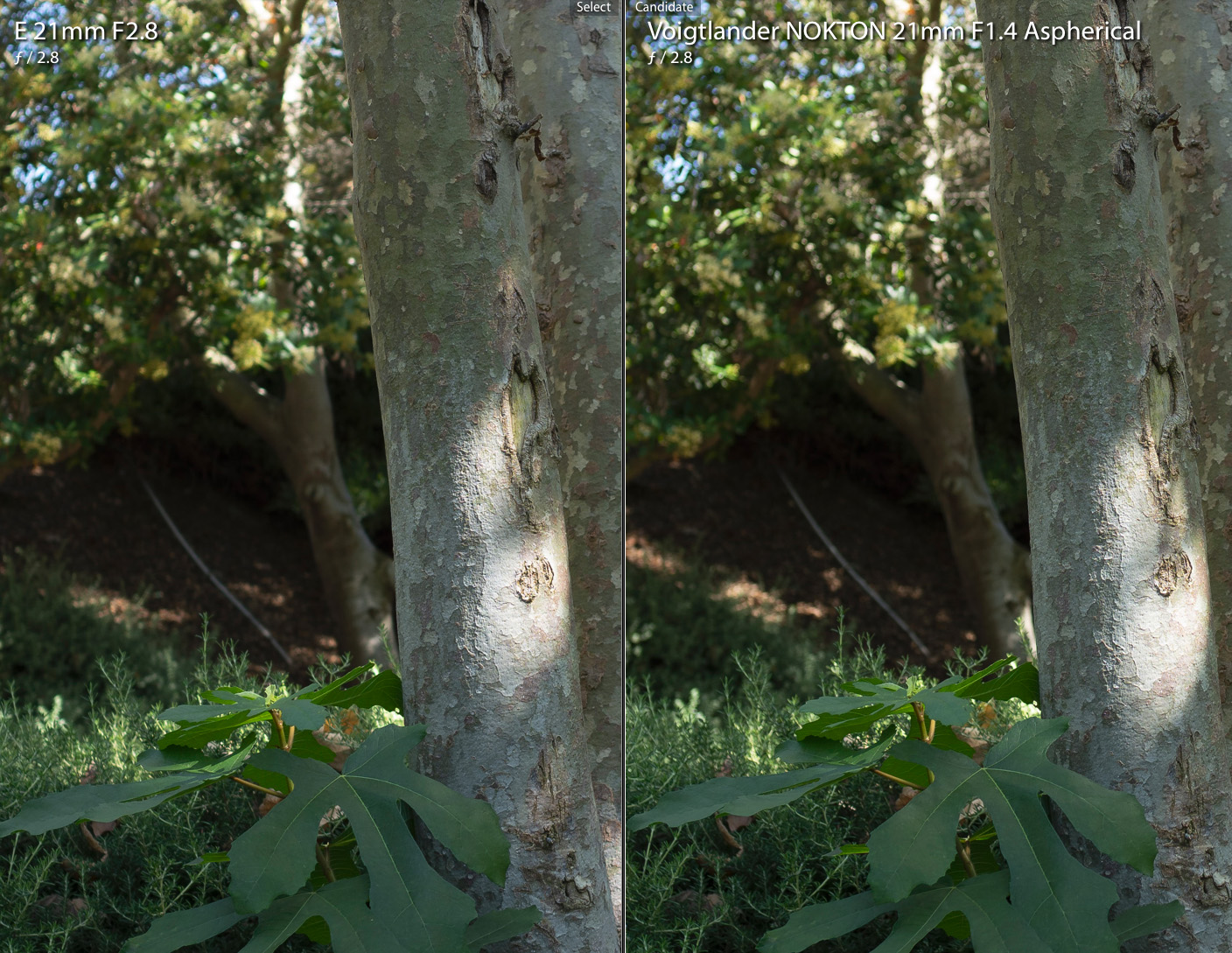

Same scene as above but now Voigtlander 21/1.4 @f/2.8 vs Loxia 21/2.8 @f/2.8




Voigt (top), Loxia (bottom) - Both at f/2.8







Area of focus and OOF background close to subject. Voigtlander is slightly smoother







OOF mid area comparison (Voigtlander is slightly smoother)




Jul 10, 2019 at 06:55 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #8 · p.7 #8 · Voigtlander 21mm f/1.4 Nokton Review

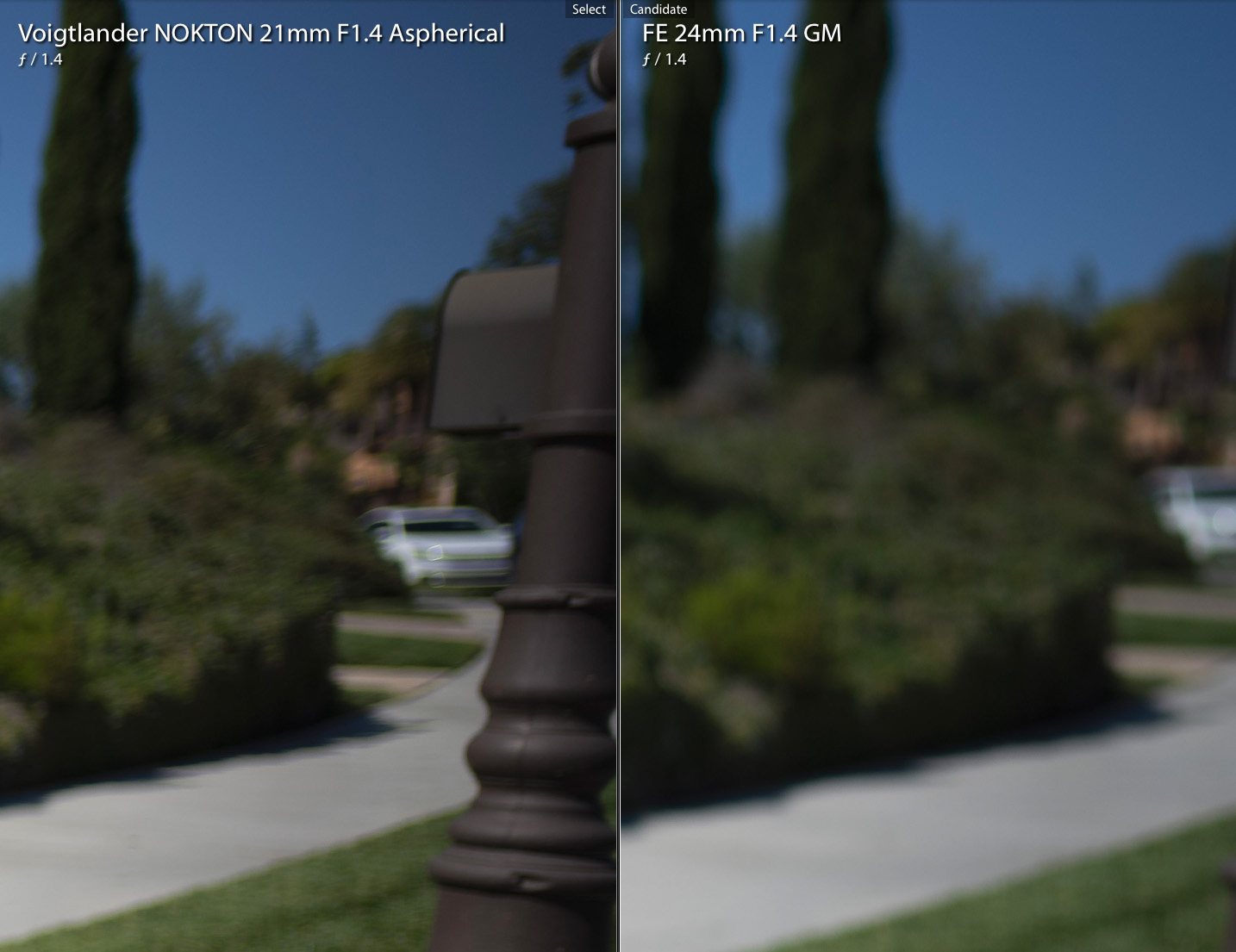

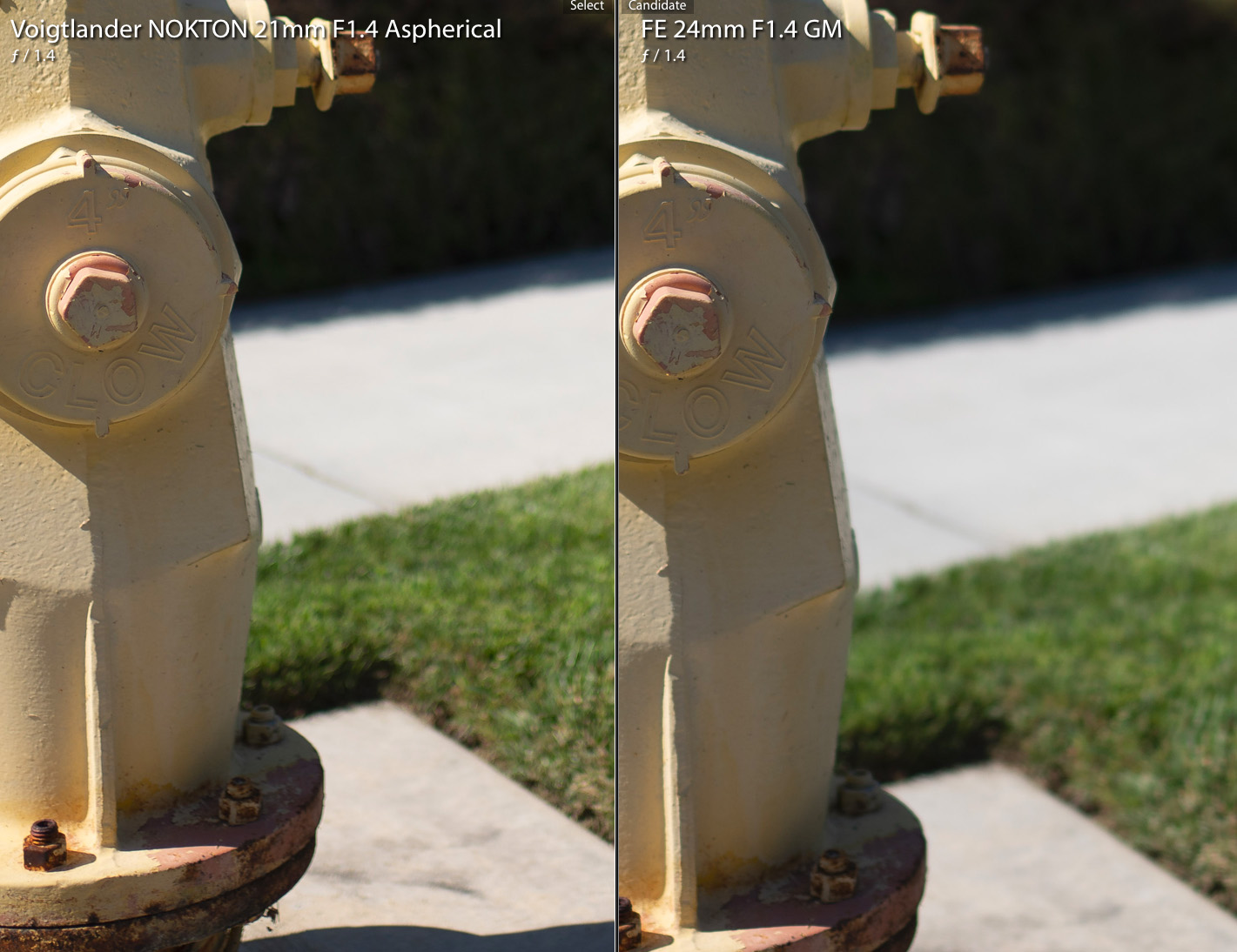

Rendering comparison at mid-distance (about 2m)




Voigt (top), GM (bottom) - Both wide open (f/1.4)







Focus area and background (1:1)







OOF rendering (mid-area)







OOF rendering (corner)




Jul 10, 2019 at 07:02 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #9 · p.7 #9 · Voigtlander 21mm f/1.4 Nokton Review

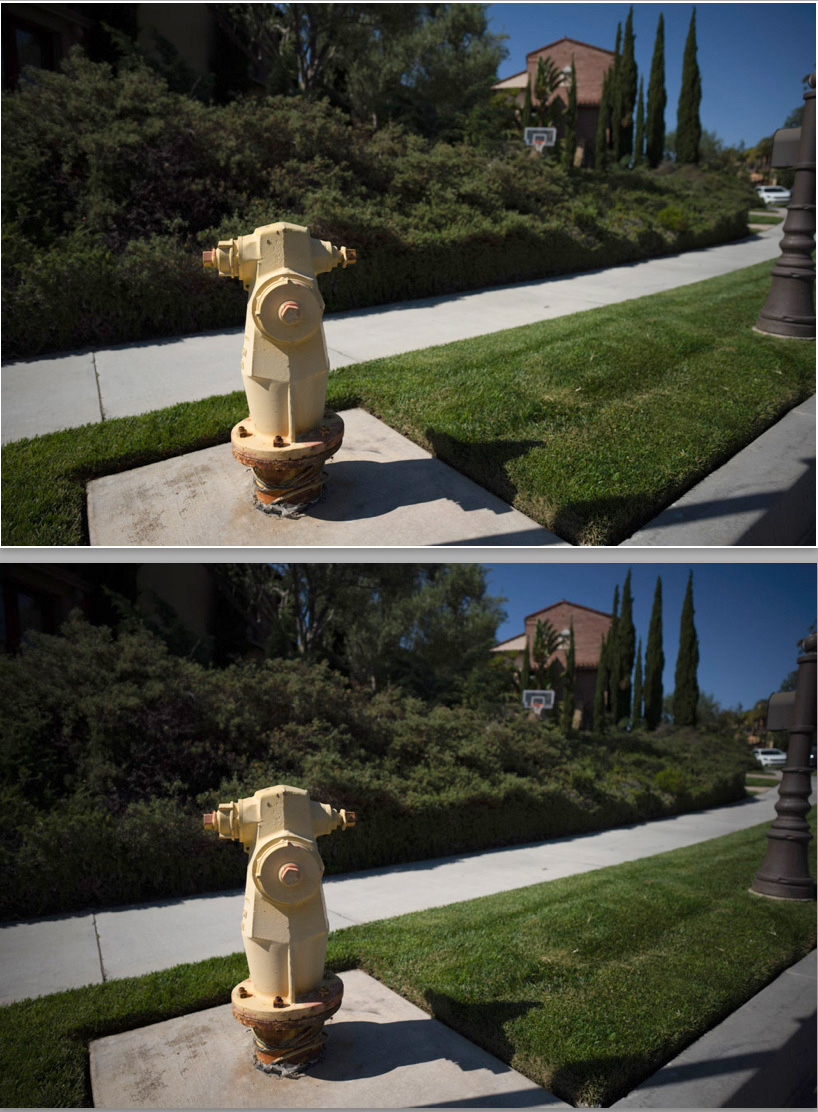

Rendering comparison at about 3m distance:

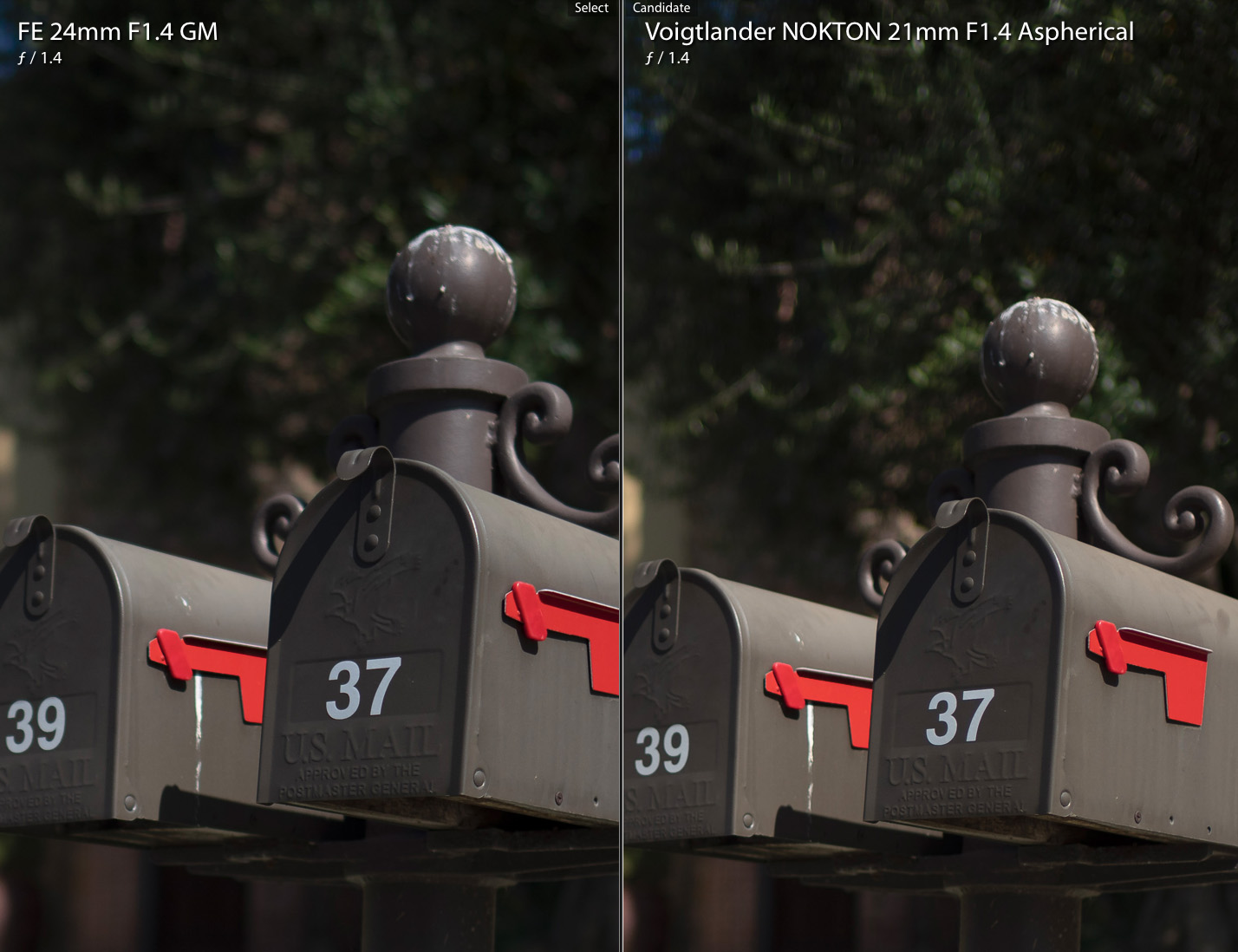

GM (top), Voigtlander (bottom) - Both wide open (f/1.4)







Transition zone from image above (1:1)

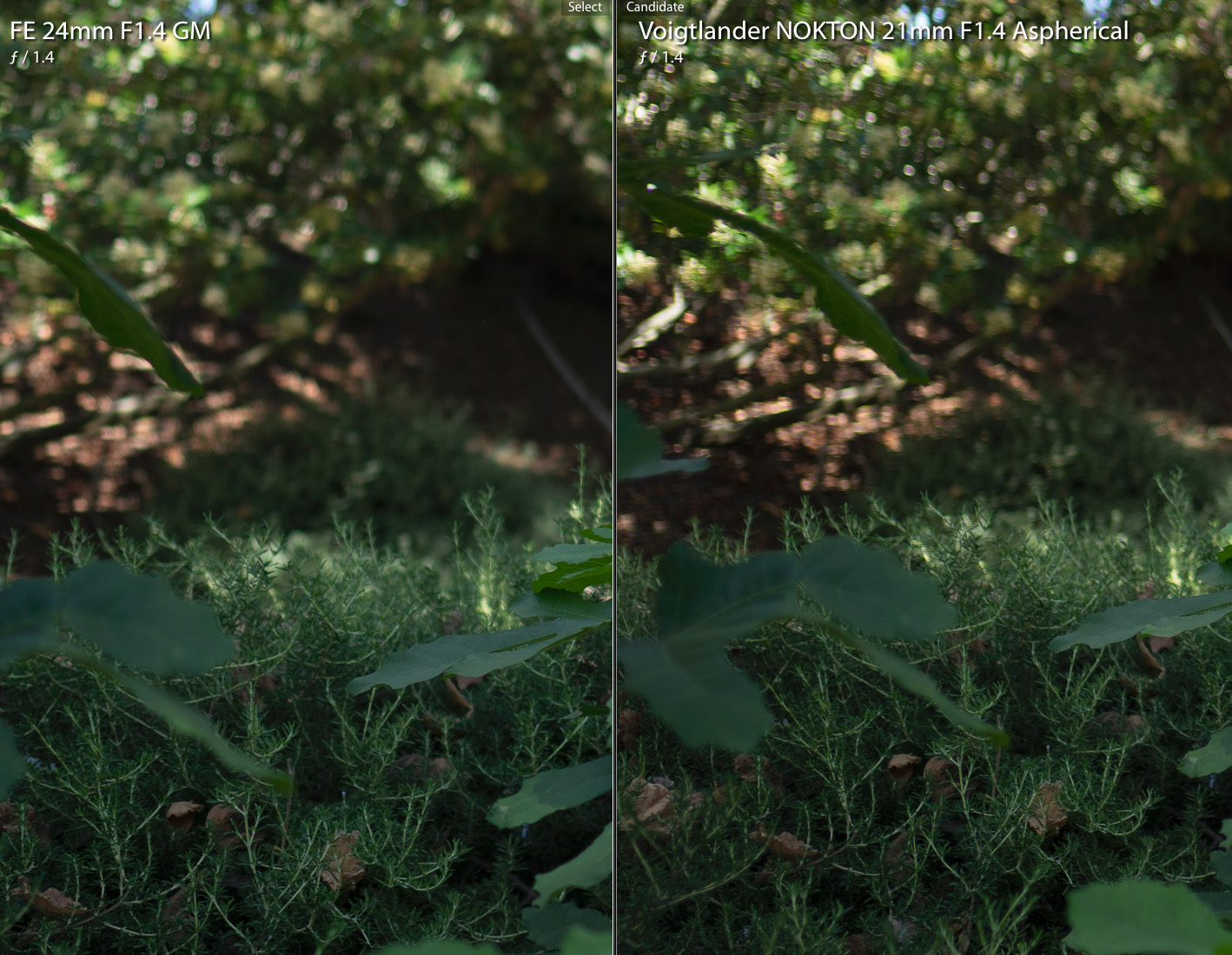

OOF rendering (corner area)

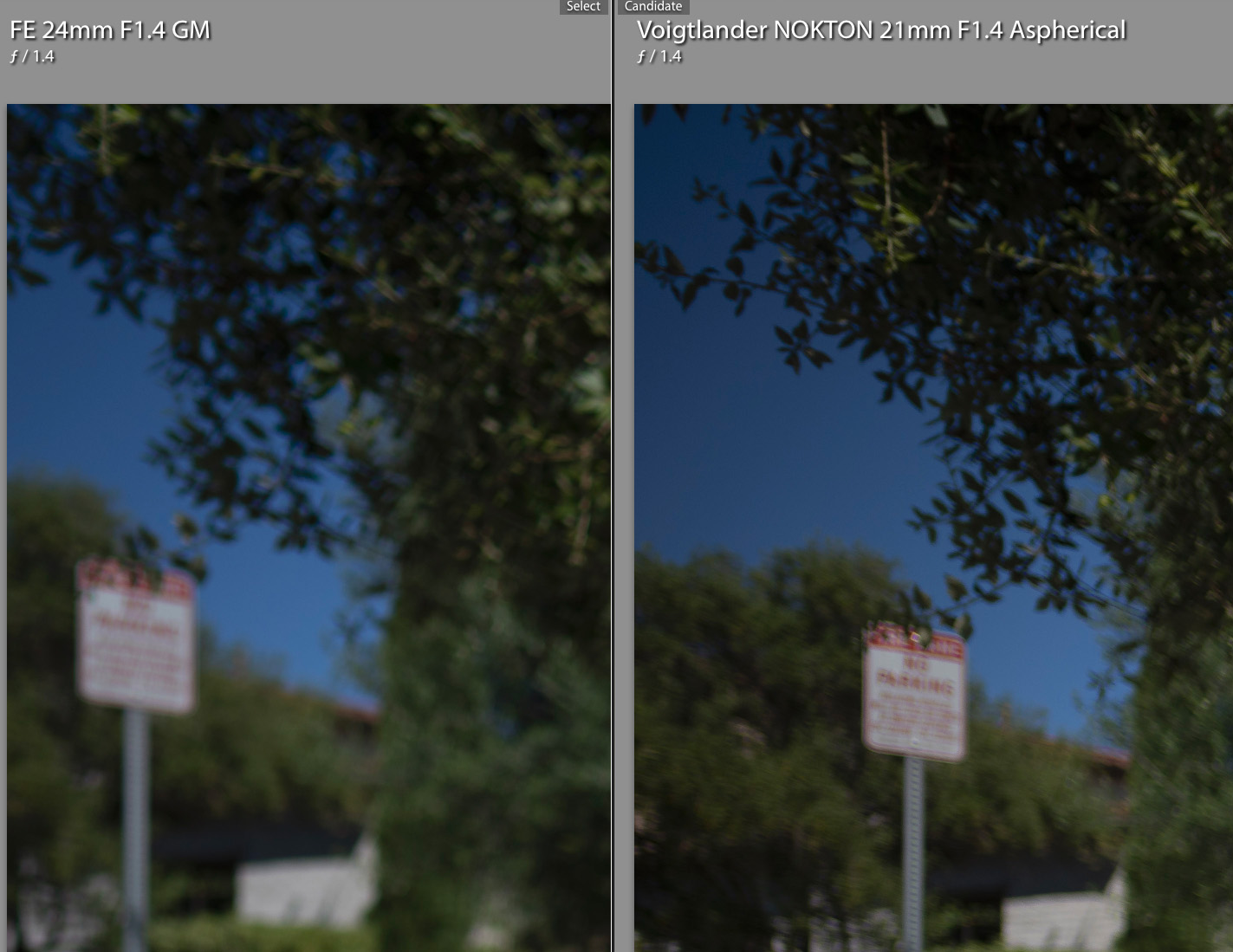

OOF rendering (mid-area)




Jul 10, 2019 at 07:15 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #10 · p.7 #10 · Voigtlander 21mm f/1.4 Nokton Review

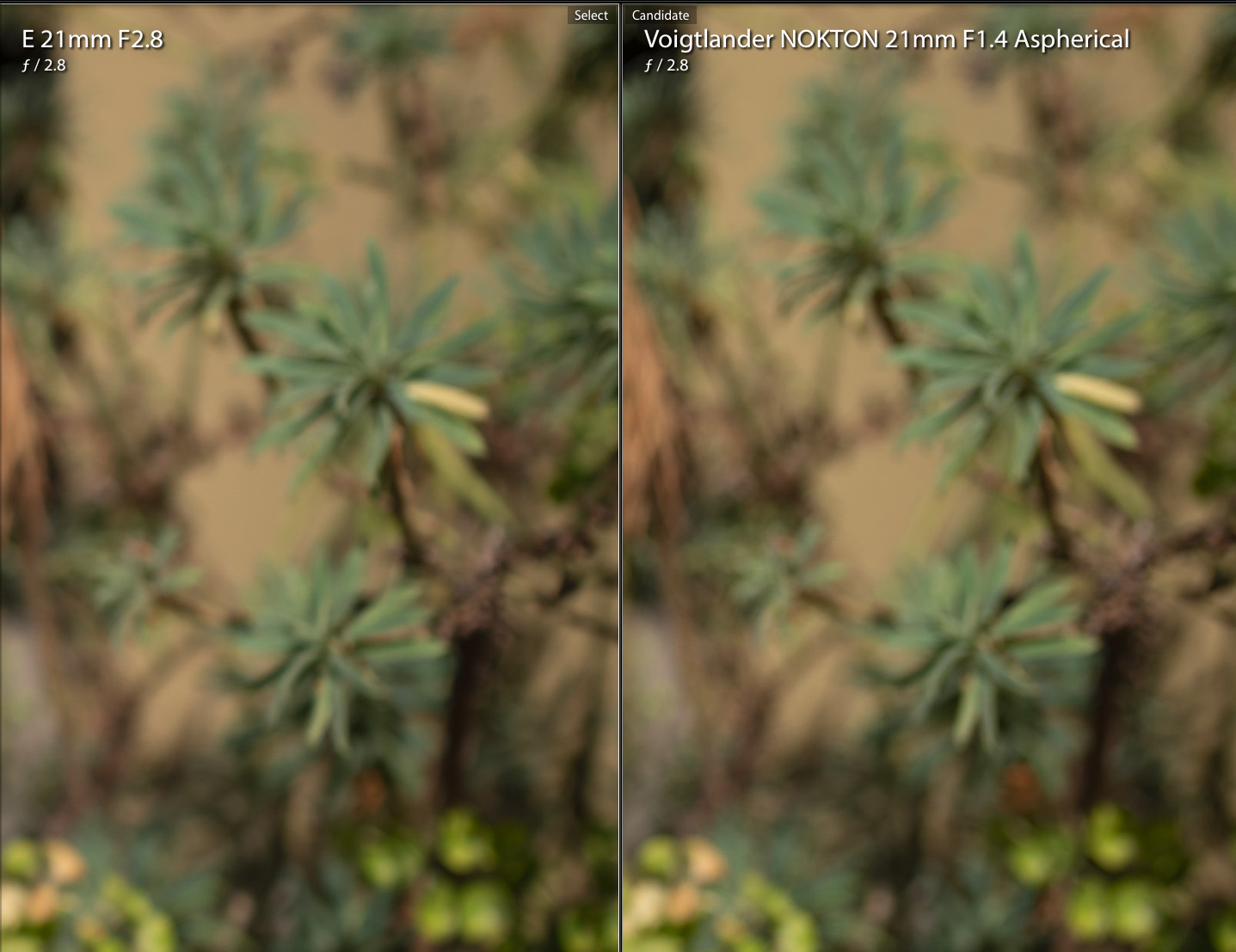

Same scene about (mid distance at 3m) comparison Voigtlander 21/1.4 @f2.8 vs Loxia 21/2.8 @f/2.8




Voigt 21/1.4 (top), Loxia 21/2.8 (bottom) - Both lenses at f/2.8







Transition zone. Voigt slightly sharper and background slightly smoother (very small difference)

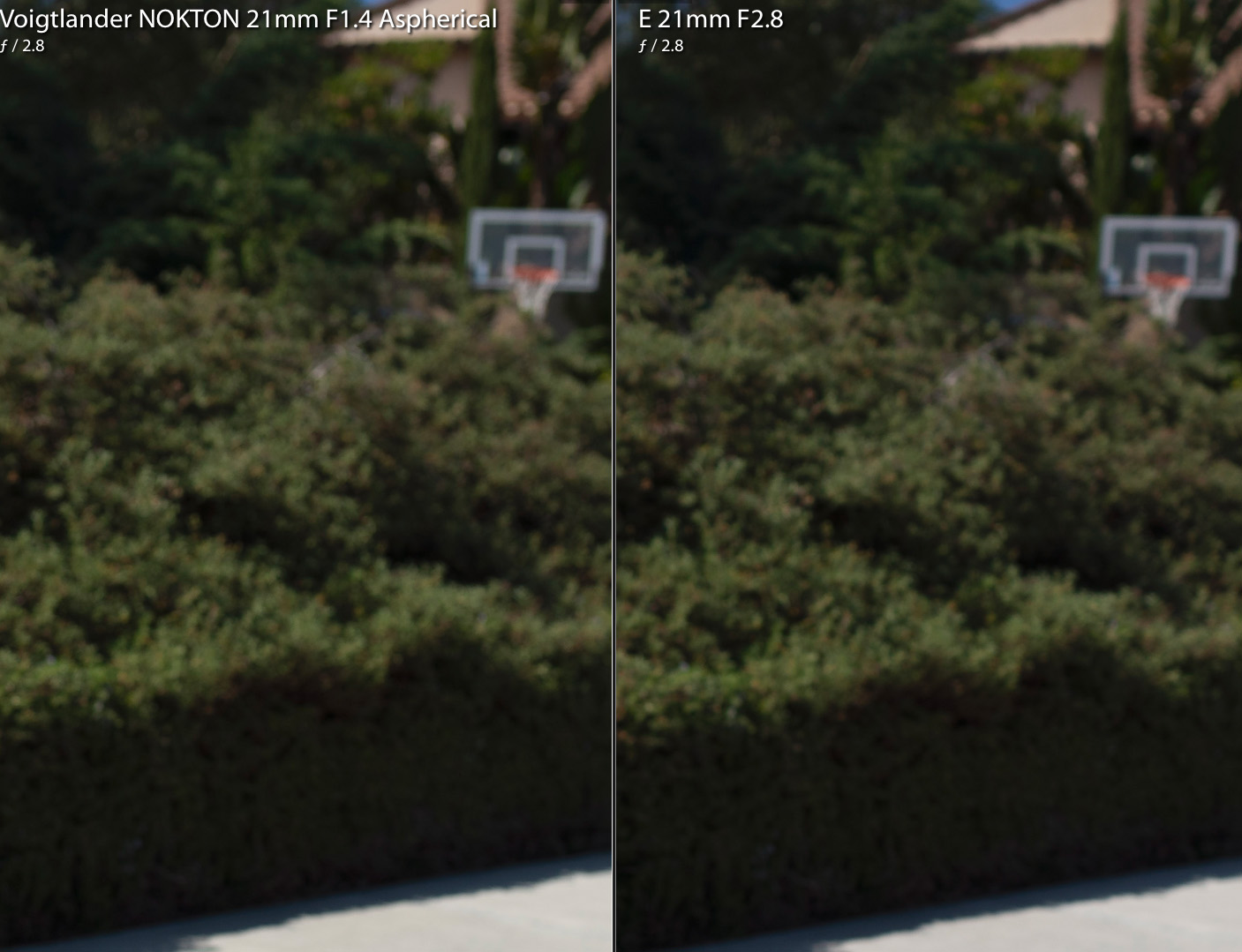

OOF rendering (corner area): Very similar







OOF rendering (mid area): Very similar




Jul 10, 2019 at 07:21 PM



Search in Used Dept.

Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #11 · p.7 #11 · Voigtlander 21mm f/1.4 Nokton Review


Sunstar Rendering:

I didn't get much ghosting flare but there is a persistent purple blob that like to show up at certain angles. Changing the angle slightly gets rid of it.

The Voigtlander 21/1.4 Nokton is capable of defined sunstars from f/1.6 and it's very decent at f/2.8 and smaller apertures.




f/2.8: Can't get this sunstar definition with the Loxia 21 @f/2.8






f/3.5




Jul 10, 2019 at 09:14 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #12 · p.7 #12 · Voigtlander 21mm f/1.4 Nokton Review


A few more samples:






















Jul 10, 2019 at 09:19 PM
nhsonyshooter
Offline
• • • •
Upload & Sell: On
p.7 #13 · p.7 #13 · Voigtlander 21mm f/1.4 Nokton Review


Man, 21 is right there with the 24GM. That said I like the rendering of the 24 better. Combined with having AF 24 stay's in my bag. I'll just admire images from the 21 from afar


Jul 10, 2019 at 09:34 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #14 · p.7 #14 · Voigtlander 21mm f/1.4 Nokton Review


Coma (Sagittal Flare)

The CV 21/1.4 Nokton has good coma performance at least 1-stop from wide open. At about f/2.2 coma became acceptable and it's optimal at f/2.8. It does not match the outstanding coma performance from the FE 24/1.4 GM which has great coma performance from wide open. Compared to the Loxia 21/2.8, it matches its wide open performance at about f/2.2 or f/2.5.

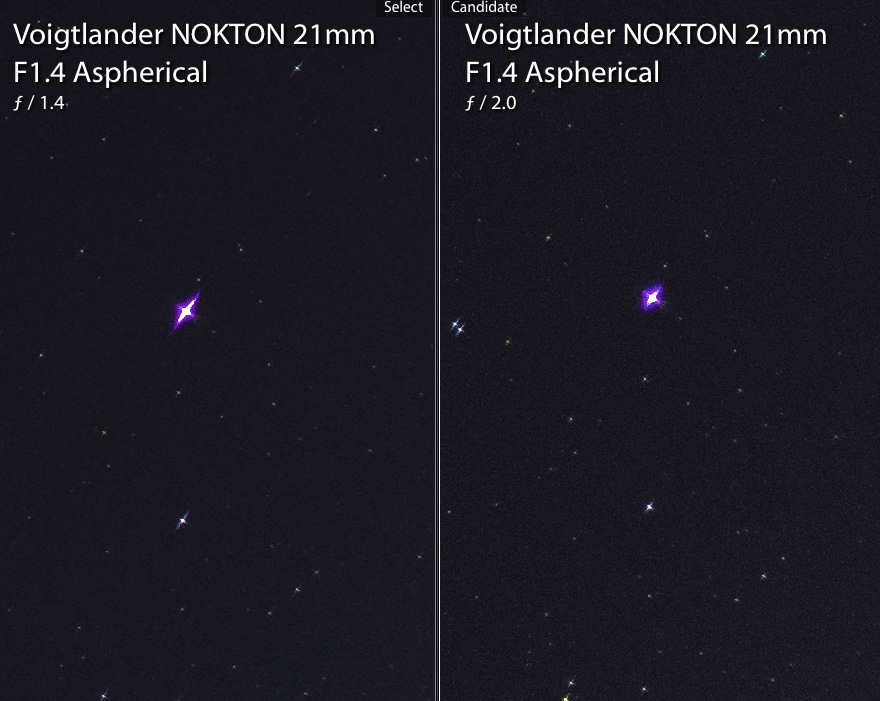

At f/1.4 coma is very evident but gets greatly improved at f/2

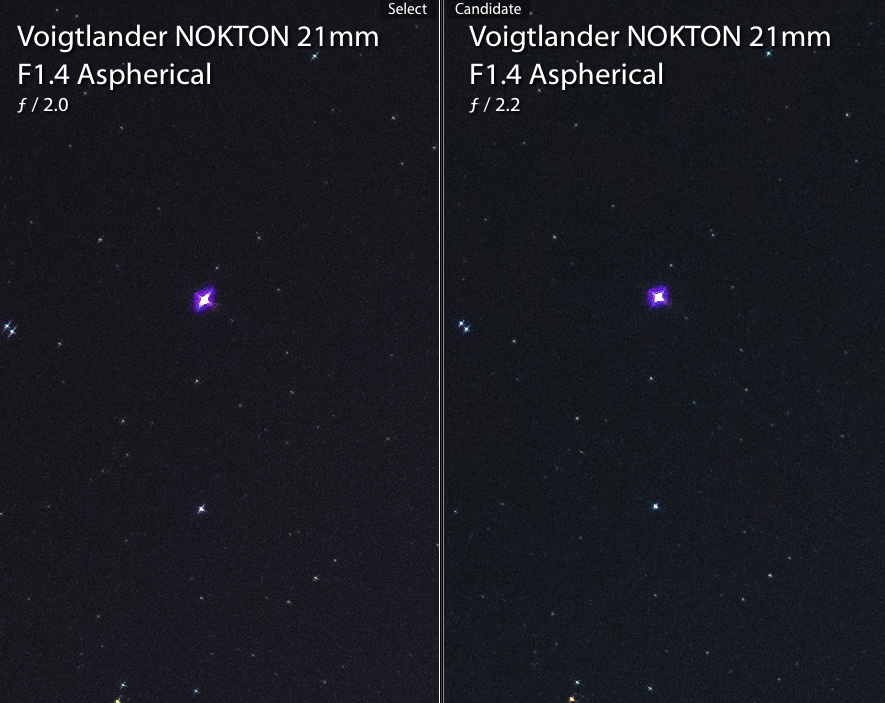

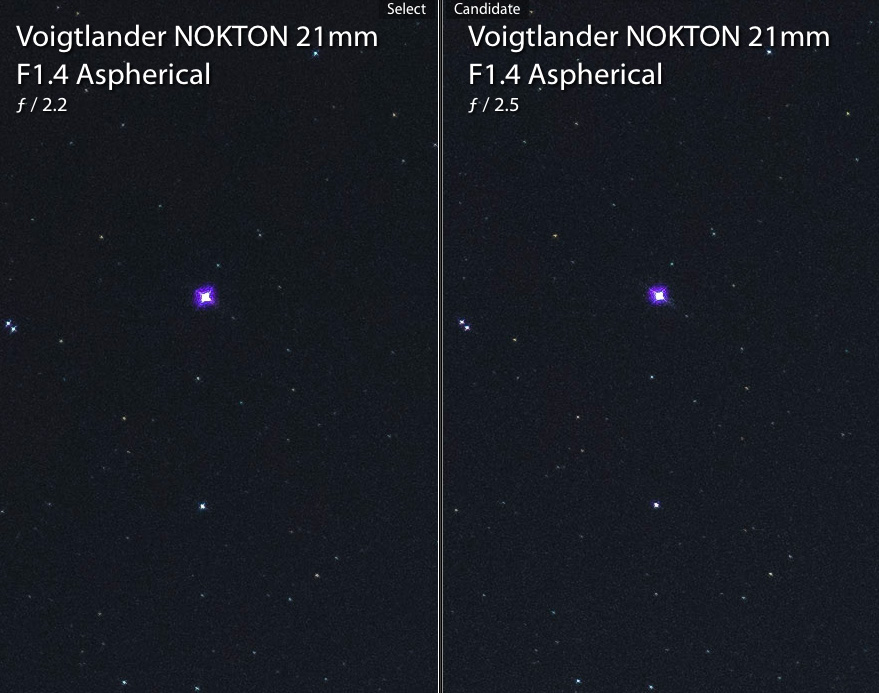

Nice improvement from f/2 to f/2.2. Some would consider the f/2.2 performance already acceptable for astro

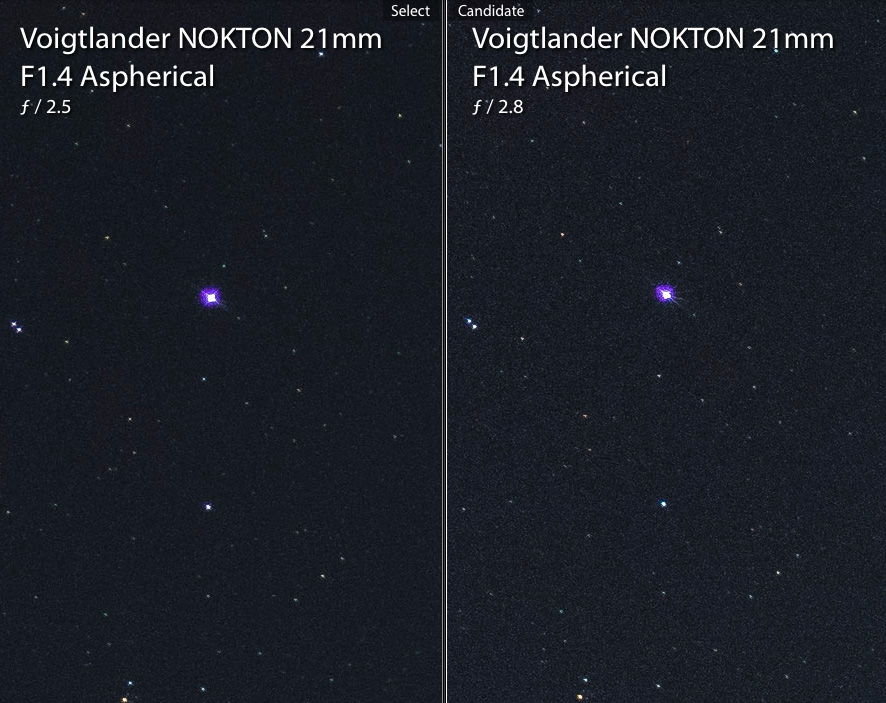

From f/2.2 to f/2.5, it improves slightly







from f/2.5 to f/2.8 another very slight improvement







At f/2.8, it has better coma correction compared to the Loxia 21/2.8 wide open




Jul 10, 2019 at 11:29 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #15 · p.7 #15 · Voigtlander 21mm f/1.4 Nokton Review

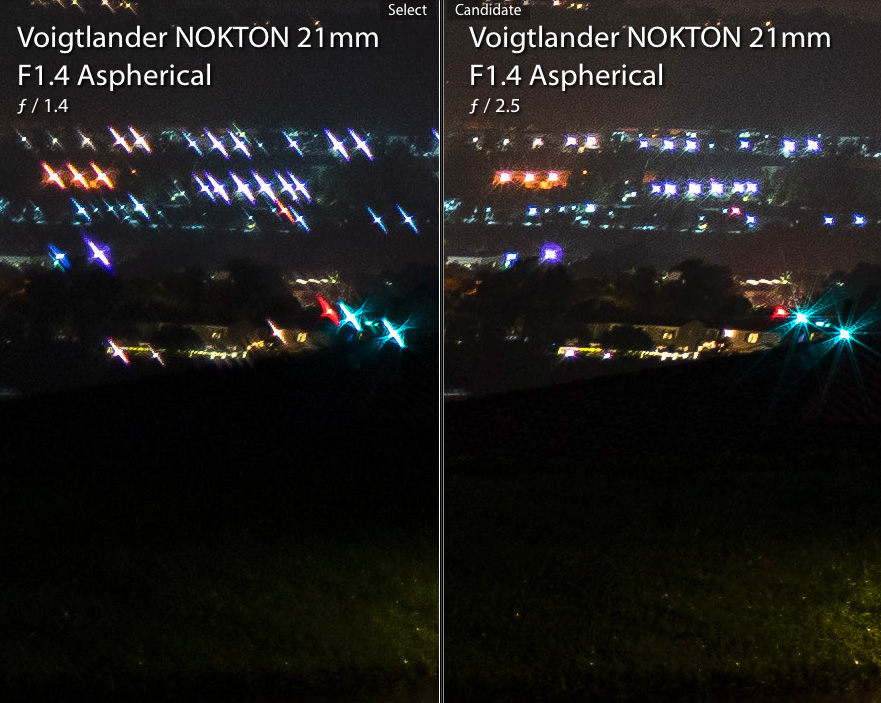

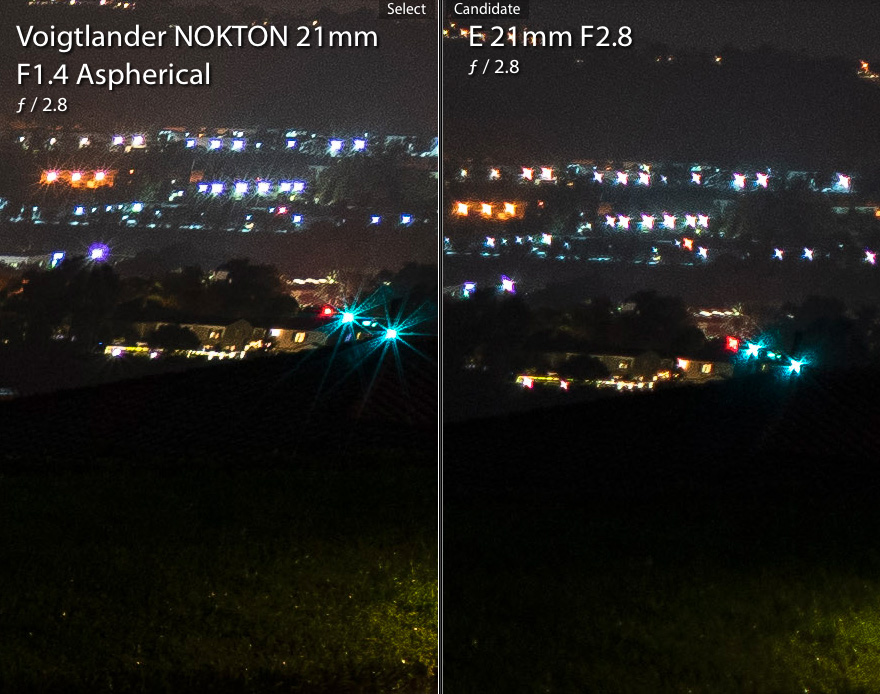

Street lights towards the very corner coma comparison between apertures:





As seen above, f/1.4-1.8 should be avoided with this lens but f/2.2 and f/2.5 look good.







At f/2.2, it matches the performance of the Loxia wide open. (f/2.8)







When both Voigtlander and Loxia at set to f/2.8, the former shows better coma performance




Jul 10, 2019 at 11:31 PM
hiepphotog
Offline
• • • •
Upload & Sell: On
p.7 #16 · p.7 #16 · Voigtlander 21mm f/1.4 Nokton Review


Ha, after all these comparisons, I appreciate my GM 24 more. One day I'll find a good reason to add this CV into the bag :P.


Jul 11, 2019 at 12:03 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #17 · p.7 #17 · Voigtlander 21mm f/1.4 Nokton Review


hiepphotog wrote:
Ha, after all these comparisons, I appreciate my GM 24 more. One day I'll find a good reason to add this CV into the bag :P.


It's true. The GM 24 is outstanding for astro. Lower coma and lower vignetting. It's about a stop better than the new Voigtlander but 24mm is not 21mm.

I'm surprised it did better than the Loxia 21/2.8. (also by almost a stop)




24mm vs 21mm FL




Jul 11, 2019 at 12:12 AM
ratherSoftEdge
Offline

Upload & Sell: Off
p.7 #18 · p.7 #18 · Voigtlander 21mm f/1.4 Nokton Review


Do you have some examples of the coma performance of the sony gm 24 1.4?


Jul 11, 2019 at 03:21 AM
RT--
Offline
• •
Upload & Sell: Off
p.7 #19 · p.7 #19 · Voigtlander 21mm f/1.4 Nokton Review


ratherSoftEdge wrote:
Do you have some examples of the coma performance of the sony gm 24 1.4?



https://rikutalvio.blogspot.com/2018/12/sony-24-gm-vs-zeiss-loxia-25-coma.html



Jul 11, 2019 at 03:35 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.7 #20 · p.7 #20 · Voigtlander 21mm f/1.4 Nokton Review


ratherSoftEdge wrote:
Do you have some examples of the coma performance of the sony gm 24 1.4?


The 24/1.4 GM is already great from wide open (f/1.4)

See here: https://www.fredmiranda.com/forum/topic/1568815/4#14651216







Jul 11, 2019 at 10:56 AM
