Archive 2012The 6D "Shut Up and Shoot" Thread



RobDickinson
Offline
Details
p.18 #1The 6D "Shut Up and Shoot" Thread
Fred thats incredible , something beyond what I would have thought standard slr gear does.

I guess you used some tracking and stacking?
Mar 19, 2013 at 12:20 AM
Jabberwockt
Offline
Details
p.18 #2The 6D "Shut Up and Shoot" Thread
Borrowed a 6D again.

Here's one with the Contax 100 F2.0
Mar 19, 2013 at 12:36 AM
jorkata
Offline
Details
p.18 #3The 6D "Shut Up and Shoot" Thread
StillFingerz wrote:
Fred, absolutely stunning! How 'on earth' did you create this image...wow.


The 6D is out of this world .
Mar 19, 2013 at 02:01 AM
Ralph Conway
Offline
Details
p.18 #4The 6D "Shut Up and Shoot" Thread
Fred Miranda wrote:
Canon 6D with Canon 500mm f/4L II


This is a real fantastic and wonderfull shot to me, Fred.
Amazing quality. Please tell us how you got it. How much is it cropped?

Ralph
Mar 19, 2013 at 02:08 AM
Luta13
Offline
Details
p.18 #5The 6D "Shut Up and Shoot" Thread
The Cast by Luta13, on Flickr
Mar 19, 2013 at 05:55 AM
Papathanassiou
Offline
Details
p.18 #6The 6D "Shut Up and Shoot" Thread
Ralph Conway wrote:
Fred Miranda wroteCanon 6D with Canon 500mm f/4L II
This is a real fantastic and wonderfull shot to me, Fred.
Amazing quality. Please tell us how you got it. How much is it cropped?

Ralph


I'm with Ralph, Please Fred?
Mar 19, 2013 at 06:00 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.18 #7The 6D "Shut Up and Shoot" Thread
Ralph Conway wrote:
Fred Miranda wroteCanon 6D with Canon 500mm f/4L II
This is a real fantastic and wonderfull shot to me, Fred.
Amazing quality. Please tell us how you got it. How much is it cropped?

Ralph


I shot this at 500mm FL since I was using my Canon 6D. Most astrophotographers using SLR lenses instead of a telescope, use with a crop camera like the Canon Rebel series since there is no need to acquire expensive super telephoto lenses to get close to their targets. However, the benefit of the full frame 6D is super clean files at high ISO when comparing to what you get from the sensor of crop cameras. That means less stacked images needed.

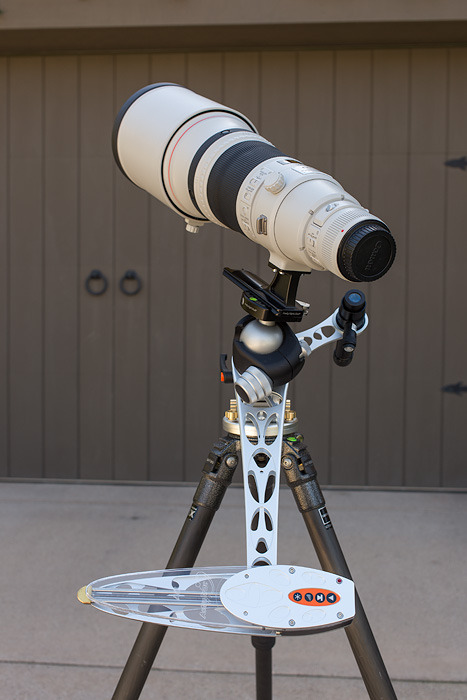

Here is a picture of my very portable set-up using a Astrotrac mount by itself (without using a guiding scope)

Without a guiding scope you will only be able to capture one image and you can get something like this for about 60 seconds max.

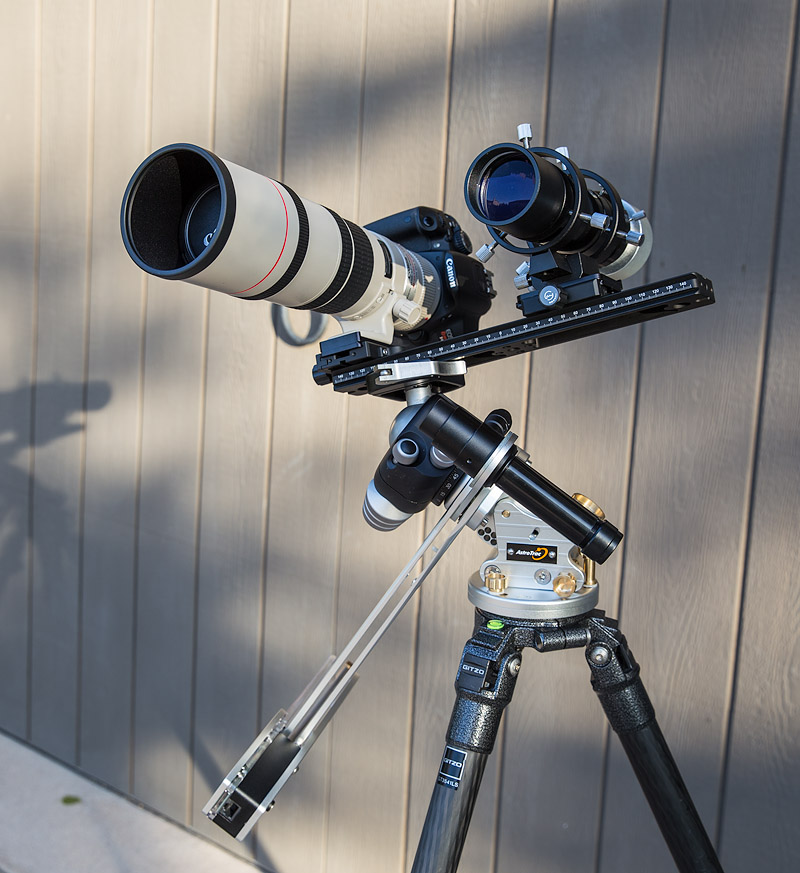

Here is a picture showing the Astrotrac and a 50mm guiding scope (Using the 400mm f/5.6L this time)

The above set-up allows you to stay on your target for many hours and capture many images for later stacking in software. The benefit is lower S/N ratio giving you the ability to stretch your file further in post-processing bringing detail while keeping noise as low as possible.

The picture (posted on this thread) was the result of 12 images of 3 minutes each at ISO 1250 @ f/4.5 stacked using DeepSkyStacker and their respective darks, flats and bias shots for calibration.

It sounds all complicated but once you get everything set-up, it's addictive. This was my first try using this gear and I'm very surprised from what can be achieved with a DSLR and regular lenses.
Fred
Mar 19, 2013 at 10:07 AM
DopamineHunter
Offline
Details
p.18 #8The 6D "Shut Up and Shoot" Thread
Fred Miranda wrote:
Here is a picture showing the Astrotrac and a 50mm guiding scope (Using the 400mm f/5.6L this time)

The above set-up allows you to stay on your target for many hours and capture many images for later stacking in software. The benefit is lower S/N ratio giving you the ability to stretch your file further in post-processing bringing detail while keeping noise as low as possible.

Fred


Fred,
what is that rail and what is holding the scope to the rail
Brand/magnification of the scope?

Time for a astro party in the desert?
i'll bring the beer
Mar 19, 2013 at 10:16 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
Details
p.18 #9The 6D "Shut Up and Shoot" Thread
Sunny Sra wrote:
Fred Miranda wroteHere is a picture showing the Astrotrac and a 50mm guiding scope (Using the 400mm f/5.6L this time)

The above set-up allows you to stay on your target for many hours and capture many images for later stacking in software. The benefit is lower S/N ratio giving you the ability to stretch your file further in post-processing bringing detail while keeping noise as low as possible.

Fred
Fred,
what is that rail and what is holding the scope to the rail
Brand/magnification of the scope?

Time for a astro party in the desert?
i'll bring the beer


Sunny,
The rail and clamps are from Sunwayfoto. They are actually very well made.
You can find them here:

Sunwayfoto DPG-3016 Stereography Rail:
http://www.bhphotovideo.com/c/product/844960-REG/Sunwayfoto_DPG_3016_DPG_3016_Stereography_Rail.html

Sunwayfoto clamps (You need two. Once for your lens and the other for the guide scope)
http://www.bhphotovideo.com/c/product/906573-REG/Sunwayfoto_DDC_60i_Screw_Knob_Clamp.html

You can get a refurbished T4i from Canon's site:
Refurbished T4i:
http://shop.usa.canon.com/webapp/wcs/stores/servlet/product_10051_10051_320718_-1

The Orion 50mm scope and the Orion Starshooter guide camera can be bought as a special bundle from Amazon:
http://www.amazon.com/Orion-Magnificent-Mini-AutoGuider-Package/dp/B004SFQ9QM/ref=sr_1_2?s=electronics&ie=UTF8&qid=1363713053&sr=1-2&keywords=orion+mini+package

You need a PC or Mac laptop for the guiding.

Fred
Mar 19, 2013 at 05:19 PM
DopamineHunter
Offline
Details
p.18 #10The 6D "Shut Up and Shoot" Thread
You're gonna make me go broke!
Mar 19, 2013 at 05:21 PM
StillFingerz
Offline
Details
p.18 #11The 6D "Shut Up and Shoot" Thread
Jabberwockt wrote:
Borrowed a 6D again.

Here's one with the Contax 100 F2.0
http://farm9.staticflickr.com/8531/8570287429_5f0e1b2c9e_b.jpg


Sharp as a tack, wonderful composition, great image Jabberwockt
Mar 19, 2013 at 05:47 PM
boblu
Offline
Details
p.18 #12The 6D "Shut Up and Shoot" Thread

These are great shoot! Ugh!

Just got 6d and wonder if I need 85 f1.8 or 100f2. Seems to me from these images, 100f2 is great. If you have 85 f1.8, which one you like most? Thanks.

Robert

michael49 wrote:
I've owned the 5d, 5d2 and several crop Canon bodies, but so far the 6d is my favorite. I got mine "used" here (made FM buy/sell history with the first used 6d sale! ).

AF is quick and accurate. Feels much more responsive than the 5d or the 5d2 (likely due to shorter mirror blackout). Feels better in the hand than any other Canon I've used. Love the on/off switch near the mode dial. Mode dial locks! Auto-ISO lets you set a minimum shutter speed - finally!!
Shutter is quiet and much nicer sounding than 5d/5d2.

Got to use it over Christmas
...Show more →
Mar 22, 2013 at 12:59 PM
lighthawk
Offline
Details
p.18 #13The 6D "Shut Up and Shoot" Thread
La Sagrada is my dream architectural shoot.

Hopefully by the time I get there, I'll have a tilt-shift to go with my soon-to-arrive 6D!
Mar 22, 2013 at 11:25 PM
lighthawk
Offline
Details
p.18 #14The 6D "Shut Up and Shoot" Thread
Chemamar wrote:
Very good photos in the thread. A few with the 6D and 400 5.6:

http://imageshack.us/a/img854/7388/1mg3208.jpg

http://imageshack.us/a/img547/4215/mg3129.jpg

http://imageshack.us/a/img607/5461/mg3204j.jpg

http://imageshack.us/a/img703/573/mg3235k.jpg



What iso setting were you using here? I'm surprised to see what looks like a fair amount of noise in your shots. Maybe it's a result of uploading settings?
Mar 22, 2013 at 11:46 PM
Chemamar
Offline
Details
p.18 #15The 6D "Shut Up and Shoot" Thread
Hi Lighthawk, these were shot at 1600 Iso with bad light and underexposed, hence the amount of noise that can be seen in the photos. I have yet to get used to that the 6D in many aspects is not like the D800 that I used before...
Mar 23, 2013 at 05:11 AM
Chemamar
Offline
Details
p.18 #16The 6D "Shut Up and Shoot" Thread
If you do not underexposed photos, we all know that the picture quality is amazing ... a pair at 3200 iso with bad light...

http://imageshack.us/a/img707/6813/mg3995.jpg

http://imageshack.us/a/img560/7710/mg4003d.jpg

http://imageshack.us/a/img526/3439/2mg3984.jpg
Mar 23, 2013 at 05:21 AM
Luta13
Offline
Details
p.18 #17The 6D "Shut Up and Shoot" Thread
Miami MX by Luta13, on Flickr
Mar 23, 2013 at 09:30 AM
aaxxiiss
Offline
Details
p.18 #18The 6D "Shut Up and Shoot" Thread
Hi everyone!

This thread has been extremely useful resource for me when I was deciding which camera body to buy. Now as I have owned 6D for couple of weeks, I'd like to contribute with some pics of my home town.

http://farm9.staticflickr.com/8506/8584557449_0818de39aa_c.jpg
Settings: 1/50, ƒ/4, ISO 800, 24 mm (24-105mm f/4 L)


http://farm9.staticflickr.com/8247/8585657492_6d85c0756c_c.jpg
Settings: 1 sec, ƒ/5.6, ISO 400, 135mm (Takumar 135mm f2.5 with M42-EF adapter)


http://farm9.staticflickr.com/8097/8585657162_036392f8d7_c.jpg
Settings: 1/80, ƒ/2, ISO 6400, 50 mm (50mm f/1.4)
Mar 24, 2013 at 04:46 AM
Luta13
Offline
Details
p.18 #19The 6D "Shut Up and Shoot" Thread
Great shots Jukka. Welcome aboard.
Mar 24, 2013 at 07:09 AM
Luta13
Offline
Details
p.18 #20The 6D "Shut Up and Shoot" Thread
Race Day Dreamer by Luta13, on Flickr
Mar 24, 2013 at 07:10 AM
