p.1 #1 · p.1 #1 · Post Your Set Up!


I feel like this kind of post comes around now and then, but it sure is helpful for those just getting into macro--get's the creative juices flowing I'll start it off with my crude rig (without tubes), nothing fancy...

1DIII, Sigma 150mm Macro, 580EXII, Adorama flat/straight bracket, Canon OC-E3, Giottos MH 1004 mini ball head, JD Flip-it Jumbo.
http://farm3.static.flickr.com/2417/3543021439_703f8c41fc_b.jpg
http://farm3.static.flickr.com/2325/3543025159_947870453c_b.jpg




Jun 07, 2009 at 07:21 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
Registered: Dec 30, 2001
Total Posts: 42529
Country: United States
Featured Thread wins: 17 times
Received Likes: 68689





Due to the length of this thread, only older posts are available here. Recent posts can be viewed by clicking this link:

View newer replies
Kenj8246
Offline
• • • • • •
Upload & Sell: Off
p.1 #2 · p.1 #2 · Post Your Set Up!


Accidentally deleted the pics, so this post is useless. Sorry

Kenny

Edited on Dec 23, 2010 at 08:16 AM · View previous versions



Jun 07, 2009 at 08:32 PM
LordV
Offline
• • • • • • •
Upload & Sell: Off
p.1 #3 · p.1 #3 · Post Your Set Up!


My macro rigs

brian V.




Jun 07, 2009 at 11:45 PM
solete
Offline
• •
Upload & Sell: Off
p.1 #4 · p.1 #4 · Post Your Set Up!


My stuff. Just a detail, I know use thin foam instead of kitchen paper. And I use a D70s, the F75 was just there cause I don't have any other camera.

http://prata.smugmug.com/photos/549169897_FRR8k-XL.jpg

http://prata.smugmug.com/photos/549169976_GJpU5-XL.jpg

Pedro G. Prata
(more pics of this setup here)



Jun 08, 2009 at 05:00 AM
M Vers
Offline
• • • • • •
Upload & Sell: Off
p.1 #5 · p.1 #5 · Post Your Set Up!


Good stuff, guys
I know there are more than four of use who post here



Jun 08, 2009 at 09:22 PM
Dal1970
Offline

Upload & Sell: Off
p.1 #6 · p.1 #6 · Post Your Set Up!


Here's one of mine - based on Brian's rig of course

Macro Rig

I am looking at setting up more like M Vers now that my focussing rail has arrived

Dal



Jun 09, 2009 at 06:57 AM
Kenj8246
Offline
• • • • • •
Upload & Sell: Off
p.1 #7 · p.1 #7 · Post Your Set Up!


This is what my setup looks like with the Nikon SB400 in place of the Nikon SB600:

Redesigned bracket http://farm3.static.flickr.com/2427/3611823109_455390b41c_o.jpg

Bracket mounted http://farm4.static.flickr.com/3327/3611823343_72faa4cb63_o.jpg

SB400 mounted http://farm3.static.flickr.com/2421/3611823585_f33fb1a457_o.jpg

Lumiquest mini softbox added http://farm4.static.flickr.com/3614/3611823767_c80ebc52a7_o.jpg

Disclaimer: pics taken with P&S I didn't know how to use.

Kenny



Jun 09, 2009 at 06:40 PM
Dalantech
Offline
• • • • • •
Upload & Sell: Off
p.1 #8 · p.1 #8 · Post Your Set Up!


This is now my old rig since my MT-24EX died (I haven't decided if I'm going to replace it):

http://farm4.static.flickr.com/3231/3082115725_04463ffd7b_b.jpg



Jun 10, 2009 at 09:43 AM
rnickl
Offline
• • •
Upload & Sell: Off
p.1 #9 · p.1 #9 · Post Your Set Up!


Hey Kenny,
Is that a PN-11 behind your lens? I have had my eye out for one of those for that exact reason, to mount my flash.
Have you had encountered any hang-ups using it?

Rick



Jun 10, 2009 at 07:15 PM
Kenj8246
Offline
• • • • • •
Upload & Sell: Off
p.1 #10 · p.1 #10 · Post Your Set Up!


Yeah, Rick, it sure is. So far, so good, no problems.

I also have a PK-13 and I sometimes use both for 80mm of extension behind my Ai-S 300mm f4.5 to shoot dragonflies and such. I like the positive click stops at 90, 180, 270 and 360 degrees of rotation.

Kenny



Jun 10, 2009 at 07:35 PM
rnickl
Offline
• • •
Upload & Sell: Off
p.1 #11 · p.1 #11 · Post Your Set Up!


Thanks Kenny.

I went and grabbed a couple shots to contribute to the thread also.
Here's my D200 with a stack of ProOptic tubes behind the Sigma 105mm. The flash is a SB-400 with some "fun foam" and a recycled Altoids tin for a diffuser. I cut the front and back out so I can open the front of the tin and change the diffuser material in a couple seconds. Functionally it's good but I still need to find a diffuser material I'm happy with, for now is a coffee filter

Rick

http://www.smugmug.com/photos/560517520_8tZmy-L.jpg

http://www.smugmug.com/photos/560517508_e4Q8T-L.jpg



Jun 10, 2009 at 08:23 PM
frans_vdm
Offline
• •
Upload & Sell: Off
p.1 #12 · p.1 #12 · Post Your Set Up!


A few pictures of my setup for in-flight macro photography. The setup contain 2 parts, one as normal camera-macrolens (now the D300, AF105/2.8D) and above stand the AF60/2.8D macro-lens as optical IR detector (+ microcontroller mounted into this lens). 2 IR lasers are used for the optical system, 2 other green lasers show me the visual projected focuspoint (therefore the lasers are mounted oblique).

Here the hole setup picture:



But recently, my compur1 shutter broke, so i had to renew this part. The compur1 shutter was hard to find or very expensive, so i've used an old compur0 shutter. Results of this new parts can be seen here:



and here the frontside:



Both last pictures show how the AF105/2.8D is connected to the compur shutter.
The 2 flashes are type SB-80-DX (or SB800) alway manual set. All the necessary electronics stay into the frame. Total weight: 8 kg. My wife has make a special strap( as a vest) to hold the unit. I need urgent to make a picture of these

Frans.




Jun 11, 2009 at 11:57 AM
Goldenorfe
Offline
• • • • •
Upload & Sell: Off
p.1 #13 · p.1 #13 · Post Your Set Up!


heres mine, similar to brians but with 3 different sheets from diffusion pack on/inside coke can diffuser

phil


http://farm4.static.flickr.com/3333/3238942421_b6383364ae_o.jpg

http://farm4.static.flickr.com/3089/3239781826_1ee7402494_o.jpg

http://farm4.static.flickr.com/3463/3239782748_814b83ca97_o.jpg



Jun 11, 2009 at 03:11 PM
mach250
Offline
• • •
Upload & Sell: Off
p.1 #14 · p.1 #14 · Post Your Set Up!


This has to be the most complicated setup I have ever seen.


frans_vdm wrote:
A few pictures of my setup for in-flight macro photography. The setup contain 2 parts, one as normal camera-macrolens (now the D300, AF105/2.8D) and above stand the AF60/2.8D macro-lens as optical IR detector (+ microcontroller mounted into this lens). 2 IR lasers are used for the optical system, 2 other green lasers show me the visual projected focuspoint (therefore the lasers are mounted oblique).

Here the hole setup picture:

http://www.pbase.com/fotoopa/image/106990949/original.jpg

But recently, my compur1 shutter broke, so i had to renew this part. The compur1 shutter was hard to find or very expensive, so i've used an old compur0 shutter. Results of this
...Show more



Jun 12, 2009 at 01:33 AM
MarkB1
Offline
• • • • •
Upload & Sell: Off
p.1 #15 · p.1 #15 · Post Your Set Up!


*Edit - Pictures of new setup posted here - https://www.fredmiranda.com/forum/topic/780820/25#13344522

This is my setup - a work in progress. A pro-sumer cam and achromat/s using mostly on-board flash. The plastic 'tube' is lined with plastic foil, the diffusing material is white synthetic stiffening from the haberdashers - I have various materials I am trying out over time. The tube/folded sheet is attached to the pop-up flash by a spot of velcro and a small piece of (very sticky) gaffer tape on the Raynox housing, and because it forms an angle of approx 100' on the base it can be flipped to light the subject from right, left or centre as required. It works with my varying working distances.

It works the way it is because the lens is internally zooming, no Pinnochio effect, which I think is just the way it should be for macro - that way focus hunting is minimal (on AF, as I do) when it happens.

The tripod is for hanging things on.

Edit : The whole process is documented here : http://beingmark.com/macro-illustrated/

Oops! The pix disappeared. A problem when one is deleted from a source location ... http://onbeingmark.files.wordpress.com/2010/07/p1140496-11.jpg

http://onbeingmark.files.wordpress.com/2010/07/p11404991.jpg

And something from SteB/Steven that helps with my diffusion .. .http://onbeingmark.files.wordpress.com/2010/07/p1030300_filtered1.jpg

Edited on Dec 24, 2015 at 01:05 AM · View previous versions



Jun 12, 2009 at 04:28 AM
adrianr
Offline
• • •
Upload & Sell: Off
p.1 #16 · p.1 #16 · Post Your Set Up!


Another variation on a theme really, posed on the old EOS 3 film body. A straight bracket (happens to be a Nikon SK-7, about 12 UK) with two small ball heads (these are Manfrotto 484RC2, about 30 UK each) and a 430EX flash on the end. The use of two ball heads adds an extra "elbow" joint in the middle and gives a bit more flexibility. Will easily reach out to the end of the MPE-65 when fully extended at x5. Main drawback is the not inconsiderable weight of the whole lot.

http://farm4.static.flickr.com/3410/3622764155_a185e6ebc1_o.jpg


http://farm4.static.flickr.com/3650/3622764883_a7bbf38549_o.jpg


http://farm4.static.flickr.com/3398/3622765461_5d9e7585a4_o.jpg

Adrian



Jun 13, 2009 at 05:20 PM
Studio BK
Offline
• •
Upload & Sell: Off
p.1 #17 · p.1 #17 · Post Your Set Up!


adrianr wrote:
Another variation on a theme really, posed on the old EOS 3 film body. A straight bracket (happens to be a Nikon SK-7, about 12 UK) with two small ball heads (these are Manfrotto 484RC2, about 30 UK each) and a 430EX flash on the end. The use of two ball heads adds an extra "elbow" joint in the middle and gives a bit more flexibility. Will easily reach out to the end of the MPE-65 when fully extended at x5. Main drawback is the not inconsiderable weight of the whole lot.

http://farm4.static.flickr.com/3410/3622764155_a185e6ebc1_o.jpg

Adrian


What happened to your LCD screen?!?!?!?



Jun 13, 2009 at 06:31 PM
Dominik Lazars
Offline

Upload & Sell: Off
p.1 #18 · p.1 #18 · Post Your Set Up!


Here's mine.

http://farm4.static.flickr.com/3609/3622965597_585971c40d_o.jpg

Novoflex flash brackets with short arms.



Jun 13, 2009 at 06:37 PM
Dennis Dietz
Offline
• •
Upload & Sell: Off
p.1 #19 · p.1 #19 · Post Your Set Up!


And mine:

Nikon D60, 25mm extension tube from Tamron 2xtele with elements removed, 20mm and 36mm Vivitar AT-3 auto extension tubes, Nikkor-H 85mm f/1.8, DIY adjustable flash bracket, Sunpak 433D flash (manual), DIY diffuser from take-out container and funfoam, flash has stofen inside, Bogen ball-head knockoff (nice quality though), shortened leg parts from an old aluminum artist display easle (the end pulls out and twist-locks, which I can press against my shoulder as a steady- also used for long lenses and wildlife photography).

This lens/extension combo allows about 1:1, I use the 25mm tube and a 50mm f/1.8 for 1:2 or the 85mm lens with the 20+25mm extension tubes.

I have a couple cheap/small ballheads in the mail that will hopefully allow me to do something similar to Adrianr's setup above. My biggest issue currently is this bracket is not as adjustable as I'd like and I more often than not wish the light was at 12 o'clock or about 10 o'clock compared to about 2 o'clock where it is now. Also, I would like to improve the diffusion a little more, this feels a little "hot" and robbing of flash output.

http://farm4.static.flickr.com/3538/3649269444_15c520f828_o.jpg

http://farm4.static.flickr.com/3633/3648462883_5f9184085b_o.jpg



Jun 21, 2009 at 08:23 PM
kionne_szichri
Offline

Upload & Sell: Off
p.1 #20 · p.1 #20 · Post Your Set Up!


here is mine...

for pop-up flash with reversed kit lens

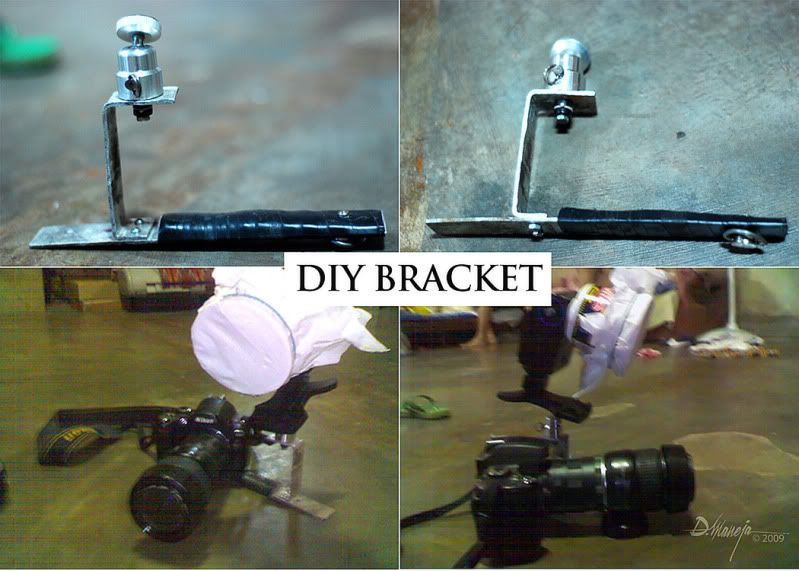

for my vivitar 2800d flash with my DIY bracket and cheap extension tube with reversed kit lens...



Edited on Jun 21, 2009 at 08:41 PM · View previous versions



Jun 21, 2009 at 08:35 PM
