Thypoch Simera 75mm f/1.4 ASPH. Review



Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #1 · Thypoch Simera 75mm f/1.4 ASPH. Review



Back to Quick Links

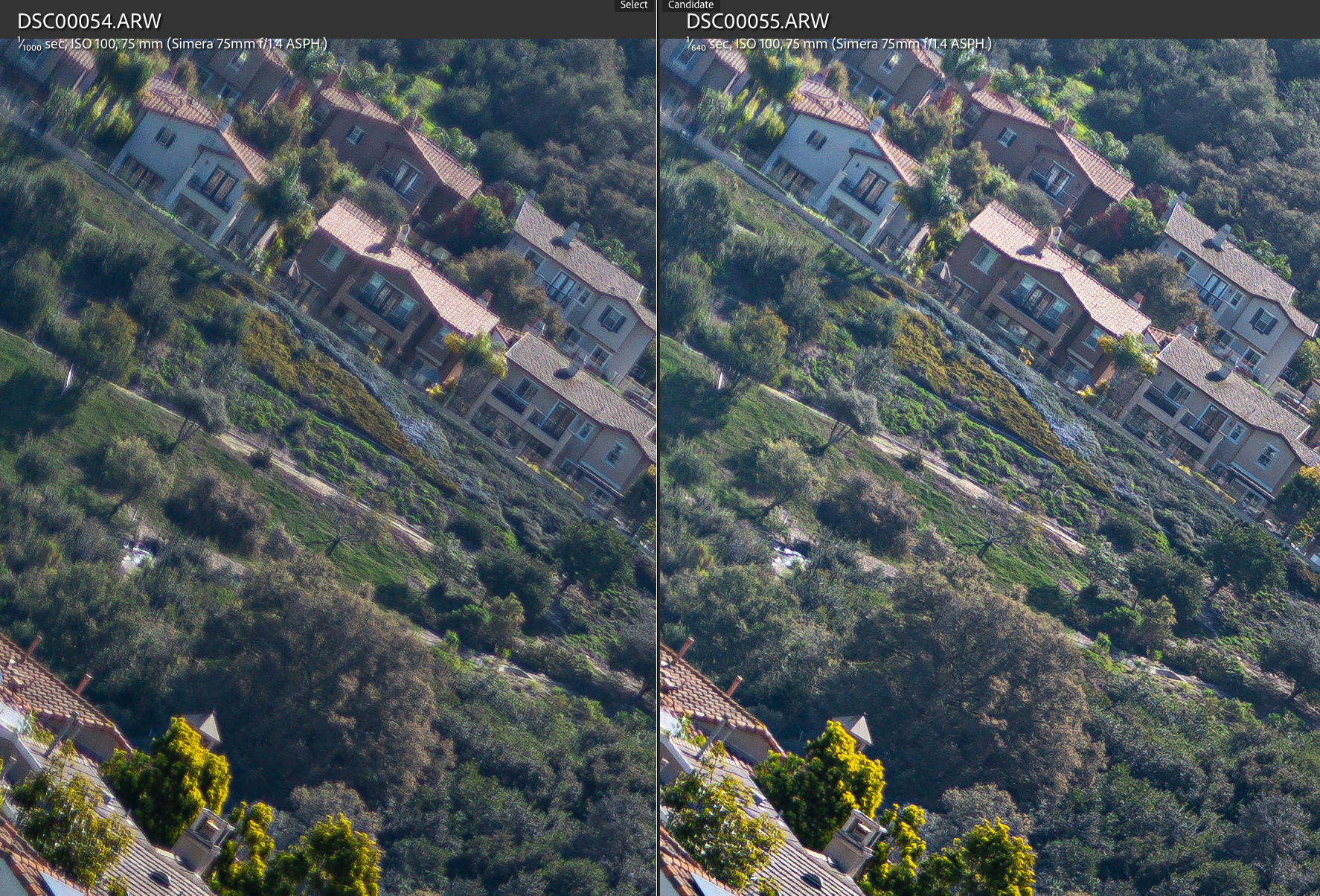

Resolution and Contrast at Infinity distance: Simera 75mm f/1.4 ASPH. adapted to a 42MP Sony sensor

Generally, wide-angle and normal lenses designed for Leica's thin sensor show a decline in image quality when adapted to mirrorless bodies with thicker sensor stacks like Sony. However, depending on the optical design and exit pupil diameter, even telephoto lenses can exhibit issues when used on a thicker sensor, as seen in many past reviews.

With that in mind, I tested the Simera 75mm f/1.4 ASPH. at infinity to evaluate resolution and contrast across the image field when focusing at the center, using a Sony A7R II with its 42MP sensor.

The results were very similar to those from a higher-resolution 60MP Leica sensor, indicating that the Simera 75mm f/1.4 ASPH. adapts well to mirrorless bodies without any noticeable loss in image quality. There were no detectable changes in astigmatism or field curvature. Expect similar performance whether shooting with a Leica M or adapting the lens to a mirrorless system, as Sony has one of the thickest sensor stacks.

This is great news for Sony users looking to adapt this lens for photography or videography.










  1. Distance: Infinity
  2. Focus: Center - Best of three shots at maximum magnification
  3. White Balance: Daylight
  4. Both lenses are well centered, as verified with my decentering test.
  5. Software used: Lightroom with FM Default Landscape Sharpening; all other settings are at default.

    PS:Chromatic Aberration (CA), and distortion were not corrected either in post-processing or in-camera.

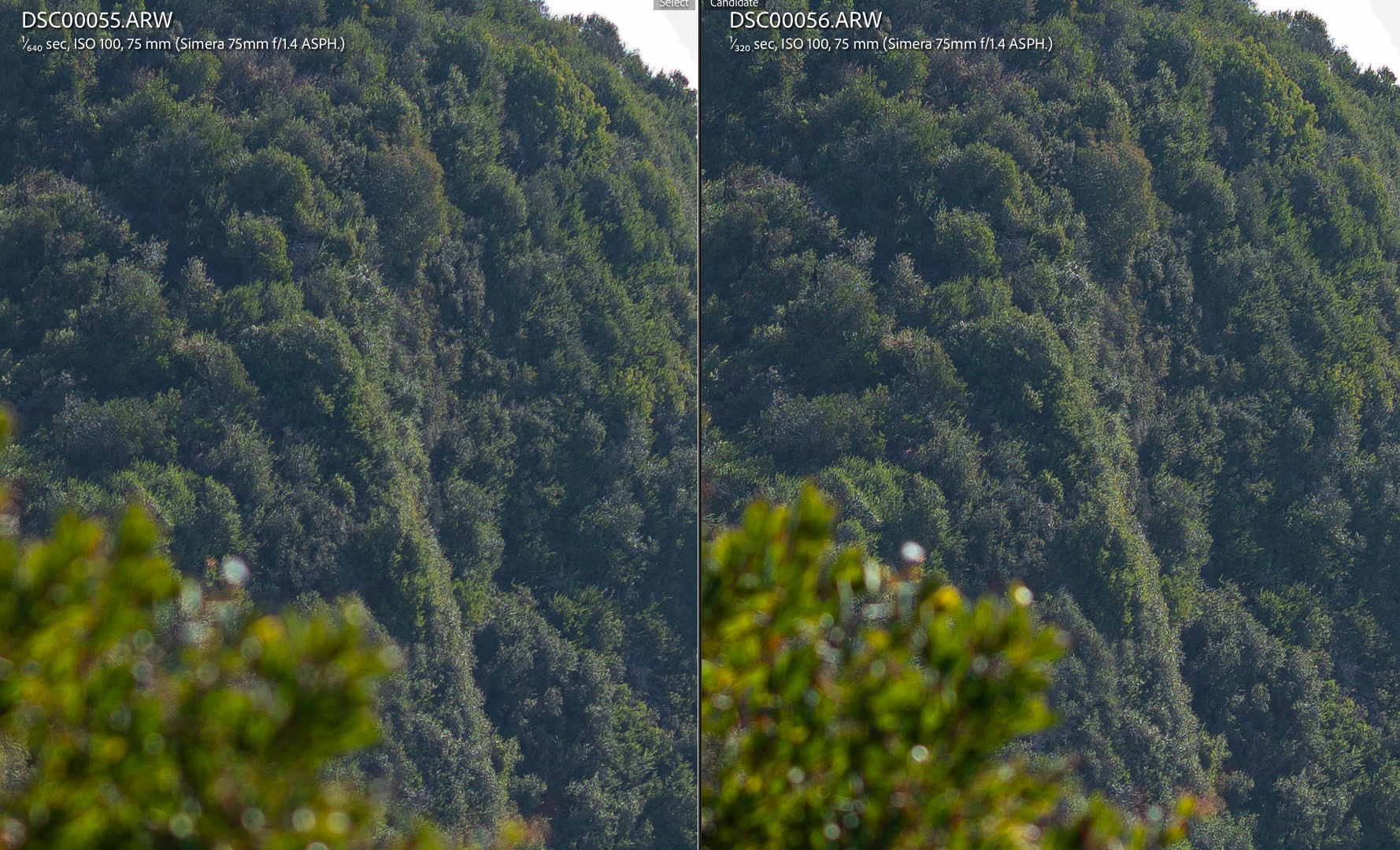

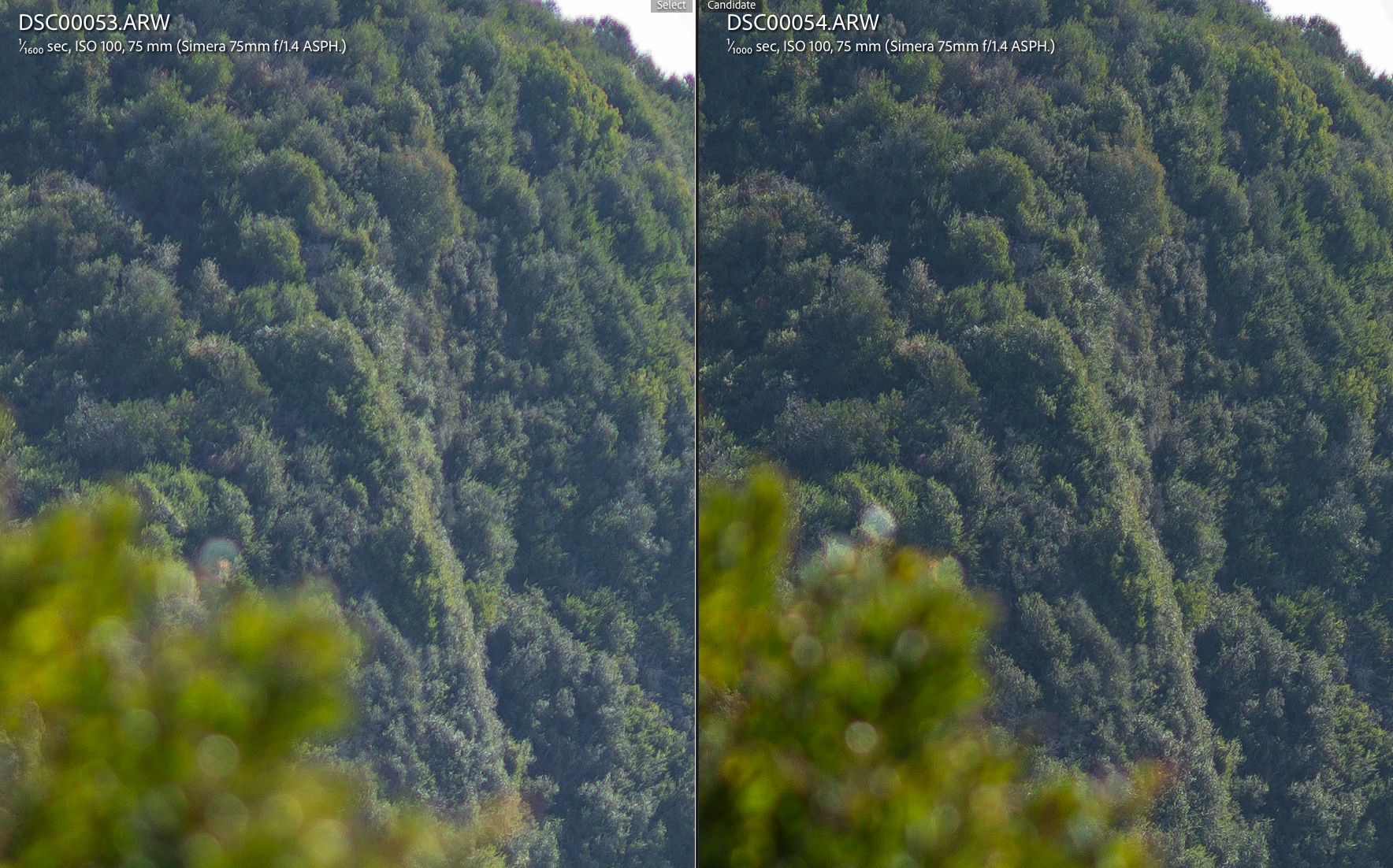

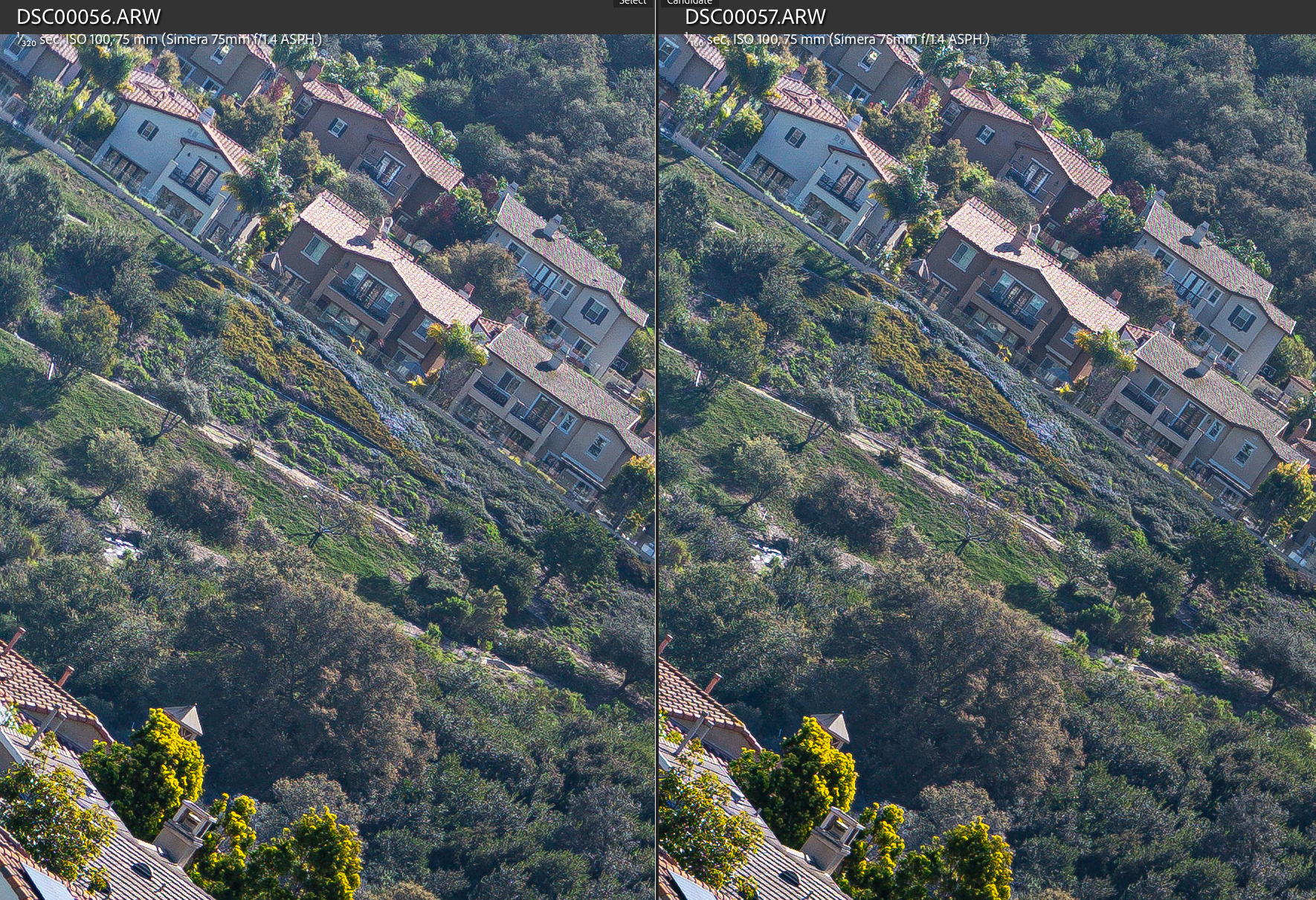

    Center Resolution and Contrast

    Resolution and Contrast at Infinity distance: Simera 75mm f/1.4 ASPH. adapted to a 42MP Sony sensor
    (open the browser window to view entire image without resizing)

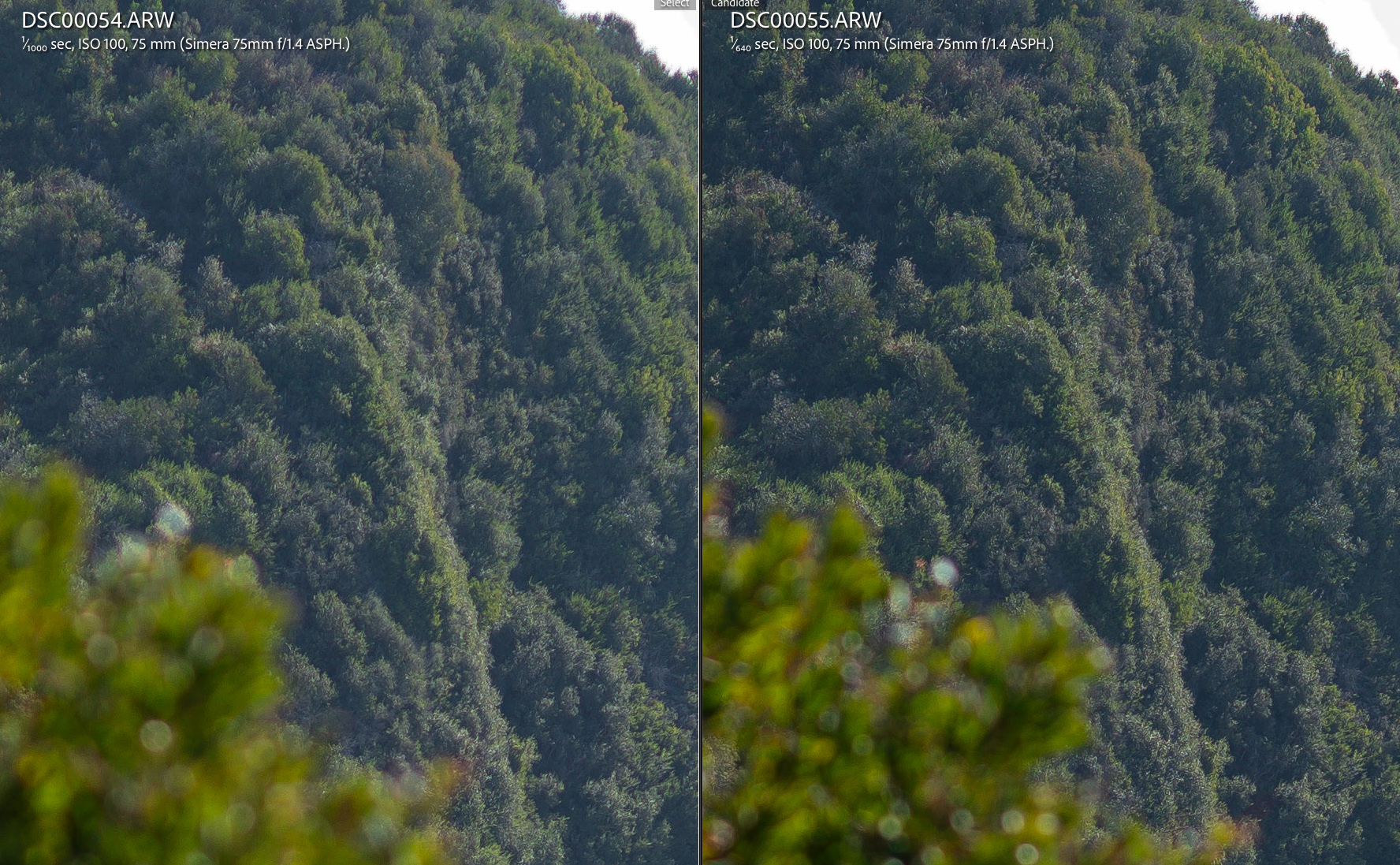

    f/1.4 (LEFT) - f/2 (RIGHT)

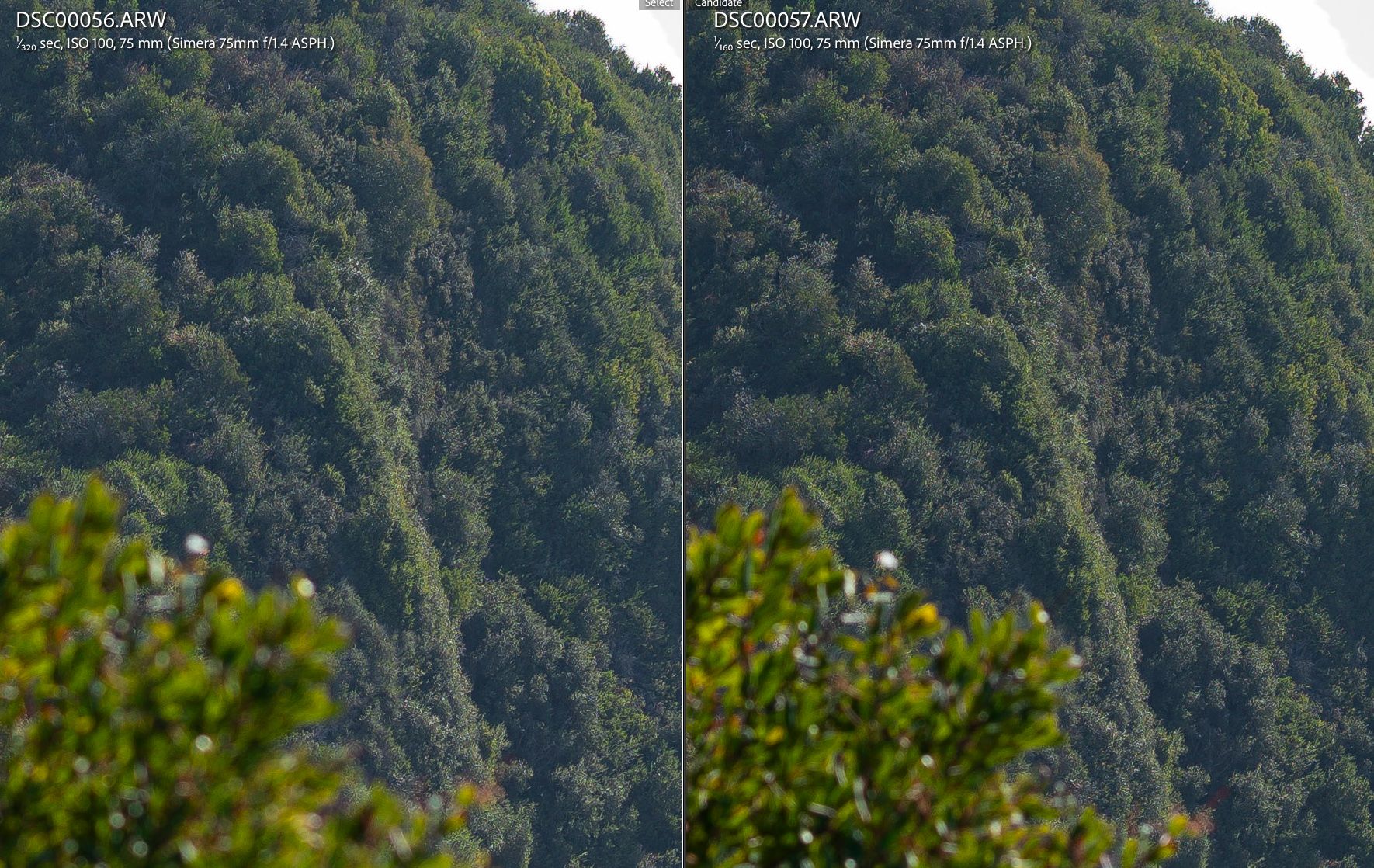

    f/2 (LEFT) - f/2.8 (RIGHT)







    f/2.8 (LEFT) - f/4 (RIGHT)







    f/4 (LEFT) - f/5.6 (RIGHT)







    f/5.6 (LEFT) - f/8 (RIGHT)




Mar 18, 2025 at 01:23 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #2 · Thypoch Simera 75mm f/1.4 ASPH. Review

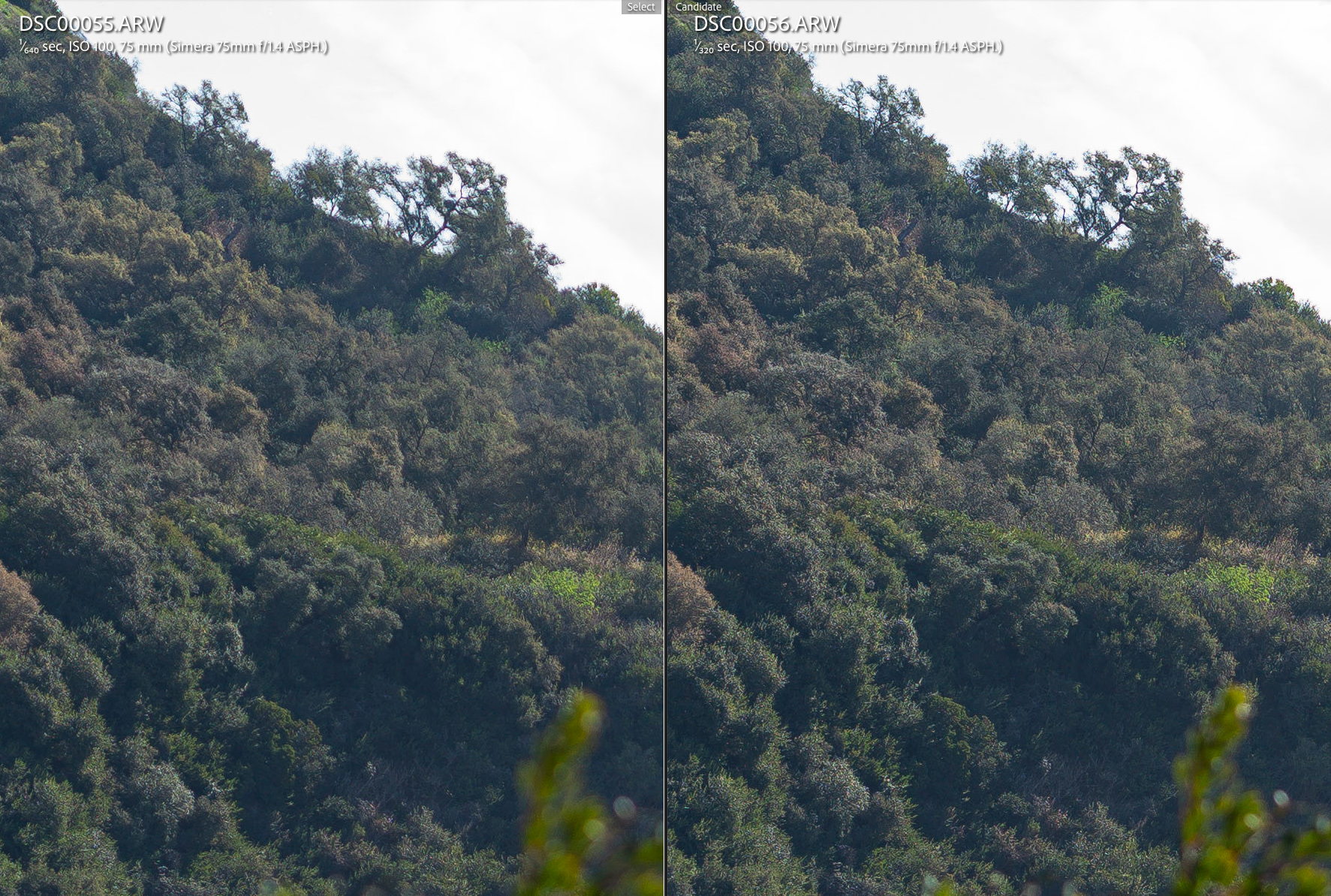

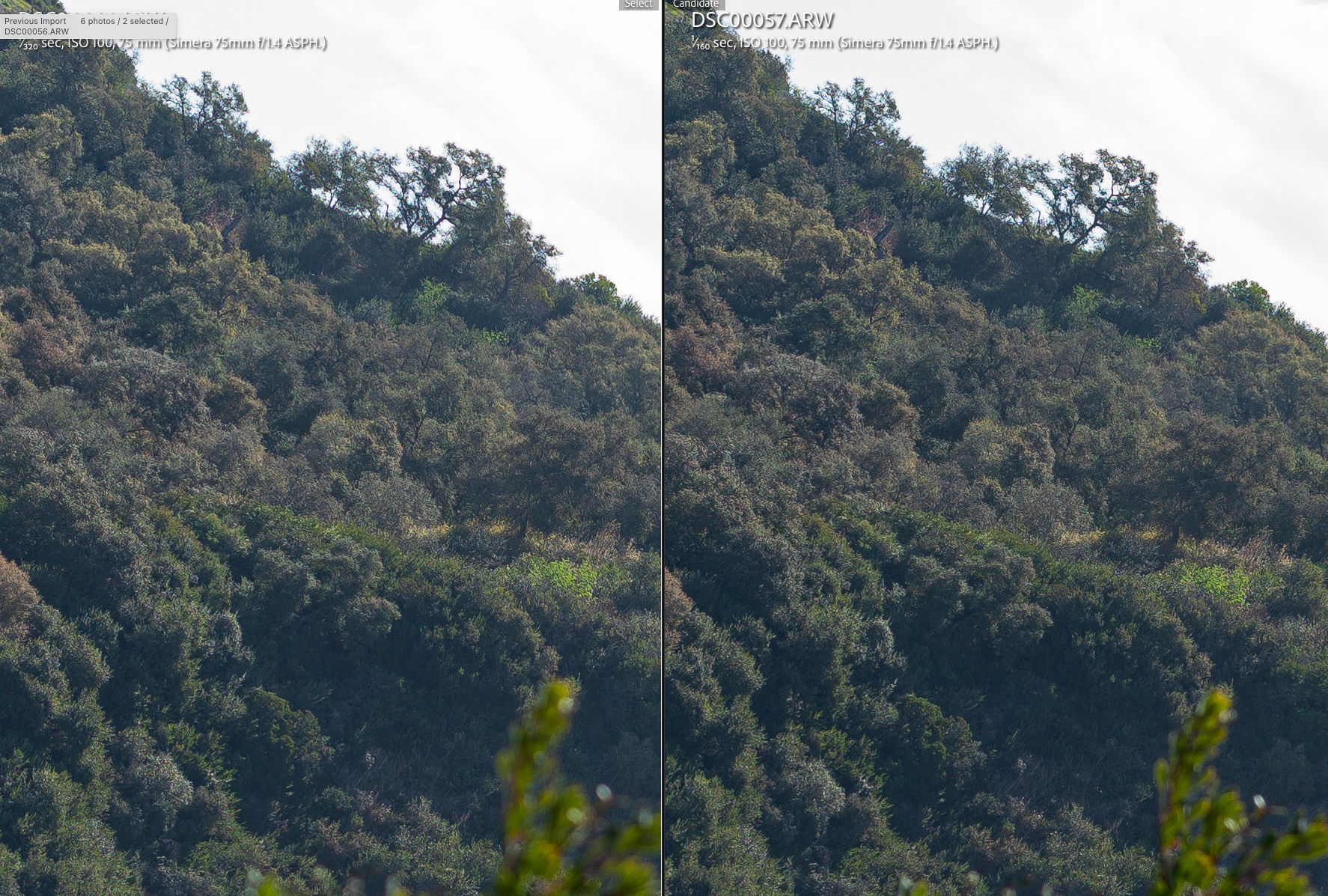

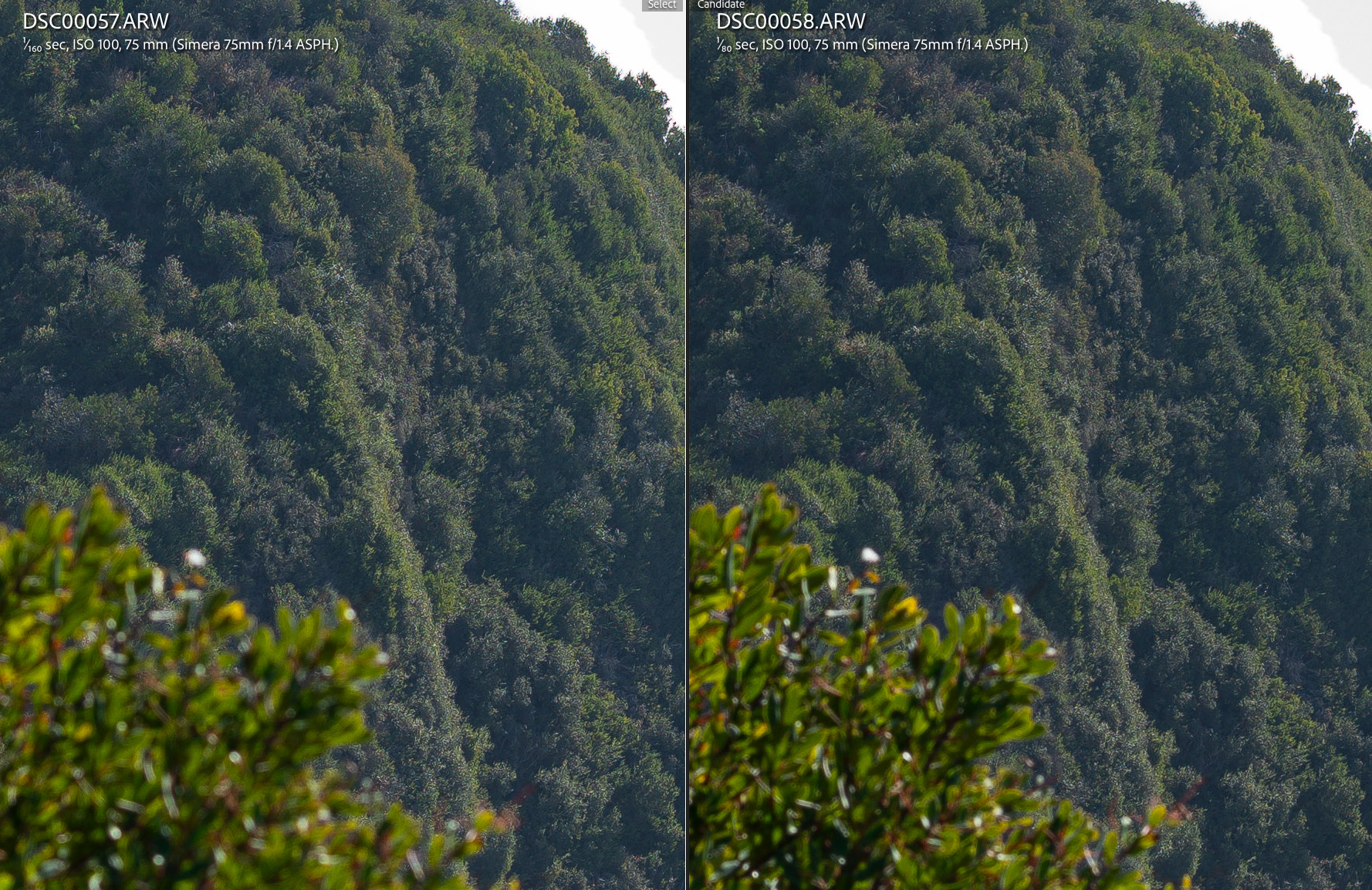

Mid-Zone Resolution and Contrast

Resolution and Contrast at Infinity distance: Simera 75mm f/1.4 ASPH. adapted to a 42MP Sony sensor
(open the browser window to view entire image without resizing)

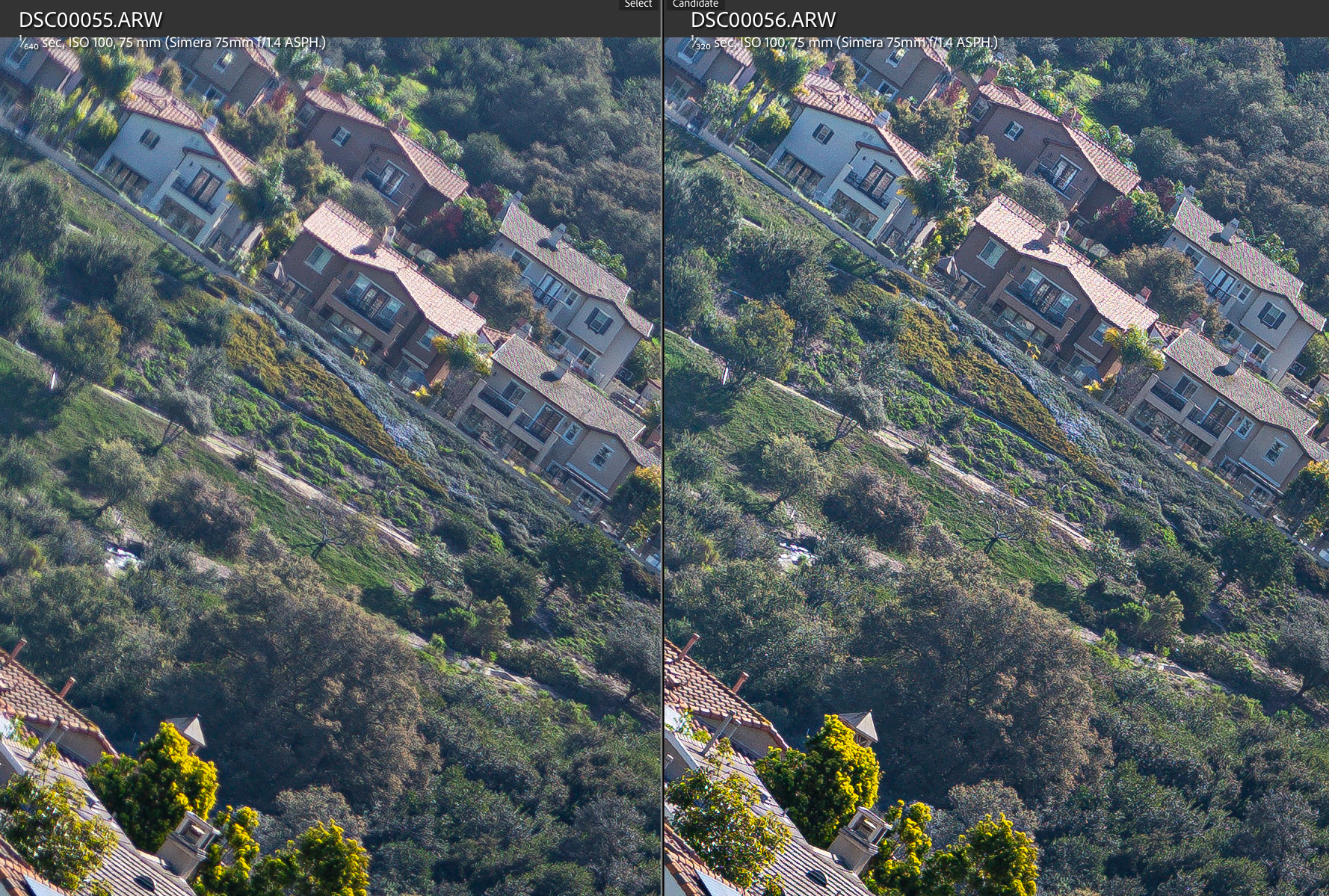

f/1.4 (LEFT) - f/2 (RIGHT)







F/2 (LEFT) | f/2.8 (RIGHT)







F/2.8 (LEFT) | f/4 (RIGHT)







f/4 (LEFT) - f/5.6 (RIGHT)







f/5.6 (LEFT) - f/8 (RIGHT)




Mar 18, 2025 at 01:27 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #3 · Thypoch Simera 75mm f/1.4 ASPH. Review

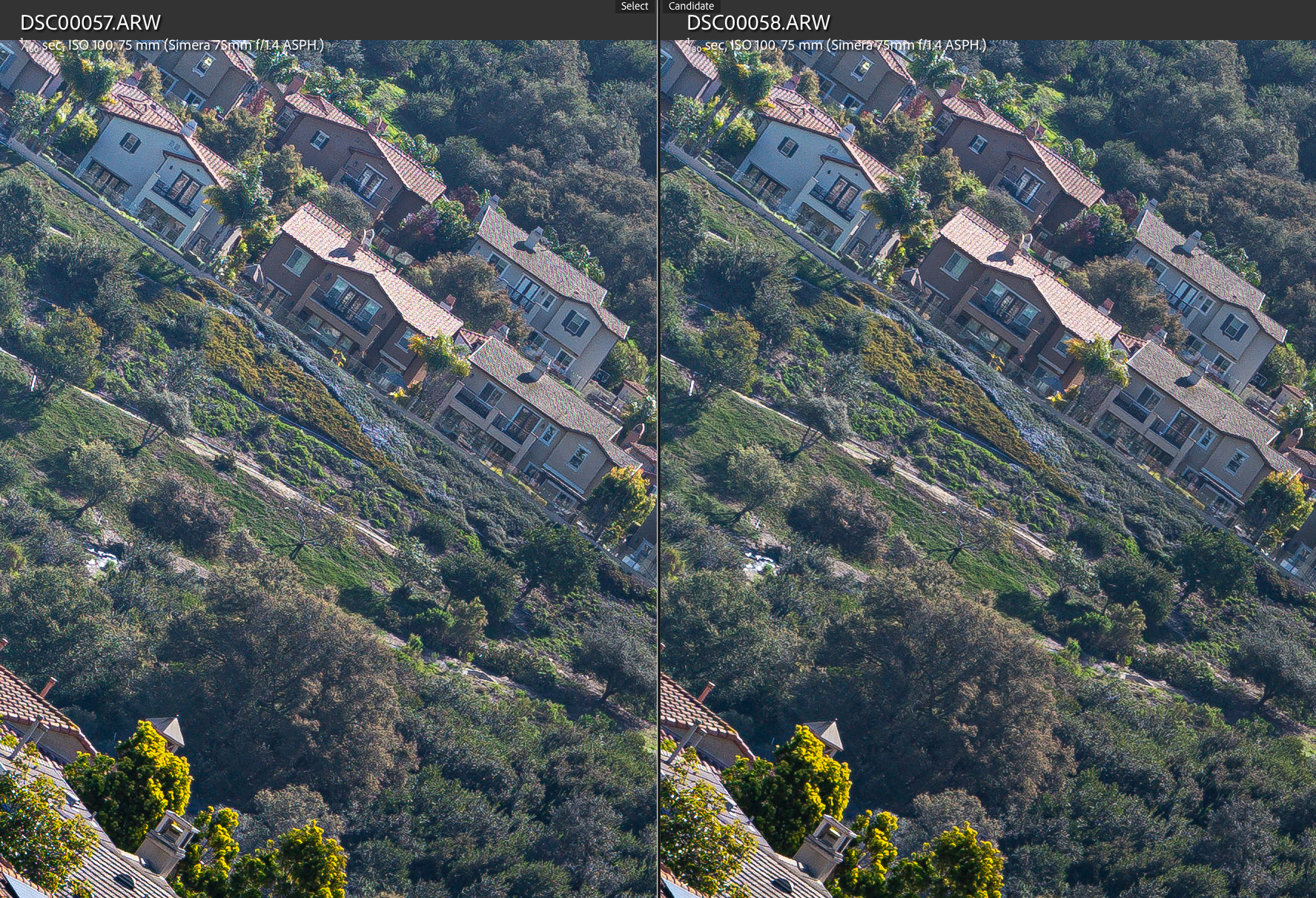

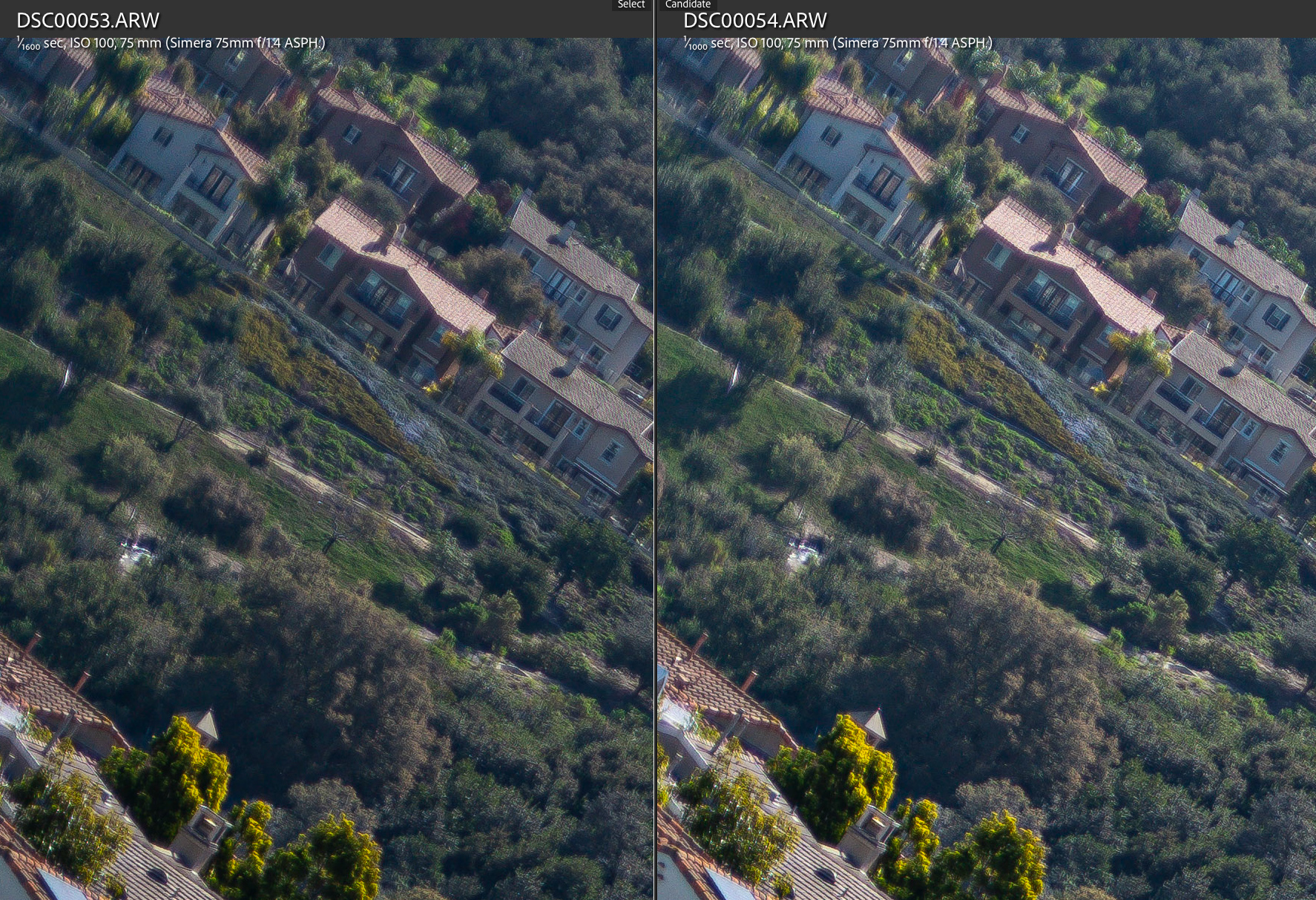

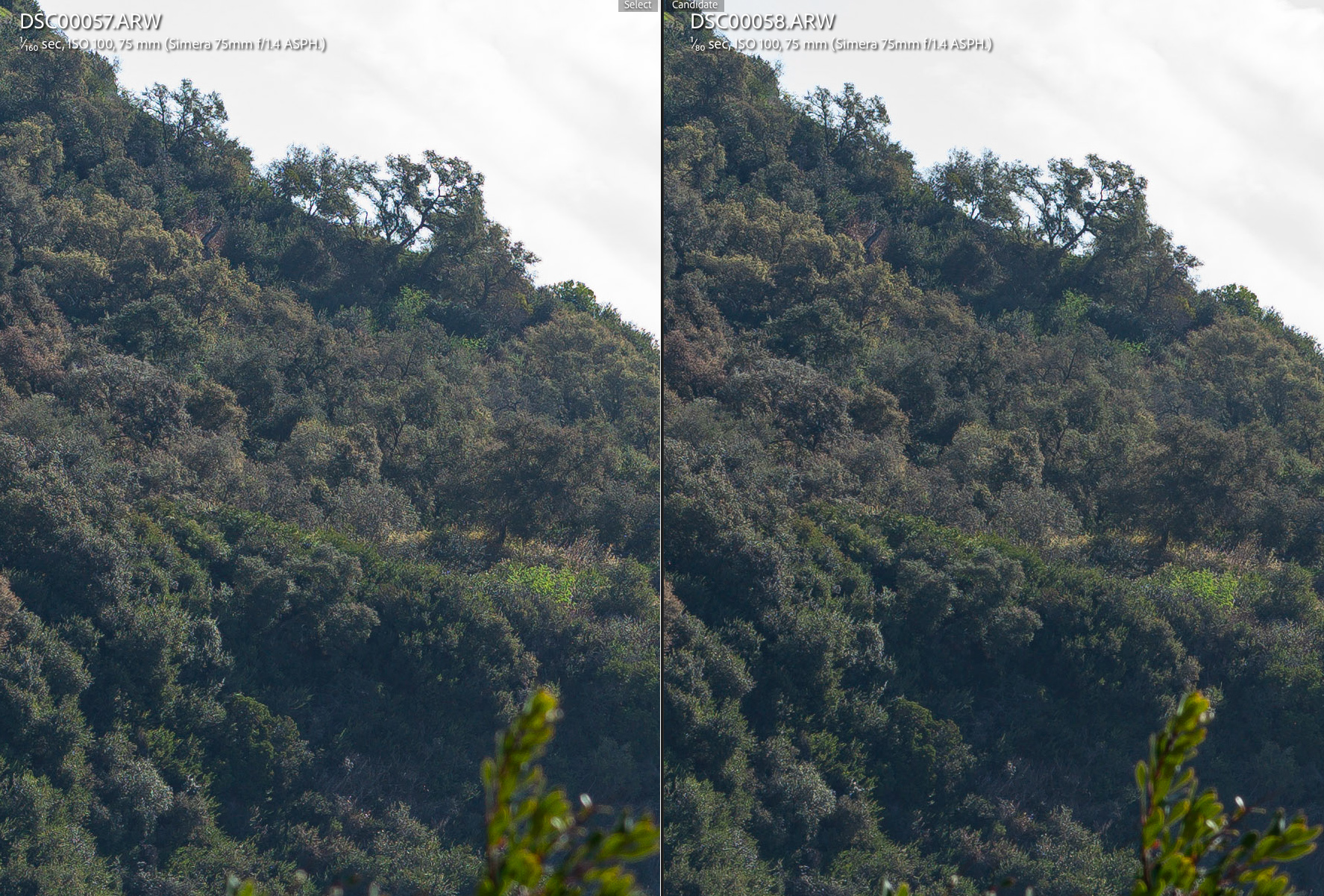

Extreme Corner Resolution and Contrast

Resolution and Contrast at Infinity distance: Simera 75mm f/1.4 ASPH. adapted to a 42MP Sony sensor
(open the browser window to view entire image without resizing)

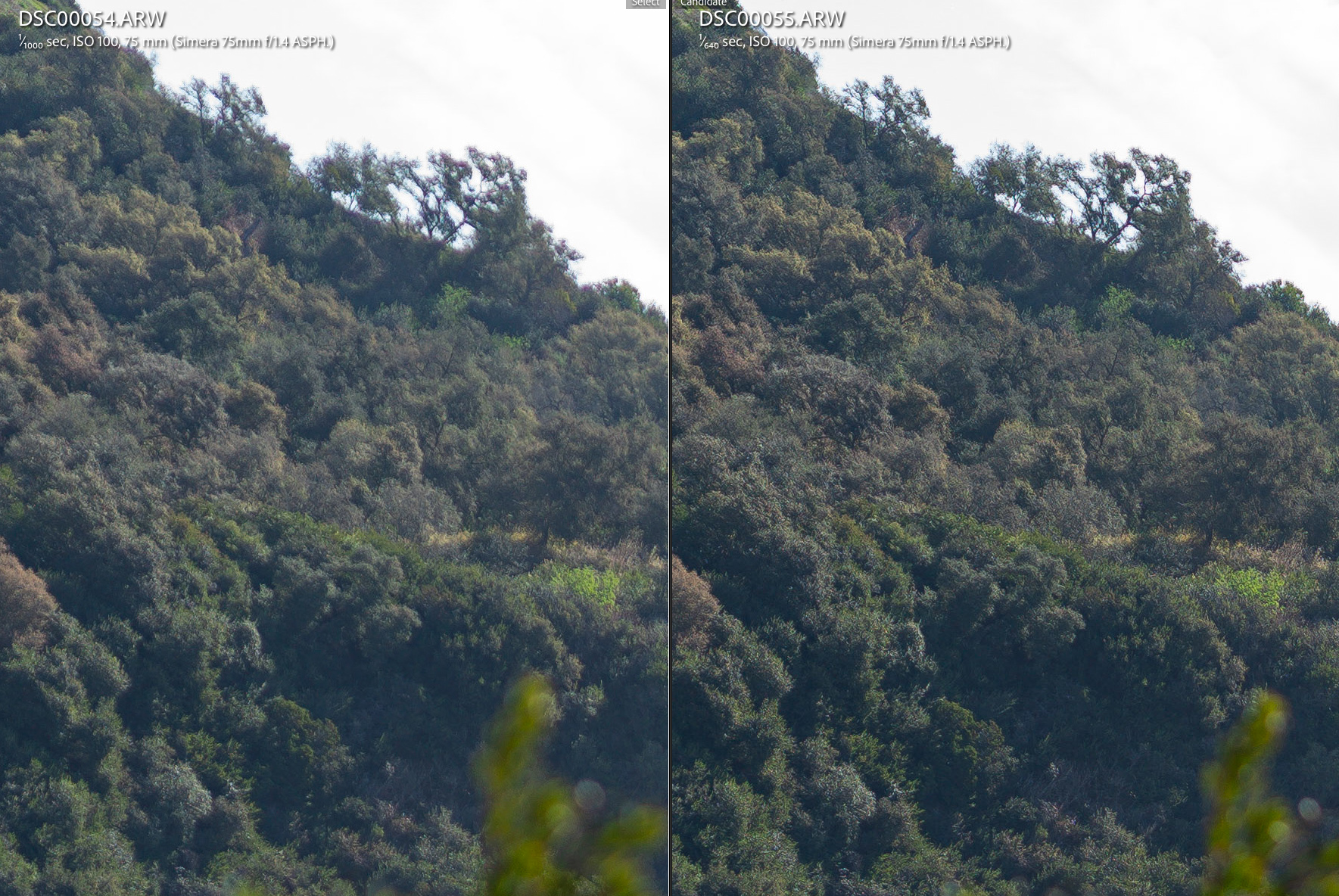

f/1.4 (LEFT) - f/2 (RIGHT)







F/2 (LEFT) | f/2.8 (RIGHT)







F/2.8 (LEFT) | f/4 (RIGHT)







f/4 (LEFT) - f/5.6 (RIGHT)







f/5.6 (LEFT) - f/8 (RIGHT)




Mar 18, 2025 at 01:28 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #4 · Thypoch Simera 75mm f/1.4 ASPH. Review


The Simera 75mm f/1.4 ASPH. started off alone but found some new friends today.

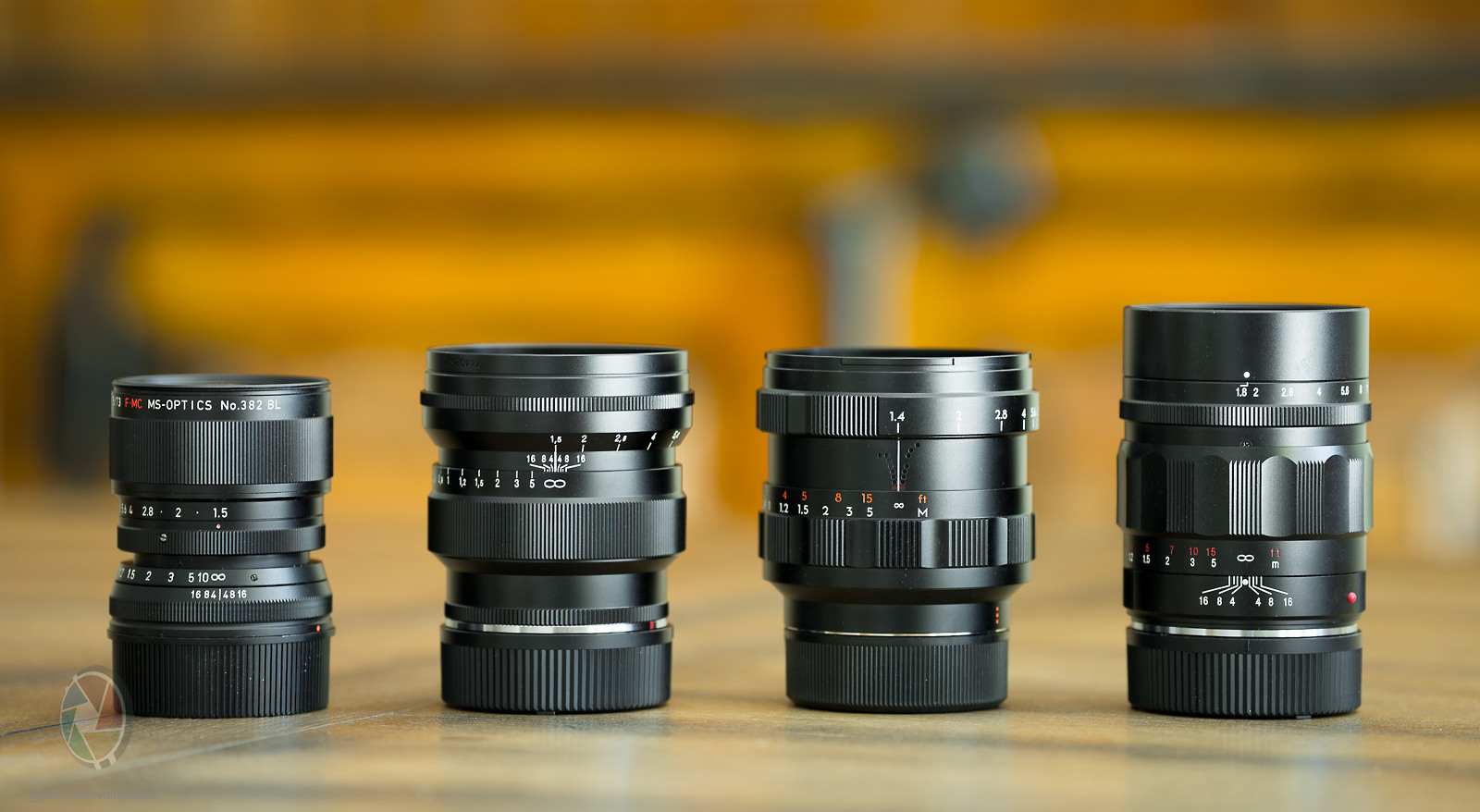

From Left to Right:

MS Optics 73/1.5 Sonnetar, Voigtlander 75mm f/1.5 Nokton, Simera 75mm f/1.4 ASPH. and Voigtlander 75mm f/1.8 Heliar.







Mar 18, 2025 at 02:51 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #5 · Thypoch Simera 75mm f/1.4 ASPH. Review



Back to Quick Links

Minimal Focus Distance: Resolution and Contrast

The Simera 75mm f/1.4 ASPH. is a highly versatile lens, capable of focusing as close as 0.6m when using Live View. Unlike its counterpart, the Simera 50mm f/1.4 ASPH., which maintains a stationary barrel while focusing from infinity to 0.45m through internal element movement, the Simera 75mm f/1.4 ASPH. extends as it moves through its focus range.

Due to its floating mechanism, the lens maintains excellent image quality and aberration control at both its 0.6m minimum focusing distance with Live View and the 0.7m closest focusing distance when used with the Leica M rangefinder.

I tested the lens at 0.6m and 0.7m using apertures f/1.4, f/2, f/2.8, and f/4. From f/1.4 to f/2, there is only a slight improvement in contrast, with little change in resolution due to a subtle shift in focus. This also affects f/2.8 and f/4, where noticeable sharpness improvements are only evident after refocusing. The issue is present at both tested distances, but once refocused at f/2.8 and f/4, both resolution and contrast improve significantly, confirming the lens’s strong optical performance, though refocusing is necessary to achieve optimal sharpness.

To illustrate this, I have posted a side-by-side comparison showing the lens at f/2.8. One image was focused at f/1.4 before stopping down, and another was directly focused at f/2.8. The latter demonstrates higher resolution and contrast, confirming the focus shift.

Overall, the Simera 75mm f/1.4 ASPH. delivers exceptional close-focus performance, rendering sharp, detailed images. The following sequence demonstrates its performance from f/1.4 to f/4, with the lens initially focused at f/1.4 before stopping down to f/2, f/2.8, and f/4 without refocusing.

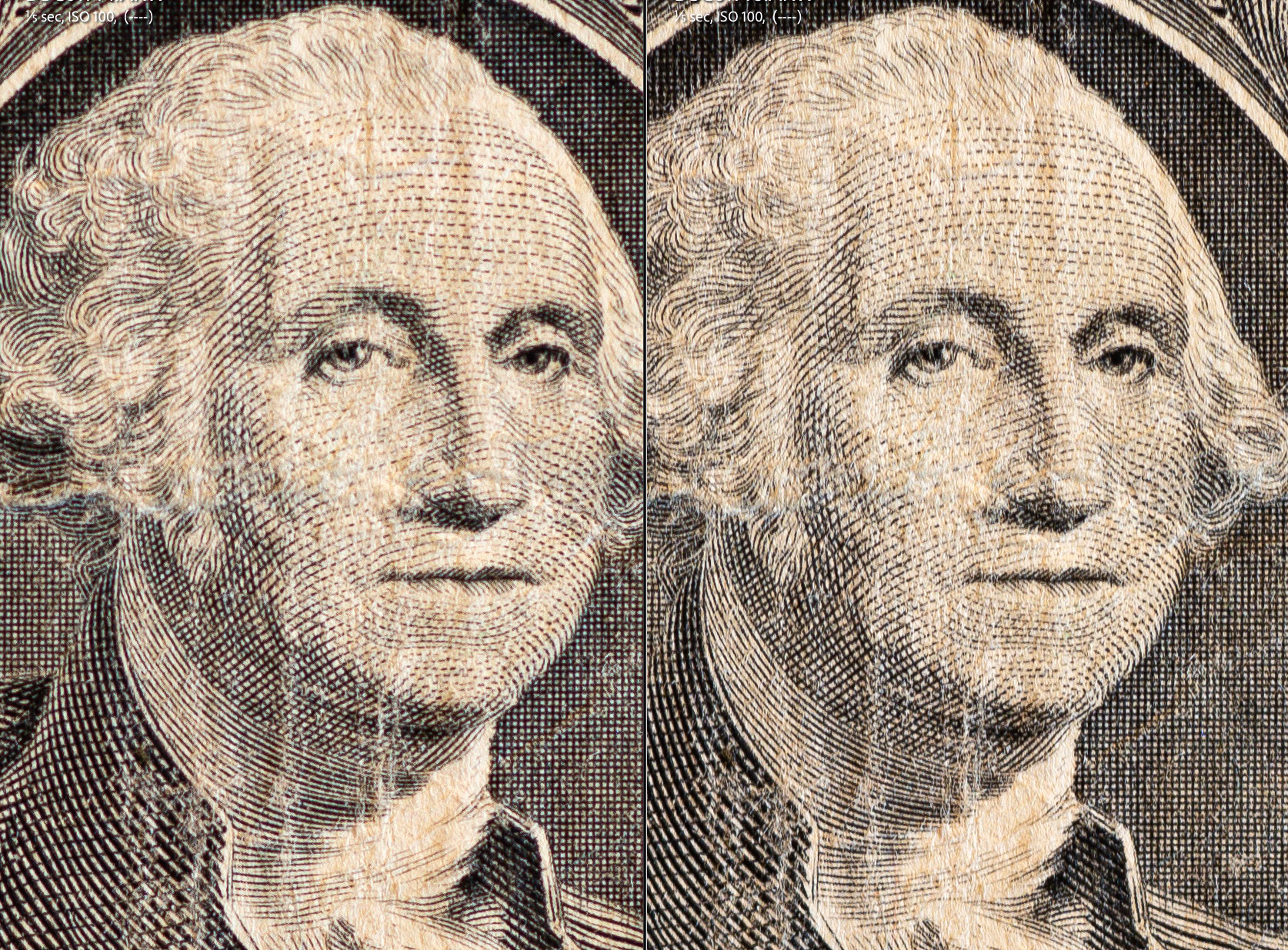

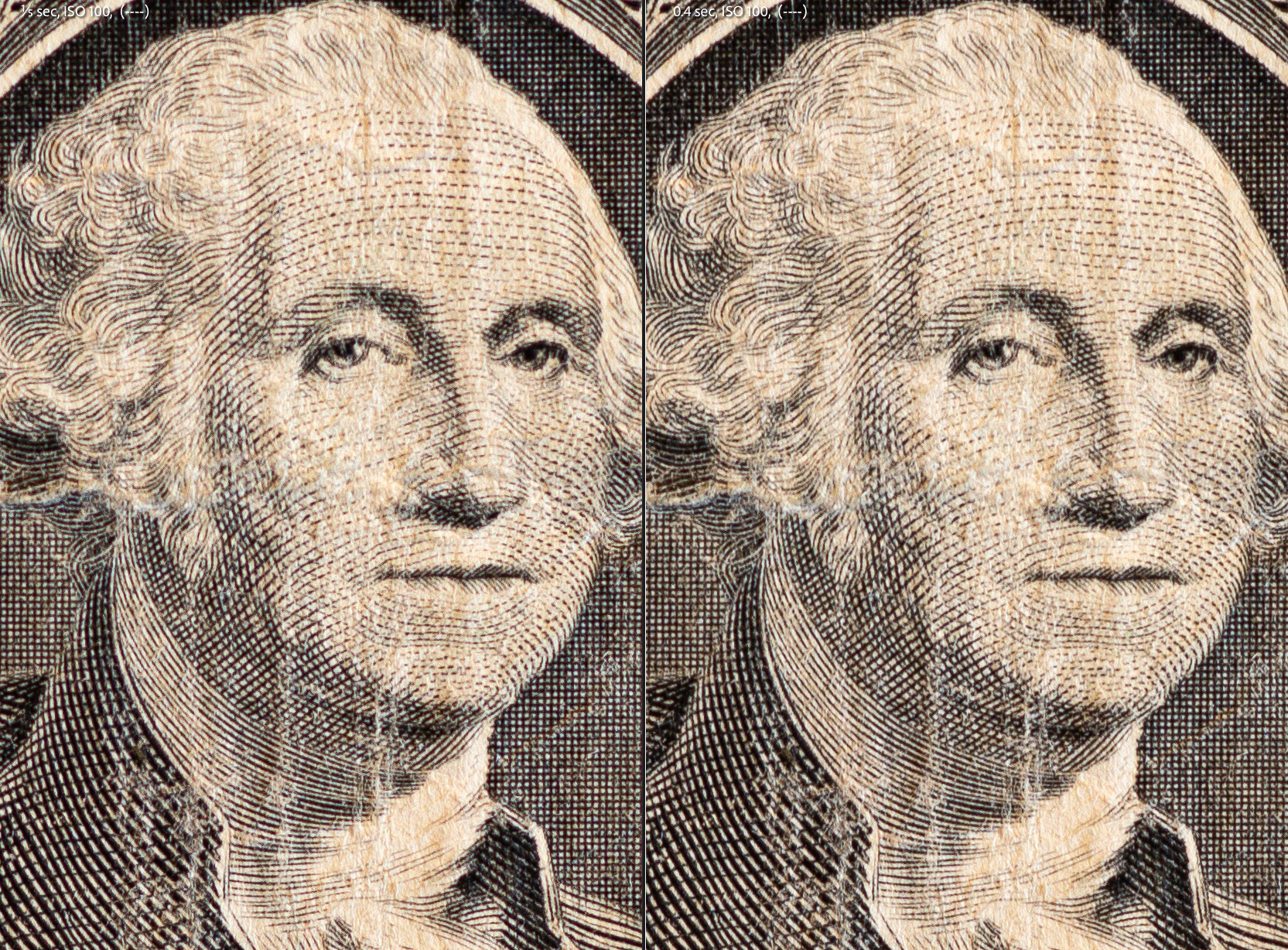

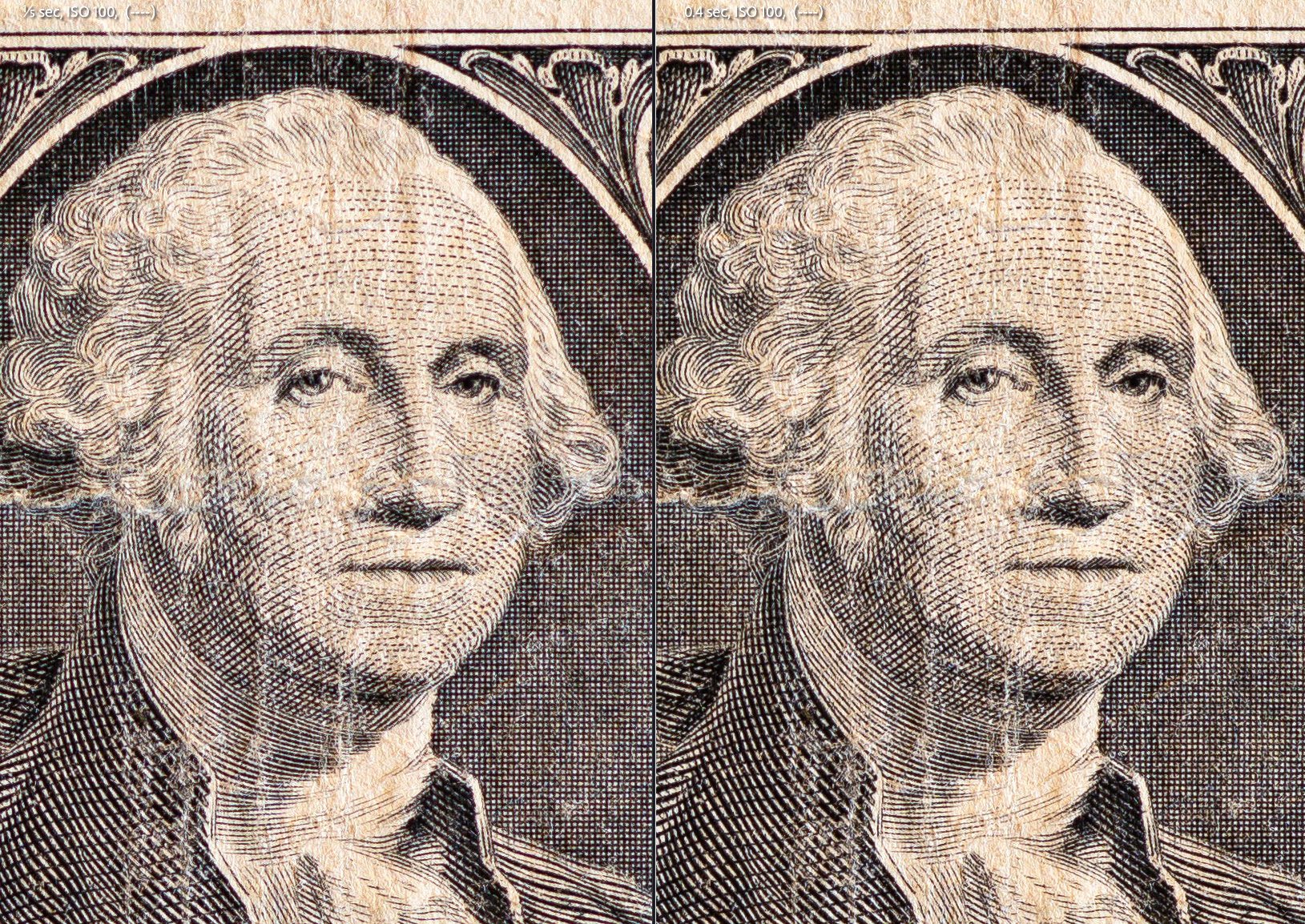

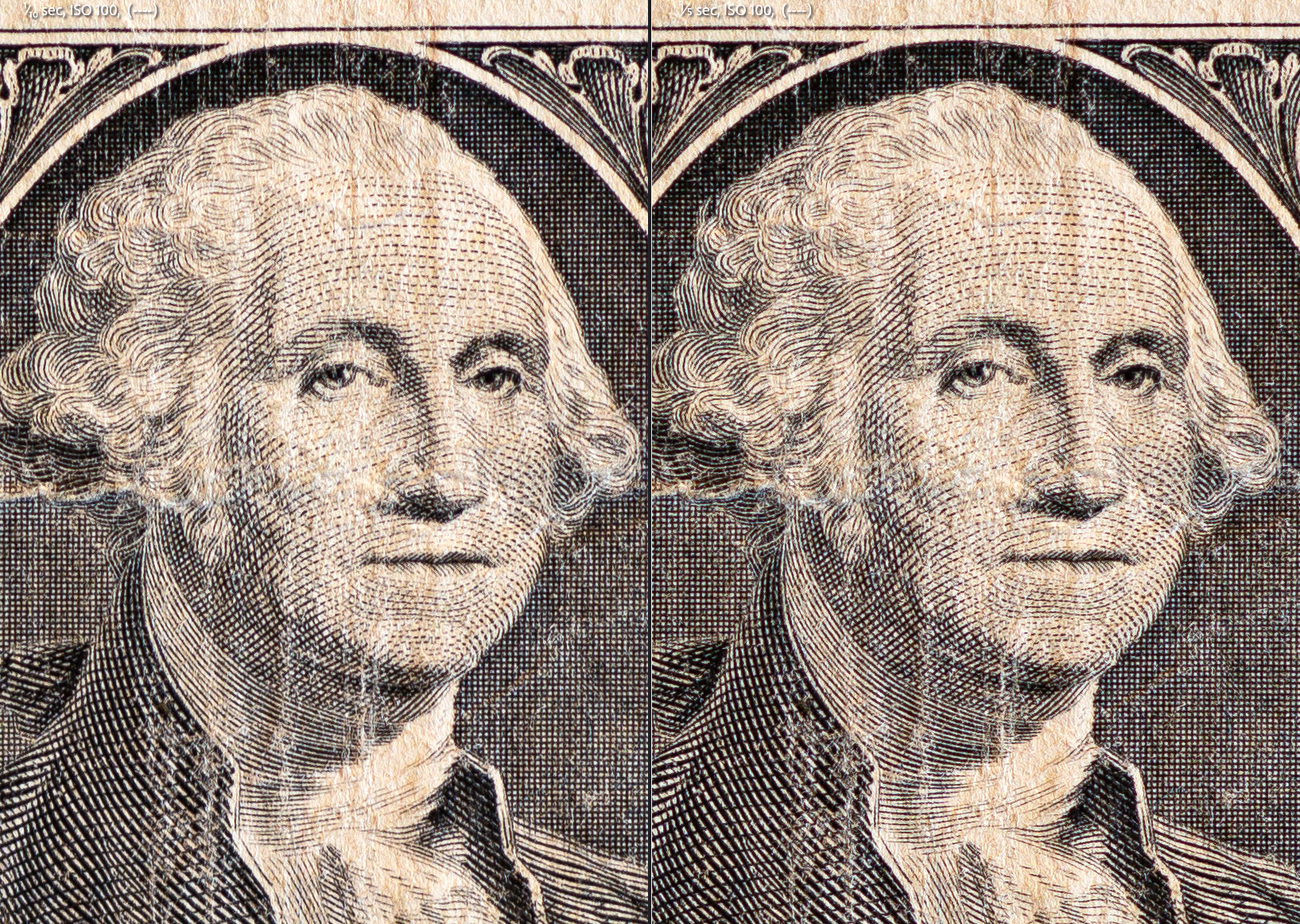

At 0.7m MFD using LiveView

***Expand the browser window to view the full image without any resizing.




LEFT (f/1.4) | RIGHT (f/2)






LEFT (f/2) | RIGHT (f/2.8)






LEFT (f/2.8) | RIGHT (f/4)






LEFT (f/2.8 focused at f/1.4) | RIGHT (f/2.8 focused at f/2.8) ***These crops demontrate the slighly focus shift




Mar 18, 2025 at 06:05 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #6 · Thypoch Simera 75mm f/1.4 ASPH. Review

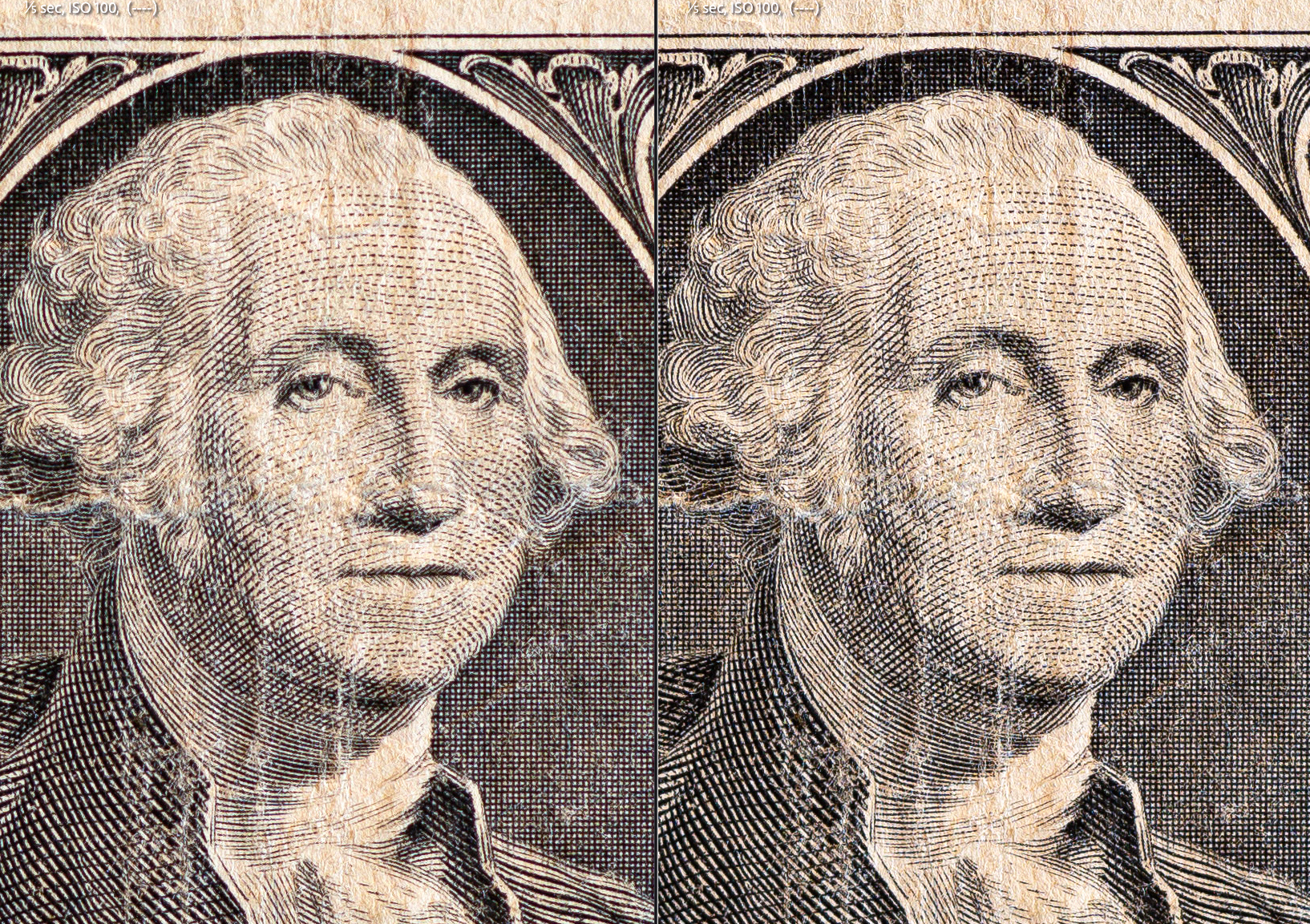

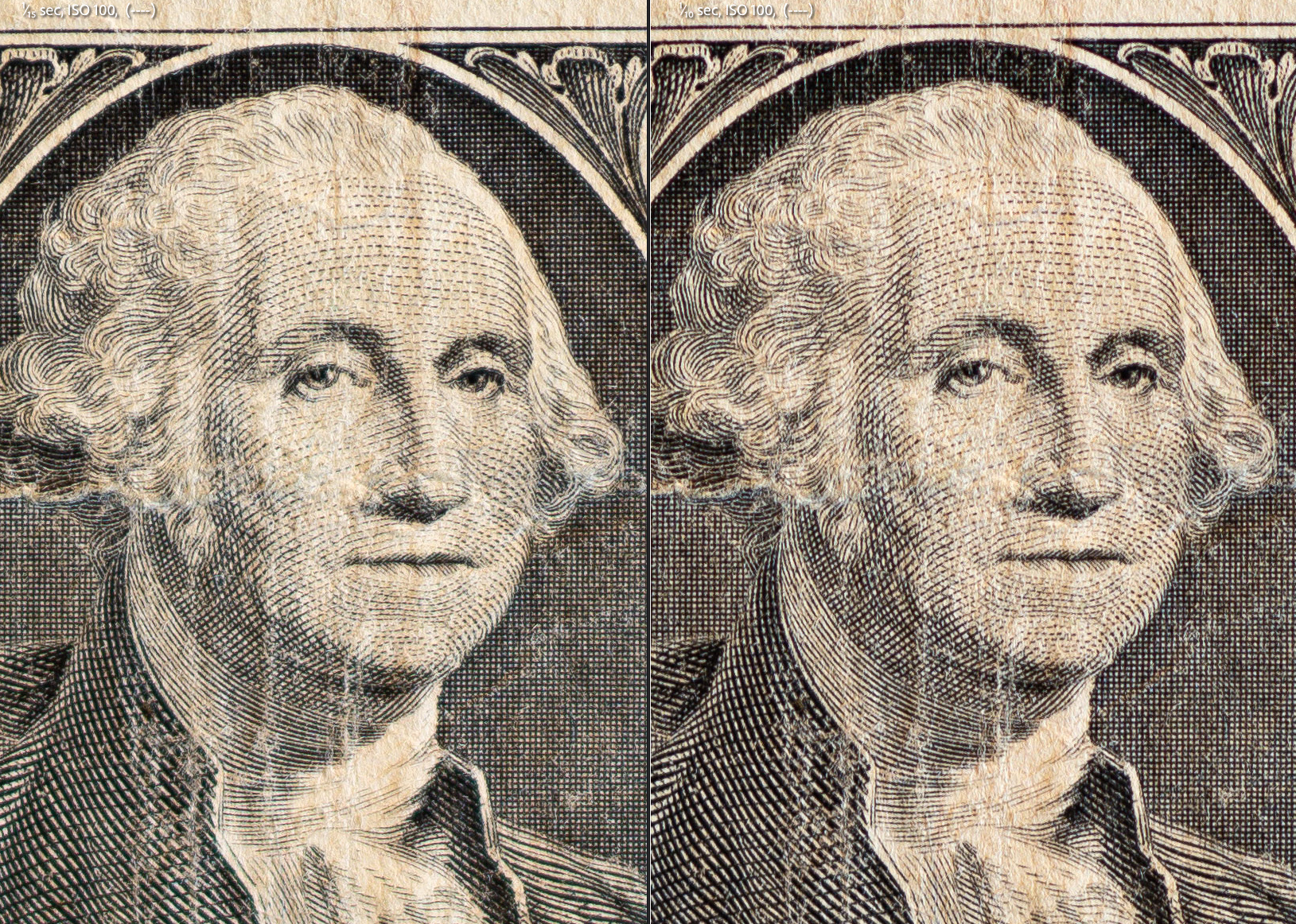

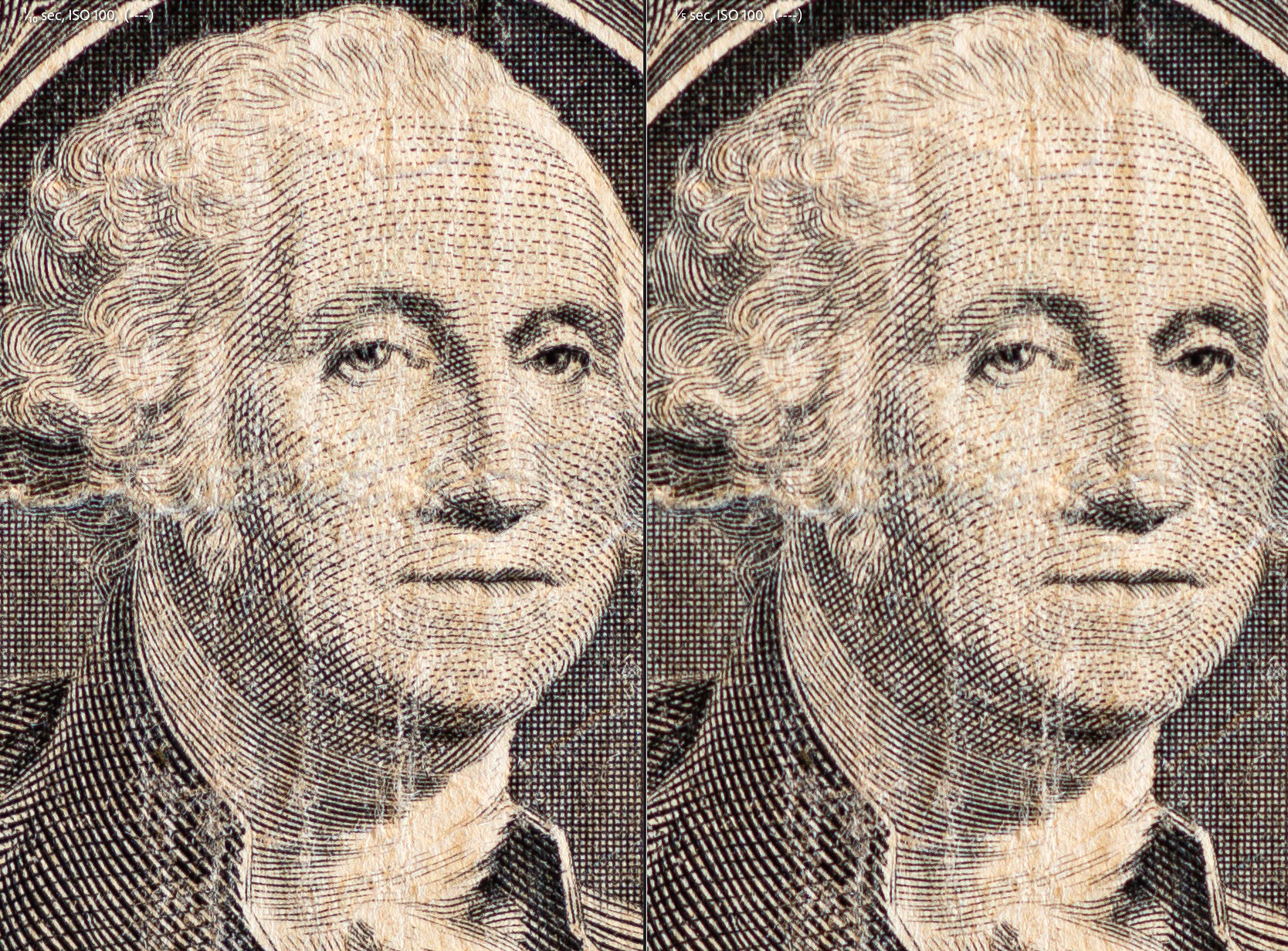

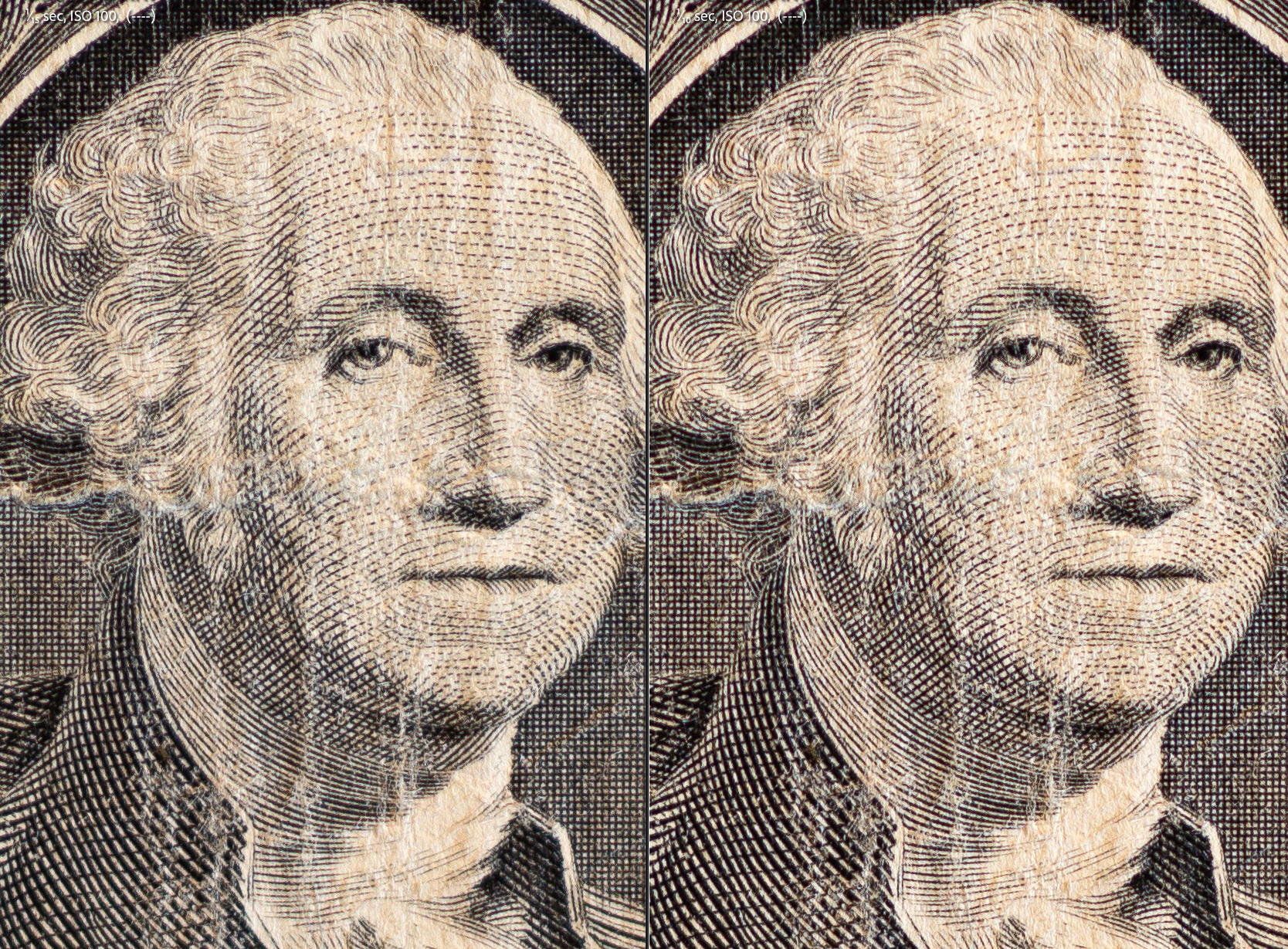

At 0.6m MFD using LiveView

***Expand the browser window to view the full image without any resizing.




LEFT (f/1.4) | RIGHT (f/2)






LEFT (f/2) | RIGHT (f/2.8)






LEFT (f/2.8) | RIGHT (F/4)






LEFT (f/2.8 focused at f/1.4) | RIGHT (f/2.8 focused at f/2.8) ***These crops demontrate the slighly focus shift




Mar 18, 2025 at 06:09 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #7 · Thypoch Simera 75mm f/1.4 ASPH. Review


@nehemiahphoto,
I've been comparing the Simera 75mm f/1.4 ASPH. and the Voigtlander 75mm f/1.5 Nokton side by side today, and I know you're curious about how the Simera renders. Since you've used the Voigtlander before, I can tell you that the rendering characteristics are very similar. The out-of-focus structure is nearly identical, with the same level of bokeh outlining, optical vignetting, and coma. The main differences are that the Voigtlander offers slightly higher contrast and better veiling flare control. Depending on the subject, this could be a positive or a negative. I will post some rendering comparisons, but honestly, it's hard to tell them apart when the subject is in focus at any distance.

Their color temperature and tint are also very similar!

They are almost the same size, and while it's hard to notice a difference, the Simera is 39 grams heavier, likely due to its f/1.4 aperture compared to the f/1.5 of the Voigtlander.



Mar 18, 2025 at 07:46 PM
nehemiahphoto
Offline
• • • • •
Upload & Sell: On
p.2 #8 · Thypoch Simera 75mm f/1.4 ASPH. Review


@Steve Spencer

As usual, good thoughts Steve. We aren't going to quite agree but that is no issue. From owning the 50 and 35, they didn't feel very similar to me. The 50 felt higher contrast and much better resolution and resolution distrubution, with better close up performance, and appreciably better axial CA control and pretty smooth bokeh. I think the first things we notice in lenses tends to be contrast, resolution and bokeh. So in the aspects that largely give the lens it's feel, I think the 50 and 35 different.

If properties are egregious, like a ton of LoCal or pronounced field curvature, then that gets noticed (CV 50/1). I have only played with some RAW files on the 28. It felt smoother and higher contrast than the 35 and significantly better resolution-wise. Essentially a lot closer to the 50. I'll try one at some point--I'd still like to know if the e-mount version is actually optimized for e-mount before I buy. Tired of having to buy and test these. I am also not to happy about Bastian's report the 28/1.4 has all sorts of flare--the 35, 50 and 75 all seem to do better in this regard. Tons of flare in wides is really annoying often.

But focus transitions do seem pretty smooth across lenses--I hadn't considered that as a common trait.

Similar coma, low and optically corrected distortion are similar. But then again, those are very secondary characteristics (don't really distract from a photo except in specific use cases like astro/point light sources at night or architecture). I can't remember many reasonably sized 35 and 50 1.4 options for RF's that really have a lot of distortion (not the CV 35/2, 35/1.7, ZM 35/1.4 or CV 35/1.2 or CV 35/1.5 or FLE). That seems to more for AF lenses trying to downsize generally--like a FE 28 or Q28 Lux.

Anyway, I understand the attraction of the lenses for many--viable alternatives to CV and Leica's sky-high prices. I think by Thypoch essentially copying proven winners with the 35, 50 and 75 lenses, they know they have a product that is proven. And they can market these as a real Leica alternatives with some features that people are going to prefer--rounded aperture blades, reasonable prices and lower contrast (though I think leaning into lower contrasts and calling it cinema is actually probably cause they can't/or it's quite a bit harder to make these lenses with high-microcontrast WO) that's a lower risk and high reward proposition.

I don't like modern draws as much as many--meaning I won't pony up for Leica's used prices on the FLE and 50 Lux. So, these Simeras are attractive to me too. But really, how we define "similar" and "feels" and what not is very idiosyncratic. and given they were all from the same manufacture at the same time, the colors and contrast are going to make the lenses feel very similar in that way compared to other lenses.

Edited on Mar 19, 2025 at 12:21 AM · View previous versions



Mar 18, 2025 at 09:52 PM
nehemiahphoto
Offline
• • • • •
Upload & Sell: On
p.2 #9 · Thypoch Simera 75mm f/1.4 ASPH. Review


Fred Miranda wrote:
@nehemiahphoto@,
I've been comparing the Simera 75mm f/1.4 ASPH. and the Voigtlander 75mm f/1.5 Nokton side by side today, and I know you're curious about how the Simera renders. Since you've used the Voigtlander before, I can tell you that the rendering characteristics are very similar. The out-of-focus structure is nearly identical, with the same level of bokeh outlining, optical vignetting, and coma. The main differences are that the Voigtlander offers slightly higher contrast and better veiling flare control. Depending on the subject, this could be a positive or a negative. I will post some rendering comparisons, but honestly, it's
...Show more

Thanks much Fred!

This is really interesting and very helpful for my understanding. Not exactly what I would’ve preferred, but Thypoch has released a very solid lens that many shooters will like. For those interested, this might be helpful in understanding how closely the 75 Lux renders to the Thypoch 75 given how similar it is to the CV 75/1.5.

https://www.fredmiranda.com/forum/topic/1738253/0



Mar 18, 2025 at 10:07 PM
Nick YR
Offline

Upload & Sell: Off
p.2 #10 · Thypoch Simera 75mm f/1.4 ASPH. Review


I wish 75/1.5 nokton barrel design was similar to the 75/1.8 heliar or the 75/1.5 Z mount with knurled focus ring. The barrel design choices across VM lines always baffled me


Mar 18, 2025 at 10:57 PM



Search in Used Dept.

Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #11 · Thypoch Simera 75mm f/1.4 ASPH. Review


I had to postpone the resolution and contrast infinity test against the Voigtlander 75mm f/1.5 Nokton because the copy I'm testing didn't pass my centering test. I'll be getting another copy soon and will post the results.


Mar 19, 2025 at 08:15 PM
rsolti13
Offline
• • • •
Upload & Sell: On
p.2 #12 · Thypoch Simera 75mm f/1.4 ASPH. Review


Nick YR wrote:
I wish 75/1.5 nokton barrel design was similar to the 75/1.8 heliar or the 75/1.5 Z mount with knurled focus ring. The barrel design choices across VM lines always baffled me


I agree, that plus the tiny aperture ring really turned me off with that lens. Was difficult to use



Mar 20, 2025 at 05:22 AM
rsolti13
Offline
• • • •
Upload & Sell: On
p.2 #13 · Thypoch Simera 75mm f/1.4 ASPH. Review


Fred Miranda wrote:
I had to postpone the resolution and contrast infinity test against the Voigtlander 75mm f/1.5 Nokton because the copy I'm testing didn't pass my centering test. I'll be getting another copy soon and will post the results.


How is the focus throw between the Nokton and Simera? A fast lens at 75mm I want it to be on the longer end



Mar 20, 2025 at 05:23 AM
Steve Spencer
Offline
• • • • • • •
Upload & Sell: On
p.2 #14 · Thypoch Simera 75mm f/1.4 ASPH. Review


nehemiahphoto wrote:
@Steve Spencer@

As usual, good thoughts Steve. We aren't going to quite agree but that is no issue. From owning the 50 and 35, they didn't feel very similar to me. The 50 felt higher contrast and much better resolution and resolution distrubution, with better close up performance, and appreciably better axial CA control and pretty smooth bokeh. I think the first things we notice in lenses tends to be contrast, resolution and bokeh. So in the aspects that largely give the lens it's feel, I think the 50 and 35 different.

If properties are egregious, like a ton of LoCal
...Show more

I think we like some of the same things but also have our different preferences. Personally, for portraits I like moderately high contrast and micro contrast from lenses wide open. I could even define moderately as about 60% contrast at 40 lp/mm when measured (not theoretical) with MTF. Lenses I like with this sort of moderately high contrast include the Zeiss ZM 35 f/1.4, Zeiss 135 f/2 APO, Zeiss Otus 28 f/1.4, Zeiss Otus 55 f/1.4, Sony 24 f/1.4 GM, the Sony 85 f/1.4 GM (version 1), the Leica M 50 f/1.4 Asph, and I think the CV 75 f/1.5 fits here as well. These are all sharp lenses and I like sharpness.

That said for portraits I find some lenses have too much microcontrast and I see that when at 40 lp/mm the contrast approaches 80%. Lens that fit this category include all the CV f/2 APO lenses, the Sony 135 f/1.8 GM, the Sony 35 f/1.4 GM, the new Sony 85 f/1.4 GM (II), and the Zeiss Loxia 85 f/2.4. I haven't used them, but I suspect the Zeiss Otus 100 f/1.4 and the Leica L cron APO lenses would be too sharp for my portrait tastes as well.

Don't get me wrong, however, for other types of shooting (landscapes, architecture, many nature shots) I really like the super sharp lenses. I think the CV APO lenses are fantastic and I look forward to the new 28 f/2 APO Lanthar.

And in contrast, I also for a different look sometimes like some portraits with lower microcontrast with something around 40% or even 30% contrast at 40 lp/mm. Lenses that fit this bill include the Leica R 80 f/1.4, the Minolta Rockor 58 f/1.2, the ZE 35 f/1.4. Particularly when the magnification is lower or shots are downsized (especially from a bigger sensor), then I can really like these sorts of portraits too. Part of what I like about the CV f/1.2 Noktons is that you get this sort of look at f/1.2, but a nice higher contrast look to f/2 or f/2.8.

Where does this leave us in thinking about the Thypoch 75 f/1.4. I think it will be a nice portrait lens, or at least it looks like that so far. Wide open it looks like it will be a lower contrast type of look and stopped down to f/2.8 a higher contrast type of look. Compared to the CV 75, it will have 3 notable advantages: 1) it has a nice rounded 16 blade aperture; 2) it has a FLE and will probably have better close focus performance because of it; 3) from Fred's test it seems to have a flatter field of focus. That said, for my tastes I prefer the higher contrast look most of the time of the CV and I especially appreciate that stopped down the CV gets quite close to the extremely high contrast look that I like from the CV APO lenses, which would be nice for landscapes and architecture (I don't think the Thypoch will ever get close to that look). So, I think both lenses are interesting and have their pluses and minuses. I am interested to see more how they compare in Fred's tests.

Edited on Mar 20, 2025 at 08:32 AM · View previous versions



Mar 20, 2025 at 07:54 AM
saxguy
Offline
• • •
Upload & Sell: On
p.2 #15 · Thypoch Simera 75mm f/1.4 ASPH. Review


rsolti13 wrote:
How is the focus throw between the Nokton and Simera? A fast lens at 75mm I want it to be on the longer end


It's definitely on the longer end on the Simera but I wouldn't complain if it had a little more. No experience with the Nokton. Very smooth focus ring, though.



Mar 20, 2025 at 08:03 AM
nehemiahphoto
Offline
• • • • •
Upload & Sell: On
p.2 #16 · Thypoch Simera 75mm f/1.4 ASPH. Review


Steve Spencer wrote:
I think we like some of the same things but also have our different preferences. Personally, for portraits I like moderately high contrast and micro contrast from lenses wide open. I could even define moderately as about 60% contrast at 40 lp/mm when measured (not theoretical) with MTF. Lenses I like with this sort of moderately high contrast include the Zeiss ZM 35 f/1.4, Zeiss 135 f/2 APO, Zeiss Otus 28 f/1.4, Zeiss Otus 55 f/1.4, Sony 24 f/1.4 GM, the Sony 85 f/1.4 GM (version 1), the Leica M 50 f/1.4 Asph, and I think the CV 75
...Show more

All that makes sense--we do enjoy a lot of the same glass. You might just enjoy them a little more

I use fairly high contrast lenses quite a bit including the 50 ZA you sold me as well as the GM24 and CV 35/1.7 profiled to shoot like a 35 Lux FLE, etc. I have been on a bit of a renascence with pretty much the exact level of technical IQ you are describing in the 2 last year. The APO's simply do not interest me.

I do find though, for fast portraits primes in the classic sense of mostly head/shoulder shots of 60 - 135mm, I do prefer a softer look. Specifically for people. Either I use old glass, or, with current glass like a GM 85/1.4 I soften thing up, usually in post or with a diffusion filter. For pretty much all other subjects, happy to have the just below APO level tier. I am sure you recall and I won't spam this Simera review thread, but I did enjoy and use both CV 75/1.5 and 1.9, 50 Lux etc. I loved the ZA 135/1.8 when I owned it several times from about 2009-2015.

The 3 Thypoch points would will probably be enough for many shooters to buy and distinguish from the CV 75/1.5. For me personally I also would probably go with the CV 75/1.9 over both. It seems that the CV 75/1.5, CV 75/1.9 and Thypoch 75/1.4 are all very finicky to focus. From an ergo perspective, that's quite unattractive to me.

I'll probably try this new Thypoch at some point just out of curiosity.



Mar 20, 2025 at 10:33 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #17 · Thypoch Simera 75mm f/1.4 ASPH. Review


rsolti13 wrote:
How is the focus throw between the Nokton and Simera? A fast lens at 75mm I want it to be on the longer end


Both lenses share the same focus throw from 0.7m to infinity, but the Simera extends it further between 0.6m and 0.7m. The Voigtlander focuses down to 0.7m, though my measurement puts it at 0.67m.



Mar 20, 2025 at 11:53 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #18 · Thypoch Simera 75mm f/1.4 ASPH. Review


I took another set of sunstar shots at sunrise this morning and confirmed that the Simera 75mm f/1.4 ASPH.‘s rounded aperture blades only create defined sunstars at f/8, f/11, and f/16. The best results come at f/11, as shown below. So, if you’re aiming for these 16-point sunstars with this lens, stop it down to f/11 for optimal results.







Mar 20, 2025 at 12:42 PM
RustyRus
Offline
• • • •
Upload & Sell: On
p.2 #19 · Thypoch Simera 75mm f/1.4 ASPH. Review


Fred Miranda wrote:
I took another set of sunstar shots at sunrise this morning and confirmed that the Simera 75mm f/1.4 ASPH.‘s rounded aperture blades only create defined sunstars at f/8, f/11, and f/16. The best results come at f/11, as shown below. So, if you’re aiming for these 16-point sunstars with this lens, stop it down to f/11 for optimal results.


Pretty- Dare I say, cinematic



Mar 20, 2025 at 01:06 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #20 · Thypoch Simera 75mm f/1.4 ASPH. Review



Back to Quick Links

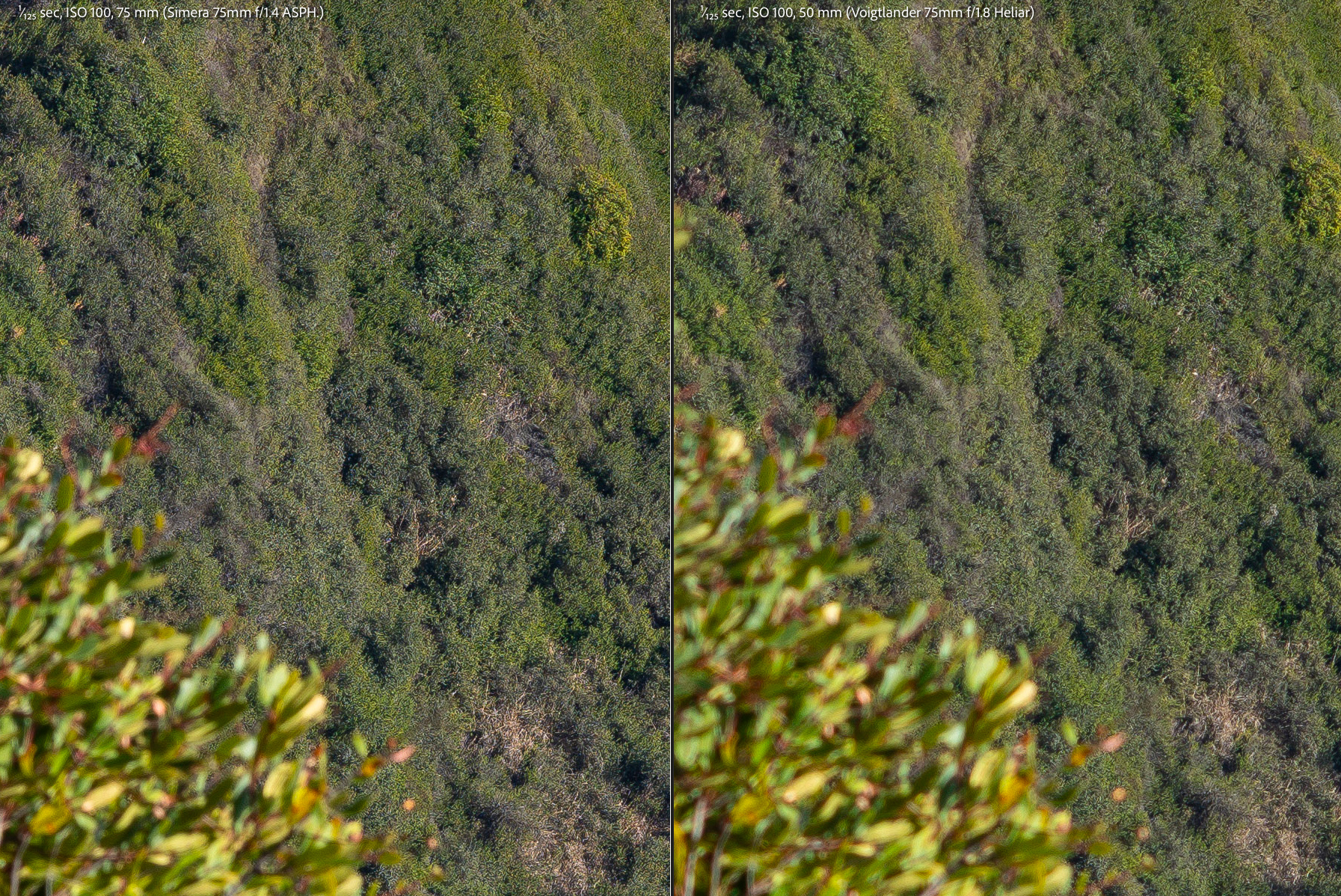

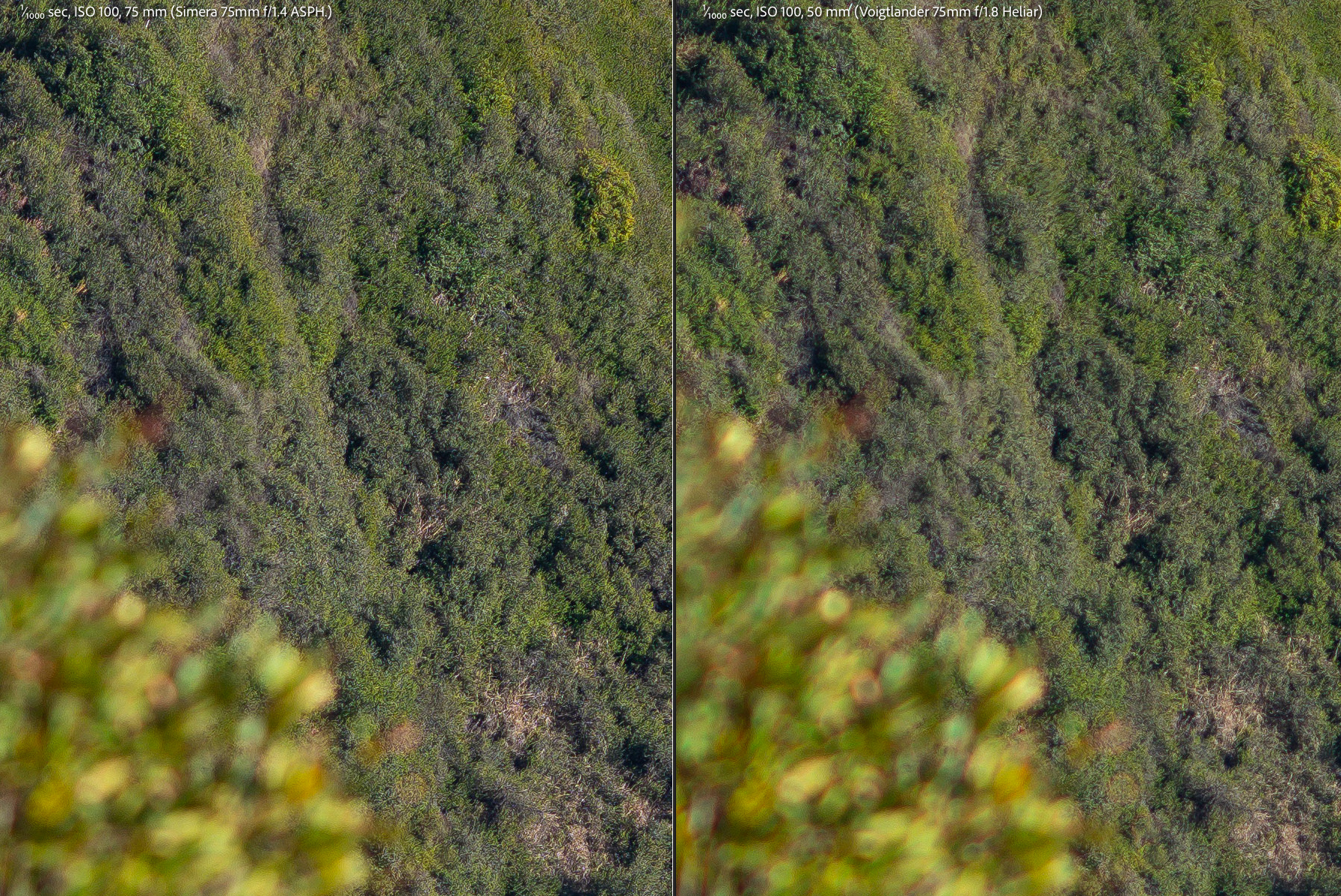

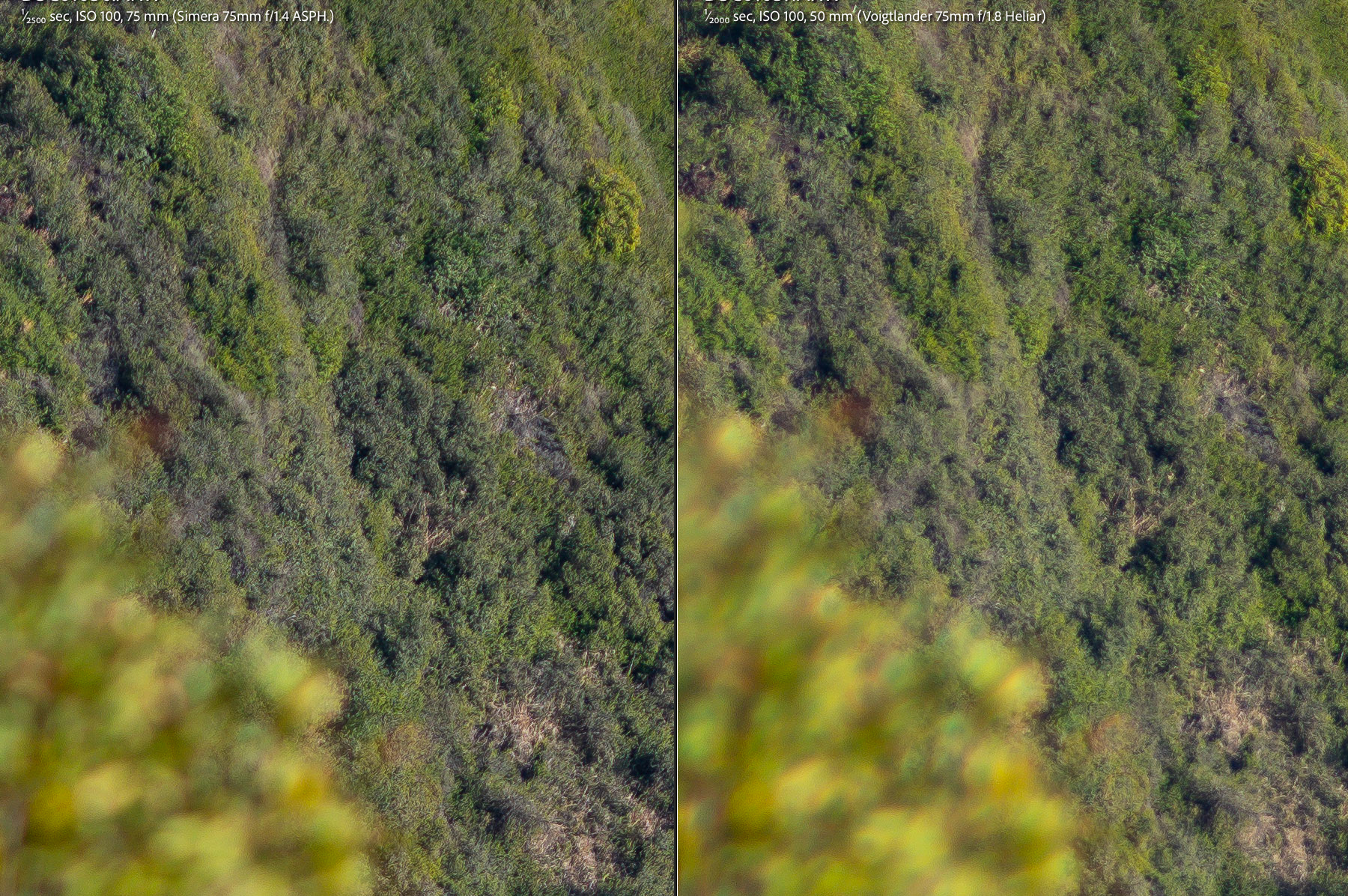

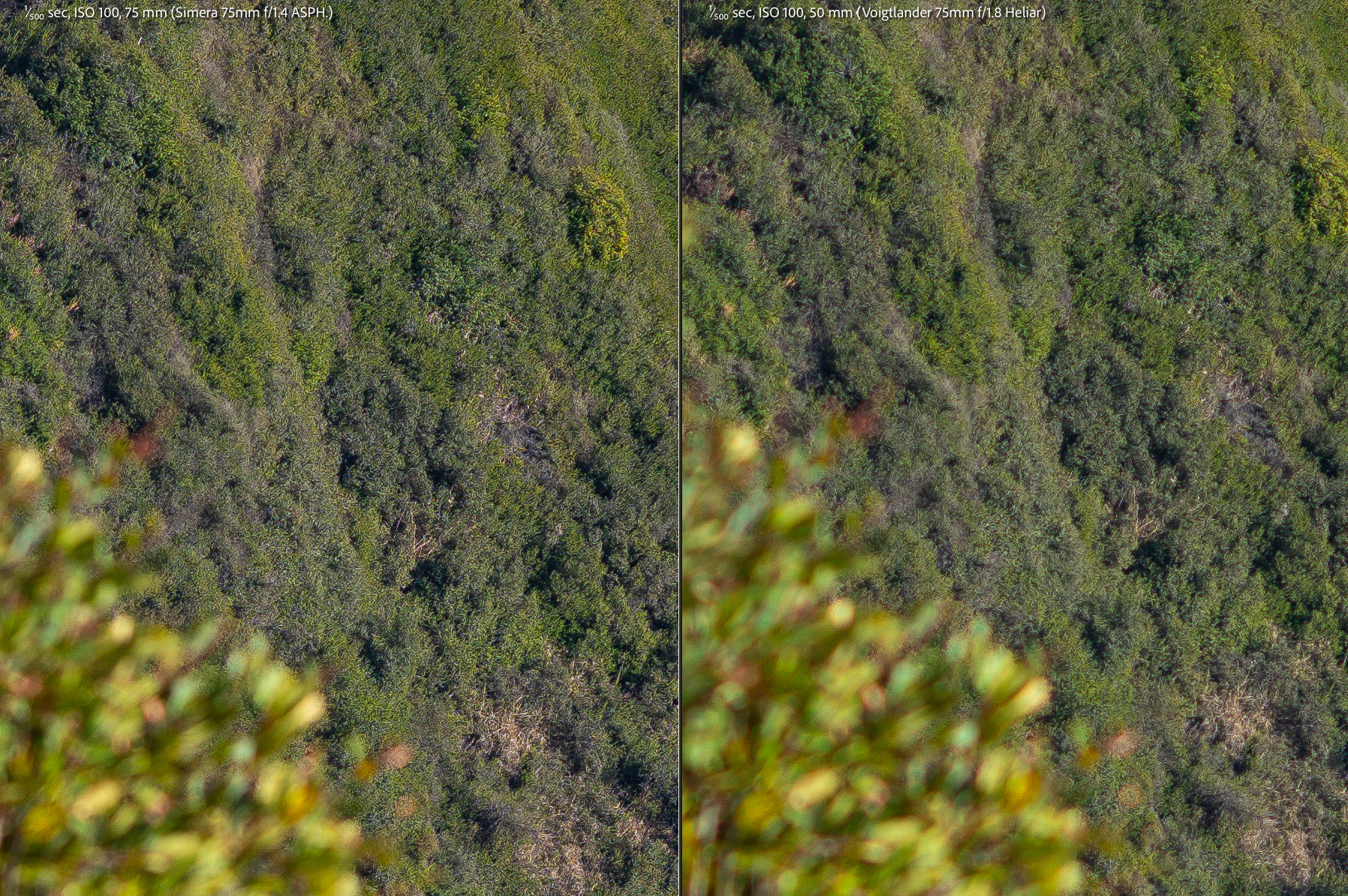

Resolution and Contrast: Simera 75mm f/1.4 ASPH. vs Voigtlander 75mm f/1.8 Heliar Classic

You might be wondering why I'm comparing the new Simera 75mm f/1.4 ASPH. to the Voigtlander 75mm f/1.8 Heliar Classic, especially considering it's a discontinued Cosina lens. One reason is that Cosina recently reintroduced this optical design with a spherical aberration ring control for Sony E-mount. While it's not yet available for purchase, it gives Sony shooters an idea of what to expect if they consider this lens in the future. There's also a possibility that Cosina will release this 75mm f/1.8 Heliar for other mirrorless mounts.

Another reason for the comparison is that the Voigtlander lens is one of my favorite 75mm options for portraits, and I wanted to see how it stacks up against the Simera in terms of resolution and contrast. While it doesn't offer standout performance in these areas, this actually works to its advantage for portrait photography, as lenses that are too sharp can sometimes highlight undesirable skin imperfections.

As the 'Classic' name implies, the lens has a rendering style with more visible outlining, structure, and some coma, which are characteristic of the Heliar design in fast lenses. Despite its classic nature, the lens does perform well in terms of resolution and contrast when stopped down. However, as we'll see in the crops below, even at smaller apertures like f/5.6 and f/8, its performance still doesn't quite reach the level of the Simera 75mm f/1.4.


















  1. Distance: Infinity
  2. Focus: Center - Best of three shots at maximum magnification
  3. White Balance: Daylight
  4. Both lenses are well centered, as verified with my decentering test.
  5. Software used: Lightroom with FM Default Landscape Sharpening; all other settings are at default.

    PS: Vignetting, Chromatic Aberration (CA), and distortion were not corrected either in post-processing or in-camera.



    Center Resolution and Contrast

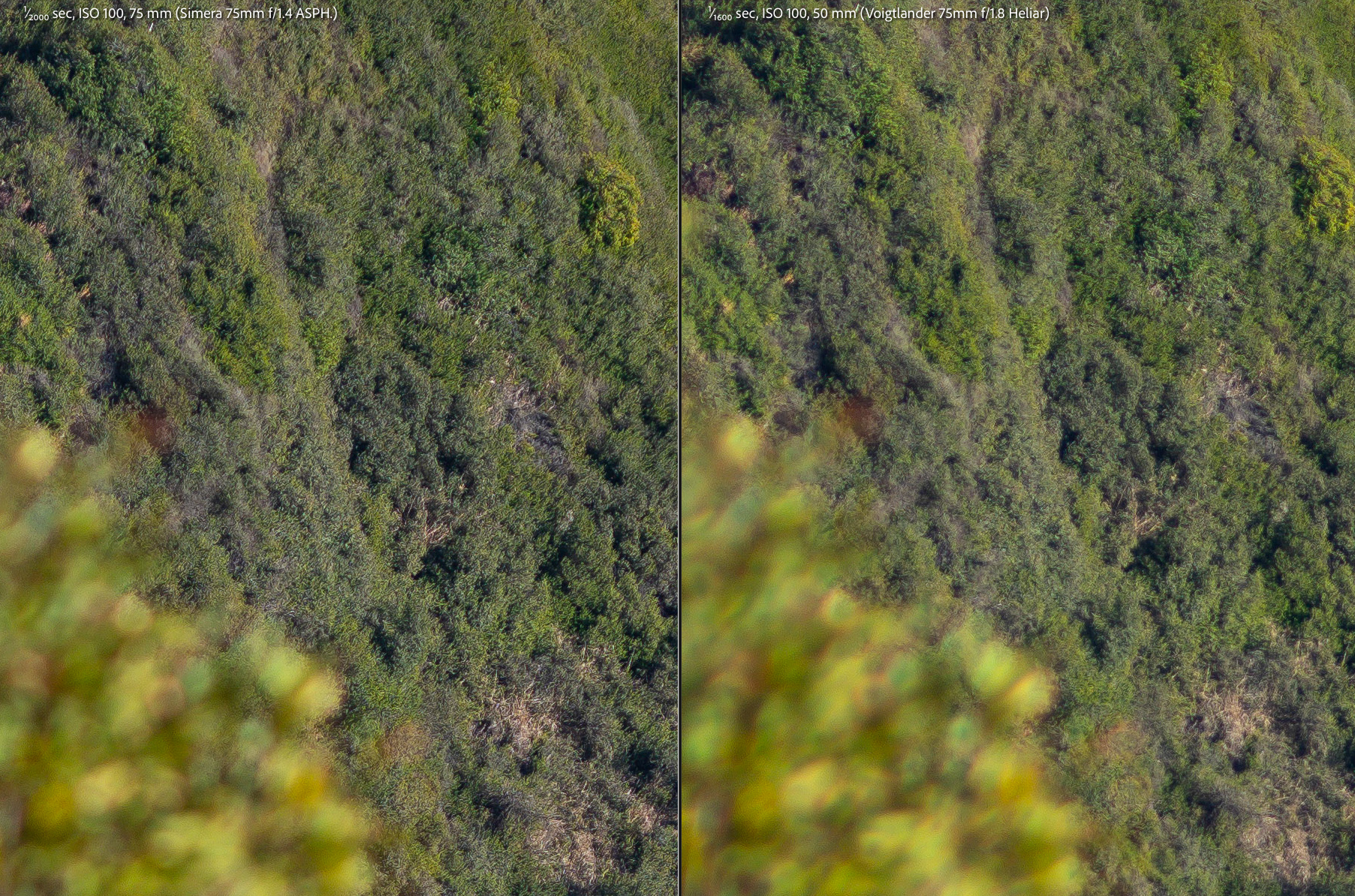

    Resolution and Contrast: Simera 75mm f/1.4 ASPH. vs Voigtlander 75mm f/1.8 Heliar Classic
    (open the browser window to view entire image without resizing)





    f/1.8







    f/2







    F/2.8







    F/4







    F/5.6







    F/8




Mar 20, 2025 at 01:19 PM
