Voigtlander 35mm f/1.4 Nokton: Color Mod
Keep it red
Paint the engraving Yellow
Paint the engraving Orange
Paint the engraving White

Voigtlander 35mm f/1.4 Nokton: Color Mod



rji2goleez
Offline
• • • • • •
Upload & Sell: On
p.2 #1 · p.2 #1 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Fred Miranda wrote:
Now that I've seen how easy this is, I might do it with my other Voigtländer lenses too!

BTW, I used the black paint stick to paint the Sony logo on my A7R II:


Really nice job and I'm quite interested in this. Question! Looking at the image above with the multiple layers of yellow. How do you clean the non-number area without smearing or ruining the numbered area? How difficult is it to get such perfect results?



Aug 06, 2024 at 12:52 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #2 · p.2 #2 · Voigtlander 35mm f/1.4 Nokton: Color Mod


rji2goleez wrote:
Really nice job and I'm quite interested in this. Question! Looking at the image above with the multiple layers of yellow. How do you clean the non-number area without smearing or ruining the numbered area? How difficult is it to get such perfect results?


Carefully mask off all areas you don’t want painted. Thorough masking will make the painting process much easier. Use a microfiber cloth (or any cloth) to clean up any excess paint that gets outside the engraving. After removing the blue tape, clean up any remaining paint. You may be surprised at how easily the paint comes off, leaving no residue. Be cautious to avoid smudging the new paint onto areas you want to keep unpainted.

If you make a mistake, acetone can quickly remove it. However, if you wait more than 10 minutes, the paint will set and become difficult to remove. Using acetone may remove all the paint from the engraving, leaving it black. If that happens, you can always repaint it.

It's actually a very simple task and takes just 5-10 minutes from start to finish. With Cosina lenses, you don't need to remove the existing paint -- just paint right over it.



Aug 06, 2024 at 01:35 PM
freaklikeme
Offline
• • • • • •
Upload & Sell: Off
p.2 #3 · p.2 #3 · Voigtlander 35mm f/1.4 Nokton: Color Mod


You didn't say you had purple available to you. That would stand out.


Aug 07, 2024 at 03:42 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #4 · p.2 #4 · Voigtlander 35mm f/1.4 Nokton: Color Mod


freaklikeme wrote:
You didn't say you had purple available to you. That would stand out.


Markal also offers fluorescent colors:
https://markal.com/products/bandreg-paintstikandreg?variant=41219209003196

Its interesting that the only non-corrosion color is the regular "yellow".



Aug 07, 2024 at 05:35 PM
ZdevilH1
Offline
• • •
Upload & Sell: On
p.2 #5 · p.2 #5 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Fred, you just sparked an interest in me for doing this.
Is the residue easily removed? Your results came out great!



Aug 07, 2024 at 08:24 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #6 · p.2 #6 · Voigtlander 35mm f/1.4 Nokton: Color Mod


ZdevilH1 wrote:
Fred, you just sparked an interest in me for doing this.
Is the residue easily removed? Your results came out great!


The advantage of using this paint stick is that any excess paint outside the engraving wipes off easily, leaving no residue behind.



Aug 07, 2024 at 09:28 PM
Jorge Torralba
Offline
• • • •
Upload & Sell: On
p.2 #7 · p.2 #7 · Voigtlander 35mm f/1.4 Nokton: Color Mod


+1 on the yellow.


Aug 07, 2024 at 10:08 PM
ZdevilH1
Offline
• • •
Upload & Sell: On
p.2 #8 · p.2 #8 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Fred Miranda wrote:
The advantage of using this paint stick is that any excess paint outside the engraving wipes off easily, leaving no residue behind.


Thank you!!



Aug 07, 2024 at 10:46 PM
freaklikeme
Offline
• • • • • •
Upload & Sell: Off
p.2 #9 · p.2 #9 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Fred Miranda wrote:
Markal also offers fluorescent colors:
https://markal.com/products/bandreg-paintstikandreg?variant=41219209003196

Its interesting that the only non-corrosion color is the regular "yellow".


What do you suppose they mean by that? Are the others prone to corrosion, meaning they'll need to be touched up eventually, or is yellow the only one that doesn't corrode anything it touches?



Aug 07, 2024 at 11:44 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #10 · p.2 #10 · Voigtlander 35mm f/1.4 Nokton: Color Mod


freaklikeme wrote:
What do you suppose they mean by that? Are the others prone to corrosion, meaning they'll need to be touched up eventually, or is yellow the only one that doesn't corrode anything it touches?


Honestly, I'm not sure, but maybe we could ask them for more information.





Aug 08, 2024 at 01:26 PM



Search in Used Dept.

Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #11 · p.2 #11 · Voigtlander 35mm f/1.4 Nokton: Color Mod


I’m excited to do this for more lenses now! Maybe the CV 50/2 APO will be next.


Aug 13, 2024 at 11:32 PM
Tor82
Offline

Upload & Sell: Off
p.2 #12 · p.2 #12 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Thank you Fred! This inspired me to try it my self! Just bought the Makral paintstik and did this on my 35mm F1.5 Nokton , and it came out great!!
To bad it didn't work at all on my Zeiss 28mm F2.8 :/

https://drive.google.com/drive/u/0/folders/1mIDqCf3PfUrWf5F7Uuq1YjeqcxXYqEKZ




Aug 17, 2024 at 04:59 AM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #13 · p.2 #13 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Tor82 wrote:
Thank you Fred! This inspired me to try it my self! Just bought the Makral paintstik and did this on my 35mm F1.5 Nokton , and it came out great!!
To bad it didn't work at all on my Zeiss 28mm F2.8 :/

https://drive.google.com/drive/u/0/folders/1mIDqCf3PfUrWf5F7Uuq1YjeqcxXYqEKZ



You're welcome! That looks fantastic -- excellent work! 👍



Aug 17, 2024 at 11:18 AM
ctixklap
Offline

Upload & Sell: Off
p.2 #14 · p.2 #14 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Wow that came out looking really nice


Aug 17, 2024 at 11:45 AM
rji2goleez
Offline
• • • • • •
Upload & Sell: On
p.2 #15 · p.2 #15 · Voigtlander 35mm f/1.4 Nokton: Color Mod

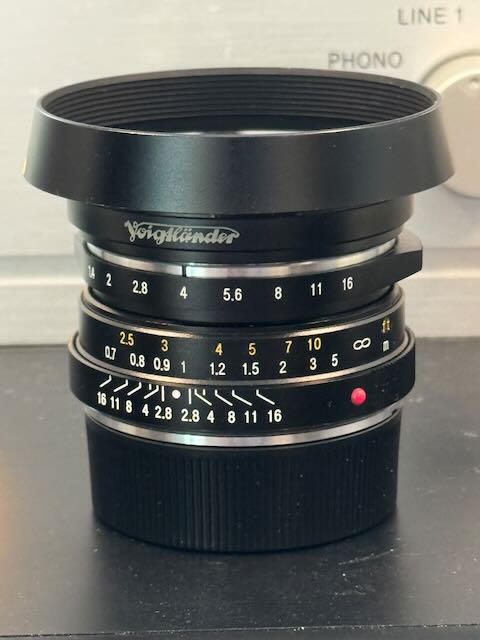

Finally got my paint sticks and went to work on the 35/1.4. Easy, easy, easy and came out great.

Thanks Fred!







Aug 19, 2024 at 03:38 PM
Fred Miranda
Offline
Admin
Upload & Sell: On
p.2 #16 · p.2 #16 · Voigtlander 35mm f/1.4 Nokton: Color Mod


rji2goleez wrote:
Finally got my paint sticks and went to work on the 35/1.4. Easy, easy, easy and came out great.

Thanks Fred!


Glad to help. It looks great, just like the Voigtlander Z-mount lenses. Did you paint the focal length as well? I left my white.



Aug 19, 2024 at 05:45 PM
rji2goleez
Offline
• • • • • •
Upload & Sell: On
p.2 #17 · p.2 #17 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Only the foot markers from red to yellow. Thinking of doing other lenses as well.


Aug 19, 2024 at 06:35 PM
philip_pj
Offline
• • • • •
Upload & Sell: On
p.2 #18 · p.2 #18 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Yellow is best if you don't want to use metric measures. When it really matters yellow is the choice for outdoor workers, fishermen etc. It's the standard.

Cosina is using a hidden persuader technique here, with dull maroon on some of its lenses' feet scales, to encourage its users to think in metric units.

The VM 75/1.5 for our market and (it seems the European/Asian markets) lacks a feet scale altogether, and each metre mark has its own line index. It's a delight to use. The North America 75/1.5 lenses for the new mounts use yellow in feet, which pushed the index lines out of the design.



Aug 19, 2024 at 07:23 PM
Max Power
Offline
• • •
Upload & Sell: Off
p.2 #19 · p.2 #19 · Voigtlander 35mm f/1.4 Nokton: Color Mod


That turned out better than I would have guessed.


Aug 20, 2024 at 10:27 AM
Lee Paul
Offline

Upload & Sell: Off
p.2 #20 · p.2 #20 · Voigtlander 35mm f/1.4 Nokton: Color Mod


Looks fantastic, you might have saved me a fortune (for a while), always wanted a Lecia lens for the yellow marker aesthetic. Can now make my little Nokton look more like a Leica lens now.

I'm wondering if it will work on the letters at the front of the lens also.

Anyone tried/thoughts?



Sep 09, 2024 at 03:56 AM
